2014 TOYOTA AURIS TOURING SPORTS washer fluid

4106-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
1ZR-FAE engine
Washer fluid tank (P. 423)
Engine coolant reservoir
(P. 418)
Engine oil filler cap
(P. 415)
Engine oil level dipstick
(P. 413)Battery (P. 420)
Fuse box (P. 446)
Electric cooling fan
Condenser (P. 419)
Radiator (P. 419)1
2
3
4
5
6
7
8
9

4116-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
1ND-TV engine
Washer fluid tank (P. 423)
Engine coolant reservoir
(P. 418)
Engine oil filler cap
(P. 415)
Engine oil level dipstick
(P. 413)Fuel filter (P. 424)
Battery (P. 420)
Fuse box (P. 446)
Radiator (P. 419)
Electric cooling fan
Condenser (P. 419)
Intercooler (P. 419)1
2
3
4
5
6
7
8
9
10
11

4126-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
1AD-FTV engine
Washer fluid tank (P. 423)
Engine coolant reservoir
(P. 418)
Engine oil level dipstick
(P. 413)
Engine oil filler cap
(P. 415)Fuel filter (P. 424)
Battery (P. 420)
Fuse box (P. 446)
Electric cooling fans
Condenser (P. 419)
Intercooler (P. 419)
Radiator (P. 419)1
2
3
4
5
6
7
8
9
10
11

4236-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
Vehicles without headlight cleaner
If any washer does not work,
the washer tank may be empty.
Add washer fluid.
Vehicles with headlight cleaner
If the fluid level is extremely low
add washer fluid.
Raise the cap keeping your fin-
ger pressed down on the hole in
the center and check the fluid
level in the tube.
Washer fluid
CAUTION
When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

4666-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
Headlights (vehicles with halogen headlights)
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Remove the cover.
Turn the bulb base counter-
clockwise and remove it.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
4

4676-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Install the cover.
Make sure the protruding part (A
in the illustration) is pointing
upwards and firmly push in the
cover’s perimeter.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
5
6
A7
8

4706-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
Front turn signal lights
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the light bulb, install by conducting and
with the directions reversed.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
1
2
3
432
5

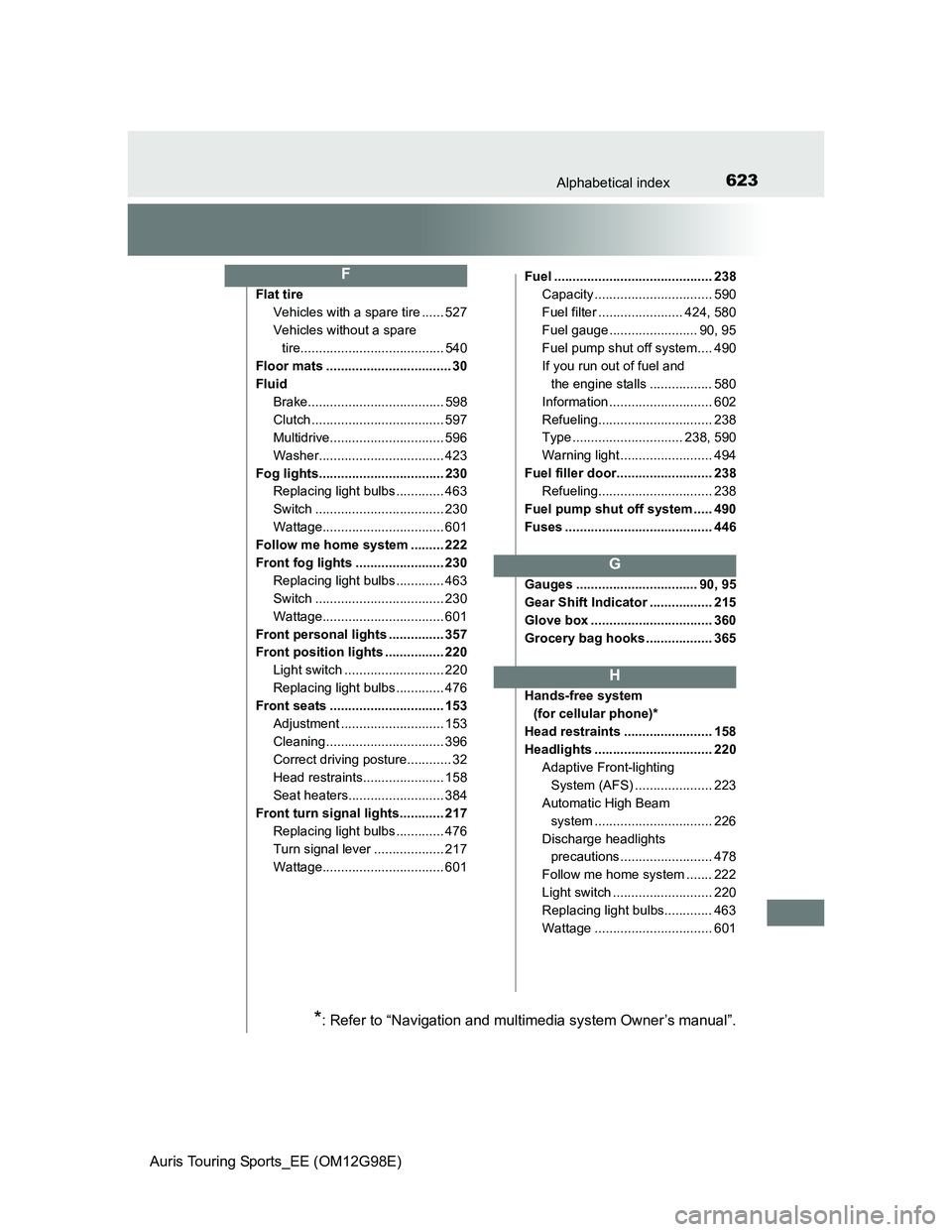

623Alphabetical index
Auris Touring Sports_EE (OM12G98E)
Flat tire
Vehicles with a spare tire ...... 527
Vehicles without a spare
tire....................................... 540
Floor mats .................................. 30
Fluid
Brake..................................... 598
Clutch .................................... 597
Multidrive............................... 596
Washer.................................. 423
Fog lights.................................. 230
Replacing light bulbs ............. 463
Switch ................................... 230
Wattage................................. 601
Follow me home system ......... 222
Front fog lights ........................ 230
Replacing light bulbs ............. 463
Switch ................................... 230
Wattage................................. 601
Front personal lights ............... 357
Front position lights ................ 220
Light switch ........................... 220
Replacing light bulbs ............. 476
Front seats ............................... 153
Adjustment ............................ 153
Cleaning ................................ 396
Correct driving posture............ 32
Head restraints...................... 158
Seat heaters.......................... 384
Front turn signal lights............ 217
Replacing light bulbs ............. 476
Turn signal lever ................... 217
Wattage................................. 601Fuel ........................................... 238
Capacity ................................ 590
Fuel filter ....................... 424, 580
Fuel gauge ........................ 90, 95
Fuel pump shut off system.... 490
If you run out of fuel and
the engine stalls ................. 580
Information ............................ 602
Refueling............................... 238
Type .............................. 238, 590
Warning light ......................... 494
Fuel filler door.......................... 238
Refueling............................... 238
Fuel pump shut off system ..... 490
Fuses ........................................ 446
Gauges ................................. 90, 95
Gear Shift Indicator ................. 215
Glove box ................................. 360
Grocery bag hooks .................. 365
Hands-free system
(for cellular phone)*
Head restraints ........................ 158
Headlights ................................ 220
Adaptive Front-lighting
System (AFS) ..................... 223
Automatic High Beam
system ................................ 226
Discharge headlights
precautions ......................... 478
Follow me home system ....... 222
Light switch ........................... 220
Replacing light bulbs............. 463
Wattage ................................ 601
F
G
H
*: Refer to “Navigation and multimedia system Owner’s manual”.
