2294-3. Operating the lights and wipers
Auris Touring Sports_EE (OM12G98E)
4
Driving
CAUTION
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if nec-
essary.
NOTICE
Notes when using the Automatic High Beam system
Do not touch the camera sensor.
Do not subject the inside rear view mirror or the camera sensor to a strong
impact.
Do not disassemble the camera sensor.
Do not spill liquid onto the inside rear view mirror or the camera sensor.
Do not apply window tinting or stickers to the camera sensor or the area of
windshield near the camera sensor.
Do not place items on the dashboard. There is a possibility that the cam-
era sensor will mistake items reflected in the windshield for streetlights,
the headlights of other vehicles, etc.
Do not install a parking tag or any other accessories near or around the
inside rear view mirror and the camera sensor.
Do not overload the vehicle.
Do not modify the vehicle.
Do not replace windshield with non-genuine windshield.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Observe the following to ensure that the
Automatic High Beam functions correctly.

4526-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
*1: Vehicles with 1ZR-FAE engine
*2: Vehicles with 1NR-FE engine
*3: Vehicles without discharge headlights
*4: Vehicles with discharge headlights
*5: Vehicles without PTC 600W heater
*6: Vehicles with PTC 600W heater
29EFI NO.110 A
Multiport fuel injection system/sequential
multiport fuel injection system, Stop &
Start system
30MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
31SPARE10 ASpare fuse
32H-LP RH-LO10 A*3
Right-hand headlight (low beam)15 A*4
33H-LP LH-LO10 A*3Left-hand headlight (low beam), manual
headlight leveling dial
15 A*4Left-hand headlight (low beam)
34H-LP RH-HI7.5 ARight-hand headlight (high beam)
35H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
36BBC*240 AStop & Start system
37STRG LOCK20 ASteering lock system
38AMP15 AAudio system
39H-LP CLN30 AHeadlight cleaner
40PTC HIR NO.130 A*5
Air conditioning system50 A*6
41PTC HIR NO.230 AAir conditioning system
42S-HORN10 AS-HORN
43PTC HIR NO.330 AAir conditioning system
FuseAmpereCircuit

4586-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
*1: Vehicles with 1AD-FTV engine
*2: Vehicles with 1ND-TV engine
*3: Vehicles without discharge headlights
*4: Vehicles with discharge headlights
29MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
30SPARE10 ASpare fuse
31H-LP RH-LO10 A*3
Right-hand headlight (low beam)15 A*4
32H-LP LH-LO10 A*3Left-hand headlight (low beam), manual
headlight leveling dial
15 A*4Left-hand headlight (low beam)
33H-LP RH-HI7.5 ARight-hand headlight (high beam)
34H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
35GLOW80 AEngine glow system
36BBC40 AStop & Start system
37STRG LOCK20 ASteering lock system
38AMP15 AAudio system
39CDN FAN30 AElectric cooling fan(s)
40H-LP CLN30 AHeadlight cleaner
41PTC HIR NO.150 AAir conditioning system
42PTC HIR NO.230 AAir conditioning system
43STV HTR25 APower heater
44S-HORN10 A
45PTC HIR NO.330 AAir conditioning system
FuseAmpereCircuit

4937-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
(Flashes)
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system
(Comes on)
Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
The light will flash when the VSC, the TRC or the hill-start
assist control system is operating.
(Comes on in
yellow)
Automatic High Beam indicator light (if equipped)
Indicates a malfunction in the Automatic High Beam sys-
tem.
(Flashes)
“AFS OFF” indicator (if equipped)
Indicates a malfunction in the adaptive front-lighting sys-
tem
Warning lightWarning light/Details

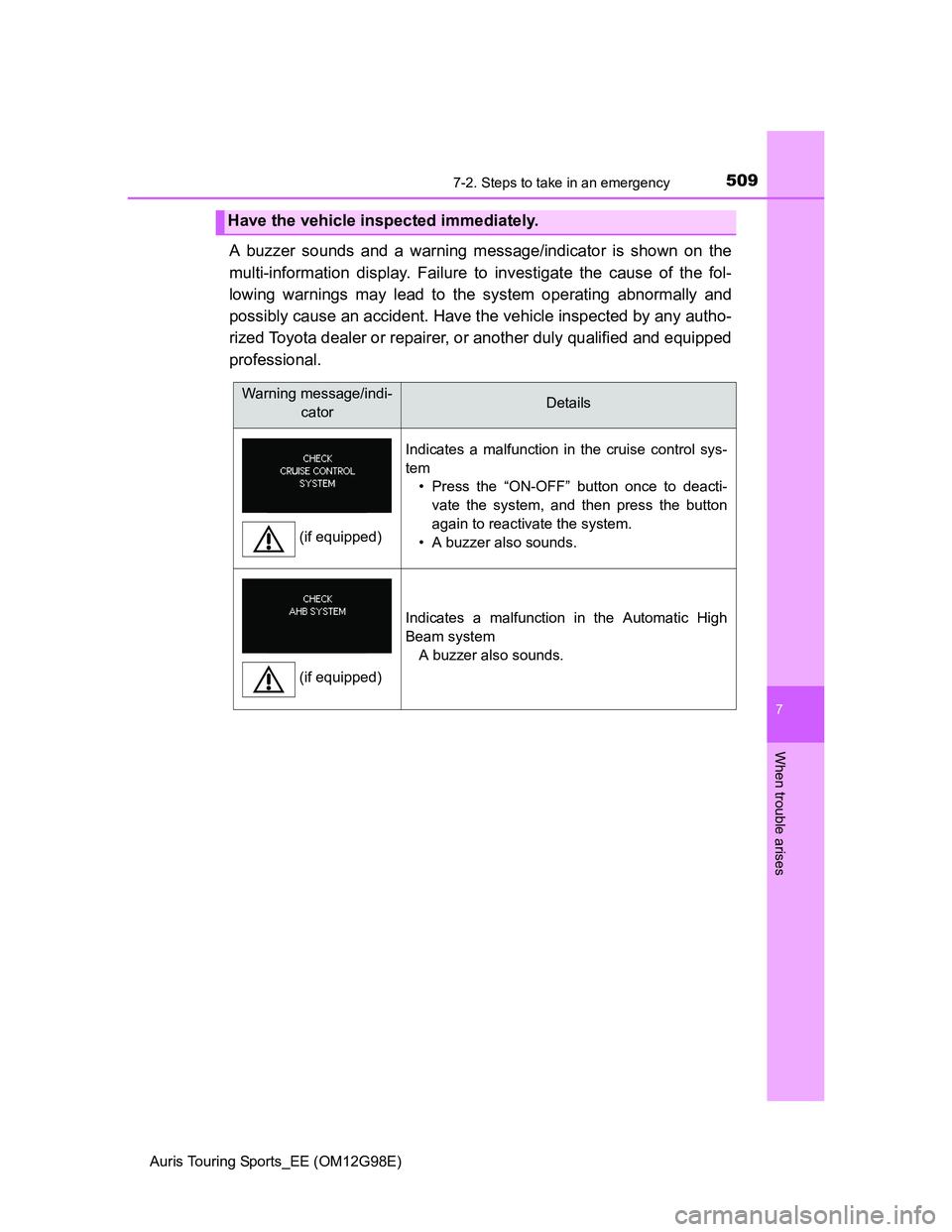

5097-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
7
When trouble arises
A buzzer sounds and a warning message/indicator is shown on the
multi-information display. Failure to investigate the cause of the fol-
lowing warnings may lead to the system operating abnormally and
possibly cause an accident. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Have the vehicle inspected immediately.
Warning message/indi-
catorDetails
Indicates a malfunction in the cruise control sys-
tem
• Press the “ON-OFF” button once to deacti-
vate the system, and then press the button
again to reactivate the system.
• A buzzer also sounds.
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
(if equipped)
(if equipped)

5387-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G98E)
CAUTION
When using the compact spare tire
Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
Do not use more than one compact spare tires simultaneously.
Replace the compact spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
• ABS & Brake assist
•VSC
•TRC
• Automatic High Beam
(if equipped)• Cruise control (if equipped)
•EPS
• AFS (if equipped)

6068-2. Customization
Auris Touring Sports_EE (OM12G98E)
Automatic
light control
system
*1
(P. 220)
Adjust the sensitivity of
the ambient light sensorLevel 3Level 1 to
5OO
Headlights
(P. 220)Time elapsed before
headlights automatically
turn off30
seconds
60
seconds
—O90
seconds
120
seconds
Automatic
High
Beam
*1
(P. 226)
Automatic High Beam sys-
temOnOff—O
Turn signal
lever
(P. 217)
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
(After flashing the turn sig-
nal lights when turning left
or right while this function
is off and the turn signal
lever is moved to the first
position in direction of the
flashing light, the turn sig-
nal lights can be selected
to be flashing or off.)
3
5
—O
7
Off
(The turn
signal
lights will
be off if the
turn signal
lever is
moved to
the first
position in
direction of
flashing
light.)
ItemFunctionDefault
settingCustom-
ized setting12

619
Auris Touring Sports_EE (OM12G98E)
Alphabetical index
Alphabetical index
A/C..................................... 295, 304
Air conditioning filter.............. 441
ABS
(Anti-lock Brake System) ...... 276
Function ................................ 276
Warning light ......................... 493
Adaptive Front-lighting
System (AFS) ......................... 223
AFS (Adaptive Front-lighting
System) .................................. 223
Air conditioning filter .............. 441
Air conditioning
system ............................ 295, 304
Air conditioning filter.............. 441
Airbag manual on-off system ... 48
Airbags ....................................... 38
Airbag manual on-off
system .................................. 48
Airbag operating conditions .... 44
Airbag precautions for
your child .............................. 40
Airbag warning light .............. 493
Correct driving posture............ 32
Curtain shield airbag
operating conditions ............. 44
Curtain shield airbag
precautions ........................... 42
General airbag precautions..... 40
Locations of airbags ................ 38
Modification and
disposal of airbags................ 43
Side airbag operating
conditions ............................. 44
Side airbag precautions .......... 40
Side and curtain shield airbags
operating conditions ............. 44
Side and curtain shield airbags
precautions ........................... 40
SRS airbags ............................ 38Alarm .......................................... 79
Alarm ...................................... 79
Warning buzzer............. 491, 507
Anchor brackets ........................ 60
Antennas (smart entry &
start system) .......................... 119
Anti-lock Brake
System (ABS) ........................ 276
Function ................................ 276
Warning light ......................... 493
Armrest ..................................... 386
Ashtrays ................................... 381
Assist grips .............................. 388
Audio input............................... 351
Audio system ........................... 316
Audio input ............................ 351
AUX port/
USB port ............. 333, 342, 351
CD player .............................. 322
iPod....................................... 333
MP3/WMA disc ..................... 327
Optimal use........................... 349
Portable music player ........... 351
Radio .................................... 318
Steering wheel audio
switch ................................. 352
USB memory ........................ 342
Automatic headlight leveling
system .................................... 225
Automatic High Beam ............. 226
Automatic light control
system .................................... 220
AUX port ................................... 351
Auxiliary boxes ................ 364, 369
