2014 TOYOTA AURIS HYBRID CD player

TABLE OF CONTENTS4
UK_AURIS/AURIS_HV_EE (OM12G88E)5-1. Using the air conditioning
system and defogger
Heater system....................392
Automatic air conditioning
system (without dual
operation) ........................397
Automatic air conditioning
system (with dual
operation) ........................406
Power heater .....................414
Rear window and
outside rear view
mirror defoggers ..............416
5-2. Using the audio system
Audio system types............418
Using the radio...................420
Using the CD player...........424
Playing back MP3 and
WMA discs.......................429
Operating an iPod ..............435
Operating a USB
memory............................444
Optimal use of the audio
system .............................451
Using the AUX port ............453
Using the steering wheel
audio switches .................454
5-3. Using the interior lights
Interior lights list .................457
• Interior lights ................. 458
• Vanity lights .................. 458
• Personal lights .............. 4595-4. Using the storage
features
List of storage features...... 461
• Glove box..................... 462
• Console box ................. 462
• Bottle holders ............... 463
• Cup holders ................. 464
• Auxiliary boxes ............. 465
Luggage compartment
features ........................... 467
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 474
Clock ................................. 475
Outside temperature
display ............................. 476
Portable ashtray ................ 478
Power outlets .................... 479
Seat heaters ...................... 481
Armrest.............................. 484
Coat hooks ........................ 485
Assist grips ........................ 486
Panoramic roof shade ....... 487
5Interior features

511-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)
CAUTION
SRS airbag precautions
Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags. Such
accessories may prevent the side airbags from activating correctly, disable
the system or cause the side airbags to inflate accidentally, resulting in
death or serious injury.
Do not strike or apply significant levels of force to the area of the SRS air-
bag components.
Doing so can cause the SRS airbags to malfunction.
Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes are damaged or cracked, have
them replaced by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
Installation, removal, disassembly and repair of the SRS airbags
Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails
Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment
Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,
winches
Modifications to the vehicle’s suspension system
Installation of electronic devices such as mobile two-way radios (RF-trans-
mitter) and CD players
Modifications to your vehicle for a person with a physical disability

1643-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and immobilizer system from operating properly.
(Ways of coping: P. 704)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
When other wireless keys (that emit radio waves) are being used nearby
When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to the
rear window
When the electronic key is placed near a battery charger or electronic
devices

1843-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)Conditions affecting operation
The push button start uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the push button start, wireless remote control and immobilizer sys-
tem from operating properly: (Ways of coping: P. 704)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
When other wireless keys (that emit radio waves) are being used nearby
When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to the
rear window
When the electronic key is placed near a battery charger or electronic
devices

391
5Interior features
UK_AURIS/AURIS_HV_EE (OM12G88E)5-1. Using the air conditioning
system and defogger
Heater system ................... 392
Automatic air conditioning
system (without dual
operation) ........................ 397
Automatic air conditioning
system (with dual
operation) ........................ 406
Power heater ..................... 414
Rear window and
outside rear view
mirror defoggers .............. 416
5-2. Using the audio system
Audio system types ........... 418
Using the radio .................. 420
Using the CD player .......... 424
Playing back MP3 and
WMA discs....................... 429
Operating an iPod.............. 435
Operating a USB
memory............................ 444
Optimal use of the audio
system ............................. 451
Using the AUX port ............ 453
Using the steering wheel
audio switches ................. 4545-3. Using the interior lights
Interior lights list ................. 457
• Interior lights .................. 458
• Vanity lights ................... 458
• Personal lights ............... 459
5-4. Using the storage
features
List of storage features ...... 461
• Glove box ...................... 462
• Console box .................. 462
• Bottle holders ................ 463
• Cup holders ................... 464
• Auxiliary boxes .............. 465
Luggage compartment
features............................ 467
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 474
Clock .................................. 475
Outside temperature
display ............................. 476
Portable ashtray................. 478
Power outlets ..................... 479
Seat heaters ...................... 481
Armrest .............................. 484
Coat hooks......................... 485
Assist grips ........................ 486
Panoramic roof shade........ 487

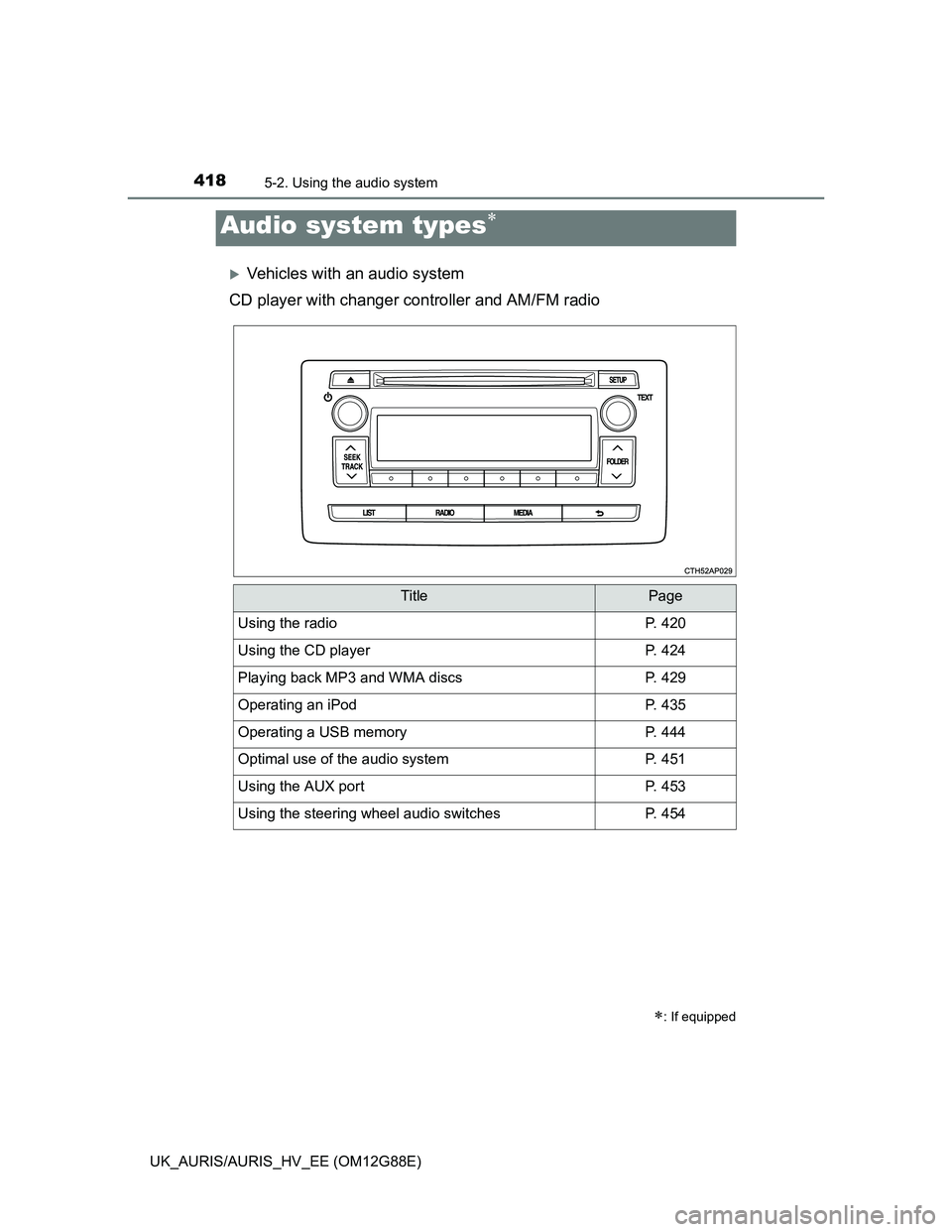

418
UK_AURIS/AURIS_HV_EE (OM12G88E)
5-2. Using the audio system
Vehicles with an audio system
CD player with changer controller and AM/FM radio
Audio system types
: If equipped
TitlePage
Using the radioP. 420
Using the CD playerP. 424
Playing back MP3 and WMA discsP. 429
Operating an iPodP. 435
Operating a USB memoryP. 444
Optimal use of the audio systemP. 451
Using the AUX portP. 453
Using the steering wheel audio switchesP. 454

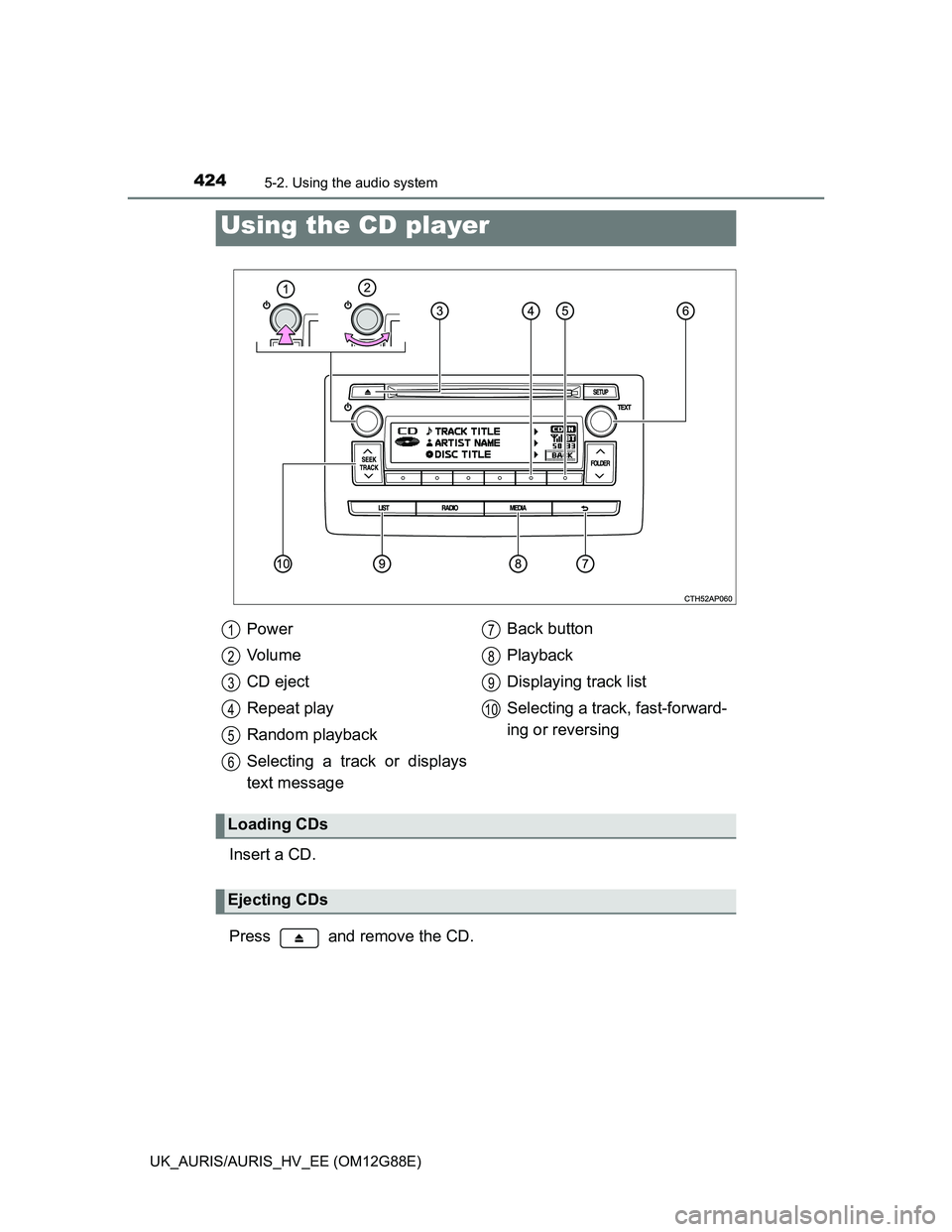

4245-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
Insert a CD.
Press and remove the CD.
Using the CD player
Power
Vo l u m e
CD eject
Repeat play
Random playback
Selecting a track or displays
text messageBack button
Playback
Displaying track list
Selecting a track, fast-forward-
ing or reversing
Loading CDs
Ejecting CDs
1
2
3
4
5
6
7
8
9
10

4265-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
Display
Up to 24 characters can be displayed at a time.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Error messages
“ERROR”: This indicates a problem either in the CD or inside the player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press . If the CD still
cannot be played back, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped profes-
sional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
CAUTION
Certification for the CD player
This product is a class I laser product.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
