5706-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
10EFI-MAIN30 A
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2
11HORN10 AHorn
12D/C CUT30 ADOME, ECU-B NO.1, RADIO
13AM27.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, IG2, multi-mode manual trans-
mission, Stop & Start system
14ECU-B NO.35 AElectric power steering
15ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, out side rear
view mirrors, gauge and meters, multi-
mode manual transmission
16SPARE30 ASpare fuse
17HTR50 AAir conditioning system
18ABS NO.150 AABS, VSC
19DEF30 ARear window defogger, outside rear view
mirror defoggers
20RDI40 AElectric cooling fan
21ABS NO.230 AABS, VSC
22DRL10 ADaytime running lights
23RADIO20 AAudio system
24DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
25ECU-B NO.110 A
Wireless remote control, main body ECU,
smart entry & start system, clock, VSC,
power door lock system, tire pressure
warning system
26SPARE20 ASpare fuse
27EFI NO.2*210 AMultiport fuel injection system/sequential
multiport fuel injection system
28EFI NO.110 AMultiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

5716-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

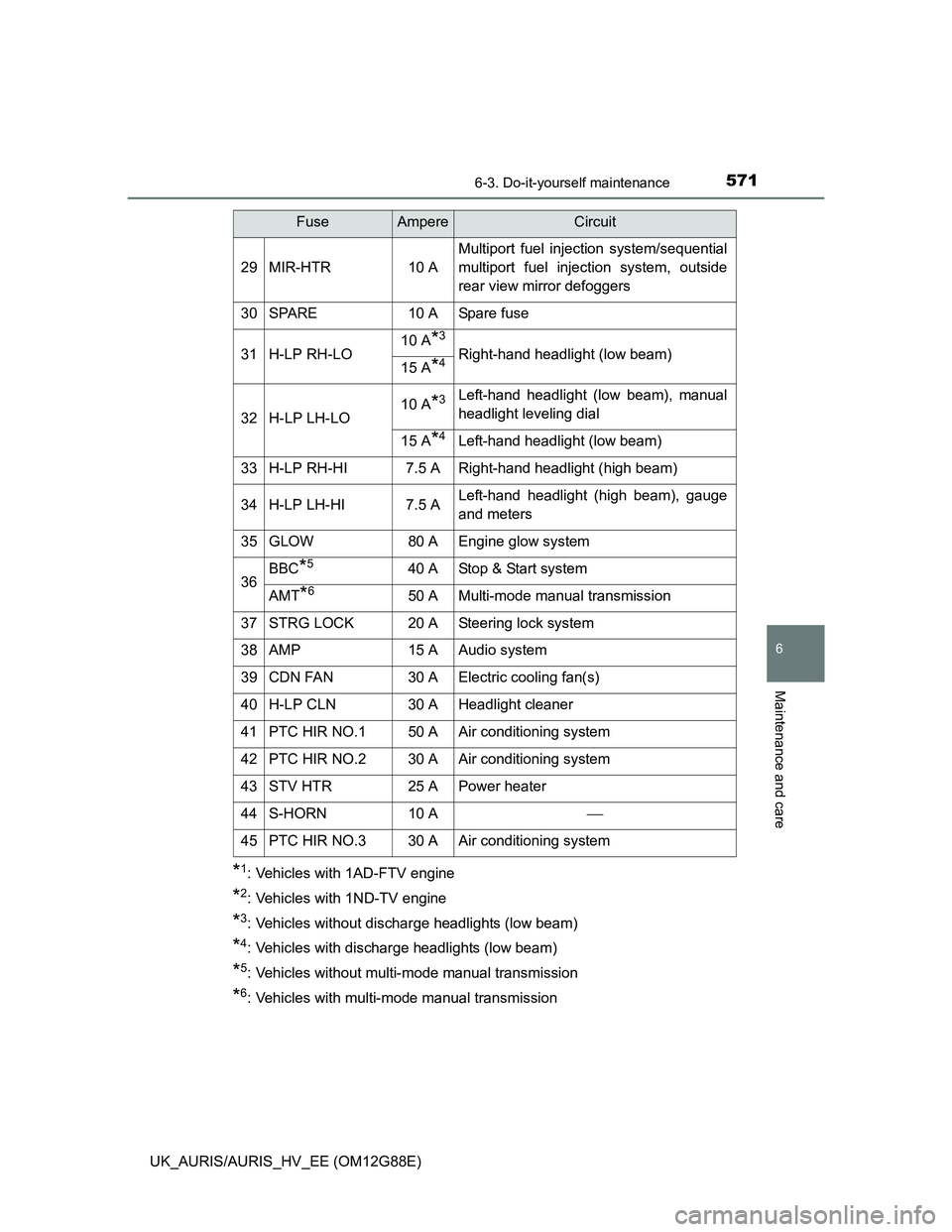

*1: Vehicles with 1AD-FTV engine
*2: Vehicles with 1ND-TV engine
*3: Vehicles without discharge headlights (low beam)
*4: Vehicles with discharge headlights (low beam)
*5: Vehicles without multi-mode manual transmission
*6: Vehicles with multi-mode manual transmission
29MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
30SPARE10 ASpare fuse
31H-LP RH-LO10 A*3
Right-hand headlight (low beam)15 A*4
32H-LP LH-LO10 A*3Left-hand headlight (low beam), manual
headlight leveling dial
15 A*4Left-hand headlight (low beam)
33H-LP RH-HI7.5 ARight-hand headlight (high beam)
34H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
35GLOW80 AEngine glow system
36BBC*540 AStop & Start system
AMT*650 AMulti-mode manual transmission
37STRG LOCK20 ASteering lock system
38AMP15 AAudio system
39CDN FAN30 AElectric cooling fan(s)
40H-LP CLN30 AHeadlight cleaner
41PTC HIR NO.150 AAir conditioning system
42PTC HIR NO.230 AAir conditioning system
43STV HTR25 APower heater
44S-HORN10 A
45PTC HIR NO.330 AAir conditioning system
FuseAmpereCircuit

5736-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
15WIPER RR15 ARear window wiper
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
panoramic roof shade, headlight cleaner,
audio system, AFS, windshield wipers,
tire pressure warning system, cruise con-
trol system
26HTR-IG7.5 A
Air conditioning system, rear window
defogger, power heater, Stop & Start sys-
tem
27ECU-IG NO.47.5 A
Front passenger seat belt reminder light,
airbag manual on-off system, outside
rear view mirrors, main body ECU,
Toyota parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
FuseAmpereCircuit

5756-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

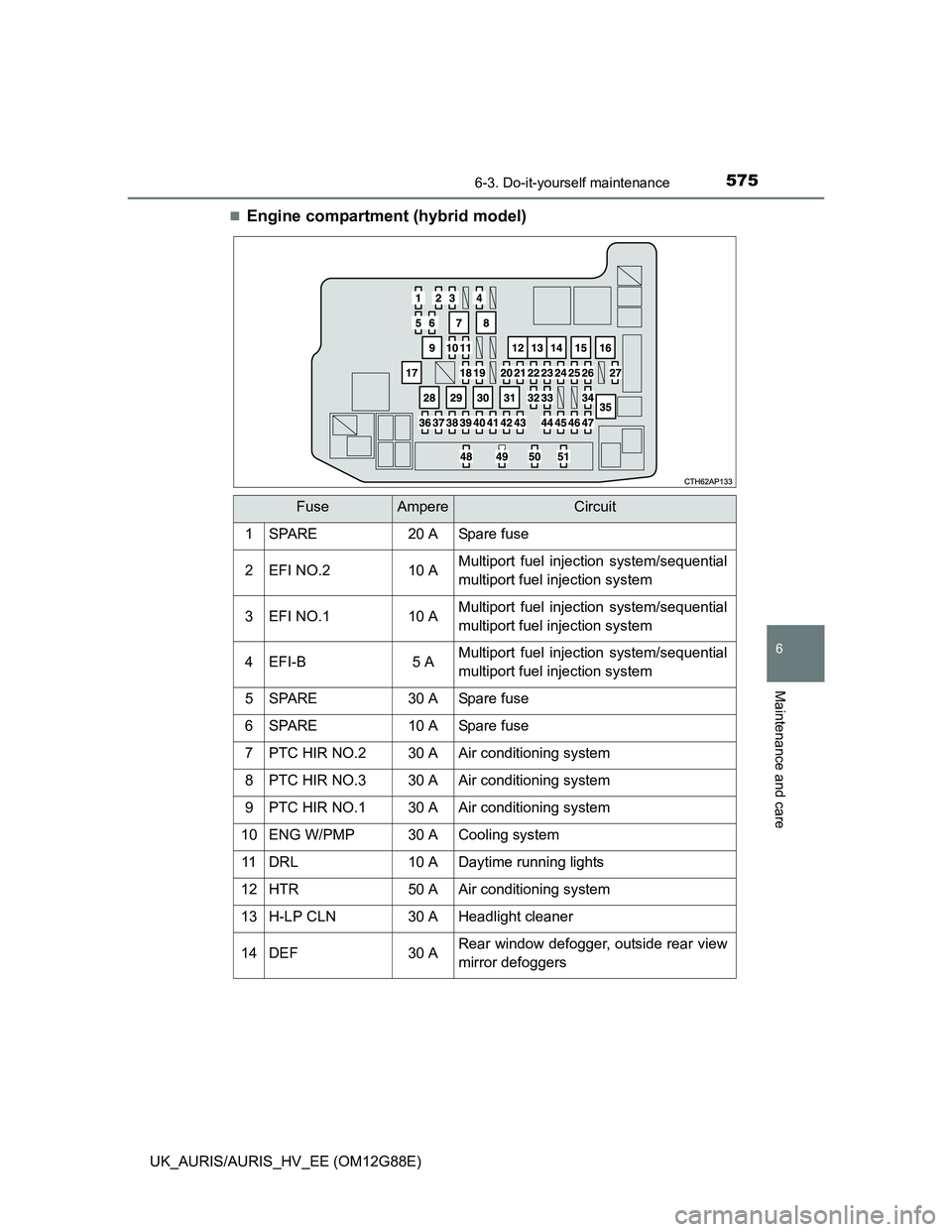

Engine compartment (hybrid model)
FuseAmpereCircuit
1SPARE20 ASpare fuse
2EFI NO.210 AMultiport fuel injection system/sequential
multiport fuel injection system
3EFI NO.110 AMultiport fuel injection system/sequential
multiport fuel injection system
4EFI-B5 AMultiport fuel injection system/sequential
multiport fuel injection system
5SPARE30 ASpare fuse
6SPARE10 ASpare fuse
7PTC HIR NO.230 AAir conditioning system
8PTC HIR NO.330 AAir conditioning system
9PTC HIR NO.130 AAir conditioning system
10ENG W/PMP30 ACooling system
11DRL10 ADaytime running lights
12HTR50 AAir conditioning system
13H-LP CLN30 AHeadlight cleaner
14DEF30 ARear window defogger, outside rear view
mirror defoggers

5766-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

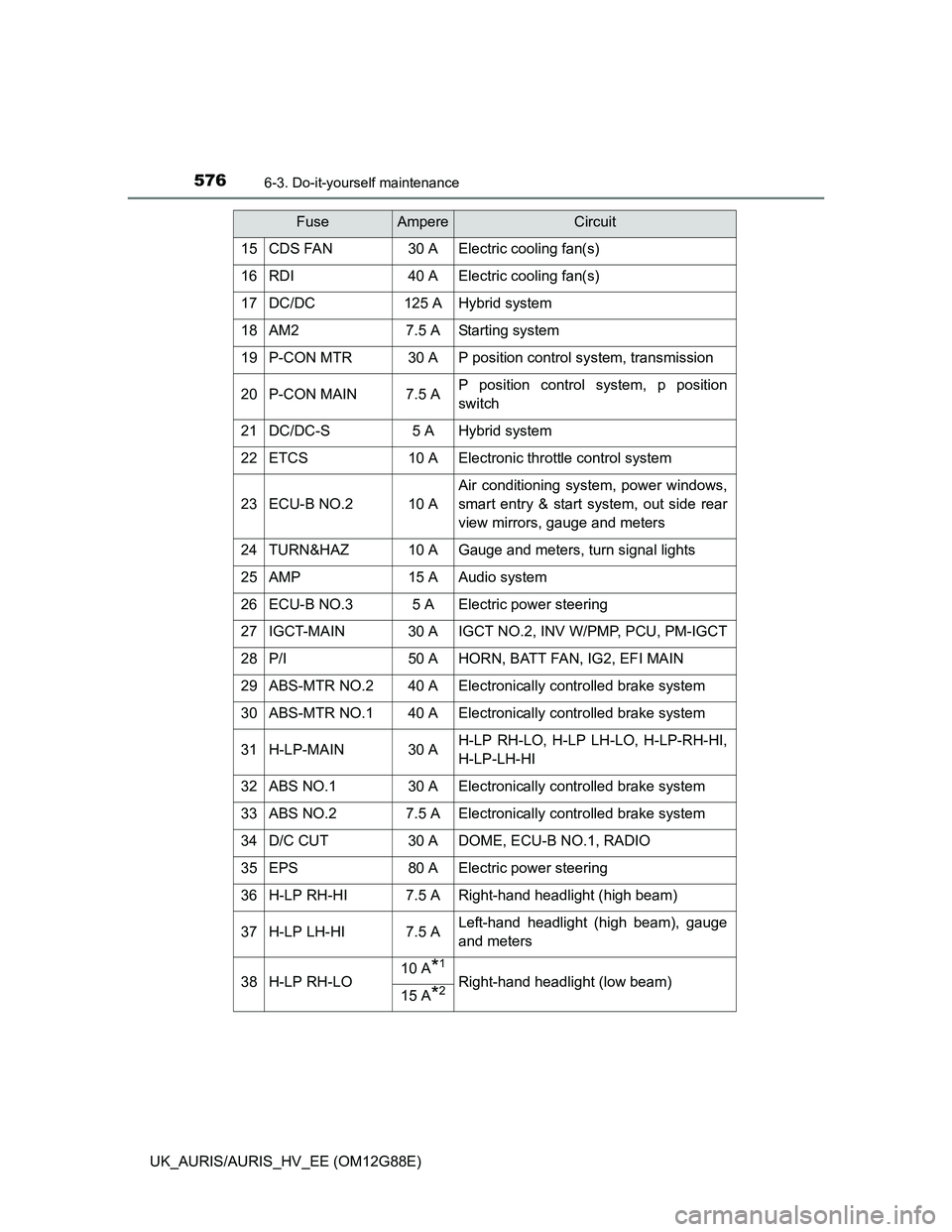

15CDS FAN30 AElectric cooling fan(s)
16RDI40 AElectric cooling fan(s)
17DC/DC125 AHybrid system
18AM27.5 AStarting system
19P-CON MTR30 AP position control system, transmission
20P-CON MAIN7.5 AP position control system, p position
switch
21DC/DC-S5 AHybrid system
22ETCS10 AElectronic throttle control system
23ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, out side rear
view mirrors, gauge and meters
24TURN&HAZ10 AGauge and meters, turn signal lights
25AMP15 AAudio system
26ECU-B NO.35 AElectric power steering
27IGCT-MAIN30 AIGCT NO.2, INV W/PMP, PCU, PM-IGCT
28P/I50 AHORN, BATT FAN, IG2, EFI MAIN
29ABS-MTR NO.240 AElectronically controlled brake system
30ABS-MTR NO.140 AElectronically controlled brake system
31H-LP-MAIN30 AH-LP RH-LO, H-LP LH-LO, H-LP-RH-HI,
H-LP-LH-HI
32ABS NO.130 AElectronically controlled brake system
33ABS NO.27.5 AElectronically controlled brake system
34D/C CUT30 ADOME, ECU-B NO.1, RADIO
35EPS80 AElectric power steering
36H-LP RH-HI7.5 ARight-hand headlight (high beam)
37H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
38H-LP RH-LO10 A*1
Right-hand headlight (low beam)15 A*2
FuseAmpereCircuit

5776-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

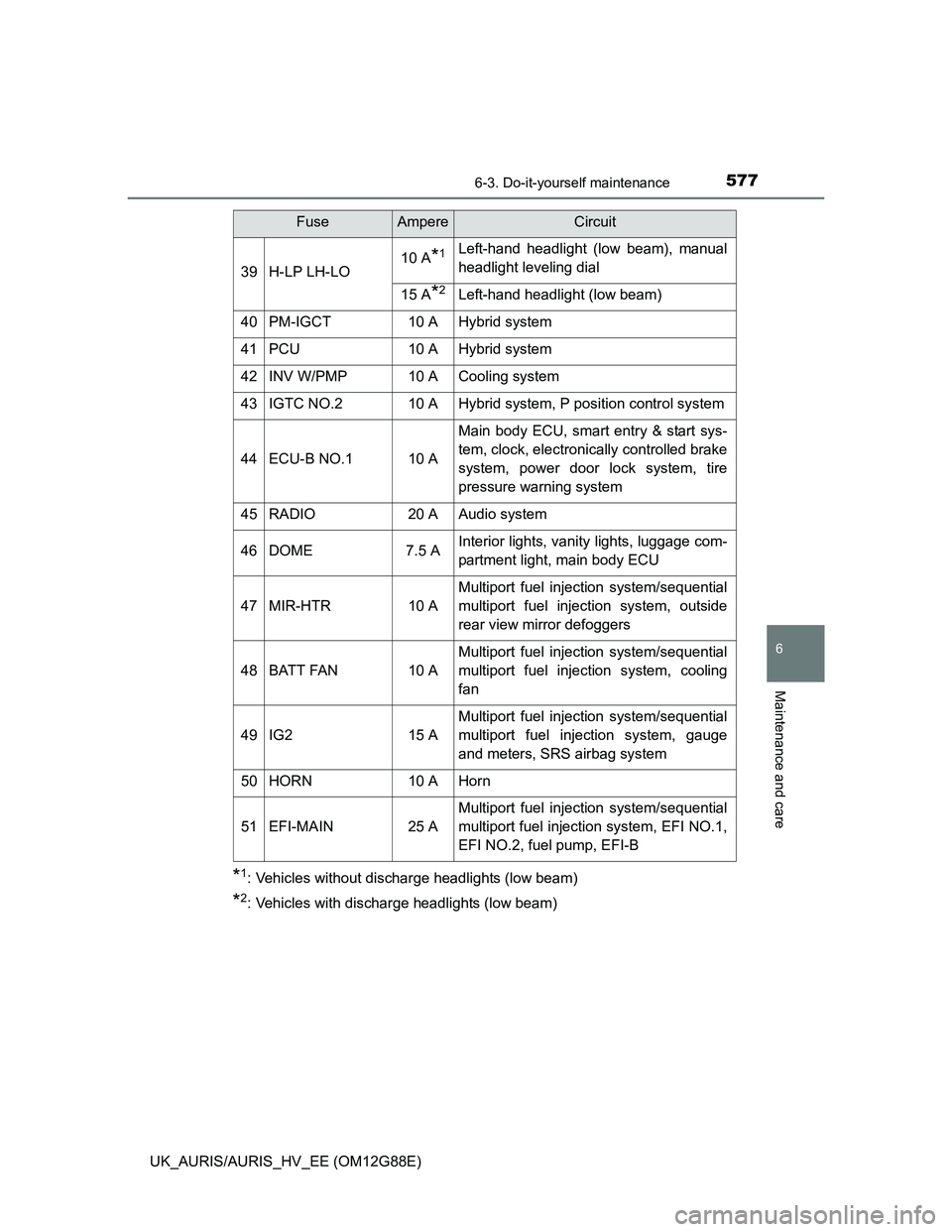

*1: Vehicles without discharge headlights (low beam)
*2: Vehicles with discharge headlights (low beam)
39H-LP LH-LO10 A*1Left-hand headlight (low beam), manual
headlight leveling dial
15 A*2Left-hand headlight (low beam)
40PM-IGCT10 AHybrid system
41PCU10 AHybrid system
42INV W/PMP10 ACooling system
43IGTC NO.210 AHybrid system, P position control system
44ECU-B NO.110 A
Main body ECU, smart entry & start sys-
tem, clock, electronically controlled brake
system, power door lock system, tire
pressure warning system
45RADIO20 AAudio system
46DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
47MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
48BATT FAN10 A
Multiport fuel injection system/sequential
multiport fuel injection system, cooling
fan
49IG215 A
Multiport fuel injection system/sequential
multiport fuel injection system, gauge
and meters, SRS airbag system
50HORN10 AHorn
51EFI-MAIN25 A
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2, fuel pump, EFI-B
FuseAmpereCircuit

5796-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
14WIPER NO.225 AWindshield wipers
15WIPER RR15 ARear window wiper
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 AOutside rear view mirrors, audio system,
main body ECU, clock, power outlet
19SFT LOCK-ACC5 A
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 A
23ECU-IG NO.17.5 AElectric cooling fan, AFS, electronically
controlled brake system
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Inside rear view mirror, headlight cleaner,
audio system, AFS, panoramic roof
shade, windshield washer, tire pressure
warning system
26HTR-IG7.5 AAir conditioning system, rear window
defogger, seat heaters
27ECU-IG NO.47.5 A
Main body ECU, front passenger seat
belt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28ECU-IG NO.55 AElectric power steering
29IGN7.5 A
Smart entry & start system, stop lights,
electronically controlled brake system,
power management system
30S/HTR15 ASeat heaters
31METER5 AGauge and meters
FuseAmpereCircuit

773Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12G88E)
Child-protectors ....................... 205
Cleaning............................ 490, 494
Aluminum wheels .................. 491
Exterior.................................. 490
Interior ................................... 494
Seat belts .............................. 495
Clock ......................................... 475
Coat hooks ............................... 485
Condenser ................................ 523
Console box ............................. 462
Cooling system ........................ 521
Engine overheating ............... 720
Hybrid system overheating ... 723
Cruise control
Cruise control ........................ 338
Cup holders .............................. 464
Curtain shield airbags ............... 46
Customizable features ............ 757Daytime running light
system .................................... 314
Deck board ............................... 467
Defogger
Outside rear view mirrors...... 416
Rear window ......................... 416
Dimensions .............................. 732
Display
Drive monitor display ............ 124
Multi-information display ....... 128
Trip information ............. 125, 132
Warning message ................ 631
Do-it-yourself maintenance .... 500
Door lock
Doors .................................... 203
Smart entry & start system ... 157
Wireless remote control ........ 194
Doors ........................................ 203
Back door.............................. 207
Door lock............................... 203
Door windows ....................... 224
Double locking system .......... 112
Open door warning buzzer ... 161
Open door warning
light ............................. 618, 634
Outside rear view mirrors...... 221
Rear door child-protector ...... 205
Double locking system ........... 112
DPF
Diesel Particulate Filter
system ................................ 382
Warning light ......................... 619
Warning message ................. 639
Driving ...................................... 230
Break-in tips .......................... 235
Correct posture ....................... 40
Hybrid vehicle driving tips ..... 384
Procedures ........................... 230
Winter drive tips .................... 386D
*: Refer to “Navigation and multimedia system Owner’s manual”.
