For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)
1-3. Theft deterrent system
Vehicles without a smart entry &
start system:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart entry & start
system:
The indicator light flashes after
the engine switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNI-
TION ON mode to indicate that
the system has been canceled.
Engine immobilizer system (except hybrid
model)
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

921-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12G88E)
System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

931-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)Certification for the engine immobilizer system
Vehicles without a smart entry & start system

1051-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)
Do one of the following to deactivate or stop the alarm:
Unlock the doors using the entry function (if equipped) or wireless
remote control.
Except hybrid model: Start the engine. (The alarm will be deacti-
vated or stopped after a few seconds.)
Hybrid model: Start the hybrid system. (The alarm will be deacti-
vated or stopped after a few seconds.)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
Nobody is in the vehicle.
The windows are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

1121-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12G88E)
Vehicles employing this system
have labels on the window glass
of both front doors.
Except hybrid model: Turn the engine switch off, have all the pas-
sengers exit the vehicle and ensure that all the doors are closed.
Hybrid model: Turn the power switch off, have all the passengers
exit the vehicle and ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function (if equipped): Hold the outside door handle.
Using the wireless remote control: Press .
Double locking system (right-hand drive
vehicles only)
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
1
2

1192. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1, 2
(Red)
Brake system warning
light (P. 613)*1, 2Electric power steering
system warning light
(P. 616)
*2
(Yellow)
Brake system warning
light (hybrid model)
(P. 617)*4, 7
(Yellow)
Automatic High Beam
indicator light (P. 617)
*1, 3
Charging system warn-
ing light (P. 614)*4, 7
(Yellow)
Cruise control indicator
light (P. 617)
*1, 3
Low engine oil pressure
warning light (P. 614)*4, 7
(Yellow)
Speed limiter indicator
light (P. 617)
*1, 3High engine coolant
temperature warning
light (P. 614)*4, 5Stop & Start cancel indi-
cator (P. 616)
*1Multi-mode manual
transmission warning
light (vehicles with a
multi-mode manual
transmission) (P. 614)*4, 6
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 617)
*1, 2Malfunction indicator
lamp (P. 616)*1, 3Fuel filter warning light
(diesel engine)
(P. 617)
*1, 2SRS warning light
(P. 616)*3Open door warning light
(P. 618)
*1, 2ABS warning light
(P. 616)Low fuel level warning
light (P. 618)

1202. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
*1: Except hybrid model: These lights turn on when the engine switch is turned
to the “ON” position (vehicles without a smart entry & start system) or the
engine switch is turned to IGNITION ON mode (vehicles with a smart entry
& start system) to indicate that a system check is being performed. They
will turn off after the engine is on, or after a few seconds. There may be a
malfunction in a system if the lights do not come on, or turn off. Have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
*2: Hybrid model: These lights turn on when the power switch is turned to ON
mode to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
*3: Vehicles with a drive monitor display
*4: If equipped
*5: The light flashes to indicate a malfunction.
*6: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*7: The light comes on in yellow to indicate a malfunction.
*8: Vehicles with a multi-information display
Driver’s and front pas-
senger’s seat belt
reminder light (P. 618)*1, 2, 8Master warning light
(P. 622)
Rear passengers’ seat
belt reminder lights
(P. 618)*1, 2, 4
Slip indicator (P. 616)
*1, 3Low engine oil level
warning light (diesel
engine) (P. 618)*1, 2, 4, 5 “AFS OFF” indicator
(P. 617)
*1, 3Engine oil change
reminder light (diesel
engine)
(P. 620, 621)*1, 3DPF system warning
light (diesel engine)
(P. 619)
*1, 2, 4 Tire pressure warning
light (P. 622)

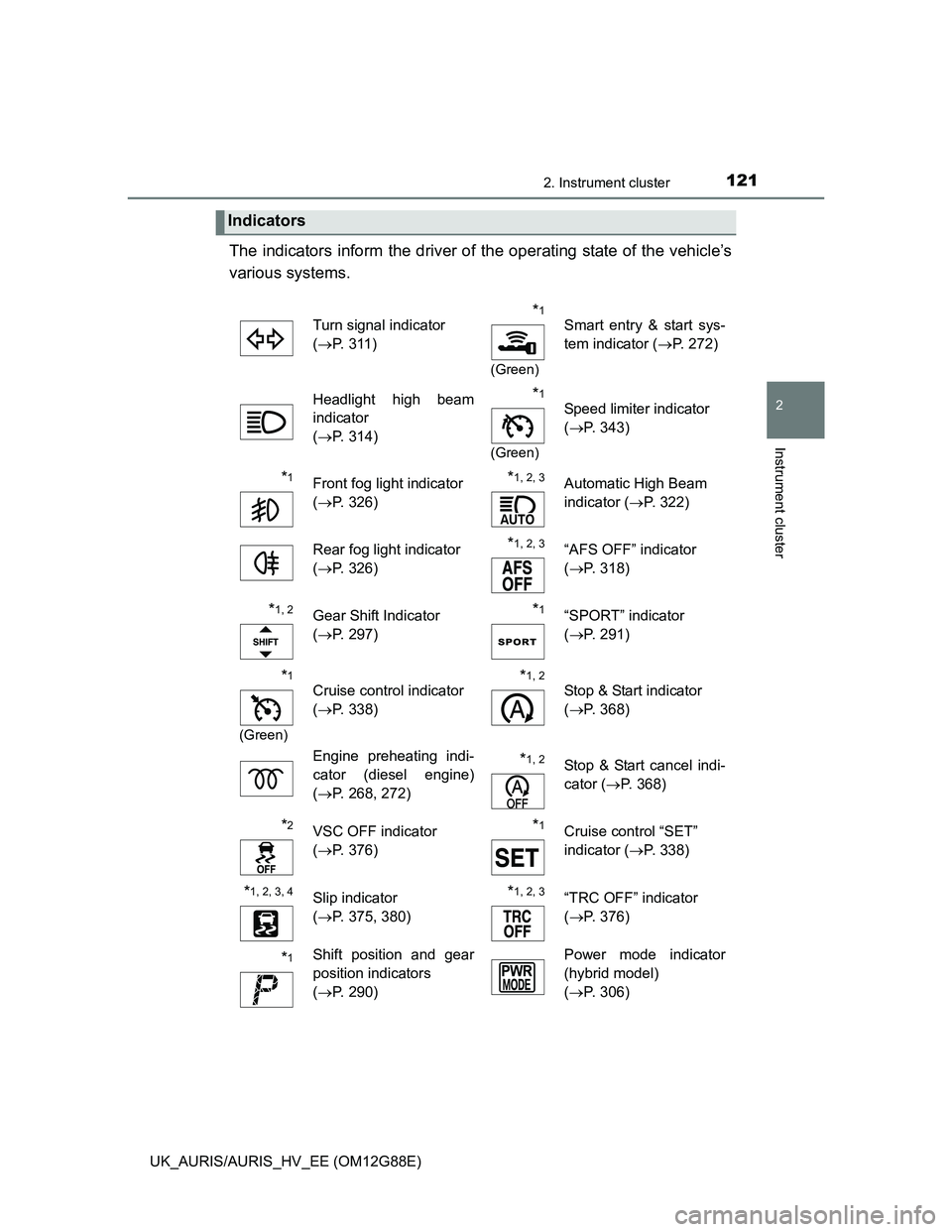

1212. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 311)*1
(Green)
Smart entry & start sys-
tem indicator (P. 272)
Headlight high beam
indicator
(P. 314)
*1
(Green)
Speed limiter indicator
(P. 343)
*1Front fog light indicator
(P. 326)*1, 2, 3Automatic High Beam
indicator (P. 322)
Rear fog light indicator
(P. 326)
*1, 2, 3“AFS OFF” indicator
(P. 318)
*1, 2Gear Shift Indicator
(P. 297)*1“SPORT” indicator
(P. 291)
*1
(Green)
Cruise control indicator
(P. 338)*1, 2
Stop & Start indicator
(P. 368)
Engine preheating indi-
cator (diesel engine)
(P. 268, 272)
*1, 2Stop & Start cancel indi-
cator (P. 368)
*2VSC OFF indicator
(P. 376)*1Cruise control “SET”
indicator (P. 338)
*1, 2, 3, 4Slip indicator
(P. 375, 380)*1, 2, 3 “TRC OFF” indicator
(P. 376)
*1Shift position and gear
position indicators
(P. 290)Power mode indicator
(hybrid model)
(P. 306)
