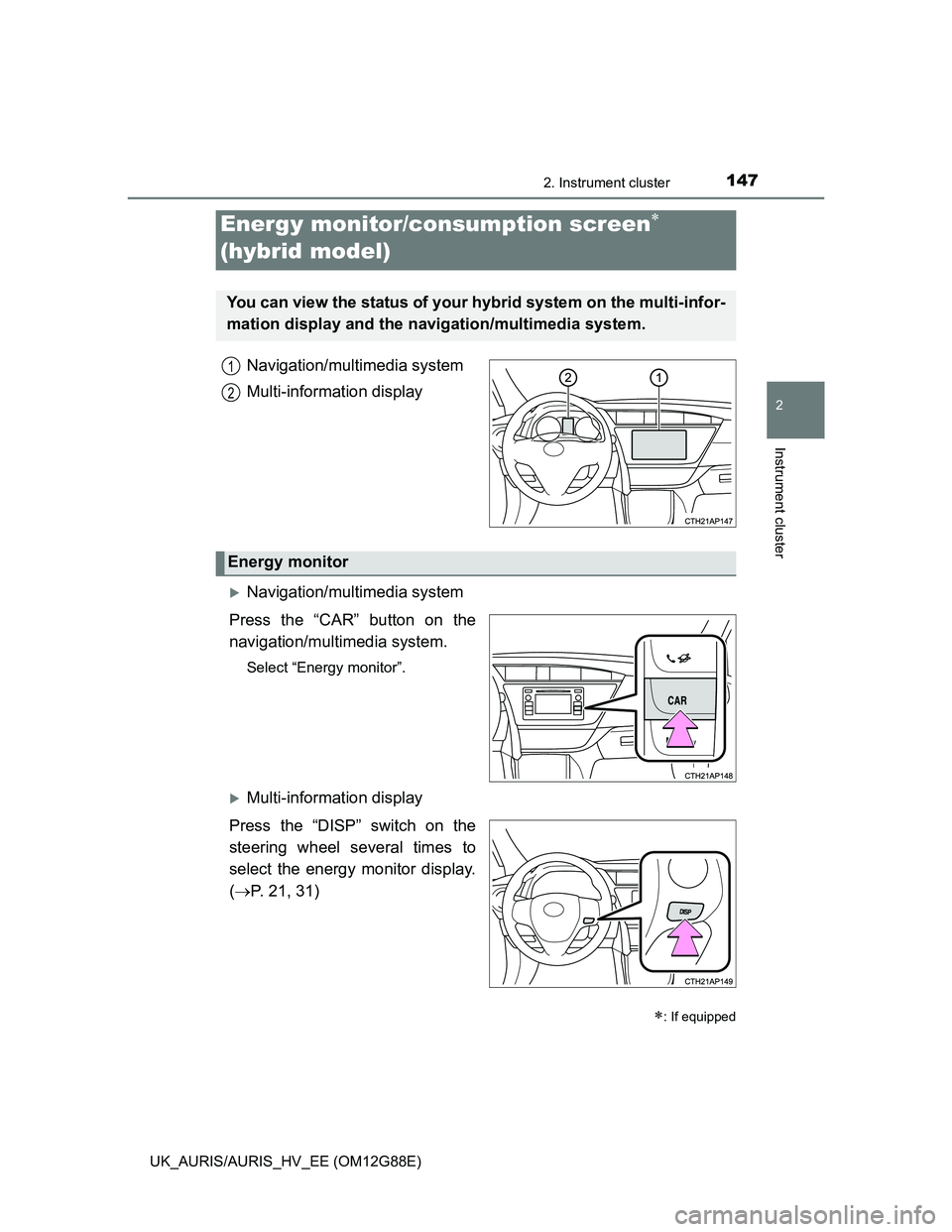

Page 147 of 788
1472. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
2
Instrument cluster
Navigation/multimedia system
Multi-information display
Navigation/multimedia system
Press the “CAR” button on the
navigation/multimedia system.
Select “Energy monitor”.
Multi-information display
Press the “DISP” switch on the
steering wheel several times to
select the energy monitor display.
(P. 21, 31)
Energy monitor/consumption screen
(hybrid model)
: If equipped
You can view the status of your hybrid system on the multi-infor-
mation display and the navigation/multimedia system.
1
2
Energy monitor
Page 148 of 788
1482. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
Navigation/multimedia
systemMulti-information
display
When the vehicle
is powered by the
electric motor
(traction motor)
When the vehicle
is powered by the
gasoline engine
When the vehicle
is powered by
both the gasoline
engine and the
electric motor
(traction motor)
When the vehicle
is charging the
hybrid battery
(traction battery)
When there is no
energy flow
Hybrid battery
(traction battery)
statusLow Full Low Full

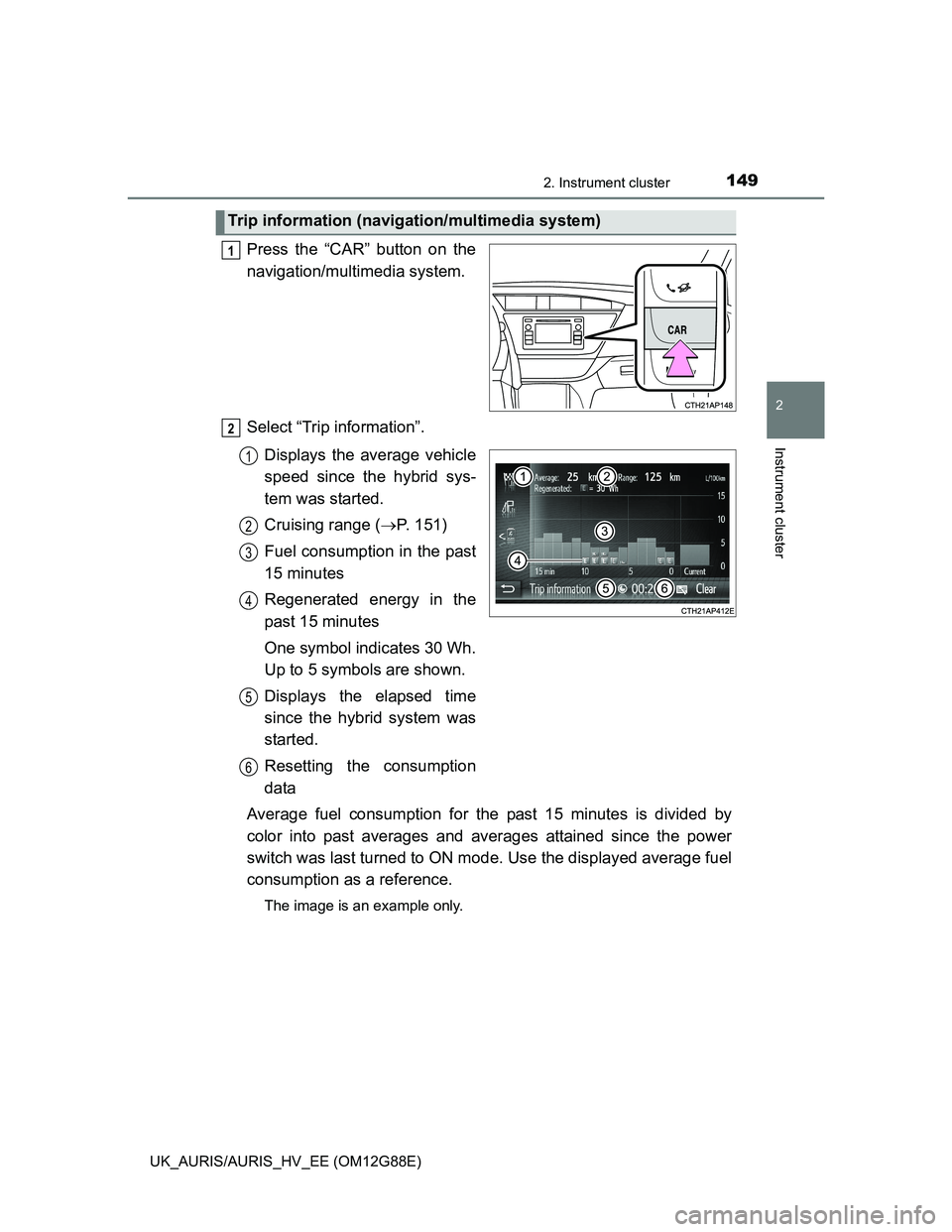

Page 149 of 788
1492. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
2
Instrument cluster
Press the “CAR” button on the
navigation/multimedia system.
Select “Trip information”.
Displays the average vehicle
speed since the hybrid sys-
tem was started.
Cruising range (P. 151)
Fuel consumption in the past
15 minutes
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Displays the elapsed time
since the hybrid system was
started.
Resetting the consumption
data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
Trip information (navigation/multimedia system)
1
2
1
2
3
4
5
6

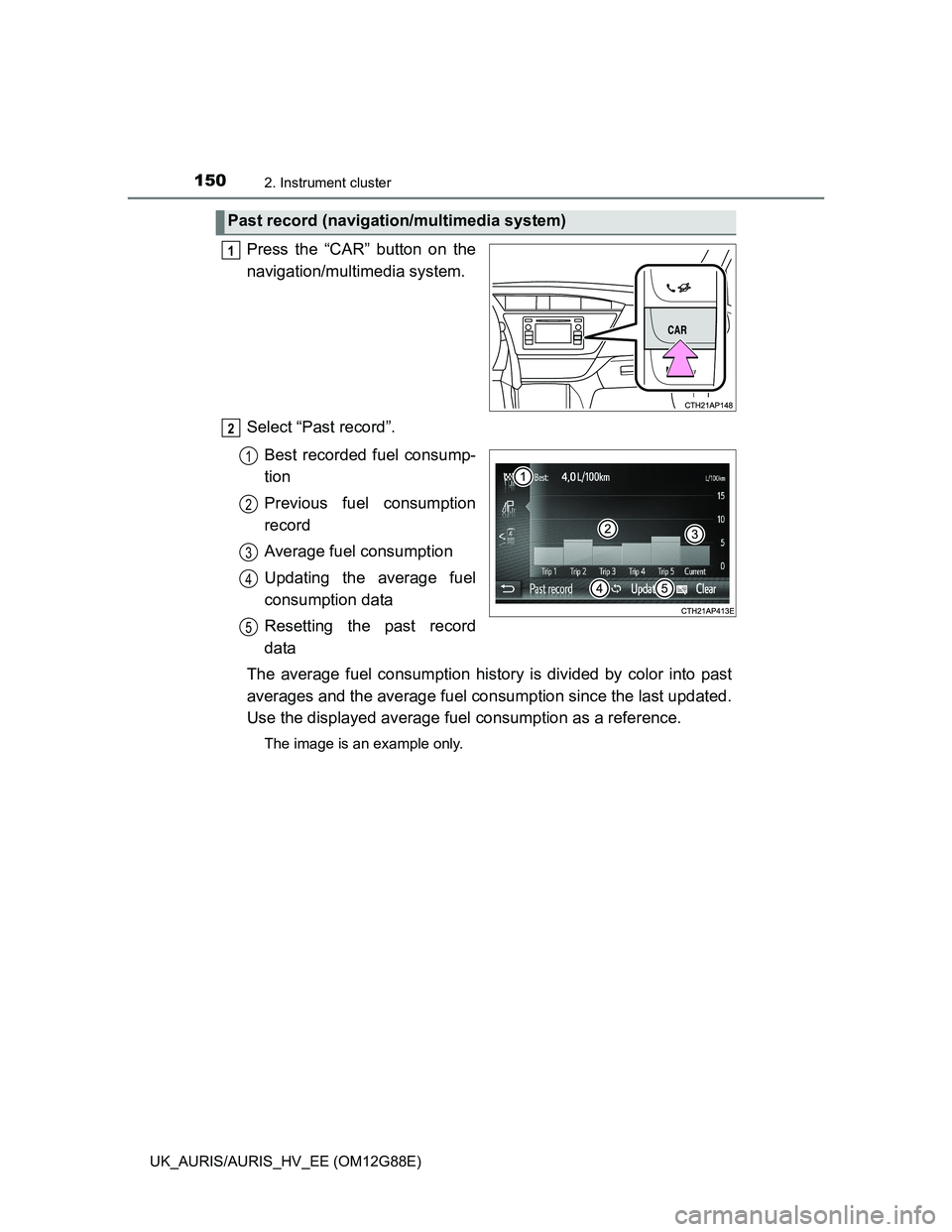

Page 150 of 788
1502. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
Press the “CAR” button on the
navigation/multimedia system.
Select “Past record”.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
Past record (navigation/multimedia system)
1
2
1
2
3
4
5

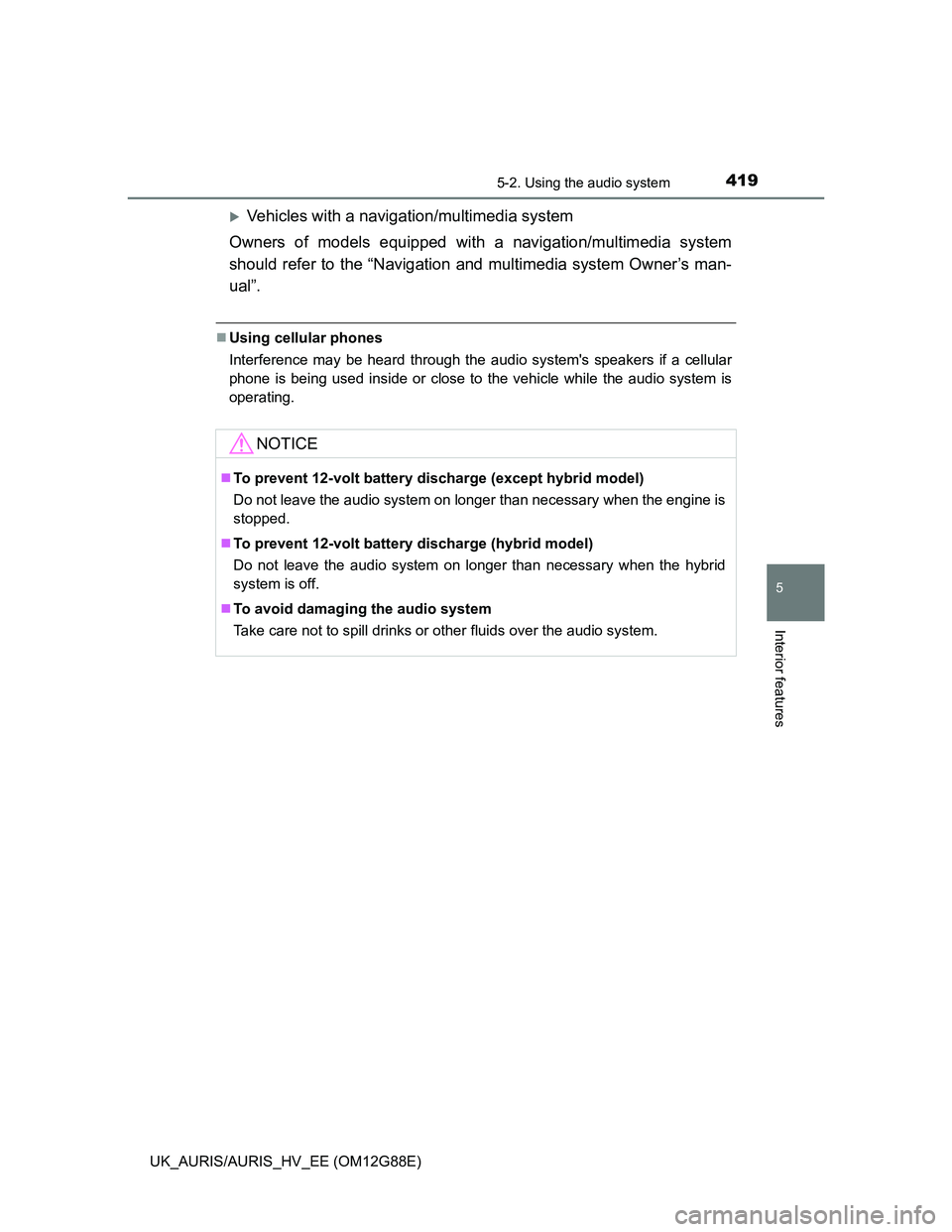

Page 419 of 788
4195-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Vehicles with a navigation/multimedia system
Owners of models equipped with a navigation/multimedia system
should refer to the “Navigation and multimedia system Owner’s man-
ual”.
Using cellular phones
Interference may be heard through the audio system's speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
To prevent 12-volt battery discharge (except hybrid model)
Do not leave the audio system on longer than necessary when the engine is
stopped.
To prevent 12-volt battery discharge (hybrid model)
Do not leave the audio system on longer than necessary when the hybrid
system is off.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

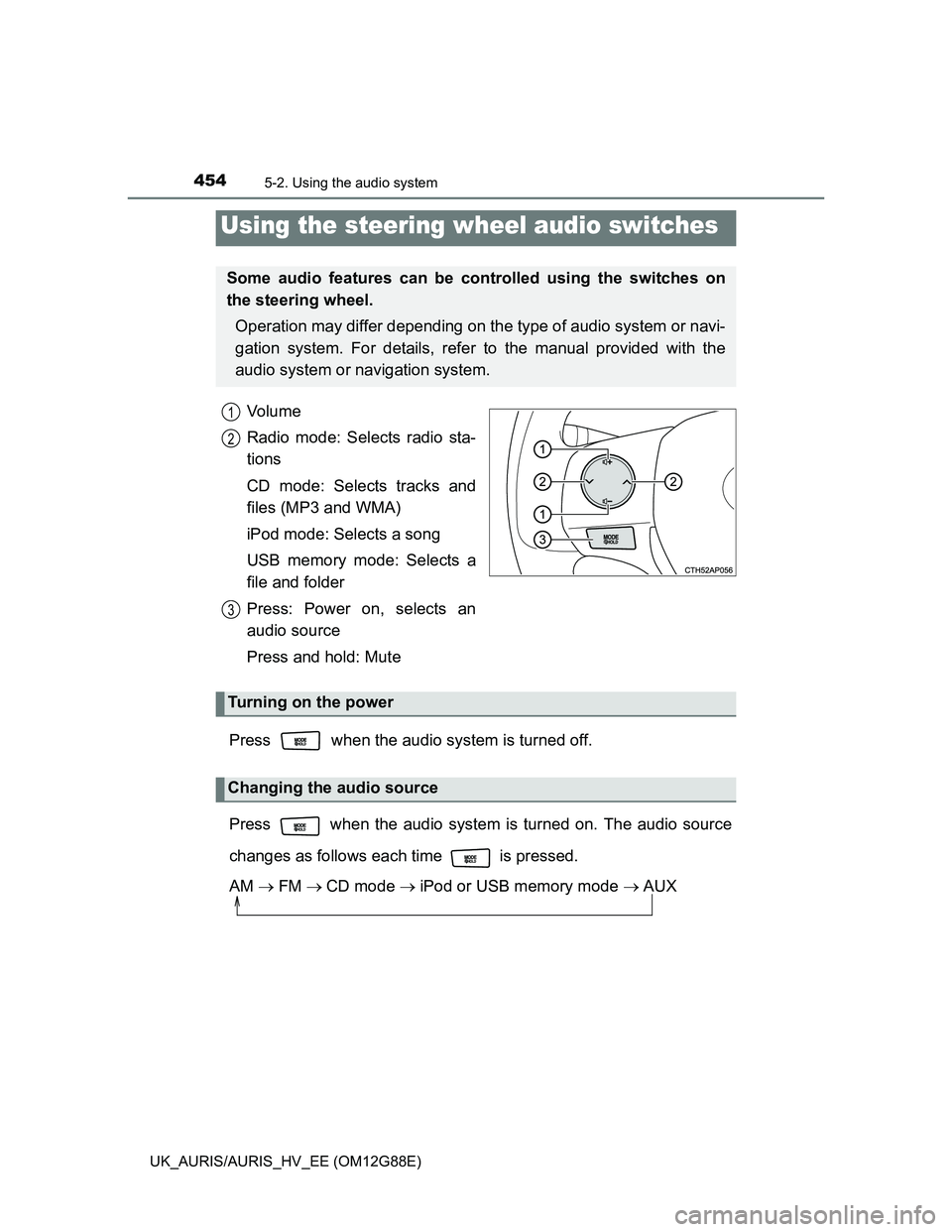

Page 454 of 788
4545-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
Vo l u m e
Radio mode: Selects radio sta-
tions
CD mode: Selects tracks and
files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode: Selects a
file and folder
Press: Power on, selects an
audio source
Press and hold: Mute
Press when the audio system is turned off.
Press when the audio system is turned on. The audio source
changes as follows each time is pressed.
AM FMCD mode iPod or USB memory mode AUX
Using the steering wheel audio switches
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.
1
2
3
Turning on the power
Changing the audio source

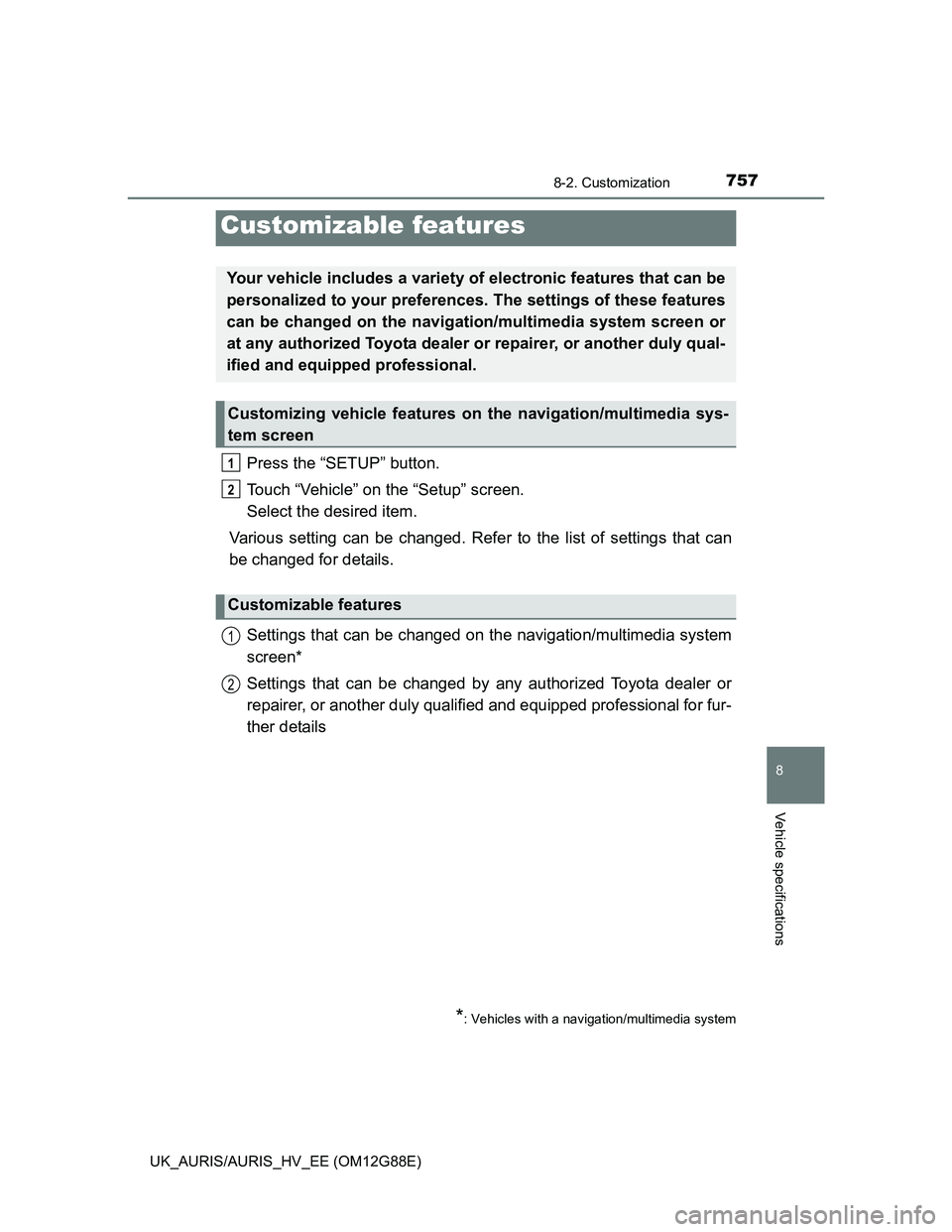

Page 757 of 788
757
UK_AURIS/AURIS_HV_EE (OM12G88E)
8
Vehicle specifications
8-2. Customization
Press the “SETUP” button.
Touch “Vehicle” on the “Setup” screen.
Select the desired item.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
Settings that can be changed on the navigation/multimedia system
screen*
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed on the navigation/multimedia system screen or
at any authorized Toyota dealer or repairer, or another duly qual-
ified and equipped professional.
Customizing vehicle features on the navigation/multimedia sys-
tem screen
Customizable features
1
2
1
2
*: Vehicles with a navigation/multimedia system
Page 772 of 788

772Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12G88E)
Back door ................................ 207
Back-up lights
Replacing light bulb............... 582
Wattage................................. 754
Battery .............................. 524, 530
Checking ....................... 524, 530
If the 12-volt battery is
discharged .......................... 715
If the vehicle has discharged
battery................................. 708
Preparing and checking
before winter ....................... 386
Warning light ................. 614, 632
Battery (traction battery) ........... 84
Bluetooth
®
Hands-free system
(for cellular phone)*
Navigation/multimedia system*
Bottle holders........................... 463
Brake
Emergency brake signal ....... 375
Fluid ...................................... 749
Parking brake ........................ 312
Warning light ................. 613, 617
Brake assist.............................. 374
Break-in tips ............................ 235
Brightness control
Meter light control ......... 127, 133Care................................... 490, 494
Aluminum wheels.................. 491
Exterior ................................. 490
Interior................................... 494
Seat belts .............................. 495
Cargo hooks............................. 467
CD player .................................. 424
Chains....................................... 388
Child restraint system ............... 59
Baby seats, definition.............. 59
Baby seats, installation ........... 69
Child seats, definition.............. 59
Child seats, installation ........... 69
Installing CRS with ISOFIX
rigid anchors ......................... 73
Installing CRS with
seat belts .............................. 69
Installing CRS with top strap... 74
Junior seats, definition ............ 59
Junior seats, installation ......... 71
Child safety ................................ 58
Airbag precautions .................. 48
Battery precautions ....... 525, 714
Child restraint system ............. 59
How your child should wear
the seat belt .......................... 43
Installing child restraints ......... 68
Panoramic roof shade
precautions ......................... 488
Power window lock switch .... 224
Power window precautions ... 227
Rear door child-protectors .... 205
Removed electronic key
battery precautions ............. 557
Seat belt precautions .............. 45
Seat heater precautions........ 481
BC
