2014 TESLA MODEL S towing

Roadside Assistance......................2About Roadside Assistance.................................... 2
Contacting Roadside Assistance 2Regional Roadside Assistance Numbers 2
Instructions for Transporters..................................4
Use a Flatbed Only 4Disable Self-Leveling (air suspension vehicles only) 4Activate Tow Mode 4Connect the Tow Chain 5Pull Onto the Trailer and Secure the Wheels 5
Safety Information......................... 6Seat Belts....................................................................... 6
Wearing Seat Belts 6Wearing Seat Belts When Pregnant 6Seat Belt Pre-tensioners 7Testing Seat Belts 7Seat Belt Warnings 8
Child Safety Seats....................................................... 9
Guidelines for Seating Children 9Choosing a Child Safety Seat 9Seating Larger Children 11Installing Child Safety Seats 11Installing Seat Belt Retained Child Seats 11Installing ISOFIXChild Seats 12Attaching Upper Tether Straps 13Testing a Child Safety Seat 13Warnings - Child Safety Seats 14
Tesla Built-In Rear Facing Child Seats...............15
Usage Restrictions 15Opening 15Folding 16Seating a Child 17Warnings - Tesla Child Seats 18
Airbags.......................................................................... 19
Location of Airbags 19How the Airbags Work 20Types of Airbags 20Disabling the Passenger Front Airbag 21Inflation Effects 22Airbag Warning Indicator 22Airbag Warnings 22
Tire Care and Maintenance................................... 23
Maintaining Tire Pressures 23Inspecting and Maintaining Tires 24Replacing Tires and Wheels 25Using Tire Chains 26Tire Pressure Monitoring 26Understanding Tire Markings 28
Vehicle Loading........................................................ 30
Load Capacity Labeling 30Calculating Load Limits 31Towing a Trailer 31
Disclaimers................................................................... 31
Vehicle Telematics/Data Recorders 31Quality Control 32
Reporting Concerns.................................................33
Contacting Tesla 33
Warranty......................................... 34General Warranty Provisions............................... 34
Who is the Warrantor? 34What Vehicles are Covered? 34Multiple Warranty Conditions 34Limitations and Disclaimers 34Your Rights Under Local Law 35Ownership Transfer 35Who Can Enforce this New Vehicle Limited Warranty? 35When Does the Warranty Period Begin and End? 35
Warranty Coverage................................................. 35
Basic Vehicle Limited Warranty 36Supplemental Restraint System Limited Warranty 36Battery Limited Warranty 36
Exclusions and Limitations....................................37
Warranty limitations 37Additional limitations and exclusions 37Voided warranty 38Damages 38
Obtaining Warranty Service.................................39
Payment of Tax for Repairs 39Reasonable Time for Repairs 39Modifications and Waivers 40
Warranty Enforcement Laws and
Dispute Resolution.................................................. 40 Country Specific Consumer Disclosure............ 41
Bulgaria 41France 42Italy 42Norway 43Poland 44San Marino 44Contents

Connect the Tow Chain
1. Remove the nose cone.
Insert a plastic pry tool into the top right
corner, and gently pry the nose cone toward you. When the clip releases, pull
the nose cone toward you, without
twisting or bending, to release the three remaining clips.
2. Insert the towing eye.
Fully insert the towing eye (found in the
front trunk) into the opening on the right
side, then turn it counter-clockwise until securely fastened.
3. Attach the tow chain to the towing eye.
Caution:
Before pulling, make sure the
towing eye is securely tightened.Pull Onto the Trailer and Secure the
Wheels
Secure wheels using chocks and tie-down
straps:
• Ensure any metal parts on the tie-down straps do not contact painted surfaces orthe face of the wheels.
• Do not place straps over body panels or through the wheels.Caution: Attaching straps to the chassis,
suspension or other parts of the vehicle's
body may cause damage.Caution: To prevent damage, do not
transport Model S with the tires directly
on the ground.
Roadside Assistance
Roadside Assistance5

Calculating Load Limits
1. Locate the statement “The combined
weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your
vehicle’s “Tire and Loading Information” label.
2. Determine the combined weight of the
driver and passengers that will be riding in
the vehicle.
3. Subtract the combined weight of the
driver and passengers from XXX kg (see
Step 1).
4. The resulting figure equals the available
amount of cargo and luggage load
capacity. For example, if the “XXX”
amount equals 635 kg, and there will be five 68 kg passengers in the vehicle, the
amount of available cargo and luggage capacity is 295 kg (635 ‑ 340
(5 x 68) = 295 kg).
5. Determine the combined weight of cargo
and luggage being loaded on the vehicle.
That weight must not exceed the available
cargo and luggage load capacity
calculated in Step 4.Warning: The front and rear trunks are
the preferred places to carry objects. In
an accident, or during hard braking and sharp turns, loose items in the cabin
could injure occupants.
Example Load Limit Calculations
How much cargo you can carry in Model S
depends on the number and weight of
passengers. The following are typical
examples of calculated load limits. These
examples assume passengers weighing 68 kg. If the passengers weigh more or less, the
available cargo and luggage load capacity decreases or increases respectively.
Example 1: Driver and one passenger
DescriptionTotalVehicle capacity weight433 kgSubtract occupant weight (2 x 68
kg)136 kgAvailable cargo weight297 kgExample 2: Driver and four passengersDescriptionTotalVehicle capacity weight433 kgSubtract occupant weight (5 x 68
kg)340 kgAvailable cargo weight93 kg
The available cargo or luggage weight should
then be distributed between the front and
rear trunks.
Caution: Do not exceed the maximum
front trunk load weight of 136 kg.
Towing a Trailer
Warning: Do not tow a trailer. Model S
does not support a trailer hitch. Installing one could damage Model S and increase
the risk of an accident.
Disclaimers
Vehicle Telematics/Data Recorders
This vehicle is equipped with electronic
modules that monitor and record data from
various vehicle systems, including the motor,
Battery, braking and electrical systems. The
electronic modules record information about
various driving and vehicle conditions,
including braking, acceleration, trip and other related information regarding your vehicle.
These modules also record information about
the vehicle’s features such as charging events
and status, the enabling/disabling of various
systems, diagnostic trouble codes, VIN, speed,
direction and location.
The data is stored by the vehicle and may be
accessed, used and stored by Tesla service
technicians during vehicle servicing or
periodically transmitted to Tesla wirelessly
through the vehicle’s telematics system. This data may be used by Tesla for various
purposes, including, but not limited to:
providing you with Tesla telematics services; troubleshooting; evaluation of your vehicle’s
quality, functionality and performance;
analysis and research by Tesla and its partners
for the improvement and design of our
vehicles and systems; and as otherwise may be required by law. In servicing your vehicle,
Safety Information
Safety Information31

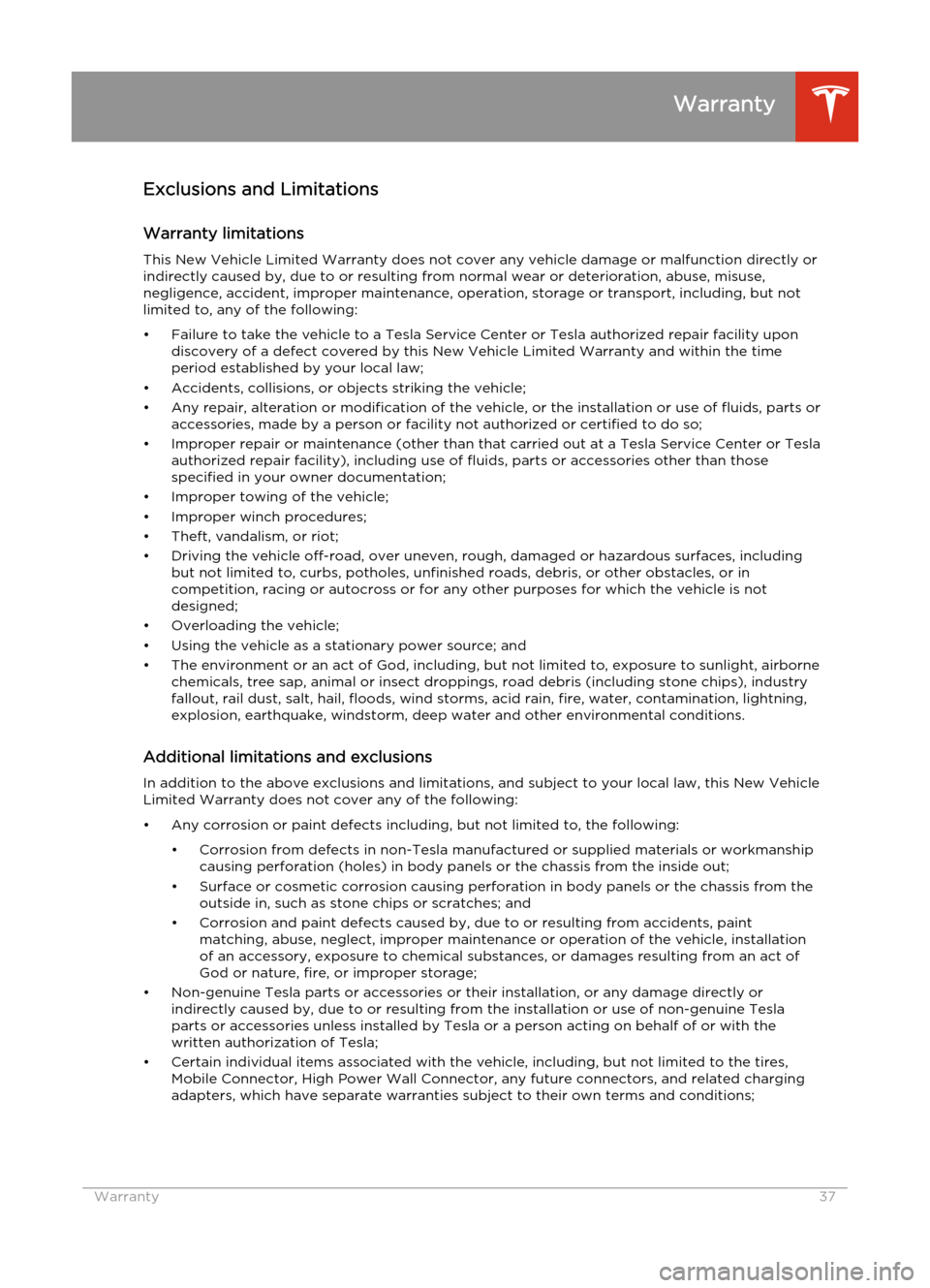

Exclusions and Limitations
Warranty limitations This New Vehicle Limited Warranty does not cover any vehicle damage or malfunction directly or
indirectly caused by, due to or resulting from normal wear or deterioration, abuse, misuse, negligence, accident, improper maintenance, operation, storage or transport, including, but not
limited to, any of the following:
• Failure to take the vehicle to a Tesla Service Center or Tesla authorized repair facility upon discovery of a defect covered by this New Vehicle Limited Warranty and within the time
period established by your local law;
• Accidents, collisions, or objects striking the vehicle; • Any repair, alteration or modification of the vehicle, or the installation or use of fluids, parts or accessories, made by a person or facility not authorized or certified to do so;
• Improper repair or maintenance (other than that carried out at a Tesla Service Center or Tesla authorized repair facility), including use of fluids, parts or accessories other than those
specified in your owner documentation;
• Improper towing of the vehicle;
• Improper winch procedures; • Theft, vandalism, or riot;• Driving the vehicle off-road, over uneven, rough, damaged or hazardous surfaces, including but not limited to, curbs, potholes, unfinished roads, debris, or other obstacles, or in
competition, racing or autocross or for any other purposes for which the vehicle is not
designed;
• Overloading the vehicle;
• Using the vehicle as a stationary power source; and
• The environment or an act of God, including, but not limited to, exposure to sunlight, airborne chemicals, tree sap, animal or insect droppings, road debris (including stone chips), industry
fallout, rail dust, salt, hail, floods, wind storms, acid rain, fire, water, contamination, lightning,
explosion, earthquake, windstorm, deep water and other environmental conditions.
Additional limitations and exclusions
In addition to the above exclusions and limitations, and subject to your local law, this New Vehicle Limited Warranty does not cover any of the following:
• Any corrosion or paint defects including, but not limited to, the following: • Corrosion from defects in non-Tesla manufactured or supplied materials or workmanship causing perforation (holes) in body panels or the chassis from the inside out;
• Surface or cosmetic corrosion causing perforation in body panels or the chassis from the outside in, such as stone chips or scratches; and
• Corrosion and paint defects caused by, due to or resulting from accidents, paint matching, abuse, neglect, improper maintenance or operation of the vehicle, installationof an accessory, exposure to chemical substances, or damages resulting from an act of
God or nature, fire, or improper storage;
• Non-genuine Tesla parts or accessories or their installation, or any damage directly or indirectly caused by, due to or resulting from the installation or use of non-genuine Tesla
parts or accessories unless installed by Tesla or a person acting on behalf of or with the
written authorization of Tesla;
• Certain individual items associated with the vehicle, including, but not limited to the tires, Mobile Connector, High Power Wall Connector, any future connectors, and related charging
adapters, which have separate warranties subject to their own terms and conditions;
Warranty
Warranty37

• Windshield or window glass that is broken, chipped, scratched, or cracked, other than as aresult of a defect in material or workmanship of a Tesla manufactured or supplied windshield
or window glass;
• General appearance or normal noise and vibration, including, but not limited to, brake squeal, general knocks, creaks, rattles, and wind and road vibration; and
• Maintenance services, including, but not limited to, the following:
• Standard 12 month or 20,000 km (12,500 mile) service and diagnostics checks;• Wheel alignment or balancing;
• Appearance care (such as cleaning and polishing); and • Expendable maintenance items (such as wiper blades/inserts, brake pads/linings, filters, etc.).
Voided warranty You are responsible for the proper operation of the vehicle and for receiving and maintainingdetailed and accurate records of your vehicle’s maintenance, including the 17-digit Vehicle
Identification Number (“VIN”), servicing center name and address, mileage, date of service or maintenance and description of service or maintenance items, which should be transferred to
each subsequent purchaser. You may void this New Vehicle Limited Warranty if you do not follow
the specific instructions and recommendations regarding the use and operation of the vehicle
provided in your Model S owner documentation, including, but not limited to:
• Complying with any recall advisories; • Carrying passengers and cargo within specified load limits; and• Making all repairs.
Although Tesla does not require you to perform all service or repairs at a Tesla Service Center or
Tesla authorized repair facility, this New Vehicle Limited Warranty may be voided or coverage
may be excluded due to improper maintenance, service or repairs. Tesla Service Centers and
Tesla authorized repair facilities have special training, expertise, tools and supplies with respect to
your vehicle. Although this New Vehicle Limited Warranty may, subject to its terms and
conditions, provide coverage when maintenance, service or repairs are carried out at independent
service centers, Tesla strongly recommends that you have all maintenance, service and repairs
done at a Tesla Service Center or Tesla authorized repair facility.
The following will also void this New Vehicle Limited Warranty:
• Vehicles that have had the VIN defaced or altered or the odometer or other related system disconnected, altered or rendered inoperative so that it is difficult to determine the VINnumber or actual mileage;
• Vehicles that have been designated, labeled or branded as dismantled, fire-damaged, flood- damaged, junk, rebuilt, salvage, reconstructed, irreparable or a total loss; and
• Vehicles that have been determined to be a total loss by an insurance company.
Damages TO THE MAXIMUM EXTENT PERMISSIBLE UNDER YOUR LOCAL LAW, TESLA HEREBYDISCLAIMS ANY AND ALL INDIRECT, INCIDENTAL, SPECIAL AND CONSEQUENTIAL DAMAGESARISING OUT OF OR RELATING TO YOUR VEHICLE, INCLUDING, BUT NOT LIMITED TO,
TRANSPORTATION TO AND FROM A TESLA SERVICE CENTER, LOSS OF VEHICLE VALUE,
LOSS OF TIME, LOSS OF INCOME, LOSS OF USE, LOSS OF PERSONAL OR COMMERCIAL PROPERTY, INCONVENIENCE OR AGGRAVATION, EMOTIONAL DISTRESS OR HARM,COMMERCIAL LOSS (INCLUDING BUT NOT LIMITED TO LOST PROFITS OR EARNINGS),
TOWING CHARGES, BUS FARES, VEHICLE RENTAL, SERVICE CALL CHARGES, GASOLINE
EXPENSES, LODGING EXPENSES, DAMAGE TO TOW VEHICLE, AND INCIDENTAL CHARGES
SUCH AS TELEPHONE CALLS, FACSIMILE TRANSMISSIONS, AND MAILING EXPENSES.
Warranty
38Model S Quick Guide

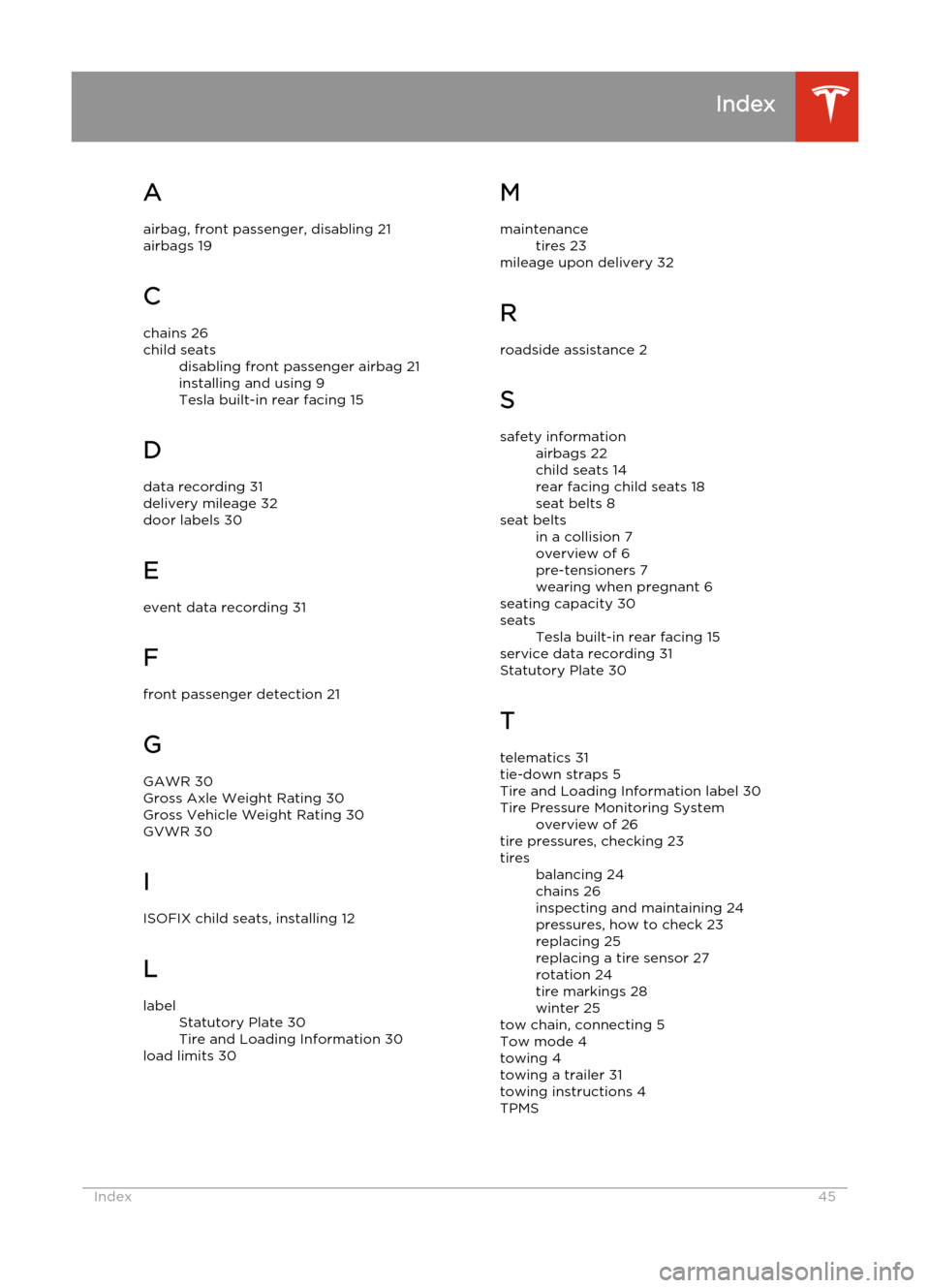

Aairbag, front passenger, disabling 21
airbags 19
C chains 26child seatsdisabling front passenger airbag 21installing and using 9
Tesla built-in rear facing 15
D
data recording 31
delivery mileage 32
door labels 30
E event data recording 31
F
front passenger detection 21
G
GAWR 30
Gross Axle Weight Rating 30
Gross Vehicle Weight Rating 30
GVWR 30
I
ISOFIX child seats, installing 12
L
labelStatutory Plate 30
Tire and Loading Information 30
load limits 30
Mmaintenancetires 23
mileage upon delivery 32
R
roadside assistance 2
S
safety informationairbags 22
child seats 14
rear facing child seats 18
seat belts 8seat beltsin a collision 7
overview of 6
pre-tensioners 7
wearing when pregnant 6
seating capacity 30
seatsTesla built-in rear facing 15
service data recording 31
Statutory Plate 30
T telematics 31
tie-down straps 5
Tire and Loading Information label 30
Tire Pressure Monitoring Systemoverview of 26
tire pressures, checking 23
tiresbalancing 24
chains 26
inspecting and maintaining 24
pressures, how to check 23
replacing 25
replacing a tire sensor 27
rotation 24
tire markings 28
winter 25
tow chain, connecting 5
Tow mode 4
towing 4
towing a trailer 31
towing instructions 4
TPMS
Index
Index45
