2014 SUBARU BRZ coolant

406
5-2. Steps to take in an emergency
■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
●Steam is coming from under the engine hood.
WARNING
■To prevent an accident or injury when inspecting under the engine
hood of your vehicle
●If steam is seen coming from under the engine hood, do not open the
engine hood until the steam has subsided. The engine compartment may
be very hot, causing serious injury such as burns.
●Keep hands and clothing away from the fan and other belts while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable. ( →P. 418)
Have the vehicle checked at the nearest SUBARU dealer as soon
as possible.STEP 5

5
When trouble arises
407
5-2. Steps to take in an emergency
CAUTION
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

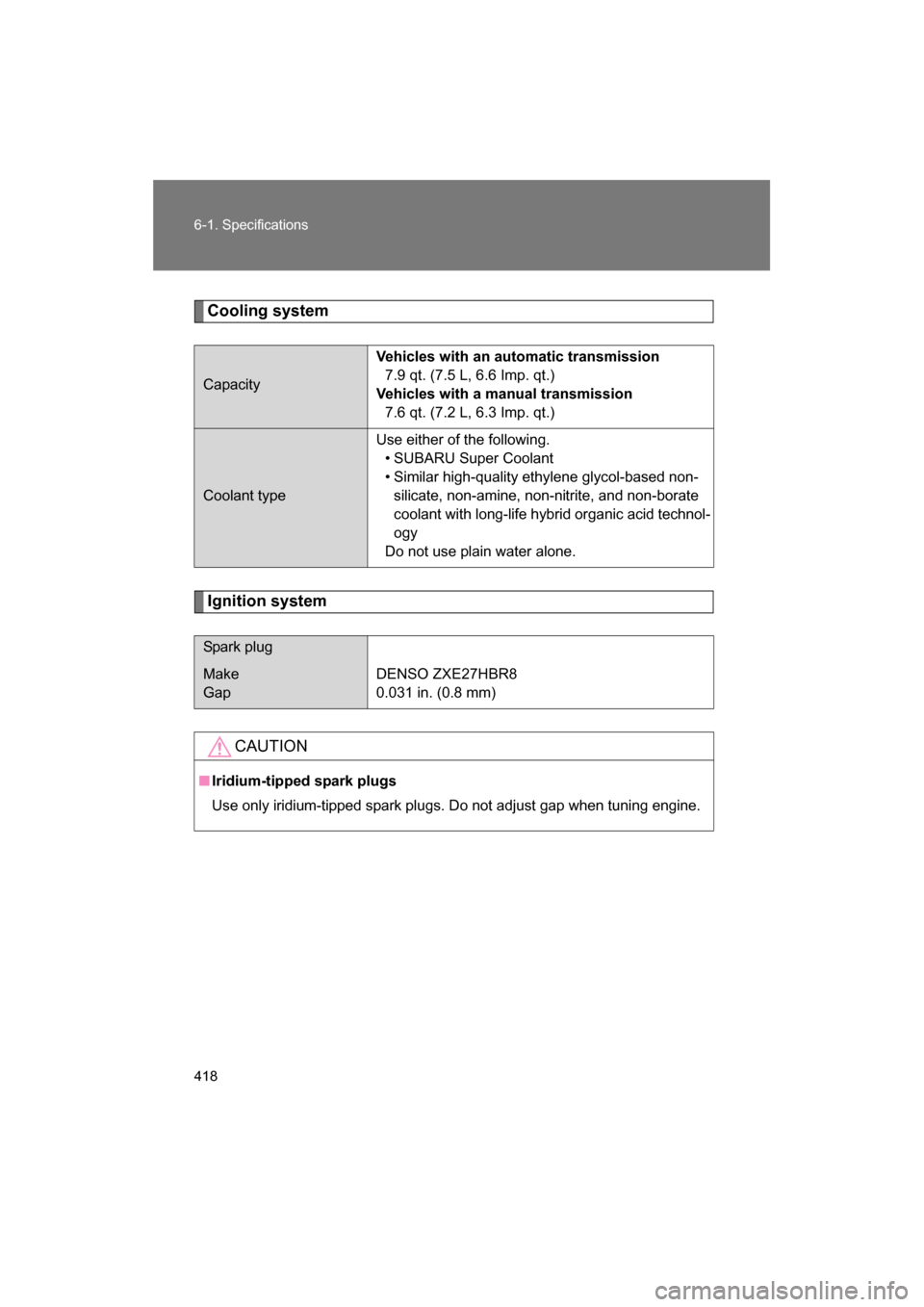

418
6-1. Specifications
Cooling system
Ignition system
CapacityVehicles with an automatic transmission
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Vehicles with a manual transmission 7.6 qt. (7.2 L, 6.3 Imp. qt.)
Coolant type Use either of the following.

434
6-1. Specifications
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire
Recommended
inflation pressure Cold tire inflation pressure recommended by a
manufacturer.
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

476
Alphabetical index
Electric power steering ........... 217
Emergency, in case ofIf the access key does not operate properly............ 396
If the engine will not start ...... 391
If the select lever cannot be shifted from P.................394
If the vehicle has a
discharged battery ..............400
If the warning buzzer sounds ................................ 366
If the warning light
turns on ............................... 366
If you have a flat tire ............. 380
If you lose your keys ............. 395
If you think something is wrong .................................. 364
If your vehicle becomes
stuck ................................... 408
If your vehicle needs to
be towed ............................. 357
If your vehicle overheats ....... 405 Engine
Compartment ........................ 296
Engine hood.......................... 294
Engine switch................ 162, 171
How to start the engine ......................... 162, 171
Identification number............. 413
If the engine will not start ...... 391
Ignition switch ............... 162, 171
Overheating .......................... 405
Engine coolant Capacity ................................ 418
Checking ............................... 300
Engine coolant temperature gauge ...................................... 187
Engine hood ............................. 294
Engine immobilizer system ...... 78
Engine oil Capacity ................................ 416
Checking ............................... 297
Preparing and checking before winter ....................... 229
Engine switch................... 162, 171
Engine switch light .................. 255
Event data recorder ................... 16E

485
What to do if...
What to do if...
A tire puncturesP. 380If you have a flat tire
The engine does not start
P. 391If the engine will not start
P. 7 8Engine immobilizer system
P. 400If the battery is discharged
The select lever cannot be
moved outP. 394If the select lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the engine hood
P. 405If your vehicle overheats
The key is lostP. 395If you lose your keys
The battery runs outP. 400If the battery is discharged
The doors cannot be lockedP. 4 2Doors
The trunk cannot be openedP. 4 5Trunk lid
The vehicle is stuck in mud
or sandP. 408If the vehicle becomes stuck
A warning light or indicator
light comes onP. 366If a warning light turns on or a
warning buzzer sounds...
