2014 SUBARU BRZ clock

343
4-3. Do-it-yourself maintenance
4
Maintenance and care

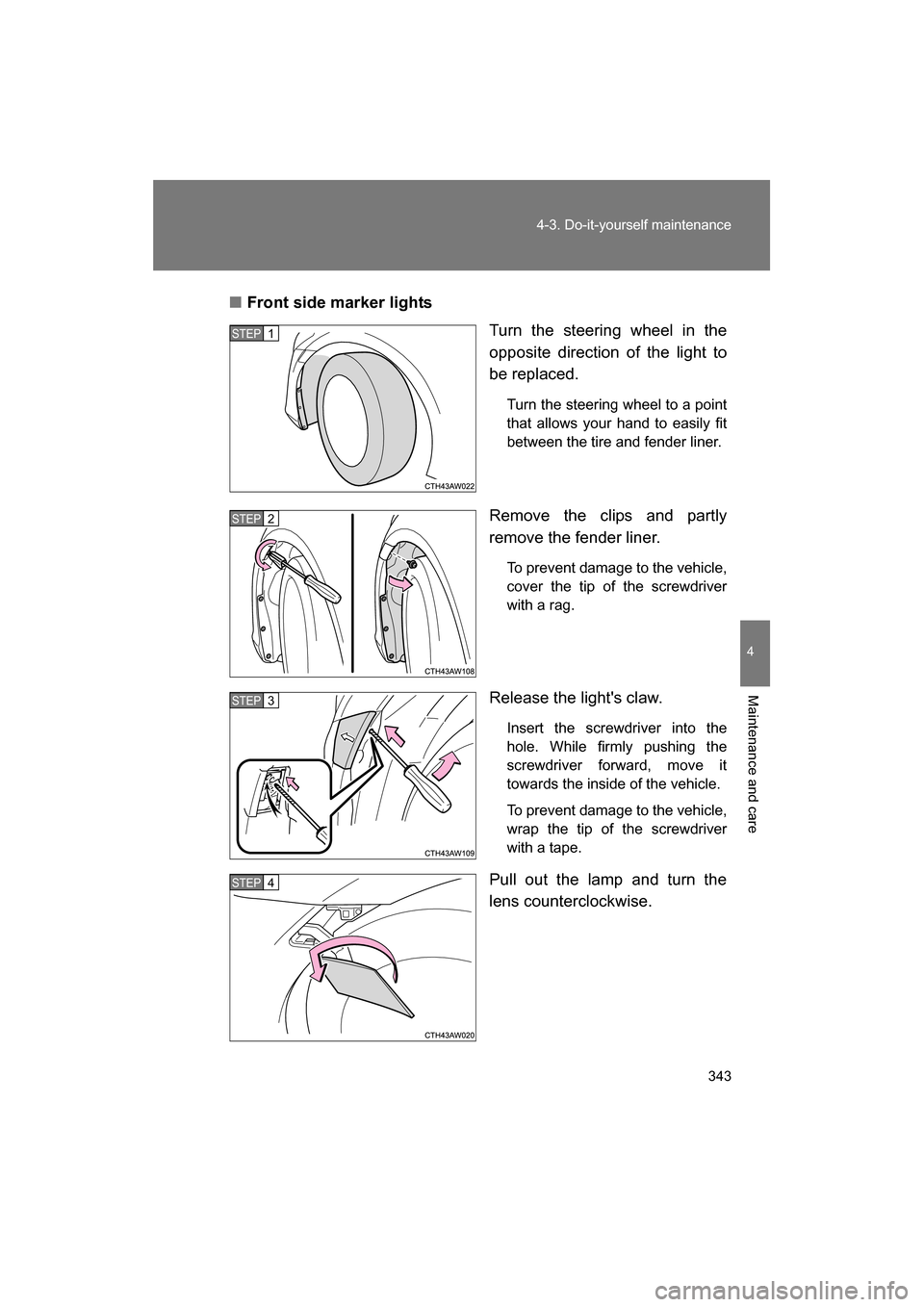

■Front side marker lightsTurn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner. To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Release the light's claw. Insert the screwdriver into the
hole. While firmly pushing the
screwdriver forward, move it
towards the inside of the vehicle.
To prevent damage to the vehicle,
wrap the tip of the screwdriver
with a tape.
Pull out the lamp and turn the
lens counterclockwise.
STEP 1
STEP 2
STEP 3
STEP 4

346
4-3. Do-it-yourself maintenance

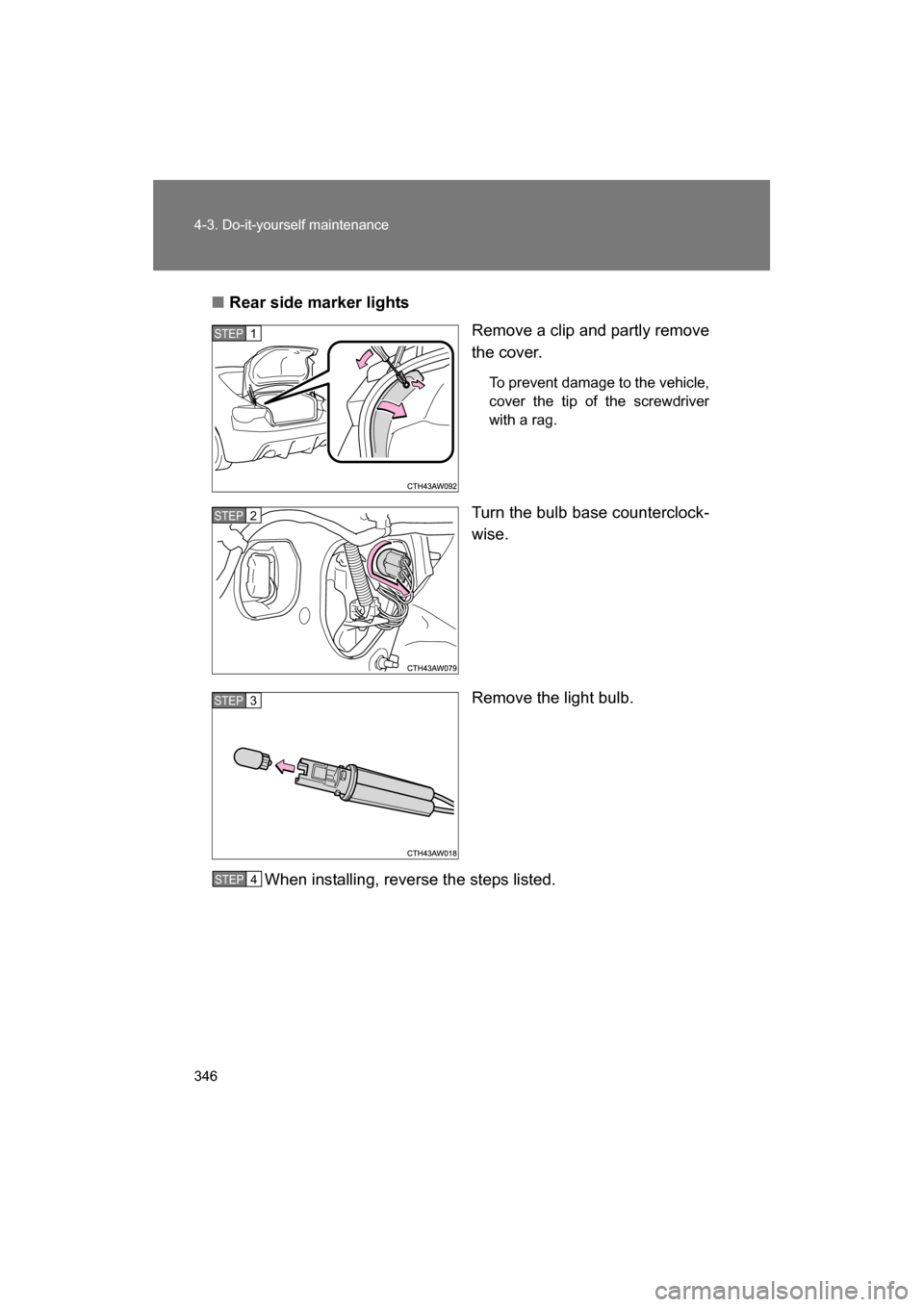

■Rear side marker lightsRemove a clip and partly remove
the cover.
To prevent damage to the vehicle,
cover the tip of the screwdriverwith a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

347
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Rear turn signal lightsRemove a clip and partly remove
the cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

348
4-3. Do-it-yourself maintenance

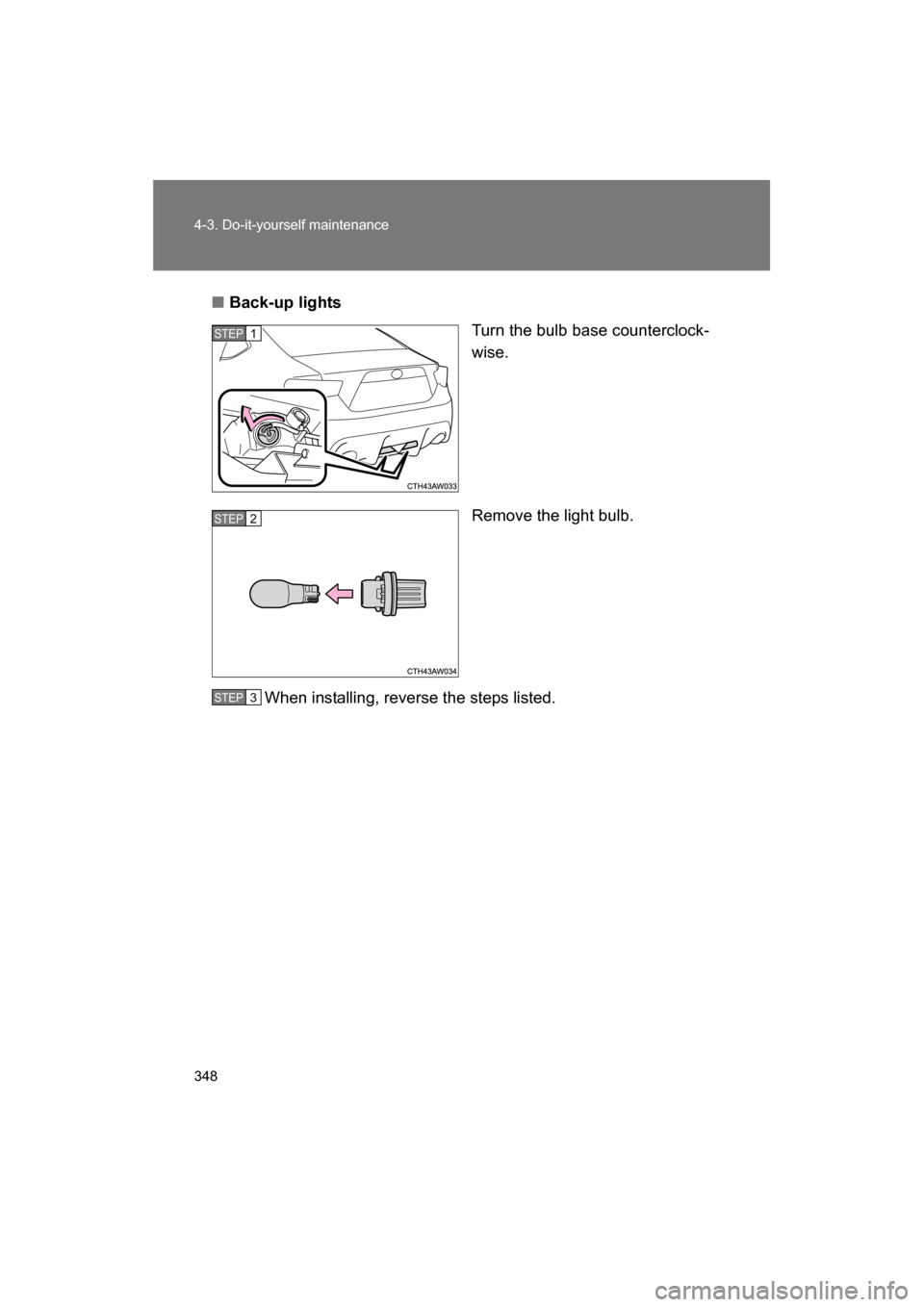

■Back-up lightsTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 3 STEP 2
STEP 3

349
4-3. Do-it-yourself maintenance
4
Maintenance and care

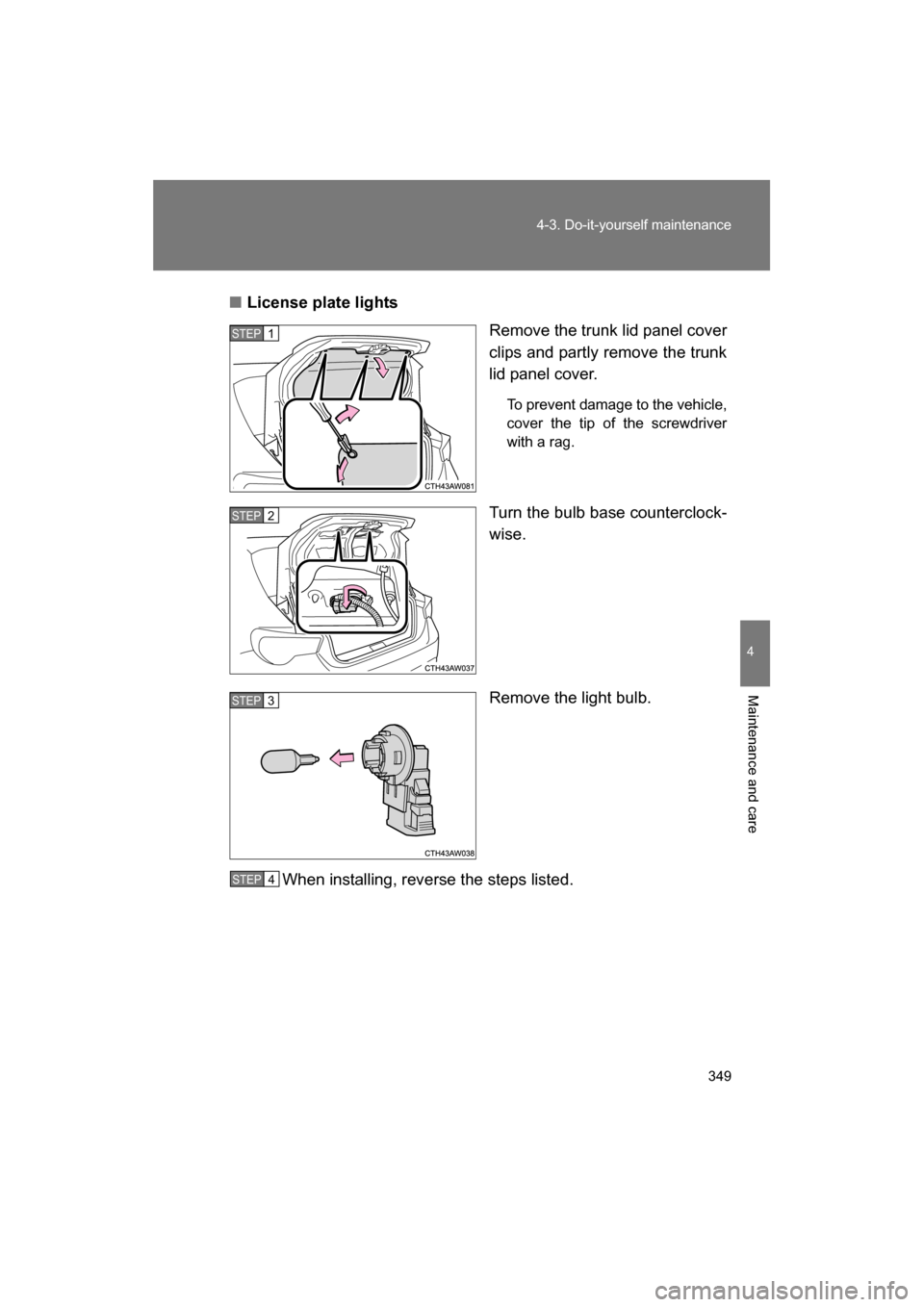

■License plate lightsRemove the trunk lid panel cover
clips and partly remove the trunk
lid panel cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

396
5-2. Steps to take in an emergency

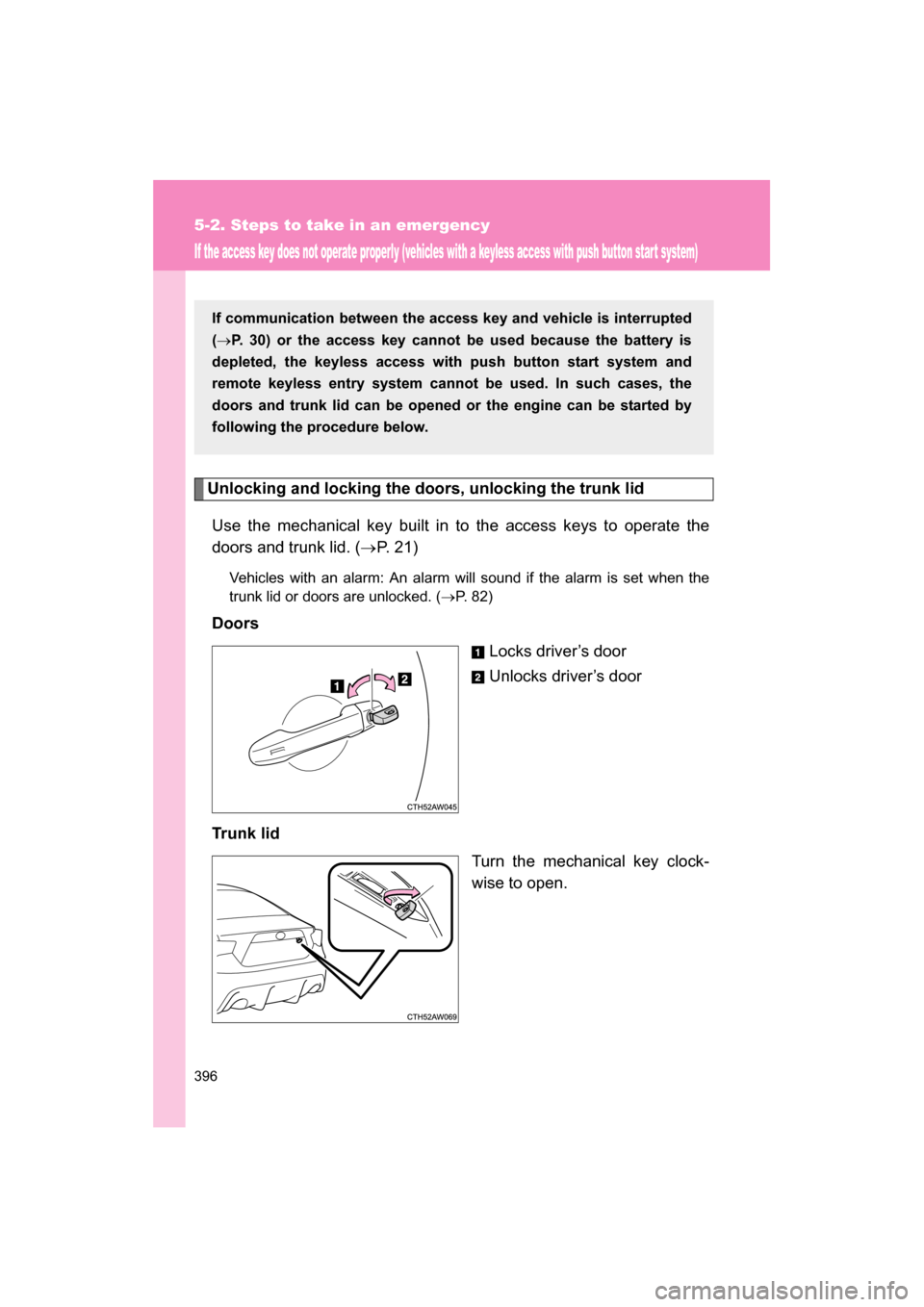

If the access key does not operate properly (vehicles with a keyless access with push button star t system)
Unlocking and locking the doors, unlocking the trunk lid
Use the mechanical key built in to the access keys to operate the
doors and trunk lid. ( →P. 21)
Vehicles with an alarm: An alarm will sound if the alarm is set when the
trunk lid or doors are unlocked. ( →P. 82)
Doors
Locks driver’s door
Unlocks driver’s door
Trunk lid Turn the mechanical key clock-
wise to open.
If communication between the access key and vehicle is interrupted (→ P. 30) or the access key cannot be used because the battery is
depleted, the keyless access with push button start system and
remote keyless entry system canno t be used. In such cases, the
doors and trunk lid can be opened or the engine can be started by
following the procedure below.

475

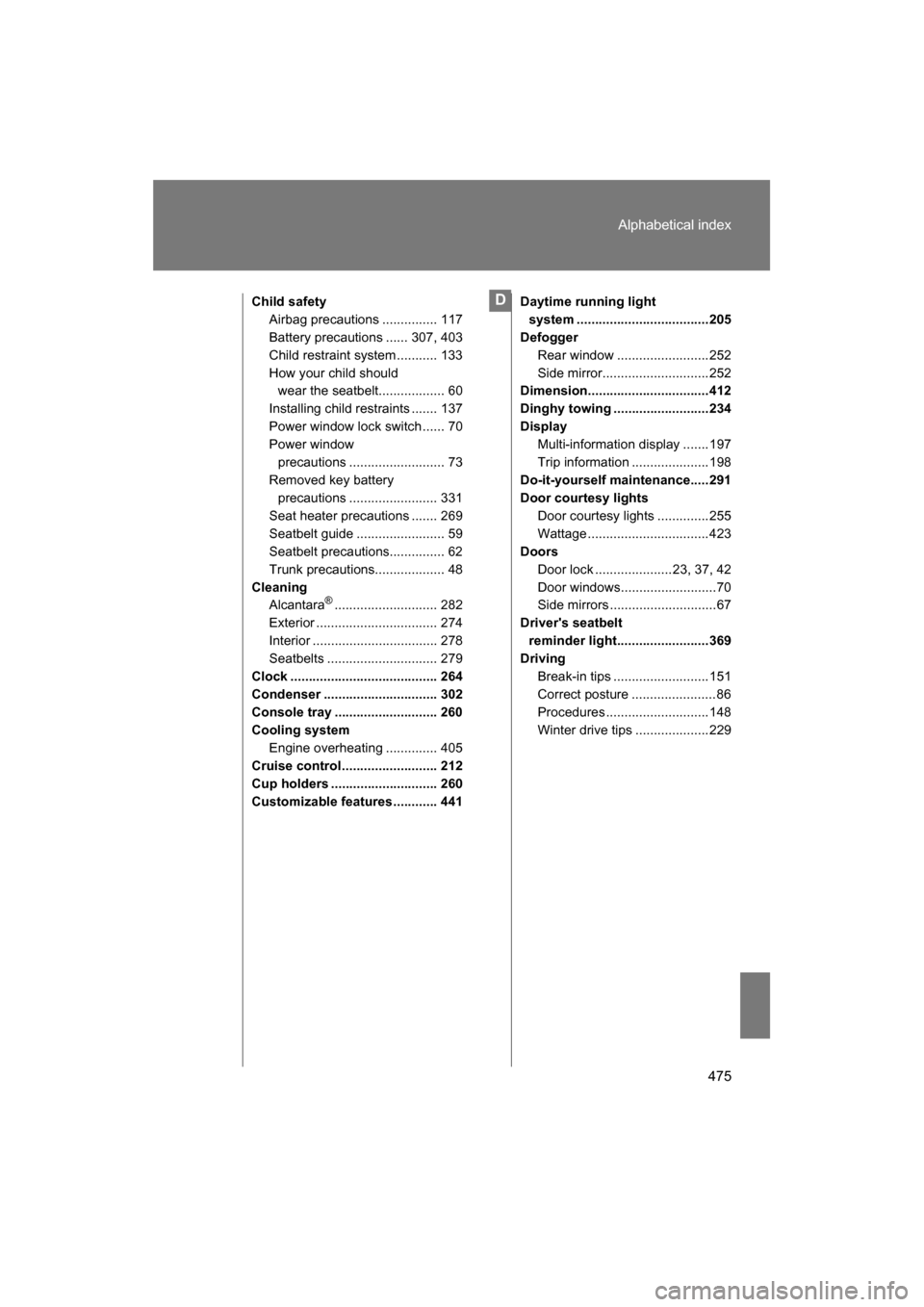

Alphabetical index
Child safetyAirbag precautions ............... 117
Battery precautions ...... 307, 403
Child restraint system ........... 133
How your child should wear the seatbelt.................. 60
Installing child restraints ....... 137
Power window lock switch ...... 70
Power window precautions .......................... 73
Removed key battery precautions ........................ 331
Seat heater precautions ....... 269
Seatbelt guide ........................ 59
Seatbelt precautions............... 62
Trunk precautions................... 48
Cleaning Alcantara ®
............................ 282
Exterior ................................. 274
Interior .................................. 278
Seatbelts .............................. 279
Clock ........................................ 264
Condenser ............................... 302
Console tray ............................ 260
Cooling system Engine overheating .............. 405
Cruise control.......................... 212
Cup holders ............................. 260
Customizable features ............ 441 Daytime running light
system ....................................205
Defogger
Rear window .........................252
Side mirror.............................252
Dimension.................................412
Dinghy towing ..........................234
Display
Multi-information display ....... 197
Trip information .....................198
Do-it-yourself maintenance.....291
Door courtesy lights Door courtesy lights ..............255
Wattage .................................423
Doors Door lock .....................23, 37, 42
Door windows..........................70
Side mirrors .............................67
Driver's seatbelt
reminder light.........................369
Driving Break-in tips ..........................151
Correct posture .......................86
Procedures ............................148
Winter drive tips ....................229D
