2014 SUBARU BRZ child restraint

99
1-7. Safety information
1
Before driving
■If the front passenger’s frontal airbag ON indicator illuminates and the
OFF indicator turns off even when an infant or a small child is in a child
restraint system (including booster seat)
Turn the ignition switch to the “LOCK” position (vehicles without a keyless
access with push button start system), or turn the push-button ignition switch
off (vehicles with a keyless access with push button start system) if the front
passenger’s frontal airbag ON indicator illuminates and the OFF indicator
turns off even when an infant or a small child is in a child restraint system
(including booster seat). Remove the child restraint system from the seat. By
referring to the child restraint manufacturer’s recommendations as well as
the child restraint system installation procedures in “Child restraint systems”(→ P. 133), correctly install the child restraint system. Turn the ignition switch
to the “ON” position (vehicles without a keyless access with push button start
system), or turn the push-button ignition switch to the “ON” mode (vehicles
with a keyless access with push button start system) and make sure that the
front passenger’s frontal airbag ON indicator turns off and the OFF indicator
illuminates.
If still the ON indicator remains illuminated while the OFF indicator turns off,
take the following actions.
●Ensure that no article is placed on the seat other than the child restraint
system and the child occupant.
●Ensure that the backward-forward position and seatback of front passen-
ger’s seat are locked into place securely by moving the seat back and
forth.
If the ON indicator still remains illuminated while the OFF indicator turns off
after taking relevant corrective actions described above, relocate the child
restraint system to the rear seat and immediately contact your SUBARU
dealer for an inspection.
NOTE
When a child who has outgrown a child restraint system or a small adult is
seated in the front passenger’s seat, the SUBARU advanced frontal airbag
system may or may not activate the front passenger’s SRS frontal airbag
depending on the occupant’s seating posture. The child should always wear
the seatbelt when sitting in the seat irrespective of whether the airbag is
deactivated or activated. If the front passenger’s SRS frontal airbag is acti-
vated (the ON indicator remains illuminated while the OFF indicator turns
off), take the following actions.

100
1-7. Safety information
●Ensure that no article is placed on the seat other than the occupant.
If the ON indicator still remains illuminated while the OFF indicator turns off
despite the fact that the actions noted above have been taken, seat the
child/small adult in the rear seat and immediately contact your SUBARU
dealer for an inspection. Even if the system has passed the dealer inspec-
tion, it is recommended that on subsequent trips the child/small adult always
take the rear seat.
Children who have outgrown a child restraint system should always wear the
seatbelt irrespective of whether the airbag is deactivated or activated.
■Conditions in which front passenger’s SRS frontal airbag is activated
The front passenger’s SRS frontal airbag will be activated for deployment
upon impact when any of the following conditions are met regarding the front
passenger’s seat.
●When the seat is occupied by an adult.
●When a certain item(s) (e.g. jug of water) is placed on the seat.

109
1-7. Safety information
1
Before driving
WARNING
■If the SRS airbags deploy
Do not touch the SRS airbag system components around the steering wheel
and dashboard with bare hands right after deployment. Doing so can cause
burns because the components can be very hot as a result of deployment.
■Child restraint precautions
NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE FRONT
PASSENGER’S SEAT EVEN IF THE FRONT PASSENGER’S SRS FRON-
TAL AIRBAG IS DEACTIVATED. Be sure to install it in the REAR seat in a
correct manner. Also, it is strongly recommended that any forward facing
child seat or booster seat be installed in the REAR seat, and that even chil-
dren who have outgrown a child restraint system be also seated in the
REAR seat. This is because children sitting in the front passenger’s seat
may be killed or severely injured should the front passenger’s SRS frontal
airbag deploy. REAR seats are the safest place for children.

118
1-7. Safety information
WARNING
■SRS airbag precautions
●The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sitsupright.
●Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seatbelt should be properly secured using a child restraint sys-
tem. SUBARU strongly recommends that all infants and children be placed
in the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. ( →P. 133)
●Do not sit on the edge of the seat or
lean against the dashboard.
●Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
●Do not allow the front seat occupants to
hold items on their knees.
●Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.

125
1-7. Safety information
1
Before driving

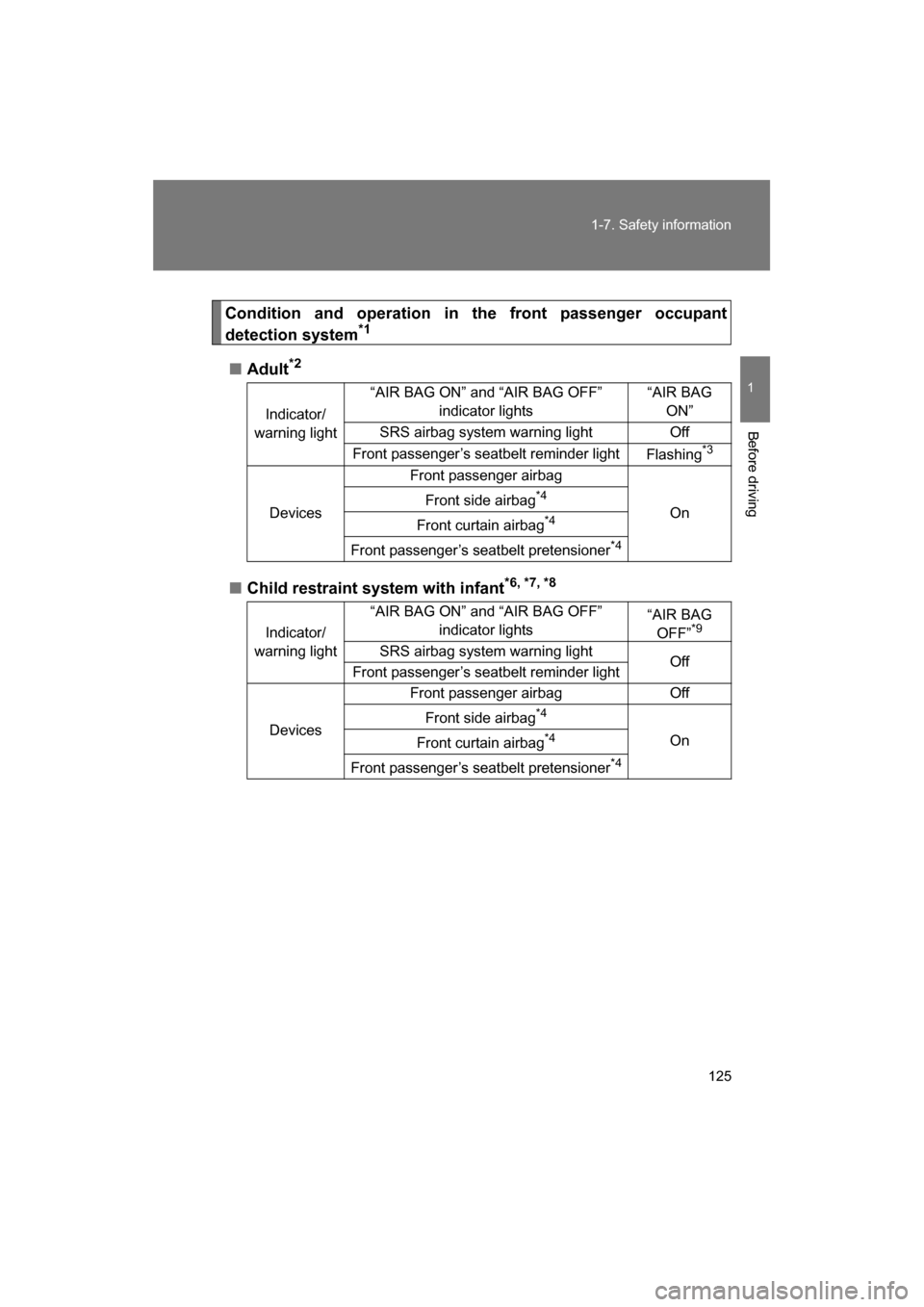

Condition and operation in the front passenger occupant
detection system*1
■Adult*2
■Child restraint system with infant *6, *7, *8
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
ON”
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light Flashing*3
Devices Front passenger airbag
On
Front side airbag
*4
Front curtain airbag *4
Front passenger’s seatbelt pretensioner *4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF” *9
SRS airbag system warning light Off
Front passenger’s seatbelt reminder light
Devices Front passenger airbag Off
Front side airbag *4
On
Front curtain airbag *4
Front passenger’s seatbelt pretensioner *4

127
1-7. Safety information
1
Before driving

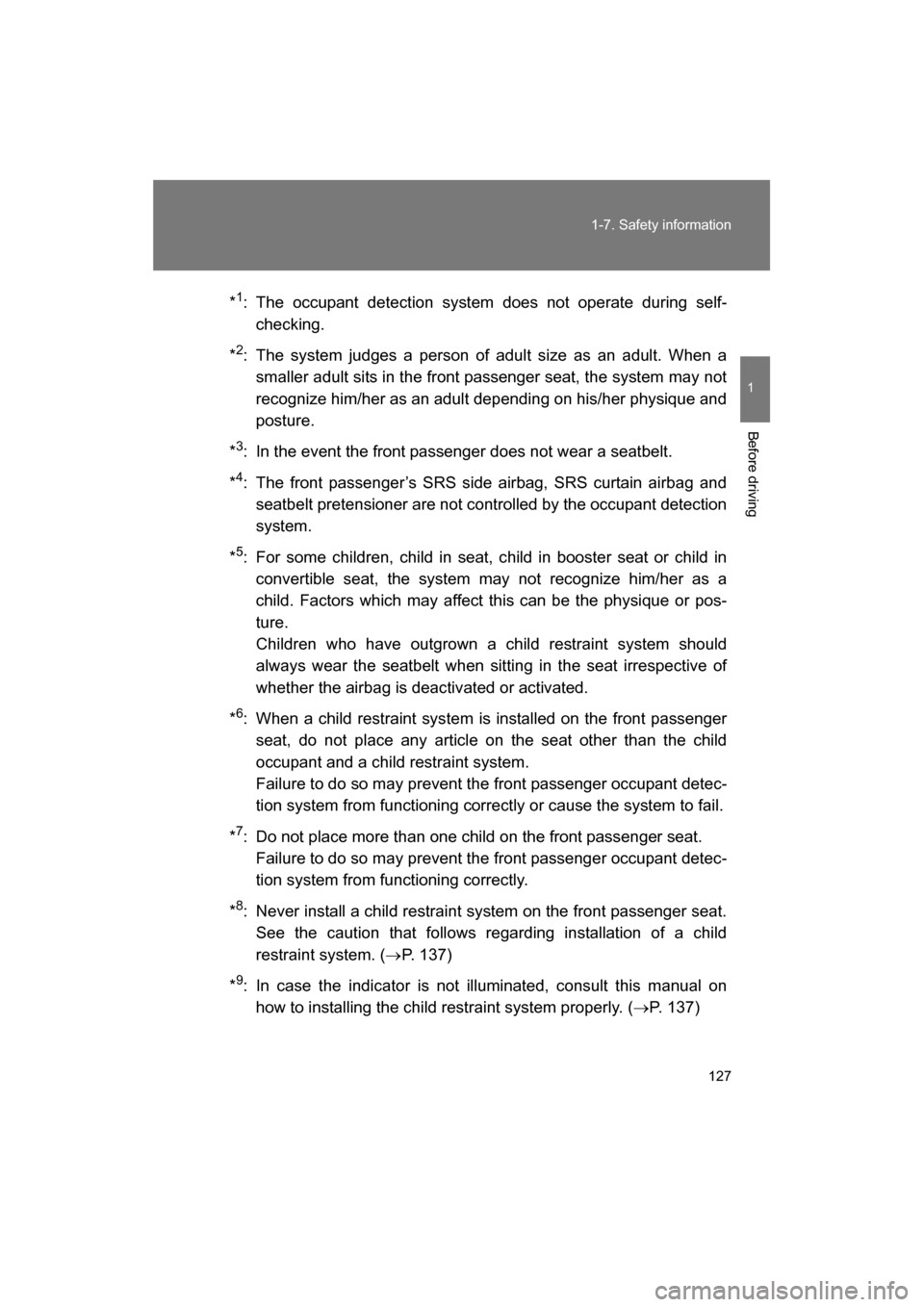

*1
: The occupant detection system does not operate during self-
checking.
* 2
: The system judges a person of adult size as an adult. When a
smaller adult sits in the front passenger seat, the system may not
recognize him/her as an adult depending on his/her physique and
posture.
* 3
: In the event the front passenger does not wear a seatbelt.
* 4
: The front passenger’s SRS side airbag, SRS curtain airbag and
seatbelt pretensioner are not controlled by the occupant detection
system.
* 5
: For some children, child in seat, child in booster seat or child in
convertible seat, the system may not recognize him/her as a
child. Factors which may affect this can be the physique or pos-
ture.
Children who have outgrown a child restraint system should
always wear the seatbelt when sitting in the seat irrespective of
whether the airbag is deactivated or activated.
* 6
: When a child restraint system is installed on the front passenger
seat, do not place any article on the seat other than the child
occupant and a child restraint system.
Failure to do so may prevent the front passenger occupant detec-
tion system from functioning correctly or cause the system to fail.
* 7
: Do not place more than one child on the front passenger seat.
Failure to do so may prevent the front passenger occupant detec-
tion system from functioning correctly.
* 8
: Never install a child restraint system on the front passenger seat.
See the caution that follows regarding installation of a child
restraint system. ( →P. 137)
* 9
: In case the indicator is not illuminated, consult this manual on
how to installing the child restraint system properly. ( →P. 137)

129
1-7. Safety information
1
Before driving
Turn the engine switch to the “ON” position (vehicles without a
keyless access with push button start system), or the push-
button ignition switch to “ON” mode (vehicles with a keyless
access with push button start system). The ON and OFF indi-
cators illuminate for 6 seconds during the system check and
after the system check is performed, the ON and OFF indica-
tors turn off for 2 seconds. Then, the OFF indicator remains
off while the ON indicator is illuminated. If the ON indicator
remains off and the OFF indicator is illuminated, move the
occupant to the rear seat backwards and immediately contact
your SUBARU dealer and have the vehicle inspected.
If the front passenger’s frontal airbag ON indicator illuminates and the OFF indicator turns off
even when an infant or a small child is in a child restraint system (including booster seat)
This can be caused by the child restraint system being installed incor-
rectly. Perform the following.
Vehicles without a keyless access with push button start sys-
tem:
The engine switch is turned to the “LOCK” position.
Vehicles with a keyless access with push button start system:
Turn the push-button ignition switch off.
Remove the child restraint system from the seat. By referring
to the child restraint manufacturer’s recommendations as well
as the child restraint system installation procedure in “child
restraint system”, correctly reinstall the child restraint system.
STEP 5
STEP 1
STEP 2

132
1-7. Safety information

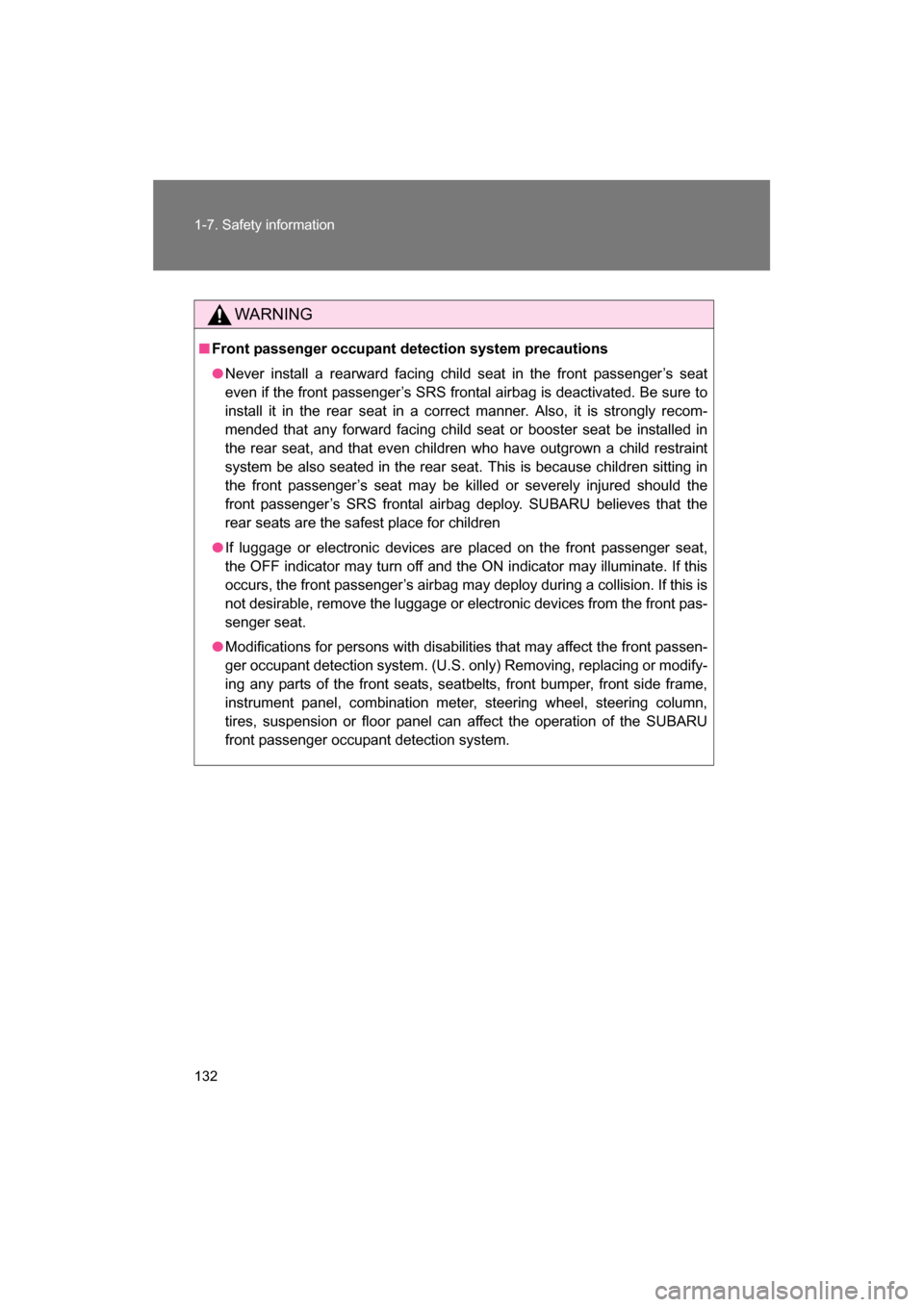

WARNING
■Front passenger occupant detection system precautions
●Never install a rearward facing child seat in the front passenger’s seat
even if the front passenger’s SRS frontal airbag is deactivated. Be sure to
install it in the rear seat in a correct manner. Also, it is strongly recom-
mended that any forward facing child seat or booster seat be installed in
the rear seat, and that even children who have outgrown a child restraint
system be also seated in the rear seat. This is because children sitting in
the front passenger’s seat may be killed or severely injured should the
front passenger’s SRS frontal airbag deploy. SUBARU believes that the
rear seats are the safest place for children
●If luggage or electronic devices are placed on the front passenger seat,
the OFF indicator may turn off and the ON indicator may illuminate. If this
occurs, the front passenger’s airbag may deploy during a collision. If this is
not desirable, remove the luggage or electronic devices from the front pas-
senger seat.
●Modifications for persons wi th disabilities that may affect the front passen-
ger occupant detection system. (U.S. onl y) Removing, replacing or modify-
ing any parts of the front seats, seatbelts, front bumper, front side frame,
instrument panel, combination meter, steering wheel, steering column,
tires, suspension or floor panel can affect the operation of the SUBARU
front passenger occupant detection system.
