1, 2, 3 ...
12-volt battery Charging ................................ 199
Indicator lamp ........................ .171
Notes ..................................... 197
Removing and installing ............199 A
ABS (Antilock Brake System) .............46
Indicator lamp ......................... 167
Accessory weight .......................... 143
Accidents Air bags .................................. 33
Acoustic Vehicle Indication* ...........48
Address change .............................. 15
Air bags ....................................... 33
Children .................................. 33
Front, driver and passenger .........36
Front, passenger ....................... 36
Head-thorax ............................. 37
Knee bag .................................. 37
Passenger front air bag off
indicator lamp ..................... 28, 41
Safety guidelines ......................35
SRS indicator lamp ...................169
Thorax-pelvis .......................... 38
Window curtain ......................... 38
Air conditioning with climate
control
Air distribution ...................... 102
Air recirculation mode .............103
Air vents ................................ 101
Air volume .............................. 102
Control panel .......................... 101
Defrosting .............................. 103
Notes ...................................... 99
Rear window defroster ...............103
Switching on/off ...................... 101
Temperature ............................ 101
Air pressure
see Tire inflation pressure
Air pressure (tires) ......................144
Air vents ..................................... 101
Alarm system see Anti-theft systems
Ambient lighting* .......................... 67Anticorrosion/antifreeze
.........219, 220
Antiglare, Interior rear view mir-
ror .............................................. 61
Antilock Brake System see ABS
Anti-theft systems ......................... 49
Anti-theft warning system ...........49
Electronic immobilizer ..............49
Interior motion sensor ...............49
Tow-away alarm ......................... 49
Aquaplaning
see Hydroplaning
Armrest ....................................... .59
Aspect ratio (tires) .......................144
Audio system ................................. 95
Basic ...................................... 96
Navigation/multimedia ..............96
Automatic headlamp mode ................64
Automatic locking .......................... 53
AUX socket .................................... 96 B
Backrest see Seats
Backup lamp ................................. 181
Bar (air pressure unit) ...................144
Batteries .................................... 197
Battery Jump starting .......................... 200
Battery (key)
Replacing the transmitter bat-
tery ....................................... 178
Battery coolant ............................ 125
Bead (tire) .................................. 144
Brake fluid .................................. 127
Checking ................................ 127
Brake lamp ................................... 181
Brake pedal ................................... 78
Brakes ........................................ 148
Parking brake ........................... 77
Warning lamp ........................... 167
Bulbs
Front ..................................... 180
Rear ...................................... 181
Replacing ............................... 1794
Index

High-voltage battery
Battery care ............................ 113
Charge level gauge ..................... 81
Charging (AC power socket) ......... 114
Charging (control system) ...........92
Charging (private wallbox) .........115
Charging (public charging sta-
tion) ...................................... 117
Charging cable ........................ 115
Charging cable warming ............114
Cruise range ........................... 113
Discharged battery ...................113
Displaying available power .........85
ECO indicator ........................... 86
Energy consumption ..................113
Intelligent charging manage-
ment ...................................... 123
Introduction ........................... .112
Notes ..................................... 198
Outside temperatures ................113
Overvoltage protection ..............114
Problems with the charging
process .................................. 120
READY indicator ........................ 87
Terms of use ............................ 114
Warning label (wheel change) ......196
Warning lamp ........................... 171
High-voltage disconnect device ........18
Hill-start assist system ..................81
Hydraulic brake assistant ................48
Hydroplaning ............................... 150I
Identification labels ....................214
Identification number, vehicle
(VIN) .......................................... 215
Infant and child restraint systems see Children in the vehicle
Inflation pressure
see Tires, Inflation pressure
Inside door handle ......................... 54
Instrument cluster .....................23, 25
Illumination ............................ 83
Lamps, indicator and warning .....166
Instrument panel
see Instrument cluster Instruments and controls
see Cockpit
Intelligent charging management
High-voltage battery ................123
Interior motion sensor .................... 49
Interior rear view mirror ................61
Interior storage spaces see Storage compartments
Intermittent wiping
Rear window wiper .....................70
Windshield wipers .....................69
Internet connection
Via mobile service module .........122
Via powerline .......................... 122 J
Jump-starting ............................. 200 K
Key ............................................. 52
Loss of ................................... 176
Replacing the transmitter bat-
tery ....................................... 178
Kilopascal (air pressure unit) .........144
Knee bag ....................................... 37 L
Labels ........................................ 214
Emission control information .....214
Lamps, exterior
Exterior lamp switch ..................64
Switching on/off ....................... 64
Lamps, indicator and warning
12-volt-battery ........................ 171
ABS ....................................... .167
Brakes ................................... 167
Coolant temperature .................172
Drive diagnostics ....................173
EPS ........................................ 170
ESP ®
...................................... 170
Fog lamps ................................ 67
High-beam headlamps ................1 71
High-voltage battery .................171
Low-beam headlamps .................171
Low tire pressure/TPMS mal-
function telltale ...................... 173 Index
7

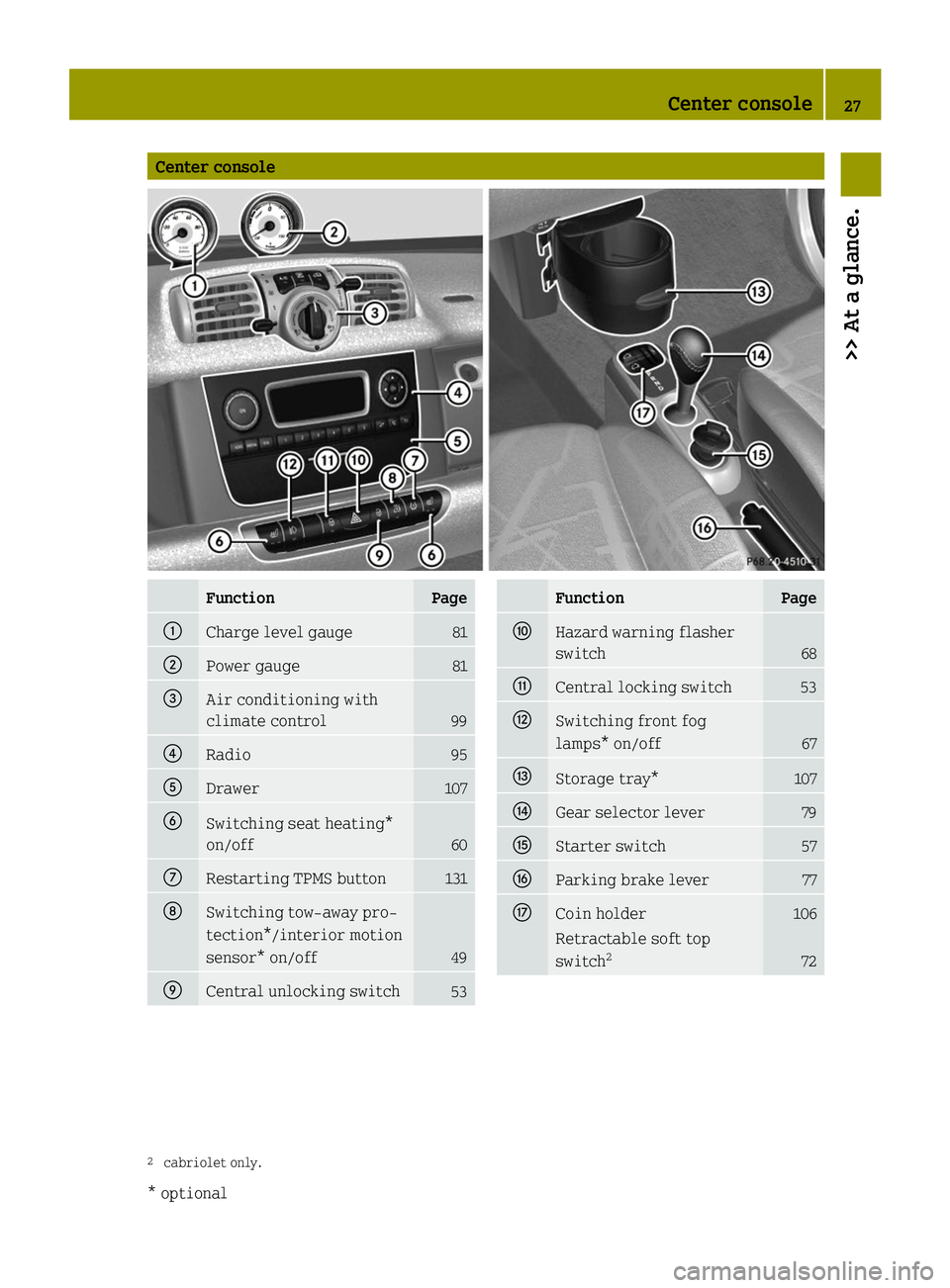

Center console
Function Page
0043
Charge level gauge 81
0044
Power gauge 81
0087
Air conditioning with
climate control 99
0085
Radio 95
0083
Drawer 107
0084
Switching seat heating*
on/off
60
006B
Restarting TPMS button 131
006C
Switching tow-away pro-
tection*/interior motion
sensor* on/off
49
006D
Central unlocking switch
53 Function Page
006E
Hazard warning flasher
switch
68
006F
Central locking switch 53
0070
Switching front fog
lamps* on/off
67
0071
Storage tray* 107
0072
Gear selector lever 79
0073
Starter switch 57
0074
Parking brake lever 77
0075
Coin holder 106
Retractable soft top
switch
2 72
2
cabriolet only. Center console
27>> At a glance.
* optional

R
you have adjusted seat backrest 0087to
a position that is as upright as possi-
ble
R you can move your legs freely
R you can depress the brake and accel-
erator pedal safely.
X Make sure the seat belt is fastened prop-
erly (Y page 62). Lighting
Exterior lamp switch
For safety, smart recommends that you
drive with your low‑beam headlamps on
during the day. In certain countries, local
laws dictate that low‑beam headlamps are
switched on automatically during opera-
tion of the vehicle.
i If you drive in countries where vehi-
cles drive on the other side of the road
than the country in which the vehicle is
registered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained at
any authorized electric drive smart
center. Exterior lamp switch
003F
Lamps off
Daytime running lamp mode*
0060 Parking lamps
0058 Low‑beam headlamps or high‑beam
headlamps
0058 Automatic headlamp mode* Parking lamps You can switch on and off the parking lamps
with the exterior lamp switch using the
manual headlamp mode.
X
Switching on: Turn the exterior lamp
switch to position 0060.
The parking lamps come on.
The following lamps also come on:
R Tail lamps
R License plate lamps
R Side marker lamps
Low‑beam headlamps You can switch on and off the low‑beam
headlamps with the exterior lamp switch
using the manual headlamp mode.
X
Switching on: Turn the exterior lamp
switch to position 0058.
The low‑beam headlamps come on.
The low‑beam headlamp indicator lamp
0059 in the instrument cluster comes on.
The following lamps also come on:
R Tail and parking lamps
R License plate lamps
R Side marker lamps
Automatic headlamp mode* This feature is only available on vehicles
with rain-light sensor*.
The following lamps come on and go out
automatically depending on the brightness
of the ambient light:
R
Low‑beam headlamps
R Tail and parking lamps
R License plate lamps
R Side marker lamps G
WARNING
If the exterior lamp switch is set to posi-
tion 0058, the headlamps will not be auto-
matically switched on under foggy condi-
tions. 64
Lighting>> Controls.
* optional

Windshield wipers
Switching windshield wipers on and off
Example illustration coupé
X
Make sure the key is in starter switch
position 1.
X Switching on: Turn the wiper switch to
position 0048or0049, depending on the
intensity of the rain.
! Do not operate the windshield wipers
when the windshield is dry. Dust that
accumulates on a windshield might
scratch the glass and/or damage the
wiper blades when wiping occurs on a dry
windshield. If it is necessary to operate
the windshield wipers in dry weather
conditions, always operate the wind-
shield wipers with windshield washer
fluid.
! If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.
For safety reasons, stop the vehicle in a
safe location and
R -
remove the key from the starter
switch
- engage the parking brake
before attempting to remove any
blockage.
R Remove blockage.
R Turn the windshield wipers on again.
X Switching off: Turn the wiper switch to
position 005A. Intermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.
Vehicles with rain-light sensor*: When you
select intermittent wiping, the sensor is
activated. The sensor automatically sets a
suitable wiping interval depending on the
wetness of the sensor surface.
! Vehicles with rain-light sensor*:
Do not leave windshield wipers in inter-
mittent setting when the vehicle is taken
to an automatic car wash or during wind-
shield cleaning. Windshield wipers will
operate in the presence of water sprayed
on the windshield, and windshield wip-
ers may be damaged as a result.
! Vehicles with rain-light sensor*:
If you have set intermittent wiping, dirt
on the surface of the sensor or optical
effects may cause the windshield wipers
to wipe in an undesired fashion. This
could then damage the windshield wiper
blades or scratch the windshield. You
should therefore switch off the wind-
shield wipers when weather conditions
are dry.
X Make sure the key is in starter switch
position 1.
X Activating intermittent wiping: Turn the
wiper switch to position 0047.
After the initial wipe, pauses between
wipes are automatically controlled
depending on the vehicle speed and by the
rain-light sensor*.
X Deactivating intermittent wiping: Turn
the wiper switch to position 005A. Windshield wipers
69>> Controls.
* optional Z

X
Removing: Fold the wiper arm away from
the rear window until you feel it engage.
X Fold wiper blade 0043away from the wiper
arm in direction of arrow 0044until it
disengages from its mounting.
X Detach wiper blade 0043.
X Installing: Push the new wiper blade onto
the wiper arm until you feel it engage.
X Fold the wiper blade into a position par-
allel to the wiper arm.
X Fold the wiper arm backward to rest on
the rear window.
Make sure to hold on to the wiper when
folding the wiper arm back.
! Make sure the wiper blade is properly
installed. An improperly installed
wiper blade may cause rear window dam-
age. Adjusting the washer jet nozzles
0043
Front washer jet nozzles
0044 Rear washer jet nozzles
X Adjusting: Use a needle to move washer
jet nozzles 0043or0044 left, right, up, or
down.
i Check the setting of the washer jet noz-
zles at regular intervals. The washer jet
nozzles are correctly set when the water
jet hits the windshield or the rear win-
dow approximately in the center. Flat tire
Preparing the vehicle
Upon experiencing any type of problem
with the vehicle’s tires, switch on the haz-
ard warning flasher, carefully slow down
and exit the roadway in a cautious manner.
X Park the vehicle at a safe distance from
moving traffic on a hard, flat surface
when possible.
X Make sure the tire valve of the damaged
tire is located below the horizontal axle
of the wheel hub.
X Engage the parking brake.
X Turn the steering wheel so that the front
wheels are in a straight ahead position.
X Move the gear selector lever to park
position P.
X Switch off the drive system.
X Remove the key from the starter switch
and take the key with you.
i Open door only when conditions are safe
to do so.
X Have any passenger exit the vehicle at a
safe distance from the roadway. Using the tire repair kit
! Depending on the type of damage on the
tire, the tire sealant could damage the
sensor of the Tire Pressure Monitoring
System (TPMS)*. Such damage is not cov-
ered by the smart Limited Warranty.
When having the damaged tire replaced,
also have the TPMS sensors* checked for
proper function. When the sensor is dam-
aged, the TPMS* will not function prop-
erly. The sensor must then be replaced at
an authorized electric drive smart
center as soon as possible.
i Depending on production date of your
vehicle, it will be equipped with version
1 or version 2 of the tire repair kit.
Please make sure to refer to the descrip- Flat tire
187>> Practical hints.
* optional Z

X
Remove the jumper cables from negative terminals 0087and 0085first.
X Remove the jumper cables from positive terminals 0043and 0044.
You can now switch on the headlamps.
X Remount the positive terminal cover.
X Have the 12-volt battery checked at the nearest authorized electric drive smart center.
i Please keep in mind that it will take quite some time to charge the 12-volt battery.
When you switch off the drive system after driving a short distance, you may not be able
to start it again.
Charge the 12-volt battery completely as soon as possible. Towing
About towing
This section offers information on towing
methods for breakdown situations and
emergency towing. Recommended towing method - Break-
down situation
! To prevent damage during transport, do
not tie down the vehicle by its chassis or
suspension parts — use only wheel straps
to position and hold down the vehicle.
Improper tie down on a flatbed carrier
truck or trailer can damage suspension
parts and body panels.
smart recommends that the vehicle be
transported with all wheels off the ground
using a flatbed carrier truck or appropri-
ate wheel lift/dolly equipment.
Always have your vehicle transported:
R when the 0075warning lamp for the high-
voltage system lights up in the instru-
ment cluster
R when the Do not tow (away)
Do not tow (away) message
appears in the instrument cluster
R when the multifunction display is inop-
erative R
when one or several of the following
warning lamps light up:
-00ED Drive diagnostics (red)
- 003D 12‑Volt battery
0052 Power steering
R if the brake pedal already starts to pul-
sate just after towing begins
R if you have to transport the vehicle over
long distances
X Switch off the tow‑away protection* and
interior motion sensor* (Y page 50). Emergency towing
When circumstances do not permit the rec-
ommended towing method, the vehicle may
be towed with all wheels on the ground
using a strap or tow bar connected to
another vehicle. Only tow the vehicle as far
as necessary to have the vehicle moved to a
safe location where the recommended tow-
ing method can be employed. G
WARNING
If circumstances require towing the vehi-
cle with all wheels on the ground, always tow
with a tow bar if:
R the drive system will not run
R there is a malfunction in the brake sys-
tem
R there is a malfunction in the power sup-
ply or in the vehicle’s electrical system Towing
203>> Practical hints.
* optional Z

No. Accessory/Component Amperage Color
006D
CPC, shifter, brake force booster vacuum
pump 7.5 A Brown
006E
Coolant pumps 1 and 2, high-voltage battery 15 A Blue
006F
ESP
®
control unit 25 A Neutral
0070
Exterior lamp switch, turn signal lamp
switch, cockpit switch module, on-board
diagnostics socket, exterior rear view mir-
ror heating, anti-theft warning system,
rain-light sensor, charge level and power
gauges, central locking system, instrument
cluster, Tire Pressure Monitoring System
(TPMS), brake and turn signal lamps (left and
right) 10 A Red
0071
— — —
0072
— — —
0073
Safety circuit high-voltage battery 15 A Blue
0074
— — —
0075
Rear window wiper (coupé only) 15 A Blue
0076
ESP
®
control unit, EPS control unit, restraint
systems 10 A Red
0077
Electric drive components, engine control
unit, transmission control unit, on-board
diagnostics socket, sound generator 7.5 A Brown
0078
Air conditioning system, exterior rear view
mirror adjustment, washer pump, audio, seat
heating, wiper switch, cruise control, soft
top switch (cabriolet only), backup lamp 10 A Red
0079
Auxiliary power outlet 15 A Blue
007A
Left low‑beam headlamp 7.5 A Brown
007B
Right low‑beam headlamp 7.5 A Brown
007C
— — —
007D
Right high‑beam headlamp 7.5 A Brown
007E
Left high‑beam headlamp 7.5 A Brown
007F
Electric drive components 7.5 A Brown Fuses
209>> Practical hints. Z
