2014 Seat Mii stop start

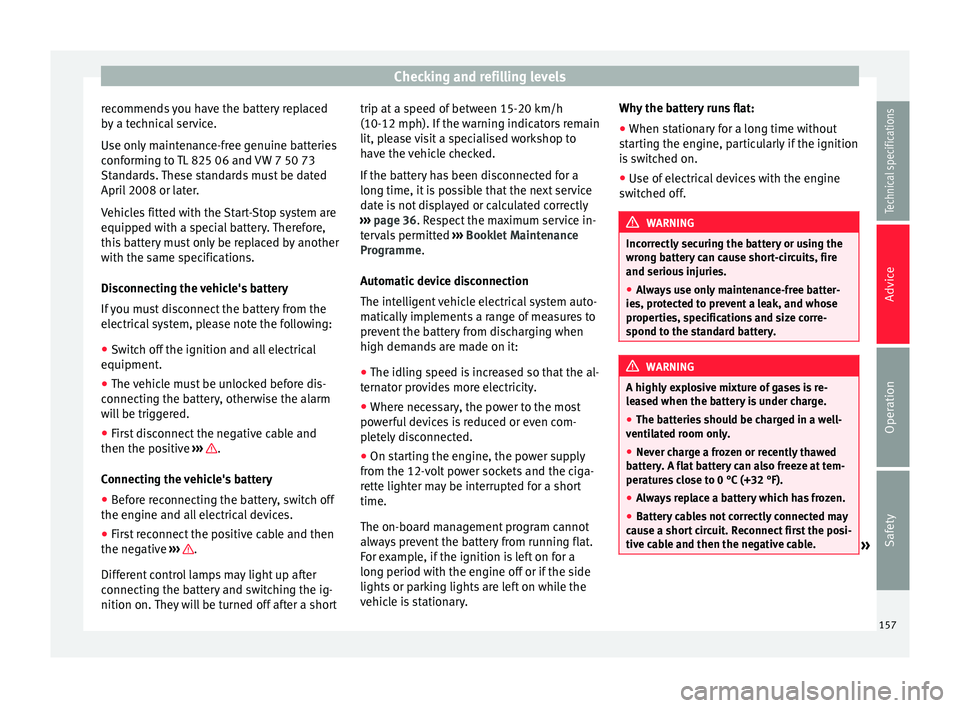

Checking and refilling levels
recommends you have the battery replaced
by a technical service.
Use only maintenance-free genuine batteries
conforming to TL 825 06 and VW 7 50 73
Standards. These standards must be dated
April 2008 or later.
Vehicles fitted with the Start-Stop system are
equipped with a special battery. Therefore,
this battery must only be replaced by another
with the same specifications.
Disconnecting the vehicle's battery
If you must disconnect the battery from the
electrical system, please note the following:
● Switch off the ignition and all electrical
equipment.
● The vehicle must be unlocked before dis-
connecting the battery, otherwise the alarm
will be triggered.
● First disconnect the negative cable and
then the positive ››› .
Connecting the vehicle's battery
● Before reconnecting the battery, switch off
the engine and all electrical devices.
● First reconnect the positive cable and then
the negative ››› .
Different control lamps may light up after
connecting the battery and switching the ig-
nition on. They will be turned off after a short trip at a speed of between 15-20 km/h
(10-12 mph). If the warning indicators remain
lit, please visit a specialised workshop to
have the vehicle checked.
If the battery has been disconnected for a
long time, it is possible that the next service
date is not displayed or calculated correctly
››› page 36 . Respect the maximum service in-
t er
vals permitted ››› Booklet Maintenance
Programme.
Autom

atic device disconnection
The intelligent vehicle electrical system auto-
matically implements a range of measures to
prevent the battery from discharging when
high demands are made on it:
● The idling speed is increased so that the al-
ternator provides more electricity.
● Where necessary, the power to the most
powerful devices is reduced or even com-
pletely disconnected.
● On starting the engine, the power supply
from the 12-volt power sockets and the ciga-
rette lighter may be interrupted for a short
time.
The on-board management program cannot
always prevent the battery from running flat.
For example, if the ignition is left on for a
long period with the engine off or if the side
lights or parking lights are left on while the
vehicle is stationary. Why the battery runs flat:
●
When stationary for a long time without
starting the engine, particularly if the ignition
is switched on.
● Use of electrical devices with the engine
switched off. WARNING
Incorrectly securing the battery or using the
wrong battery can cause short-circuits, fire
and serious injuries.
● Always use only maintenance-free batter-
ies, protected to prevent a leak, and whose
properties, specifications and size corre-
spond to the standard battery. WARNING
A highly explosive mixture of gases is re-
leased when the battery is under charge.
● The batteries should be charged in a well-
ventilated room only.
● Never charge a frozen or recently thawed
battery. A flat battery can also freeze at tem-
peratures close to 0 °C (+32 °F).
● Always replace a battery which has frozen.
● Battery cables not correctly connected may
cause a short circuit. Reconnect first the posi-
tive cable and then the negative cable. » 157
Technical specifications
Advice
Operation
Safety

Advice
CAUTION
● Never disconnect the battery if the ignition
is switched on or if the engine is running.
This could damage the electrical system or
electronic components.
● Never plug accessories that supply current,
such as solar panels or a battery charger, to
the 12-volt power socket or the cigarette
lighter. This could damage the vehicle's elec-
trical system. For the sake of the environment
Dispose of the battery in an environment-
friendly manner. Batteries contain toxic sub-
stances such as sulphuric acid and lead. For the sake of the environment
Battery acid can contaminate the environ-
ment. Collect any spilt service fluids and dis-
pose of them correctly. Wheels and tyres
Wheels Introduction SEAT recommend that all work on tyres and
wheels is carried out by a specialised work-
shop. These workshops have the necessary
special tools and replacement parts, trained
personnel and facilities for disposing of the
old tyres while respecting the environment.
SEAT recommends taking your car in for tech-
nical service.
WARNING
The vehicle cannot be totally controlled or
braked if the tyres (new or used) are worn or
damaged.
● Incorrect use of wheels and tyres could
make driving more dangerous and result in
serious accidents and damage.
● All four wheels must be fitted with radial
tyres of the same type, size (rolling circumfer-
ence) and the same tread pattern.
● New tyres do not give maximum grip and
will not have reached their maximum braking
capacity to start with, and therefore need
running in. To prevent accidents and major
damage, extreme caution should be taken for
the first 600 km. ●
Check tyre pressures regularly and ensure
they are maintained at the pressures indica-
ted. If the tyre pressure is too low, they could
overheat, resulting in tread detachment or
even burst tyres.
● Never drive on damaged (punctured, cut,
cracked or dented) or worn tyres. Driving on
damaged or worn tyres could result in burst
tyres, serious accidents or damage. Worn or
damaged tyres must be replaced immediate-
ly.
● Never exceed the maximum permitted
speed or loads specified for the type of tyre
fitted on your vehicle.
● The effectiveness of driver and brake assist
systems also depends on the grip of the
tyres.
● If you notice unusual vibration or if the ve-
hicle pulls to one side when driving, stop the
car immediately and check the tyres and
wheels for damage.
● To minimise the risk of losing control of the
vehicle or causing a serious accident, never
undo the bolted joints of beadlock wheels.
● Never mount used tyres or wheels if you are
not sure of their previous history. They may
be damaged, although the damage is not im-
mediately visible.
● Old tyres, even if they have never been
used, may lose air or burst unexpectedly
while driving, especially at high speeds, re-
sulting in serious accident and injury. If tyres
are over six years old, they should only be
used in an emergency and with extreme cau-
tion. 158

Emergencies
WARNING
When inflating the wheel, the air compressor
and the inflator tube may become hot.
● Protect hands and skin from hot parts.
● Do not place the hot flexible inflator tube or
hot air compressor on flammable material.
● Allow them to cool before storing the de-
vice.
● If it is not possible to inflate the tyre to at
least 2.0 bars (29 psi / 200 kPa), the tyre is
too badly damaged. The sealant is not in a
good condition to seal the tyre. Do not con-
tinue driving. Seek specialist assistance. CAUTION
Switch off the air compressor after a maxi-
mum of 8 operational minutes to avoid over-
heating! Before switching on the air compres-
sor again, let it cool for several minutes. Check after 10 minutes of driving
Screw in the inflator tube
›››
Fig. 132 5 again and check the pressure on the gauge
6 .
1.3 bar (19 psi / 130 kPa) and lower:
● Stop the vehicle! The tyre cannot be sealed
sufficiently with the tyre mobility set.
● You should obtain professional assistance
››› . 1.4 bar (20 psi / 140 kPa) and higher:
●
Set the tyre pressure to the correct value
again ››› page 158 .
● Car
efully resume your journey until you
reach the nearest specialised workshop with-
out exceeding 80 km/h (50 mph).
● Have the damaged tyre replaced. WARNING
Driving with an unsealed tyre is dangerous
and can cause accidents and serious injury.
● Do not continue driving if the tyre pressure
is 1.3 bar (19 psi / 130 kPa) and lower.
● Seek specialist assistance. Starting assistance
Introduction If the engine fails to start because of a dis-
charged battery, the battery of another vehi-
cle can be used to start the engine. Before
starting, check the magic eye on the battery
››› page 154 .
F or s

tarting assistance, jump lead cables con-
forming to the standard DIN 72553 are re-
quired (see the cable manufacturer instruc-
tions). The cable section in vehicles with pet-
rol engine must be at least 25 mm 2
. WARNING
Incorrect use of jump leads and incorrectly
jump starting could cause the battery to ex-
plode resulting in serious injury. Please ob-
serve the following rules to minimise the risk
of a battery explosion:
● The battery providing current must have
the same voltage (12V) and approximately
the same capacity (see markings on battery)
as the flat battery.
● Never charge a frozen or recently thawed
battery. A flat battery can also freeze at tem-
peratures close to 0 °C (+32 °F).
● If a battery is frozen and/or has been frozen
then it must be replaced.
● A highly explosive mixture of gases is re-
leased when the battery is being charged. Al-
ways keep lit cigarettes, flames, sparks and
fire far from the battery. Never use a mobile
telephone when connecting and removing the
jump leads.
● Charge the battery only in well ventilated
areas given that when the battery is charged
by outside assistance, it creates a mix of
highly explosive gases.
● Jump leads should never enter into contact
with moving parts in the engine compart-
ment.
● Never switch the positive and negative
poles or connect the jump leads incorrectly.
● Note the instruction manual provided by
the manufacturer of the jump leads. » 181
Technical specifications
Advice
Operation
Safety

Advice
CAUTION
To avoid considerable damage to the vehicle
electrical system, note the following careful-
ly: ● If the jump leads are incorrectly connected,
this could result in a short circuit.
● The vehicles must not touch each other,
otherwise electricity could flow as soon as

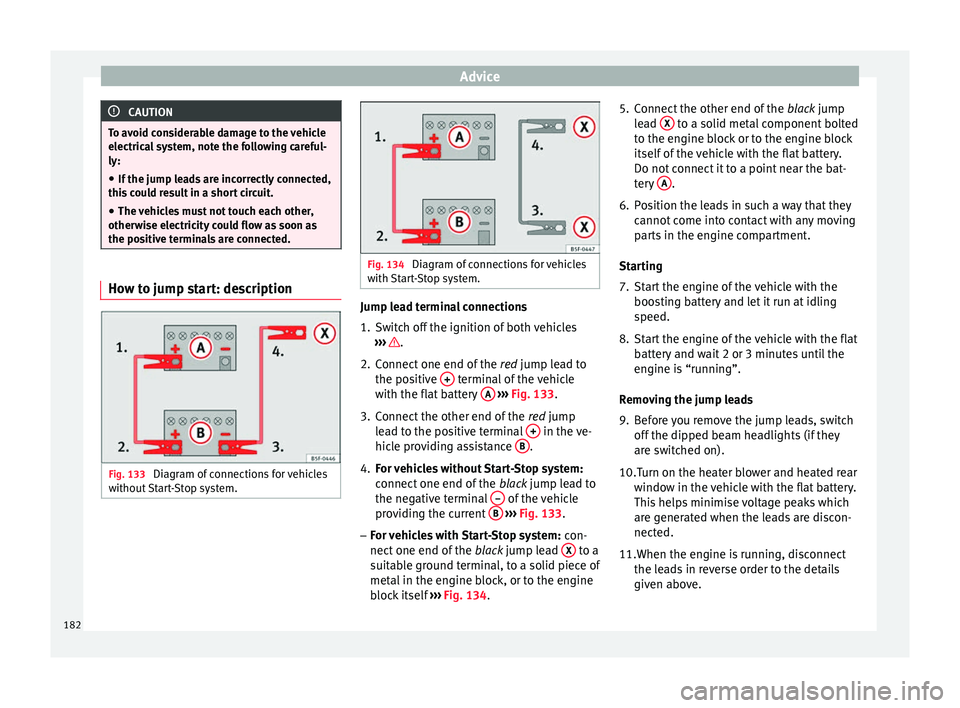

the positive terminals are connected. How to jump start: description
Fig. 133
Diagram of connections for vehicles
without Start-Stop system. Fig. 134
Diagram of connections for vehicles
with Start-Stop system. Jump lead terminal connections
1. Switch off the ignition of both vehicles
››› .
2. Connect one end of the red jump lead to
the po s
itive + terminal of the vehicle
with the flat battery A
››› Fig. 133 .
3. C

onnect the other end of the red
jump
lead to the positive terminal + in the ve-
hicle providing assistance B .
4. For vehicles without Start-Stop system:
connect one end of the black jump lead to
the negative terminal – of the vehicle
providing the current B
››› Fig. 133 .
– For

vehicles with Start-Stop system: con-
nect one end of the black jump lead X to a
suitable ground terminal, to a solid piece of
metal in the engine block, or to the engine
block itself ››› Fig. 134 . 5.
C
onnect the other end of the
black jump
lead X to a solid metal component bolted
to the engine block or to the engine block
itself of the vehicle with the flat battery.
Do not connect it to a point near the bat-
tery A .
6. Position the leads in such a way that they cannot come into contact with any moving
parts in the engine compartment.
Starting
7. Start the engine of the vehicle with the boosting battery and let it run at idling
speed.
8. Start the engine of the vehicle with the flat battery and wait 2 or 3 minutes until the
engine is “running”.
Removing the jump leads
9. Before you remove the jump leads, switch off the dipped beam headlights (if they
are switched on).
10. Turn on the heater blower and heated rear
w indo

w in the vehicle with the flat battery.
This helps minimise voltage peaks which
are generated when the leads are discon-
nected.
11.When the engine is running, disconnect the leads in reverse order to the details
given above.
182

Technical features
Petrol engine 1.0 55 kW (75 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
55 (75)/6,20095/3,000-4,3003/999Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceManualStart-StopAutomatic
Top speed (km/h)171172171
Acceleration from 0-80 km/h (seconds)8.38.39.2
Acceleration from 0-100 km/h (seconds)13.213.213.9
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle5.9/1375.1/1185.5/127
Extra-urban cycle4/933.7/864/94
Combined4.7/1084.2/984.5/105
Weights (in kg)
Gross vehicle weight1,2901,2901,290
Weight in running order (with driver)929940932
Gross front axle weight680680680
Gross rear axle weight640640640
Permitted roof load505050 201
Technical specifications
Advice
Operation
Safety

Index
Index
A
Abroad Extended stay abroad with your vehicle . . . . . 135
Sale of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 135
ABS See "Brake assist systems" . . . . . . . . . . . . . . . 104
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Additional equipment . . . . . . . . . . . . . . . . . . . . . 119
Adjust Headlight range . . . . . . . . . . . . . . . . . . . . . . . . . 58
Adjustment Correct sitting position . . . . . . . . . . . . . . . . . . . . . 6
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
rear head restraints . . . . . . . . . . . . . . . . . . . . . . . 9
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 21 activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . 133
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Deactivating the front passenger front airbag . 24
Deactivating using the key switch . . . . . . . . . . . 24
Differences between front passenger front air-bag systems . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Locking the vehicle after airbag deployment . . 46
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Use of child seats . . . . . . . . . . . . . . . . . . . . . . . . 24
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 Air conditioner
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . 84
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Things to note . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
User instructions . . . . . . . . . . . . . . . . . . . . . . . . 82
Air conditioning system . . . . . . . . . . . . . . . . . . . . . 80 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
switch off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
temporarily switch off . . . . . . . . . . . . . . . . . . . . . 84
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Aluminium care . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Anodized surfaces . . . . . . . . . . . . . . . . . . . . . . . . 129
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . 104
Anti-theft bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Anti-theft locking bolts . . . . . . . . . . . . . . . . . . . . 174
Anti-theft wheel locking bolts . . . . . . . . . . . . . . . 175
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Aspects to take into account before starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASR see Brake assist systems . . . . . . . . . . . . . . . . . 104
Assistance systems Brake assist system (BAS) . . . . . . . . . . . . . . . . 104
Cruise control system (CCS) . . . . . . . . . . . . . . . 107
Electronic differential lock system (EDL) . . . . . 104
Electronic stability control (ESC) . . . . . . . . . . . 103
Optical parking system (OPS) . . . . . . . . . . . . . 107
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Parking distance warning system . . . . . . . . . . 106
Safety Assist (City Safety Assist function) . . . . 110
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Traction control system (ASR) . . . . . . . . . . . . . 104
Traction Control (TC) . . . . . . . . . . . . . . . . . . . . . 104
Assist systems Anti-lock brake system (ABS) . . . . . . . . . . . . . . 104
Audible warnings Control and warning lamps . . . . . . . . . . . . . . . . 39
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Seat belt not fastened . . . . . . . . . . . . . . . . . . . . 12
Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Automatic belt retainer . . . . . . . . . . . . . . . . . . . . . 16
Automatic car wash . . . . . . . . . . . . . . . . . . . . . . . 126
Automatic device disconnection . . . . . . . . . . . . . 157
automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 93
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 95 driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Ignition key removal lock . . . . . . . . . . . . . . . . . . 87
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
starting on a slope . . . . . . . . . . . . . . . . . . . . . . . 97
stopping on a slope . . . . . . . . . . . . . . . . . . . . . . 97
Axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
B BAS see Brake assist systems . . . . . . . . . . . . . . . . . 104
Battery Change in the vehicle key . . . . . . . . . . . . . . . . . 44
Discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
See Vehicle battery . . . . . . . . . . . . . . . . . . . . . . 154
Battery acid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Before starting the vehicle . . . . . . . . . . . . . . . . . . . 5
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service and disposal . . . . . . . . . . . . . . . . . . . . . 17
Belt tension limiter . . . . . . . . . . . . . . . . . . . . . . . . . 16
Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
205

Index
Driving through water . . . . . . . . . . . . . . . . . . . 103
Driving with an automatic gearbox . . . . . . . . . . 96
Ecological . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Economical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fuel level too low . . . . . . . . . . . . . . . . . . . . . . . 141
Parking downhill . . . . . . . . . . . . . . . . . . . . . . . . . 91
Parking uphill . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
starting on a slope . . . . . . . . . . . . . . . . . . . . . . . 97
stopping on a slope . . . . . . . . . . . . . . . . . . . . . . 97
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Driving abroad Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Driving advice Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Temporary spare wheel . . . . . . . . . . . . . . . . . . 165
Driving in winter Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 101
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Windscreen washer bottle . . . . . . . . . . . . . . . . 129
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Driving through water . . . . . . . . . . . . . . . . . . . . . 103
Driving tips For a loaded vehicle . . . . . . . . . . . . . . . . . . . . . . 65
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
E Ecological driving . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Economical driving . . . . . . . . . . . . . . . . . . . . . . . . . 99
EDL See "Brake assist systems" . . . . . . . . . . . . . . . 104
electrical devices . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Electrical devices . . . . . . . . . . . . . . . . . . . . . 73, 172 Electric windows
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
see Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Electronic differential lock system (EDL) . . . . . . 104
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . 88
Electronic stability control (ESC) . . . . . . . . . . . . . 103
Emergency brake indicator . . . . . . . . . . . . . . . . . 172
Emergency locking and unlocking . . . . . . . . . . . 186 Driver door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Passenger door . . . . . . . . . . . . . . . . . . . . . . . . . 187
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Emission control system Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Engaging gears Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 95
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 94
Engine Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Engine and ignition . . . . . . . . . . . . . . . . . . . . . . . . 86 12 Volt sockets . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Starting the engine . . . . . . . . . . . . . . . . . . . . . . 87
Stopping the engine . . . . . . . . . . . . . . . . . . . . . . 88
Unauthorised vehicle key . . . . . . . . . . . . . . . . . 86
Engine compartment . . . . . . . . . . . . . . . . . . . . . . 143 Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 150
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 154
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Checking the level . . . . . . . . . . . . . . . . . . . . . . 151
Filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . 150 G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Temperature gauge . . . . . . . . . . . . . . . . . . . . . 150
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Engine management . . . . . . . . . . . . . . . . . . . . . . 101 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Checking the oil level . . . . . . . . . . . . . . . . . . . . 148
Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Environment Environmental friendliness . . . . . . . . . . . . . . . . 99
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . . 121
Exhaust gas purification system . . . . . . . . . . . . . 101
Exterior aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Controlling function . . . . . . . . . . . . . . . . . . . . . . 63
folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
F Fastening seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fault Parking distance warning system . . . . . . . . . . 106
Fault memory Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Faults Air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . 83
208

Index
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 At the filling station . . . . . . . . . . . . . . . . . . . . . 137
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . 171
First-aid kit Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 see First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . 170
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Front airbags See "Airbag system" . . . . . . . . . . . . . . . . . . . . . . 21
Front passenger airbag See "Airbag system" . . . . . . . . . . . . . . . . . . . . . . 21
Front passenger front airbag Deactivating using the key switch . . . . . . . . . . . 24
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 Information on consumption . . . . . . . . . . . . . . 198
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Type of fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Fuel consumption Economical driving . . . . . . . . . . . . . . . . . . . . . . . 99
¿Why does it increase? . . . . . . . . . . . . . . . . . . . 102
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fuel tank flap close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Identifying blown fuses . . . . . . . . . . . . . . . . . . 191
Identifying by colours . . . . . . . . . . . . . . . . . . . . 190
Preparation before replacing . . . . . . . . . . . . . . 191
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 G
Glove compartment
see Compartments . . . . . . . . . . . . . . . . . . . . 68, 69
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 171
Head-on collisions and the laws of physics . . . . . 14
Headlamp range adjustment . . . . . . . . . . . . . . . . . 35
Headlight range control . . . . . . . . . . . . . . . . . . . . . 58
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Headlight washers . . . . . . . . . . . . . . . . . . . . . . . 61
Heated rear window . . . . . . . . . . . . . . . . . . . . . . . . 82
Heated seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Heating and ventilation system Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
See also Air conditioning system . . . . . . . . . . . 80
High pressure cleaning apparatus . . . . . . . . . . . 127
Hill driving assistant . . . . . . . . . . . . . . . . . . . . . . 114
Hill hold Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 115
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
I Identification number . . . . . . . . . . . . . . . . . . . . . 197
Identification plate . . . . . . . . . . . . . . . . . . . . . . . . 197
Ignition See "Engine and ignition" . . . . . . . . . . . . . . . . . 86
Ignition key see vehicle key . . . . . . . . . . . . . . . . . . . . . . . 43, 44
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Key removal lock . . . . . . . . . . . . . . . . . . . . . . . . . 87
Unauthorised vehicle key . . . . . . . . . . . . . . . . . 86 Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Immobilizer
Operating fault . . . . . . . . . . . . . . . . . . . . . . . . . . 86
In case of a breakdown Securing the vehicle . . . . . . . . . . . . . . . . . . . . . 171
In case of an emergency Hazard warning lights . . . . . . . . . . . . . . . . . . . 171
In case of a breakdown . . . . . . . . . . . . . . . . . . 171
Protecting yourself and securing the vehicle . 171
In case of emergency . . . . . . . . . . . . . . . . . . . . . . 170
Information on consumption . . . . . . . . . . . . . . . . 198
InSP Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Instrument panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Display control functions . . . . . . . . . . . . . . . . . . 41
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Service interval display . . . . . . . . . . . . . . . . . . . 38
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
In the event of an emergency Fire extinguishers . . . . . . . . . . . . . . . . . . . . . . . 170
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 170
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 see Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174 Raising the vehicle . . . . . . . . . . . . . . . . . . . . . . 177
K key see vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 44
209
