Page 117 of 381

Seat Alhambra 2014 Owners Manual 115
Seats and storage
Seats and storage Seat adjustment
Mechanical controls on the front seat

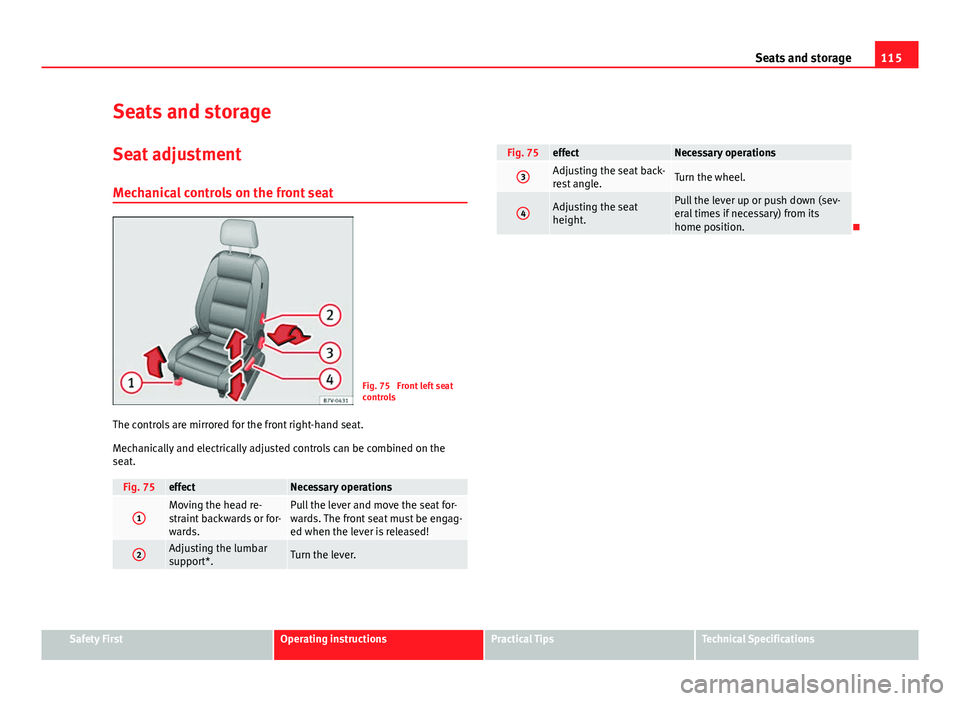

Fig. 75 Front left seat
controls
The controls are mirrored for the front right-hand seat.
Mechanically an

Page 119 of 381

Seat Alhambra 2014 Owners Manual 117
Seats and storage
Adjusting the rear seats
Fig. 78 Adjusting rear
seats
⇒ Fig. 78effectNecessary operations
1Adjusting the seat
backrest angle.
Pull the lever and adjust the seat back-
rest t

Page 121 of 381

Seat Alhambra 2014 Owners Manual 119
Seats and storage
effectAction ⇒ Fig. 79, ⇒ Fig. 80To switch system on:Press button . Seat heating is switched on fully.Adjusting the heating
output:Keep pressing button  until the

119
Seats and storage
effectAction ⇒ Fig. 79, ⇒ Fig. 80To switch system on:Press button . Seat heating is switched on fully.Adjusting the heating
output:Keep pressing button  until the required intensi-
ty is set.
To switch system off:Keep pressing button  until all of the lights are
switched off ⇒ Fig. 79, ⇒ Fig. 80.
WARNING
People whose pain and temperature threshold has been affected by some
kind of medicine, paraplegia or chronic illness (e.g. diabetes) may sus-
tain burns to the back, buttocks and legs from use of the seat heating
that may lead to a long healing process or that may never completely
heal. Seek medical advice if you have doubts regarding your health.
● People with a limit pain and temperature threshold must never use
seat heating.
CAUTION
● To avoid damaging the heating elements of the seat heating, please do
not kneel on the seat or apply sharp pressure at a single point to the seat
cushion and backrest.
● Liquids, sharp objects and insulating materials on the seat could dam-
age the seat heating.
● In the event of smells, switch off the seat heating immediately and have
the unit inspected by a specialised workshop.
For the sake of the environment
The seat heating should remain on only when needed. Otherwise, it is an
unnecessary fuel waste. Seat with position memory*
Fig. 81 Memory buttons
on the outside of the
driver seat
Memory buttons
Individual settings for the driver seat and the exterior mirror can be as-
signed to each memory button.
Storing exterior mirror settings for driving forwards
● Connect the automatic parking brake.
● Move the gear lever to neutral.
● Switch the ignition on.
● Adjust the front seat and the exterior mirrors.
● Keep the SET
button held down for more than one second
⇒ Fig. 81.
● Press the required memory button for the following 10 seconds. An au-
dible warning confirms the settings have been stored.
Storing front passenger exterior mirror settings for driving in reverse gear
● Connect the automatic parking brake.
● Move the gear lever to neutral.
● Switch the ignition on. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

Page 123 of 381

Seat Alhambra 2014 Owners Manual 121
Seats and storage
Convenient entry function for the third row of seats

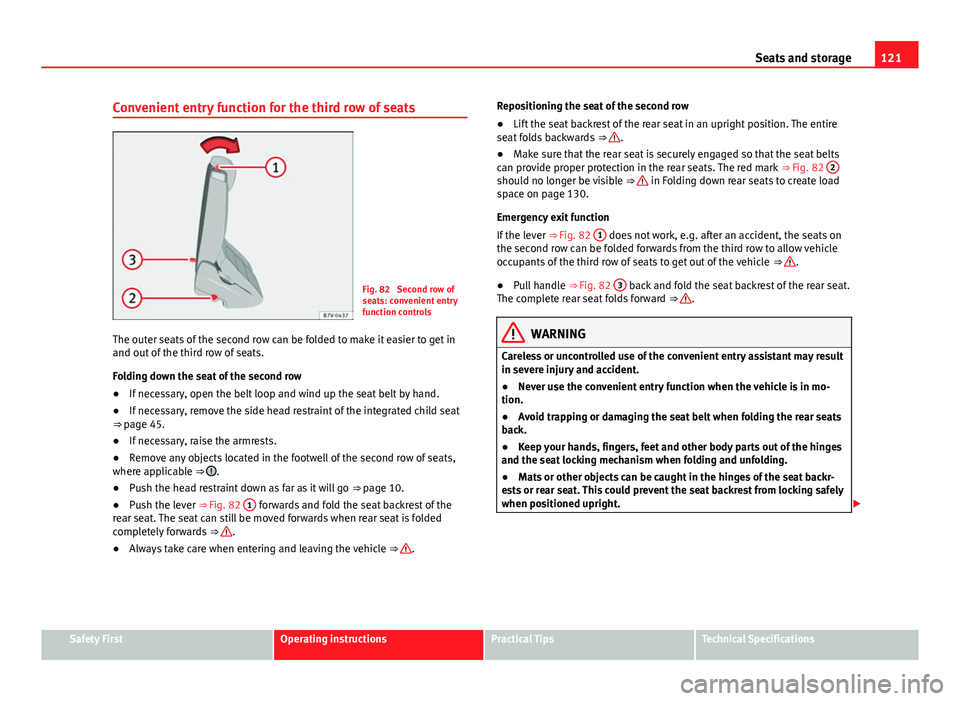

Fig. 82 Second row of
seats: convenient entry
function controls
The outer seats of the second row can be folded to make it e

121
Seats and storage
Convenient entry function for the third row of seats
Fig. 82 Second row of
seats: convenient entry
function controls
The outer seats of the second row can be folded to make it easier to get in
and out of the third row of seats.
Folding down the seat of the second row
● If necessary, open the belt loop and wind up the seat belt by hand.
● If necessary, remove the side head restraint of the integrated child seat
⇒ page 45.
● If necessary, raise the armrests.
● Remove any objects located in the footwell of the second row of seats,
where applicable ⇒
.
● Push the head restraint down as far as it will go ⇒ page 10.
● Push the lever ⇒ Fig. 82 1
forwards and fold the seat backrest of the
rear seat. The seat can still be moved forwards when rear seat is folded
completely forwards ⇒
.
● Always take care when entering and leaving the vehicle ⇒ .Repositioning the seat of the second row
●
Lift the seat backrest of the rear seat in an upright position. The entire
seat folds backwards ⇒
.
● Make sure that the rear seat is securely engaged so that the seat belts
can provide proper protection in the rear seats. The red mark ⇒ Fig. 82 2
should no longer be visible
⇒ in Folding down rear seats to create load
space on page 130.
Emergency exit function
If the lever ⇒ Fig. 82 1
does not work, e.g. after an accident, the seats on
the second row can be folded forwards from the third row to allow vehicle
occupants of the third row of seats to get out of the vehicle ⇒
.
● Pull handle ⇒ Fig. 82 3
back and fold the seat backrest of the rear seat.
The complete rear seat folds forward ⇒ .
WARNING
Careless or uncontrolled use of the convenient entry assistant may result
in severe injury and accident.
● Never use the convenient entry function when the vehicle is in mo-
tion.
● Avoid trapping or damaging the seat belt when folding the rear seats
back.
● Keep your hands, fingers, feet and other body parts out of the hinges
and the seat locking mechanism when folding and unfolding.
● Mats or other objects can be caught in the hinges of the seat backr-
ests or rear seat. This could prevent the seat backrest from locking safely
when positioned upright. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

Page 125 of 381

Seat Alhambra 2014 Owners Manual 123
Seats and storage
Folding the seat backrest of the front passenger seat
● Remove any objects from the front passenger seat cushion ⇒
.
● Adjust the front passenger seat to its lowest pos

123
Seats and storage
Folding the seat backrest of the front passenger seat
● Remove any objects from the front passenger seat cushion ⇒
.
● Adjust the front passenger seat to its lowest position ⇒ page 10.
● Push the head restraint down as far as it will go ⇒ page 10.
● Unlock the seat backrest of the front passenger seat in the direction of
the arrow ⇒ Fig. 83 1
.
● Fold the seat backrest of the front passenger seat forwards in the direc-
tion of the arrow ⇒ Fig. 83 2
until it is horizontal.
● The seat backrest of the front passenger seat must engage safely in its
folded position.
Lifting the seat backrest of the front passenger seat
● Check that there are no objects or parts of the body in the hinge area.
● Lift the seat backrest of the front passenger seat by first unlocking it
again ⇒ Fig. 84.
● Lift the seat backrest of the front passenger seat until it is upright. The
seat backrest must be engaged.
● The upright seat backrest of the front passenger seat must safely en-
gage.
WARNING
Folding and lifting the seat backrest of the front passenger seat uncon-
trollably or without paying attention may lead to severe injuries.
● Only fold and lift the seat backrest of the front passenger seat when
the vehicle is stationary.
● While the seat backrest of the front passenger seat is folded, the
front airbag must remain disabled and the PASSENGER AIRBAG OFF 
light on.
● Keep your hands, fingers, feet and other body parts out of the hinges
and the seat locking mechanism when folding and unfolding.
WARNING (Continued)
● Mats or other objects can be caught in the hinges of the seat backrest
of the front passenger seat. This could prevent the seat backrest from
locking safely when positioned upright.
● The upright seat backrest of the front passenger seat must engage. If
the seat backrest of the front passenger seat is not locked, it may sud-
denly move and cause severe injuries.
WARNING
Seat anchors and hinges exposed when the seat backrest of the front
passenger seat is folded may lead to severe injuries in the event of an ac-
cident or sudden braking.
● Never carry people or children on the front passenger seat when the
seat backrest is folded.
● When the seat backrest of the front passenger seat is folded, only the
outer seat behind the driver on the second row of seats may be occupied.
This also applies to children sitting in a child seat.

Safety FirstOperating instructionsPractical TipsTechnical Specifications

Page 127 of 381

Seat Alhambra 2014 Owners Manual 125
Seats and storage
head and under no circumstances below eye level. Keep the back of your
neck as close as possible to the head restraint.
Adjusting the head restraint for short people
Lower the he

Page 129 of 381

Seat Alhambra 2014 Owners Manual 127
Seats and storage
WARNING
Travelling with the head restraints removed or improperly adjusted in-
creases the risk of severe or fatal injuries in the event of accidents and
sudden braking or manoeu

Page 131 of 381

Seat Alhambra 2014 Owners Manual 129
Seats and storage
Folding down rear seats to create load space
Fig. 90 Second row of seats: folding the rear seat ,
rear seat as load space 
Fig. 91 Third row of seats: fold down the rea

Load next 8 pages
