NOTE:From the “conversation mirror” position, the
door can only be closed.
To return to the full open position, the door must first be
closed and then opened by pressing the latch again to
release.
Rear Courtesy/Reading Lights — If Equipped
The overhead console has two sets of courtesy lights. The
lights turn on when a front door, a sliding door or the
liftgate is opened. If your vehicle is equipped with
Remote Keyless Entry (RKE) the lights will also turn on
when the UNLOCK button on the RKE transmitter is
pressed.
Conversation Mirror Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 237

Nav Turn-By-Turn — If Equipped
When this feature is selected, the navigation system
utilizes voice commands, guiding through the drive
route, mile by mile, turn-by-turn until the final destina-
tion is reached. To make your selection, press and release
the SELECT button until a check-mark appears next to
the feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
Enable/Disable the Rear Park Assist System — If
Equipped
The Rear Park Assist system will scan for objects behind
the vehicle when the transmission is in the REVERSE
position and the vehicle speed is less than 11 mph
(18 km/h). The system can be enabled with Sound Only,
Sound and Display, or turned OFF through the EVIC. To
make your selection, press and release the SELECT
button until a check-mark appears next to the featureshowing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Refer to “Rear Park Assist System” in “Understanding
The Features Of Your Vehicle” for system function and
operating information.
Auto Unlock Doors — If Equipped
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the SELECT
button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Remote Unlock Sequence
When
Driver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
326 UNDERSTANDING YOUR INSTRUMENT PANEL

WARNING!(Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.

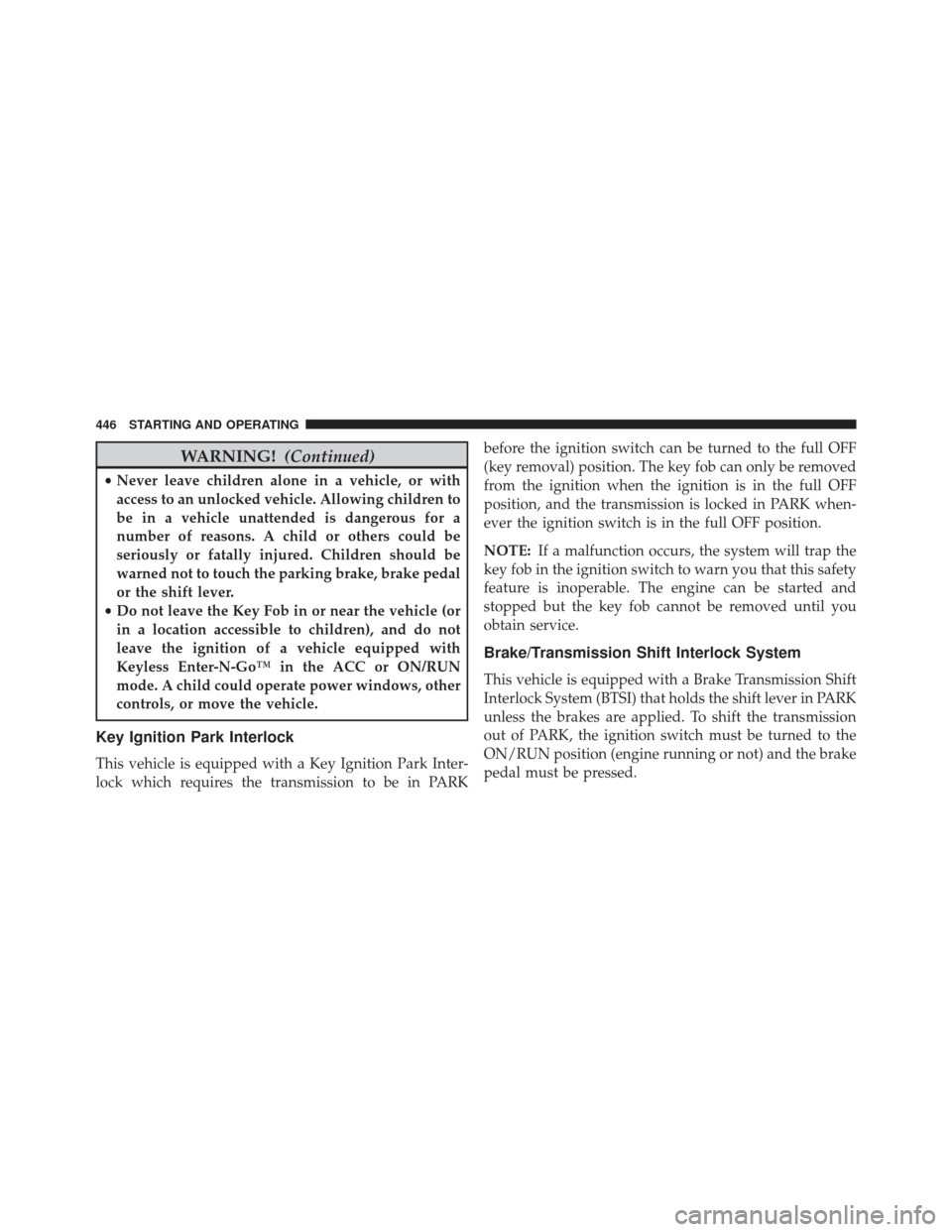

Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Inter-
lock which requires the transmission to be in PARK before the ignition switch can be turned to the full OFF
(key removal) position. The key fob can only be removed
from the ignition when the ignition is in the full OFF
position, and the transmission is locked in PARK when-
ever the ignition switch is in the full OFF position.
NOTE:
If a malfunction occurs, the system will trap the
key fob in the ignition switch to warn you that this safety
feature is inoperable. The engine can be started and
stopped but the key fob cannot be removed until you
obtain service.
Brake/Transmission Shift Interlock System
This vehicle is equipped with a Brake Transmission Shift
Interlock System (BTSI) that holds the shift lever in PARK
unless the brakes are applied. To shift the transmission
out of PARK, the ignition switch must be turned to the
ON/RUN position (engine running or not) and the brake
pedal must be pressed.
446 STARTING AND OPERATING

WARNING!(Continued)
•Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine is
running. Before exiting a vehicle, always apply the
parking brake, shift the transmission into PARK,
turn the engine OFF, and remove the Key Fob. Once
the Key Fob is removed, the transmission is locked
in PARK, securing the vehicle against unwanted
movement.
• When leaving the vehicle, always remove the Key
Fob and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
(Continued)
WARNING! (Continued)
•Allowing children to be alone in a vehicle unat-
tended is dangerous for a number of reasons. A
child or others could be seriously or fatally injured.
Children should be warned not to touch the park-
ing brake, brake pedal or the shift lever.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
5
STARTING AND OPERATING 451

NOTE:
•When the parking brake is applied and the automatic
transmission is placed in gear, the “Brake Warning
Light” will flash. If vehicle speed is detected, a chime
will sound to alert the driver. Fully release the parking
brake before attempting to move the vehicle.
• This light only shows that the parking brake is ap-
plied. It does not show the degree of brake application.
When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. For vehicles equipped
with an automatic transmission, apply the parking brake
before placing the shift lever in PARK, otherwise the load
on the transmission locking mechanism may make it
difficult to move the shift lever out of PARK. The parking
brake should always be applied whenever the driver is
not in the vehicle.WARNING!
• When leaving the vehicle, always remove the Key
Fob from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/ RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
(Continued)
5
STARTING AND OPERATING 463

CavityCar-
tridge Fuse Mini-
Fuse Description
M20 — 15 Amp BlueInstrument Cluster
Interior Light,
Switch Bank, Steer- ing Column Mod-
ule, Switch Steering Wheel
M21 — 20 Amp YellowPowertrain
M22 — 10 Amp RedHorn
M23 — 10 Amp RedHorn
M24 — 25 Amp NaturalRear WiperCavityCar-
tridge Fuse Mini-
Fuse Description
M25 — 20 Amp YellowFuel Pump, Diesel
Lift Pump – If Equipped
M26 — 10 Amp RedPower Mirror
Switch, Driver Win- dow Switch
M27 — 10 Amp RedWireless Control
Module, Keyless Entry Module
M28 — 10 Amp RedPowertrain, Trans-
mission Control Module
M29 — 10 Amp RedOccupant Classifi-
cation Module
616 MAINTAINING YOUR VEHICLE

Automatic Transmission....................444
Adding Fluid ......................... .601
Fluid and Filter Changes ..................602
Fluid Change ......................... .602
Fluid Level Check ...................... .601
Fluid Type ........................... .600
Gear Ranges .......................... .449
Special Additives ...................... .601
Torque Converter ...................... .456
Auto Up Power Windows ....................41
Battery ................................ .586
Jump Starting ......................... .564
Keyless Transmitter Replacement (RKE) ........27
Saving Feature (Protection) ................210
Belts, Seat .............................. .102
Blind Spot Monitoring ..................... .120
Body Builders Guide ........................6
Body Mechanism Lubrication .................590B-Pillar Location
......................... .482
Brake Assist System ...................... .468
Brake Control System, Electronic ..............466
Brake Fluid ............................ .626
Brake System ........................... .598
Fluid Check .......................... .598
Parking ............................. .462
Warning Light ........................ .303
Brake/Transmission Interlock .................446
Bulb Replacement ........................ .620
Bulbs, Light ............................ .105
Calibration, Compass ..................... .323
Camera, Rear ........................... .232
Capacities, Fluid ......................... .624
Caps, Filler Fuel ................................ .518
Power Steering ........................ .461
Radiator (Coolant Pressure) ................595
10
INDEX 645

Instrument Cluster....................... .293
Instrument Panel and Controls ................292
Instrument Panel Cover .....................605
Instrument Panel Lens Cleaning ...............607
Integrated Power Module (Fuses) ..............610
Interior Appearance Care ....................605
Interior Lights .......................... .206
Intermittent Wipers (Delay Wipers) .............212
Introduction ..............................4
iPod®/USB/MP3 Control Bluetooth® Streaming Audio ...............163
Jack Location ........................... .545
Jack Operation .......................... .544
Jump Starting ........................... .564
Key-In Reminder ..........................15
Keyless Entry System .......................20
Key, Programming .........................17 Key, Replacement
..........................16
Keys ...................................12
Key, Sentry (Immobilizer) ....................15
Lane Change Assist ....................... .210
Lap/Shoulder Belts .........................58
Latches ............................... .105
Hood ............................... .202
Lead Free Gasoline ....................... .510
Leaks, Fluid ............................ .105
Life of Tires ............................ .496
Liftgate .................................51
Light Bulbs ............................. .105
Lights ................................ .105
Airbag ................................79
Alarm .............................. .303
Anti-Lock ............................ .298
Automatic Headlights ....................204
Back-Up ............................. .622
652 INDEX
