2. To reattach the seat belt to the front center seat, pullthe black buckle latch plate forward from the cab back
panel and insert it into the black keyed buckle until
there is an audible “click”. For proper seat belt usage,
refer “Lap/Shoulder Belt Operating Instructions”.
Detaching Buckle With Seat Belt TongueInserting Latch Plate
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59

including the severity and type of collision. Advanced
Front Air Bags are not expected to reduce the risk of
injury in rear, rollover, or side collisions.
The Advanced Front Air Bags will not deploy in all
frontal collisions, including some that may produce sub-
stantial vehicle damage — for example, some pole colli-
sions, truck underrides, and angle offset collisions. On
the other hand, depending on the type and location of
impact, Advanced Front Air Bags may deploy in crashes
with little vehicle front-end damage but that produce a
severe initial deceleration.
The side air bags will not deploy in all side collisions.
Side air bag deployment will depend on the severity and
type of collision.
Because air bag sensors measure vehicle deceleration
over time, vehicle speed and damage by themselves are
not good indicators of whether or not an air bag should
have deployed.Seat belts are necessary for your protection in all colli-
sions, and also are needed to help keep you in position,
away from an inflating air bag.
The ORC monitors the readiness of the electronic parts of
the air bag system whenever the ignition switch is in the
START or ON/RUN position. If the key is in the LOCK
position, in the ACC position, or not in the ignition, the
air bag system is not on and the air bags will not inflate.
The ORC contains a backup power supply system that
may deploy the air bags even if the battery loses power or
it becomes disconnected prior to deployment.
Also, the ORC turns on the Air Bag Warning
Light in the instrument panel for approxi-
mately four to eight seconds for a self-check
when the ignition is first turned on. After the
self-check, the Air Bag Warning Light will turn off. If the
ORC detects a malfunction in any part of the system, it
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

inflates. This especially applies to children. The side
curtain air bag is only about 3-1/2 in (9 cm) thick when
it is inflated.
Because air bag sensors estimate deceleration over time,
vehicle speed and damage are not good indicators of
whether or not an air bag should have deployed.
NOTE:In a rollover the pretensioners, and/or SAB and
SABIC air bags may deploy on both sides of the vehicle.
Front And Side Impact Sensors And Vehicle
Rollover
In front and side impacts, impact sensors can aid the
ORC in determining appropriate response to impact
events.
Front And Side Impact Sensors
In front and side impacts, impact sensors can aid the
ORC in determining appropriate response to impact
events.
Enhanced Accident Response System
In the event of an impact causing air bag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
• Cut off fuel to the engine.
• Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
• Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
• Unlock the doors automatically.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77

▫Power Lumbar — If Equipped ............144
▫ Heated Seats — If Equipped ..............145
▫ Ventilated Seats — If Equipped ............147
▫ Manual Seat Adjuster — If Equipped ........149
▫ 40-20-40 Front Bench Seat — If Equipped . . . .150
▫ Mega Cab® Rear Seat Features ............150
▫ Head Restraints ..................... .154
 DRIVER MEMORY SEAT — IF EQUIPPED . . . .156
▫ Programming The Memory Feature .........157
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory .............158
▫ Memory Position Recall .................159
 TO OPEN AND CLOSE THE HOOD .........160
LIGHTS ............................ .162
▫ Headlights ......................... .163
▫ Automatic Headlights — If Equipped .......163
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ..............164
▫ Daytime Running Lights (DRL) —
If Equipped ........................ .164
▫ Headlight Delay ..................... .164
▫ Automatic High Beam Headlamp Control —
If Equipped ........................ .165
▫ Parking Lights And Panel Lights ...........167
▫ Fog Lights — If Equipped ...............167
▫ Lights-On Reminder ...................168
▫ Battery Saver ........................ .168
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Bed Rail Tie-Down System ..............255
 SLIDE-IN CAMPERS ....................257
▫ Camper Applications ...................257
 EASY-OFF TAILGATE ...................257
▫ Disconnecting the Rear Camera or Remote
Keyless Entry — If Equipped .............258
▫ Removing The Tailgate ..................259 ▫
Locking Tailgate ..................... .260
 TRI-FOLD TONNEAU COVER —
IF EQUIPPED ......................... .260
▫ Tri-Fold Tonneau Cover Removal ..........261
▫ Tri-Fold Tonneau Cover Installation .........265
▫ Tri-Fold Tonneau Cover Cleaning ..........271
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare
from vehicles behind you.
NOTE:
•The Automatic Dimming Mirror feature is disabled
when the vehicle is in reverse gear to improve rear
view viewing.
• The Automatic Dimming Mirror feature can be turned
on or off using the Uconnect® System.
– Press the controls soft-key.
– Press the Mirror Dimmer soft-key to turn the Auto- matic Dimming Mirror on or off. The mirror contains an Assist button and a 9–1–1 button
located on the bottom of the mirror.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

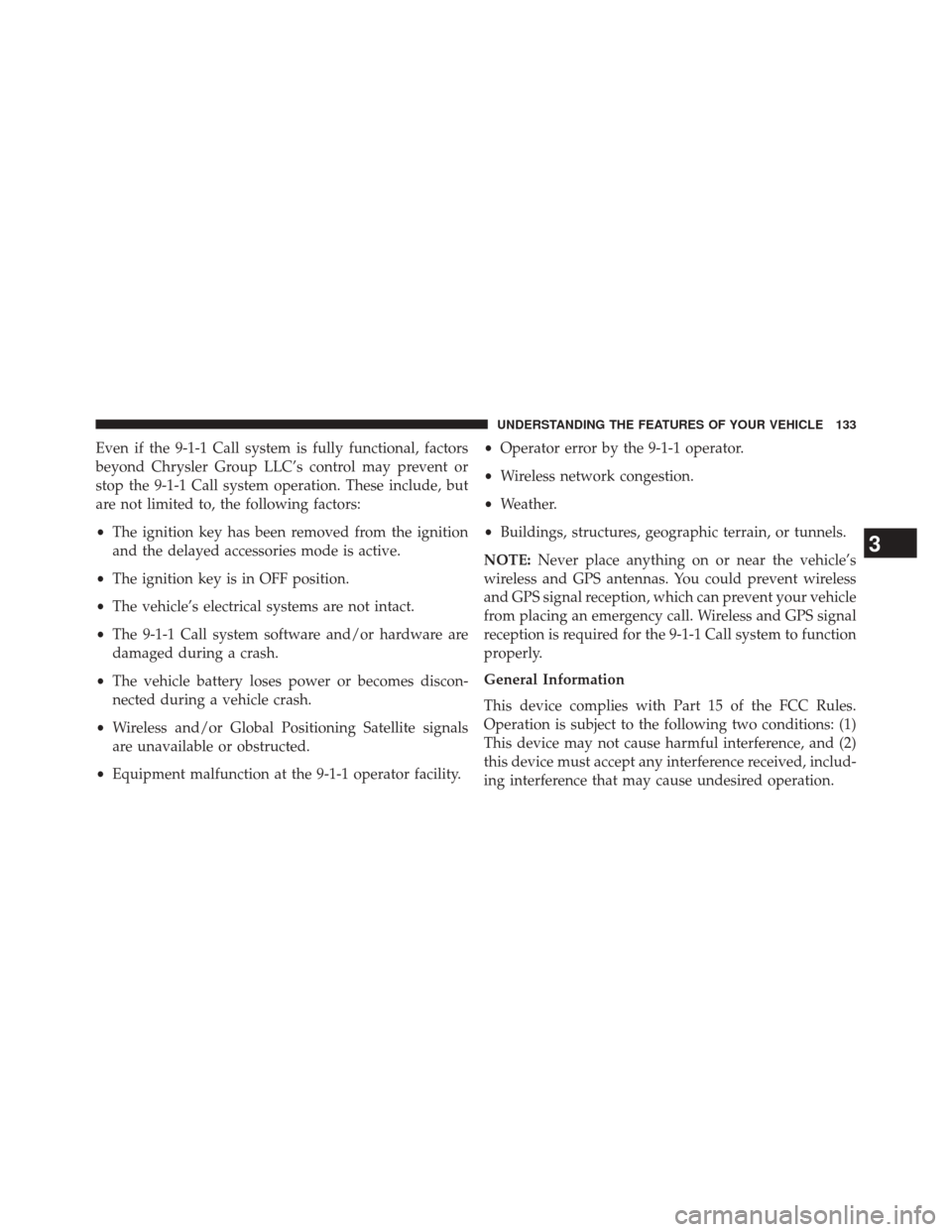

Even if the 9-1-1 Call system is fully functional, factors
beyond Chrysler Group LLC’s control may prevent or
stop the 9-1-1 Call system operation. These include, but
are not limited to, the following factors:
•The ignition key has been removed from the ignition
and the delayed accessories mode is active.
• The ignition key is in OFF position.
• The vehicle’s electrical systems are not intact.
• The 9-1-1 Call system software and/or hardware are
damaged during a crash.
• The vehicle battery loses power or becomes discon-
nected during a vehicle crash.
• Wireless and/or Global Positioning Satellite signals
are unavailable or obstructed.
• Equipment malfunction at the 9-1-1 operator facility. •
Operator error by the 9-1-1 operator.
• Wireless network congestion.
• Weather.
• Buildings, structures, geographic terrain, or tunnels.
NOTE: Never place anything on or near the vehicle’s
wireless and GPS antennas. You could prevent wireless
and GPS signal reception, which can prevent your vehicle
from placing an emergency call. Wireless and GPS signal
reception is required for the 9-1-1 Call system to function
properly.
General Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

Heated Seats — If Equipped
On some models, the front and rear seats may be
equipped with heaters located in the seat cushions.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting
in a seat that has been overheated could cause
serious burns due to the increased surface tempera-
ture of the seat.
Front Heated Seats
There are two heated seat switches as well as soft-keys in
the radio that allow the driver and passenger to operate
Lumbar Control Switch
3
