FUEL REQUIREMENTS ..................577
▫ 3.6L/6.4L Engine ..................... .577
▫ 5.7L Engines ........................ .577
▫ Reformulated Gasoline .................578
▫ Gasoline/Oxygenate Blends ..............578
▫ E-85 Usage In Non-Flex Fuel Vehicles .......579
▫ MMT In Gasoline .....................580
▫ Materials Added To Fuel ................580
▫ Fuel System Cautions ...................581
▫ Carbon Monoxide Warnings .............582
 FLEXIBLE FUEL (3.6L ENGINE ONLY) — IF
EQUIPPED .......................... .582
▫ E-85 General Information ...............582 ▫
Ethanol Fuel (E-85) ....................584
▫ Fuel Requirements ....................584
▫ Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles .............585
▫ Starting ........................... .585
▫ Cruising Range ...................... .585
▫ Replacement Parts ....................586
▫ Maintenance ....................... .586
 ADDING FUEL ....................... .586
▫ Loose Fuel Filler Cap Message ............588
 VEHICLE LOADING ....................588
▫ Certification Label ....................588
 TRAILER TOWING .....................591
388 STARTING AND OPERATING

CAUTION!(Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, power steering or air conditioning.
Such damage is not covered by the New Vehicle
Limited Warranty. If a flush is needed because of
component malfunction, use only the specified
fluid for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper lubrication of your vehicle’s engine, the
engine oil must be maintained at the correct level. Check
the oil level at regular intervals, such as every fuel stop. The best time to check the engine oil level is about five
minutes after a fully warmed up engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Always
maintain the oil level within the SAFE zone on the
dipstick. Adding one quart of oil when the reading is at
the bottom of the SAFE zone will result in a reading at the
top of the safe zone on these engines.
CAUTION!
Overfilling or underfilling the crankcase will cause
oil aeration or loss of oil pressure. This could damage
your engine.
7
MAINTAINING YOUR VEHICLE 697

WARNING!
•Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause the
system to fail, requiring costly repairs. Refer to
Warranty Information Book, located on the DVD,
for further warranty information.
• The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced technician.
CAUTION!
Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condi-
tioning components. Such damage is not covered by
the New Vehicle Limited Warranty.
Refrigerant Recovery And Recycling R134a — If
Equipped
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealer or other
service facilities using recovery and recycling equipment.
NOTE: Use only manufacturer approved A/C system
PAG compressor oil, and refrigerants.
7
MAINTAINING YOUR VEHICLE 703

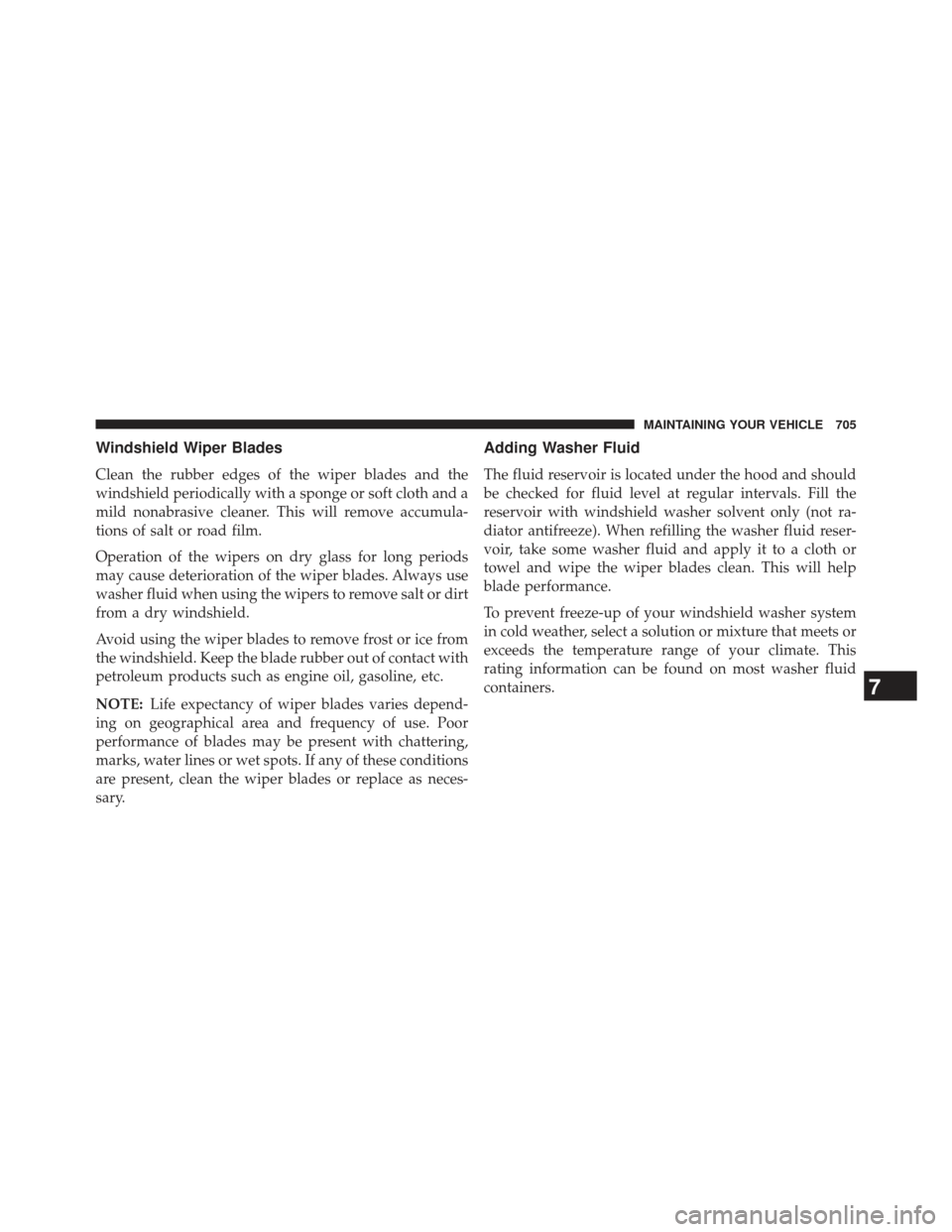

Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The fluid reservoir is located under the hood and should
be checked for fluid level at regular intervals. Fill the
reservoir with windshield washer solvent only (not ra-
diator antifreeze). When refilling the washer fluid reser-
voir, take some washer fluid and apply it to a cloth or
towel and wipe the wiper blades clean. This will help
blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
7
MAINTAINING YOUR VEHICLE 705

Use the following procedure to check the transmission
fluid level properly:
1. Monitor the transmission temperature using the EVICdisplay, and operate the vehicle as required to reach
the normal operating temperature.
2. Park the vehicle on level ground.
3. Run the engine at normal idle speed for at least 60 seconds, and leave the engine running for the rest of
this procedure.
4. Fully apply the parking brake and press the brake pedal.
5. Place the shift lever momentarily into each gear posi- tion (allowing time for the transmission to fully en-
gage in each position), ending with the transmission in
PARK. 6. Remove the dipstick, wipe it clean and reinsert it until
seated.
7. Remove the dipstick again and note the fluid level on both sides. The fluid level reading is only valid if there
is a solid coating of oil on both sides of the dipstick.
Note that the holes in the dipstick will be full of fluid
if the actual level is at or above the hole. The fluid level
should be between the “HOT” (upper) reference holes
on the dipstick at normal operating temperature. If the
fluid level is low, add fluid through the dipstick tube
to bring it to the proper level. Do not overfill.Use
ONLY the recommended fluid (see Fluids, Lubri-
cants, and Genuine Parts for fluid specifications).
After adding any quantity of oil through the dipstick
tube, wait a minimum of two minutes for the oil to
fully drain into the transmission before rechecking the
fluid level.
7
MAINTAINING YOUR VEHICLE 723

Exhaust System.......................... .121
Exterior Lighting ......................... .170
Exterior Lights .......................... .124
Filters Air Cleaner .......................... .701
Engine Oil ........................... .700
Engine Oil Disposal .....................700
Flashers Turn Signal .......................... .124
Flat Tire Stowage ........................ .646
Flexible Fuel Vehicles Cruising Range ........................ .585
Engine Oil ........................... .585
Fuel Requirements ..................... .582
Maintenance .......................... .586
Replacement Parts ...................... .586
Starting ............................. .585
Flooded Engine Starting ....................393 Fluid, Brake
............................ .760
Fluid Capacities ......................... .755
Fluid Leaks ............................ .124
Fluid Level Checks Brake ............................... .717
Power Steering ........................ .520
Fluids, Lubricants and Genuine Parts ...........758
Fog Lights ............................. .174
Fold Flat Load Floor ...................... .246
Four-Way Hazard Flasher ...................629
Four Wheel Drive ........................ .436
Freeing A Stuck Vehicle .....................675
Front Axle (Differential) .....................719
Fuel .................................. .577
Adding ............................. .586
Additives ............................ .580
Clean Air ............................ .578
Ethanol ............................. .578
Filler Cap (Gas Cap) .....................588
10
INDEX 789
