Changing a wheel

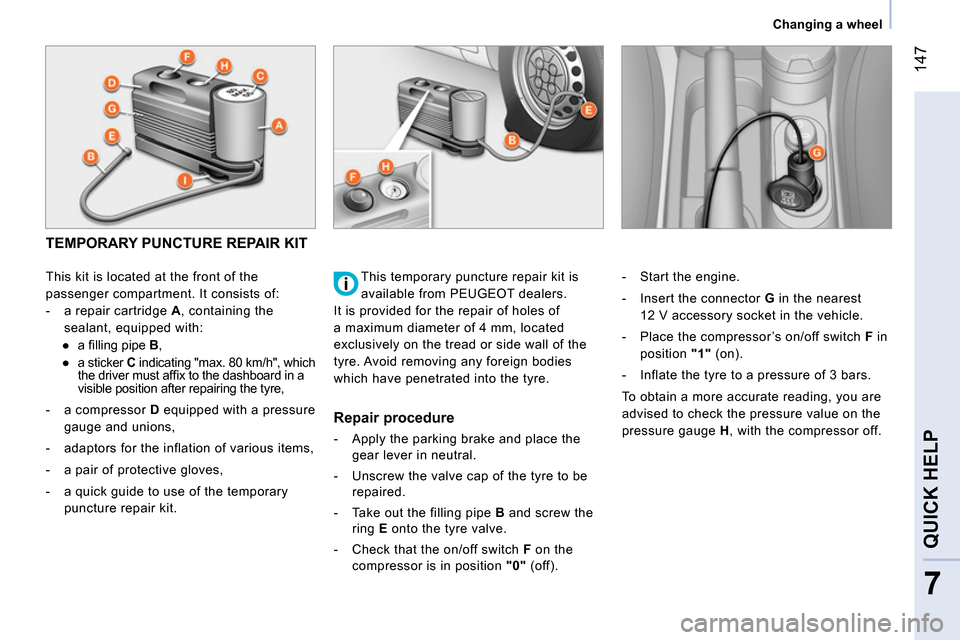

TEMPORARY PUNCTURE REPAIR KIT


This kit is located at the front of the
passenger compartment. It consists of:


- a repair cartridge A
, containing the
sealant, equipped with:


●
a fi lling pipe B
,

●
a sticker C
indicating "max. 80 km/h", which
the driver must affi x to the dashboard in a
visible position after repairing the tyre,

- a compressor D
equipped with a pressure
gauge and unions,

- adaptors for the inflation of various items,

- a pair of protective gloves,

- a quick guide to use of the temporary
puncture repair kit.


Repair procedure



- Apply the parking brake and place the
gear lever in neutral.

- Unscrew the valve cap of the tyre to be
repaired.

- Take out the filling pipe B
and screw the
ring E
onto the tyre valve.

- Check that the on/off switch F
on the
compressor is in position "0"
(off).
- Start the engine.

- Insert the connector G
in the nearest
12 V accessory socket in the vehicle.

- Place the compressor’s on/off switch F
in
position "1"
(on).

- Inflate the tyre to a pressure of 3 bars.
To obtain a more accurate reading, you are
advised to check the pressure value on the
pressure gauge H
, with the compressor off. This temporary puncture repair kit is
available from PEUGEOT dealers.
It is provided for the repair of holes of
a maximum diameter of 4 mm, located
exclusively on the tread or side wall of the
tyre. Avoid removing any foreign bodies
which have penetrated into the tyre.

156



Changing a fuse


CHANGING A FUSE

The two fuseboxes are placed on the
dashboard on the driver’s side and under
the bonnet.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a PEUGEOT dealer or a
qualified workshop.
Access to fuses in the dashboard


- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

A.
Good.

B.
Failed.

C.
Tweezer.


Access to fuses in the engine
compartment


- For access to the fuses in the engine
compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

163
7
QUICK HELP



Fuel



FILLING WITH FUEL

Capacity of the fuel tank: approximately
45 litres.


Low fuel level

When the minimum fuel tank level
is reached, this warning lamp
comes on. When it first comes on,
you have approximately
6 litres
of fuel remaining. Refuel without delay to
avoid running out of fuel. Refuelling must be done with the engine
off.


- Open the fuel filler flap.

- Hold the filler cap with one hand.

- With the other hand, insert the key, then
turn it a third of a turn.

- Remove the filler cap and hang it on the
hook, located on the inside of the filler
flap.

FUEL CUT-OFF

In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
It also automatically unlocks the doors
and switches on of the courtesy lamps.
A message appears in the instrument panel
screen according to version.
Turn the key to the STOP position to prevent
discharging of the battery.
Check that there is no smell or leak of fuel
outside the vehicle.






With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.
When the fuel filler flap is open,
a safety system prevents sliding
of the side door (Combi).
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
Opening the filler cap may cause a noise
resulting from the inrush of air. This vacuum
is quite normal and results from the sealing
of the fuel system.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle; this could
cause malfunctions.
After filling the fuel tank, lock the filler cap
and close the flap.

169
7
QUICK HELP



Levels

These regular maintenance operations
will keep your vehicle in good working
order. Ask for advice from a PEUGEOT
dealer or a qualified workshop or refer to the
warranty and maintenance record provided
in the handbook pack.
LEVELS


Oil level

Check the level regularly and top up
between changes. The maximum oil
consumption is 0.5 litre per 600 miles
(1 000 km). Check the level with the vehicle
level, engine cold, using the dipstick.

Dipstick
There are two marks on the
dipstick:

A
= maximum
If you fill past this mark,
contact a PEUGEOT dealer
or a qualified workshop.

B
= minimum
Never allow the level to fall
below this mark.
To preserve the reliability of engines and
emission control systems, the use of
additives in engine oil is prohibited.
Oil change


Brake fluid level

The brake fl uid must be changed at
the specifi ed interval, as given in the
manufacturer's servicing schedule.
Use fl uids recommended by the manufacturer,
which meets the DOT4 standard.
The level must be between the MIN
and MAX
marks on the reservoir.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
PEUGEOT dealer or a qualified workshop as
soon as possible.


Warning lamps

Checking by means of the warning
lamps in the instrument panel is
described in chapter 1, refer to the
"Instruments and controls" section. This must be carried out at the specified
interval and the viscosity grade of the oil
selected must fulfil the requirements of the
manufacturer's servicing schedule. Ask
for advice from a PEUGEOT dealer or a
qualified workshop.
Remove the dipstick before filling.
Check the level after filling (never exceed
the maximum mark).
Refit the filler cap before closing the bonnet.

170



Levels



Engine coolant level

Only use the fluid recommended by the
manufacturer. Otherwise, you risk seriously
damaging your engine. When the engine
is warm, the temperature of the coolant is
controlled by the engine cooling fan. As
this fan can operate with the ignition key
removed and because the cooling system is
pressurised, wait for at least one hour after
the engine has stopped before carrying out
any work.

Topping up
The level must be between the MIN
and
MAX
marks on the header tank. If more than
1 litre of fluid is required to top up the level,
have the system checked by a PEUGEOT
dealer or a qualified workshop.



Power steering fluid level

The vehicle must be parked on level ground
with the engine cold. Unscrew the cap with
integral gauge and check the level which
must be between the MIN
and MAX
marks.


Screenwash fluid level

For optimum cleaning and to avoid freezing,
topping up or replacement of this fluid
should never be with plain water; we
recommend the use of products available
from PEUGEOT dealers.
Capacity of the reservoir: approximately
3 litres. Slacken the cap by two turns to release the
pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
PEUGEOT dealer or a qualified workshop as
soon as possible.

Used products

Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground, but
into the containers provided for this purpose
at PEUGEOT dealers (France) or at an
authorised waste disposal site.

171
7
QUICK HELP



Checks


CHECKS


Bleeding water from the Diesel
filter

If this warning lamp comes
on, you must bleed the filter;
otherwise bleed the filter
regularly, every time the engine
oil is changed.
To remove the water, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Operate until all of
the water has flowed out. Then tighten the
bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires specialist knowledge, which
all PEUGEOT dealers have.


Battery

At the start of winter, have your battery
checked by a PEUGEOT dealer or a
qualified workshop.


Air filter and passenger compartment filter

A blocked passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours. The replacement
intervals for these components are indicated
in the warranty and maintenance record.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the "Under the
bonnet" section of chapter 7.


Brake pads

Brake pad wear depends on the type of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the brake pad wear,
even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.


Brake disc / drum wear

For all information on checking the brake
disc / drum wear, contact a PEUGEOT
dealer or a qualified workshop.


Parking brake

Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.


Oil filter

Change the filter regularly, in accordance
with the servicing schedule.





The presence of this label, in particular
with the Stop & Start system, indicates the
use of a specific 12 V lead-acid battery
with special technology and specification.
The involvement of a PEUGEOT dealer
or a qualified workshop is essential when
replacing or disconnecting the battery.

172



Checks








Manual gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the warranty and maintenance
record for the details of the level checking
interval for this component.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the warranty and maintenance
record which correspond to your vehicle's
engine.
Only use products recommended by
PEUGEOT or products of equivalent quality
and specification.
In order to optimise the operation of units as
important as the braking system, PEUGEOT
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
After washing the vehicle dampness, or in
winter, ice may form on the brake discs and
pads: braking efficiency may be reduced.
Make some light brake applications to dry
and de-ice the brakes.






Particle filter system (1.3 HDi 75)

An addition to the catalytic converter, this
filter makes an active contribution to the
preservation of air quality by the retaining
of the unburnt pollutant particles. Black
exhaust fumes are thus no longer emitted.
This filter, fitted to the exhaust system,
accumulates particles of soot. The engine
control unit manages the automatic
periodic elimination of the soot particles
(regeneration).
the regeneration procedure is invoked
according to the quantity of particles
accumulated and the driving conditions of the
vehicle. During this phase, you may notice
some unusual phenomena - increased idling
speed, cooling fan running, increase in smoke
and higher exhaust gas temperature - which
does not affect the operation of the vehicle or
the environment.
After prolonged idling or driving at very low
speeds, you may occasionally notice water
vapour being emitted from the exhaust when
accelerating. This is of no consequence
to the running of the vehicle or to the
environment.
Saturation/Regeneration
If there is risk of blockage of the
filter, this warning lamp comes on
in the instrument panel.
This alert tells you that the
particle filter is starting to fill up (in
conditions of urban driving of exceptionally
long duration: low speeds, traffic jams etc.)
To regenerate the filter, it is advised to drive
as soon as possible, when traffic conditions
and the law permit, at a speed of at least
40 mph (around 60 km/h), with an
engine speed above 2 000 rpm for about
fifteen minutes (until the warning lamp and/
or the message disappears).
If possible, avoid switching off the engine
before the end of regeneration of the
filter; repeated interruptions could cause
premature deterioration of the engine oil. It
is not recommended to end regeneration of
the filter with the vehicle stationary.

Operating fault
If this alert persists, do not ignore the
warning; it indicates that a fault has occurred
in the exhaust/particle filter system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.








Electronic gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the warranty and maintenance
record for details of the checking interval for
this component.
Because of the higher exhaust
gas temperature resulting from the
normal operation of the particle filter, it is
recommended that you do not park the
vehicle over inflammable materials (grass,
dry leaves, pine needles, ...) so as to avoid
any risk of fire.

186

Technical data - Maintenance

Screenwash ................................... 168
Bulbs, lighting,
changing bulbs ....................150-154

Opening the bonnet ....................... 166
Under the bonnet ....................167-168

Identifi cation markings, serial number,
paint, tyres .................................. 162
Changing a wiper blade ................. 155

Engine technical data .................66-67
Dimensions .......... 60-61, 62-63, 64-65
Weights ............................................ 68

TECHNICAL DATA - MAINTENANCE


Levels .....................................169-170


●
dipstick,

●
power steering fluid,

●
brake fluid,

●
coolant,

●
screenwash.


Checks....................................171-172


●
battery,

●
air/passenger compartment filter,

●
oil filter,

●
particle emissions fi lter (1.3 HDi 75),

●
parking brake,

●
brake pads.
Emission controls .................... 30, 172
Engine fuses ...................156, 159-160
