2014 Peugeot Bipper display

57
1
READY TO SET OFF



Gearbox and steering wheel


Special cases: START invoked
automatically
The START mode is invoked automatically
when:


- the vehicle's is free wheeling on a slope,

- the engine has been stopped for around
3 minutes with Stop & Start,

- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine
is needed to assure control of a system.
Good practice
With a manual gearbox in STOP mode, if a
gear is engaged without fully depressing the
clutch pedal, restarting may not take place.
A warning lamp or message is displayed
in the instrument panel asking you to fully
depress the clutch pedal to allow restarting.
With the engine stopped in STOP mode,
if the driver unfasten's their seat belt and
opens a front door, the engine can only
be restarted using the ignition key. This is
indicated by an audible signal, accompanied
by flashing of the service warning lamp and
a message in the instrument panel screen.
If following an automatic restart in START
mode, the driver takes no action on the
the vehicle during the next 3 minutes, the
system stops the engine definitively. The
engine can then only be restarted using
the key.

Going into engine START mode
The "S"
warning lamp goes off and
the engine starts:


- with a manual gearbox
, depress the
clutch pedal,

- with an electronic gearbox
:


●
gear lever in position A
or M
, release the
brake pedal,

●
or engage reverse gear.

In this case, a message appears
in the instrument panel screen,
accompanied by the "S"
warning
lamp, which flashes for a few
seconds, then goes off.

This operation is perfectly normal.
In STOP mode, moving the gear lever
on an electronic gearbox starts the
engine, in anticipation of moving off.
If the engine stops automatically when
the vehicle is on a slope, as hill start
is only active with the engine running, it is
necessary to restart the engine by engaging
a forward gear and releasing the brake
pedal.

69
3
TECHNOLOGY on BOARD



Trip computer


TRIP COMPUTER/CONFIGURATION - PERSONALISATION OF THE VEHICLE

If TRIP B is activated in MENU
:


- Trip B,

- Average fuel consumption B,

- Average speed B,

- Trip duration B.
Press the MENU ESC
button for more than
two seconds to return to the home screen.

Level 1 screen:


- Speed (Speed beep).

- Time (Setting the time).

- Buzz (Volume of the announcements).

- Unit (Unit of measurement).

- Bag p (Passenger's airbag).
Refer to the corresponding line of
the configuration - personalisation table
on the following pages.
Zero reset
Press the TRIP
button for more than
two seconds to reset the displayed
data to zero. Using the TRIP
button, located at the end of
the wiper stalk, you can display the following
information in succession:


- Range,

- Trip A,

- Average fuel consumption A,

- Current fuel consumption A,

- Average speed A,

- Trip duration A.

70

Menu


Level 2
screen

:


Menu…


Press…


Sub-
menu…


Press…


Select…


Confirm
and exit


Enables you to…


1
Speed Beep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value. Decrease
OFF

2
Activate
Trip B ON Activate
Display a second trip, "Trip B".
OFF Deactivate The control panel located beside the
steering wheel provides access to screen
menus allowing personalisation of some of
your systems. Eight languages are available: Italian,
English, German, French, Spanish,
Portuguese, Dutch and Turkish.
As a safety precaution, the menus can only be
accessed when the ignition is off (engine off).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

This button enables
you to:


- access the menus and
sub-menus,
This button enables you to:


- scroll up through a menu,

- increase a value.


This button enables you to:


- scroll down through a menu,

- decrease a value.


- confirm your selections within a menu,

- exit from the menus.

A long press enables you to return to the
home screen.

71
3
TECHNOLOGY on BOARD

Menu

Menu…


Press…


Sub-menu…


Press…


Select…


Confirm
and exit


Enables you to…


3
Set the time Hours Increase
Set the clock.
Decrease
Format 24 hour
Select the clock display mode.
12 hour

4
Set the date Year/Month/Day Increase
Set the date.
Decrease

5
See radio ON
Display the name of the station.
Display the CD track number.
OFF

6
Autoclose While moving ON
Activate/deactivate the
automatic locking of the doors
above 12 mph (20 km/h) OFF
7 Measurement
unit Distances Km
Select the distance display unit.
Mi(les)
Temperature °C
Select the temperature display
unit.
°F
Consumption km/l

Select the fuel consumption
display unit.
l/100 km

8
Language List of languages
available Select the display language.

9
Volume of
announcements

Increase Increase/decrease the volume
of the signals and warnings
(the volume changes immediately
when the button is pressed). Decrease

72

Menu

Menu…


Press…


Sub-menu…


Press…


Select…


Confirm
and exit


Enables you to…


10
Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease

11
Service (Km/Miles
before oil
change) Display the miles/kilometres
remaining before the next oil
change.
Display the oil level.

12
Bag
(passenger's
airbag) ON Ye s
Activate the passenger's airbag.
No
OFF Ye s
Deactivate the passenger's
airbag.
No

13
Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to the
first menu.

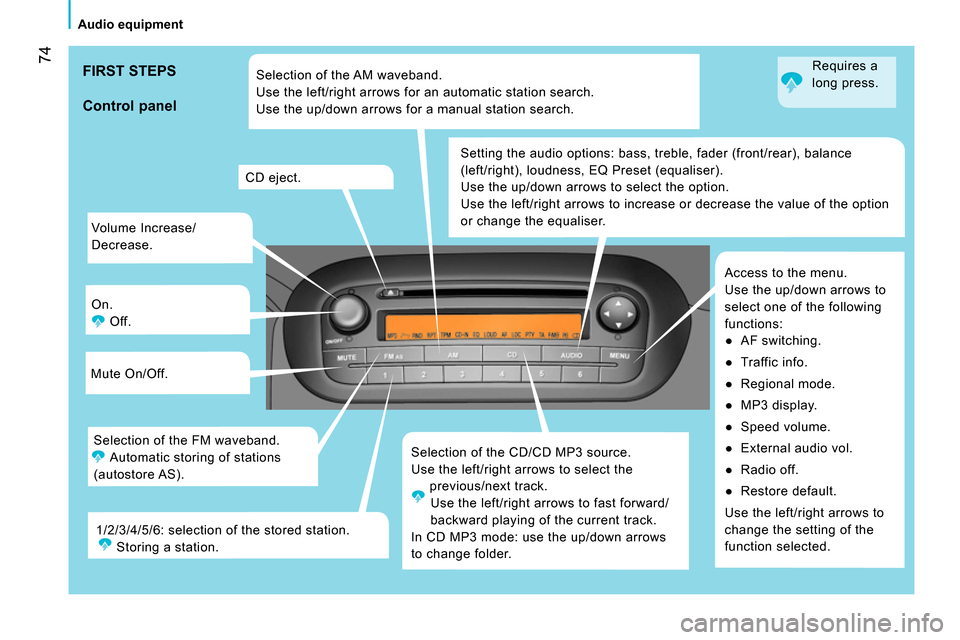

74



Audio equipment

Volume Increase/
Decrease.
On.
Off.
Mute On/Off.
Selection of the CD/CD MP3 source.
Use the left/right arrows to select the
previous/next track.

Use the left/right arrows to fast forward/
backward playing of the current track.
In CD MP3 mode: use the up/down arrows
to change folder. Setting the audio options: bass, treble, fader (front/rear), balance
(left/right), loudness, EQ Preset (equaliser).
Use the up/down arrows to select the option.
Use the left/right arrows to increase or decrease the value of the option
or change the equaliser.
Access to the menu.
Use the up/down arrows to
select one of the following
functions:


●
AF switching.

●
Traffic info.

●
Regional mode.

●
MP3 display.

●
Speed volume.

●
External audio vol.

●
Radio off.

●
Restore default.
Use the left/right arrows to
change the setting of the
function selected. CD eject.
Selection of the FM waveband.
Automatic storing of stations
(autostore AS). Selection of the AM waveband.
Use the left/right arrows for an automatic station search.
Use the up/down arrows for a manual station search.
1/2/3/4/5/6: selection of the stored station.
Storing a station.


Control panel

FIRST STEPS
Requires a
long press.

76



Audio equipment


"AUDIO FUNCTIONS" MENU


RDS "AF Switching"

The RDS (Radio Data System) enables you
to continue listening to the same station,
regardless of the frequency that it uses in
your current location. The audio equipment
continuously searches for the transmitter
which offers the best reception for the
station.
Press the "" or "" button to activate (ON)
or deactivate (OFF) the RDS.
On the FM waveband, "AF" appears on
the display if the RDS is activated and the
station is broadcasting with the RDS.


"Traffic Info"

All traffic information announcements will be
given priority regardless of which source is
currently playing.
The EON (Enhanced Other Networks) system
links stations which belong to the same network.
It allows you to receive traffic information
transmitted by a station which belongs to the
same network as the station to which you
are listening.

"Regional Mode"

Some stations, organised in a network,
broadcast regional programmes in the
various areas which they serve. The regional
mode allows you to choose to continue
listening to the same programme.
Press the "" or "" button to activate (ON)
or deactivate (OFF) the REG function.
On the FM waveband, "LOC" appears on the
display if the REG function is activated and
the station finds a local frequency.


"MP3 Display"

Press the "" or "" button to display the
track number or the MP3 CD information
(Artist/Album/Folder/File/Title/Time elapsed).

Automatic volume control
"Speed Volume"
Press the "" or "" button to minimise
(LOW), maximise (HIGH) or deactivate
(OFF) the automatic control of the volume in
relation to the vehicle speed. The volume of the traffi c information is
independent of the volume of the other sources.
You can adjust it using the volume button during
traffi c announcements; this setting will be stored
for the next announcement.
Press the "" or "" button to activate (ON) or
deactivate (OFF) the TA function.
On the FM waveband, "TA" appears on the
display if the TA function is activated and
"TPM" appears if the station broadcasts traffi c
information.


"External Audio Vol"

Press the "" or "" button to decrease
(down to 0 minimum), increase (up to
40 maximum) or deactivate (OFF) the
volume of the external source (e.g.: hands-
free kit).


Programmed switching off "Radio Off"

Press the "" or "" button to programme
the switch-off time of "00 MIN" or "20 MIN".
This countdown is taken into account with
the doors closed and the key in the STOP
position.


"Restore Default"

Press the "" or "" button to retain the
modified values (NO) or restore the default
values (YES).
"Restoring" appears on the display during
the resetting of the configuration values. "MP3" appears on the display if the function
is activated and the CD contains tracks in
the MP3 format. Press the MENU button
on the audio equipment to
gain access to the "Audio
functions" menu.
Press the "" or "" button to
select one of the confi gurable
audio functions below.

2 1
77
3
TECHNOLOGY on BOARD



Audio equipment


CD

PLAYING A CD OR AN MP3 COMPILATION

Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no reflection on the
quality of the original player.


Insert a CD or an MP3 compilation in
the player, play begins automatically.
If the player already contains a disc,
press the CD button.
Press one of the buttons to select a
track on the CD.
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which permits the
recording of several tens of music files on a single disc.

MP3


In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is
always used for an individual disc, with as low a speed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.

The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz. No
other type of file (.wma, .mp4, m3u...) can be played.

It is advisable to restrict file names to 20 characters without
using special characters (e.g.: () " " ? ; , space ) to avoid any
playing or displaying problems.
