2014 Peugeot 3008 Hybrid 4 instrument panel

.
.

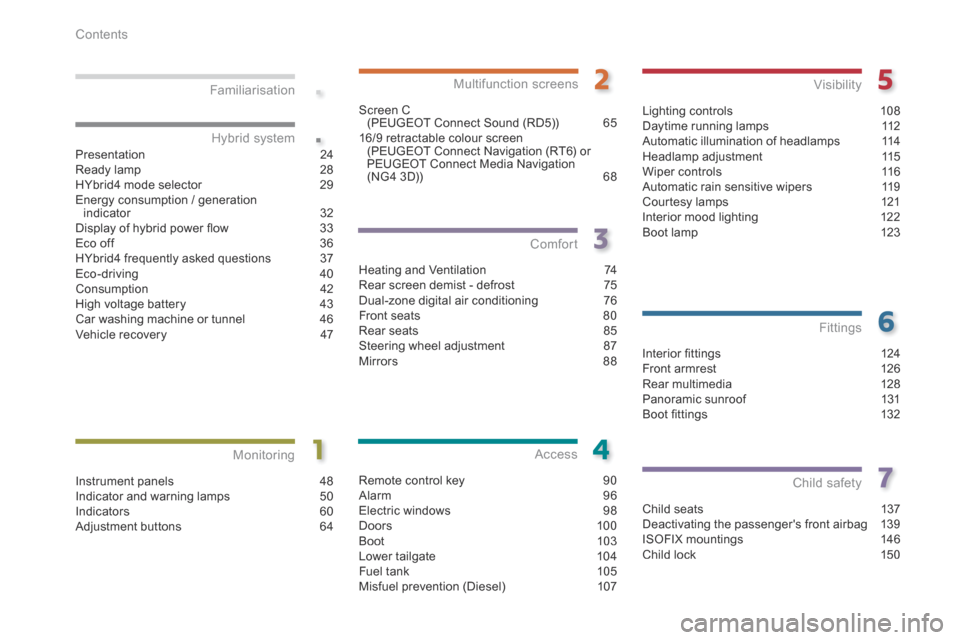

Contents
Interior fi ttings 124Front armrest 126Rear multimedia 128Panoramic sunroof 131Boot fi ttings 132
Fittings
Child seats 137Deactivating the passenger's front airbag 139ISOFIX mountings 146Child lock 150
Child safetyInstrument panels 48Indicator and warning lamps 50Indicators 60Adjustment buttons 64
Monitoring
Familiarisation
Screen C (PEUGEOT Connect Sound (RD5)) 6516/9 retractable colour screen (PEUGEOT Connect Navigation (RT6) or PEUGEOT Connect Media Navigation (NG4 3D))
68
Multifunction screens
Heating and Ventilation 74Rear screen demist - defrost 75Dual-zone digital air conditioning 76Front seats 80Rear seats 85Steering wheel adjustment 87Mirrors 88
Comfort
Remote control key 90Alarm 96Electric windows 98Doors 10 0Boot 103Lower tailgate 104Fuel tank 105Misfuel prevention (Diesel) 107
Access
Lighting controls 108Daytime running lamps 112Automatic illumination of headlamps 114Headlamp adjustment 115Wiper controls 116Automatic rain sensitive wipers 119Courtesy lamps 121Interior mood lighting 122Boot lamp 123
Visibility
Presentation 24Ready lamp 28HYbrid4 mode selector 29Energy consumption / generation indicator 32Display of hybrid power fl ow 33Eco off 36HYbrid4 frequently asked questions 37Eco-driving 40Consumption 42High voltage battery 43Car washing machine or tunnel 46Vehicle recovery 47
Hybrid system

Familiarisation
12
Instruments and controls
1. Wiper / screenwash / trip computer control stalk.
2. Audio and telematics system steering mounted control.
3. Steering lock and ignition.
4. Instrument panel.
5. Driver's airbag. Horn.
6. Gear selector.
7. Electric parking brake.
8. Front armrest - PEUGEOT Connect USB.
9. 12 V accessory socket.
10. Driver's storage compartment (Handbook).
11. Alarm button Dynamic stability control (DSC) button, Parking space sensor button.
12 . Manual headlamp adjustment.
Instrument panel navigator.
13. Door mirror controls. Electric window controls. Child lock.
14 . Front side window demisting vent.
15. Windscreen demisting vent.

.
48
183
155
96
186
36
171
151
36
183
50
101
Familiarisation17
Monitoring

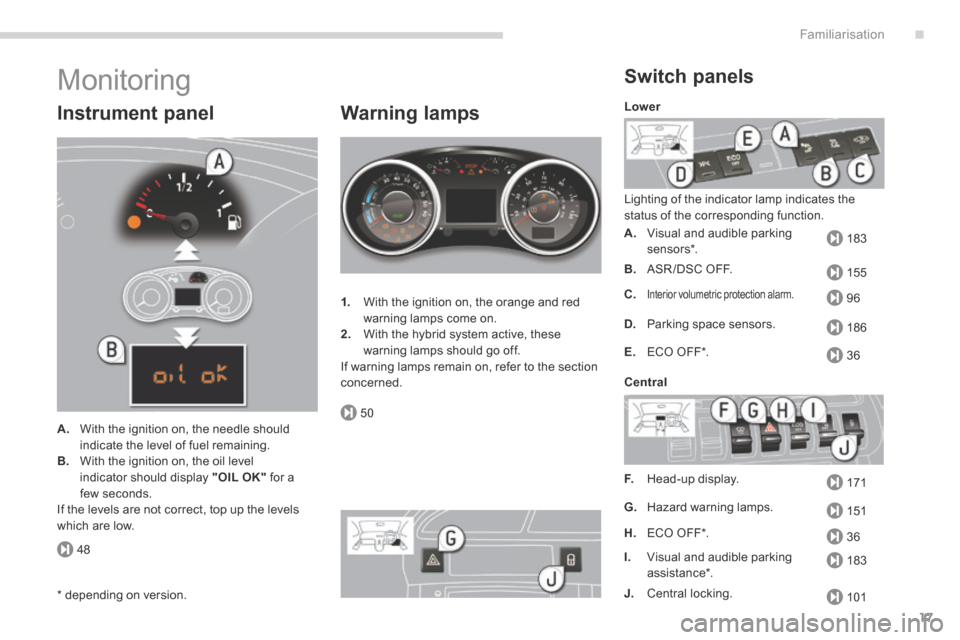

Instrument panel
A. With the ignition on, the needle should
indicate the level of fuel remaining. B. With the ignition on, the oil level indicator should display "OIL OK" for a few seconds. If the levels are not correct, top up the levels which are low.
Warning lamps
1. With the ignition on, the orange and red warning lamps come on. 2. With the hybrid system active, these warning lamps should go off. If warning lamps remain on, refer to the section concerned.
Switch panels
Lighting of the indicator lamp indicates the status of the corresponding function.
Lower
Central
A. Visual and audible parking sensors * .
B. ASR /DSC OFF.
C.Interior volumetric protection alarm.
D. Parking space sensors.
E. ECO OFF * .
F. Head-up display.
G. Hazard warning lamps.
H. ECO OFF * .
I. Visual and audible parking assistance * .
J. Central locking. * depending on version.

164
Familiarisation
20
Driving safely

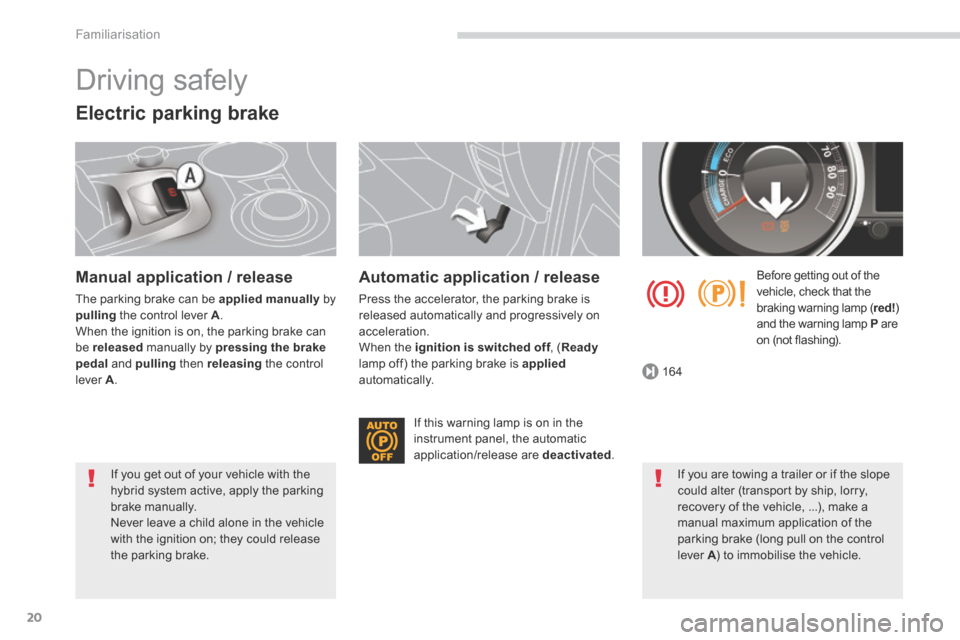

Electric parking brake
Manual application / release
The parking brake can be applied manually by pulling the control lever A . When the ignition is on, the parking brake can be released manually by pressing the brake pedal and pulling then releasing the control lever A .
Automatic application / release
Press the accelerator, the parking brake is released automatically and progressively on acceleration. When the ignition is switched off , ( ignition is switched off , ( ignition is switched offReadylamp off) the parking brake is appliedautomatically.
Before getting out of the vehicle, check that the braking warning lamp ( red! ) and the warning lamp P are on (not flashing).
If this warning lamp is on in the instrument panel, the automatic application/release are deactivated .
If you get out of your vehicle with the hybrid system active, apply the parking brake manually. Never leave a child alone in the vehicle with the ignition on; they could release the parking brake.
If you are towing a trailer or if the slope could alter (transport by ship, lorry, recovery of the vehicle, ...), make a manual maximum application of the parking brake (long pull on the control lever A ) to immobilise the vehicle. A ) to immobilise the vehicle. A

173
176
Familiarisation
22
Driving safely

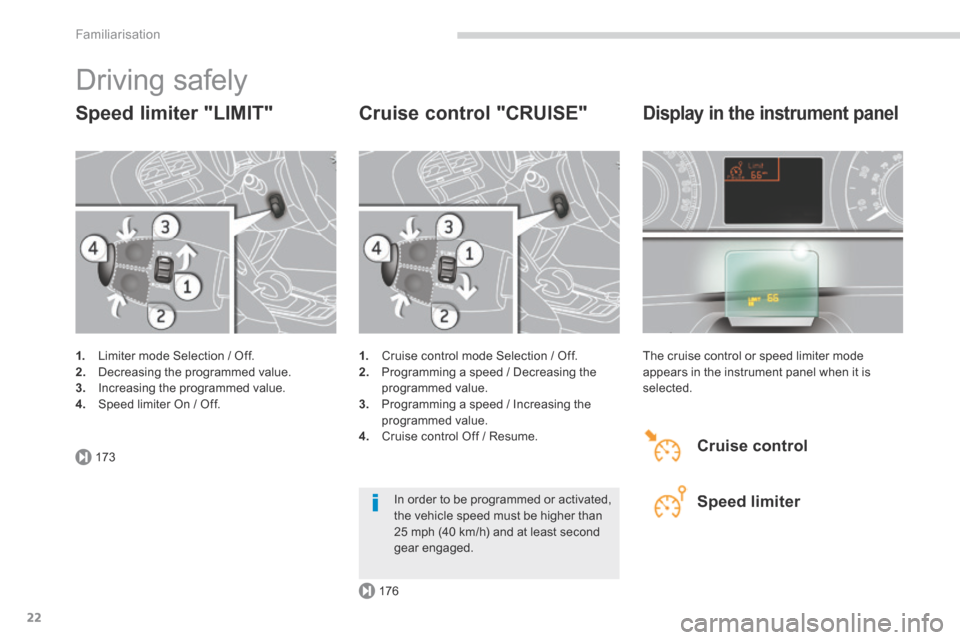

Speed limiter "LIMIT"
1. Limiter mode Selection / Off. 2. Decreasing the programmed value. 3. Increasing the programmed value. 4. Speed limiter On / Off.
Cruise control "CRUISE"
1. Cruise control mode Selection / Off. 2. Programming a speed / Decreasing the programmed value. 3. Programming a speed / Increasing the programmed value. 4. Cruise control Off / Resume.
Display in the instrument panel
The cruise control or speed limiter mode appears in the instrument panel when it is selected.
Cruise control
Speed limiter In order to be programmed or activated, the vehicle speed must be higher than 25 mph (40 km/h) and at least second gear engaged.

.Hybrid system27

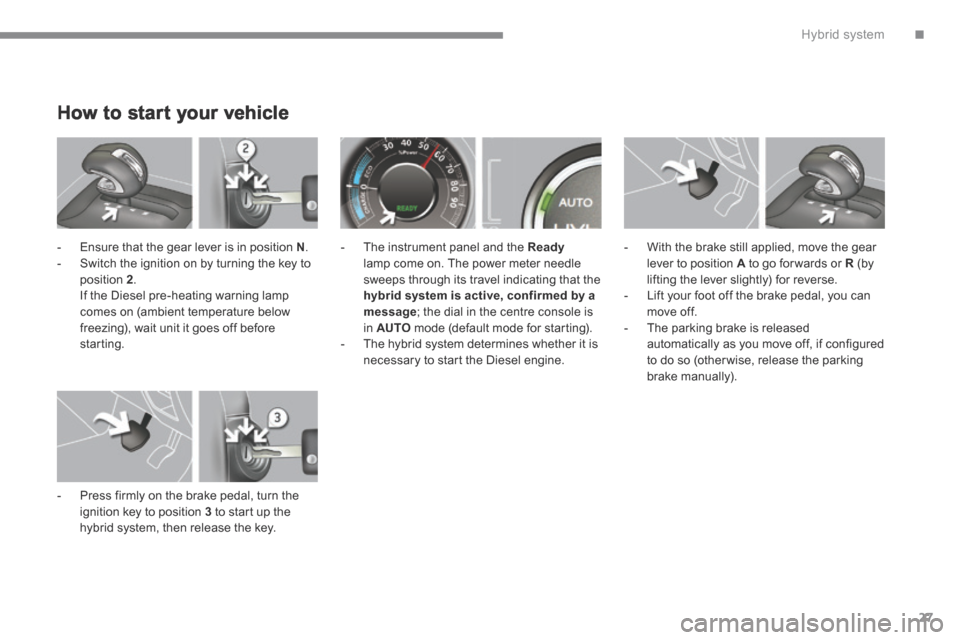

How to start your vehicle
- Ensure that the gear lever is in position N . - Switch the ignition on by turning the key to position 2 . If the Diesel pre-heating warning lamp comes on (ambient temperature below freezing), wait unit it goes off before starting.
- Press firmly on the brake pedal, turn the ignition key to position 3 to start up the hybrid system, then release the key.
- The instrument panel and the Readylamp come on. The power meter needle sweeps through its travel indicating that the hybrid system is active, confirmed by a message ; the dial in the centre console is in AUTO mode (default mode for starting). - The hybrid system determines whether it is necessary to start the Diesel engine.
- With the brake still applied, move the gear lever to position A to go for wards or R (by lifting the lever slightly) for reverse. - Lift your foot off the brake pedal, you can move off. - The parking brake is released automatically as you move off, if configured to do so (otherwise, release the parking brake manually).

.Hybrid system33

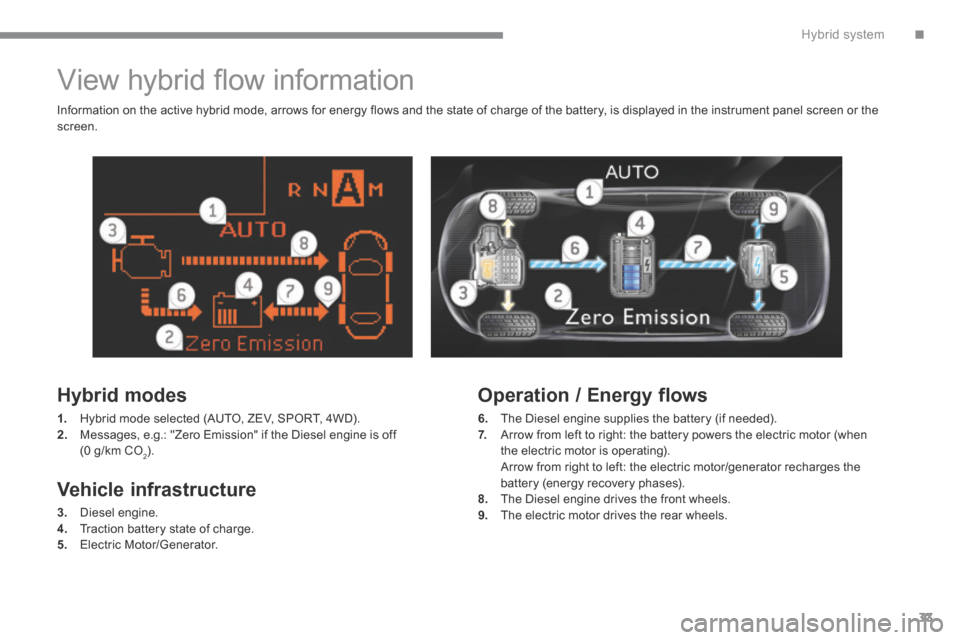

View hybrid fl ow information
Hybrid modes
1. Hybrid mode selected (AUTO, ZEV, SPORT, 4WD). 2. Messages, e.g.: "Zero Emission" if the Diesel engine is off (0 g/km CO2).
Operation / Energy flows
6. The Diesel engine supplies the battery (if needed). 7. Arrow from left to right: the battery powers the electric motor (when the electric motor is operating). Arrow from right to left: the electric motor/generator recharges the battery (energy recovery phases). 8. The Diesel engine drives the front wheels. 9. The electric motor drives the rear wheels.
Vehicle infrastructure
3. Diesel engine. 4. Traction battery state of charge. 5. Electric Motor/Generator.
Information on the active hybrid mode, arrows for energy flows and the state of charge of the battery, is displayed in the instrument panel screen or the screen.

Hybrid system
46

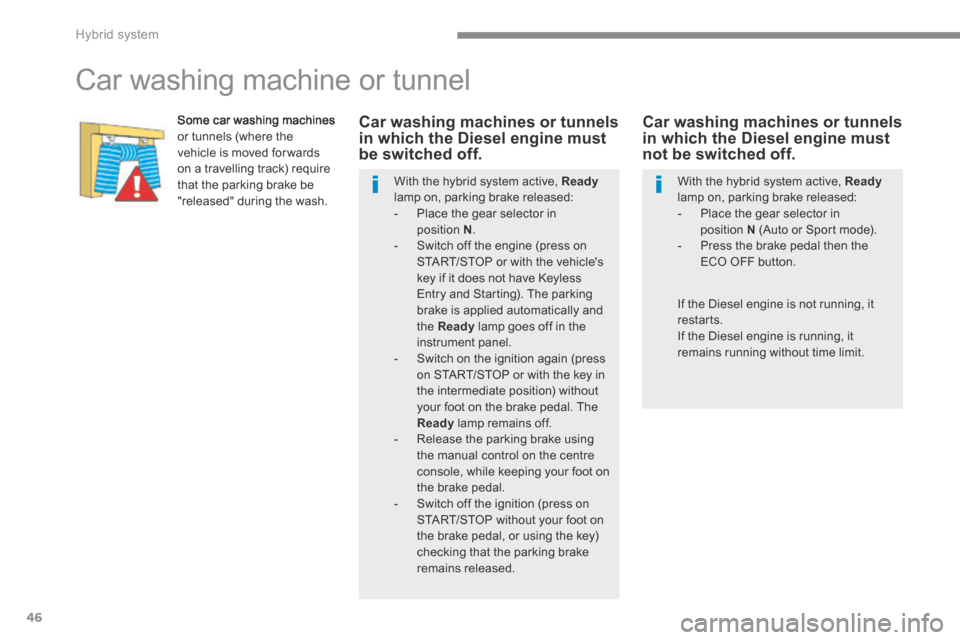

Car washing machine or tunnel
Some car washing machines or tunnels (where the vehicle is moved for wards on a travelling track) require that the parking brake be "released" during the wash.
Car washing machines or tunnels in which the Diesel engine must be switched off.
Car washing machines or tunnels in which the Diesel engine must not be switched off.
With the hybrid system active, Readylamp on, parking brake released: - Place the gear selector in position N (Auto or Sport mode). - Press the brake pedal then the ECO OFF button.
If the Diesel engine is not running, it restarts. If the Diesel engine is running, it remains running without time limit.
With the hybrid system active, Readylamp on, parking brake released: - Place the gear selector in position N . - Switch off the engine (press on START/STOP or with the vehicle's key if it does not have Keyless Entry and Starting). The parking brake is applied automatically and the Ready lamp goes off in the instrument panel. - Switch on the ignition again (press on START/STOP or with the key in the intermediate position) without your foot on the brake pedal. The Ready lamp remains off. - Release the parking brake using the manual control on the centre console, while keeping your foot on the brake pedal. - Switch off the ignition (press on START/STOP without your foot on the brake pedal, or using the key) checking that the parking brake remains released.
