2014 Peugeot 3008 Hybrid 4 bluetooth

06
354

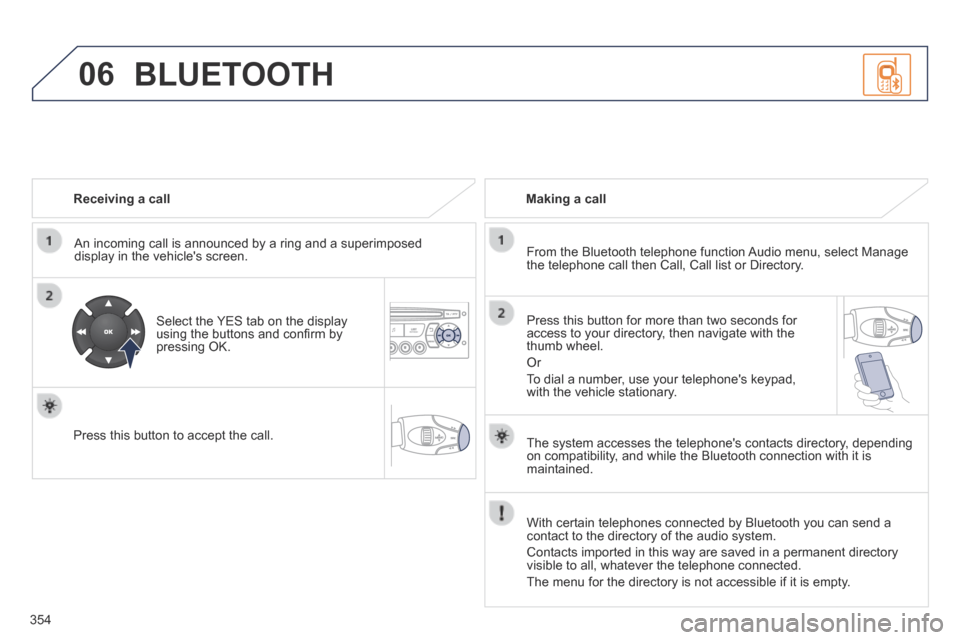

Receiving a call
An incoming call is announced by a ring and a superimposed display in the vehicle's screen.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press this button to accept the call.
Making a call
From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.
Press this button for more than two seconds for access to your directory, then navigate with the thumb wheel.
Or
To dial a number, use your telephone's keypad, with the vehicle stationary.
BLUETOOTH
The system accesses the telephone's contacts directory, depending on compatibility, and while the Bluetooth connection with it is maintained.
With certain telephones connected by Bluetooth you can send a contact to the directory of the audio system.
Contacts imported in this way are saved in a permanent directory visible to all, whatever the telephone connected.
The menu for the directory is not accessible if it is empty.

06
355

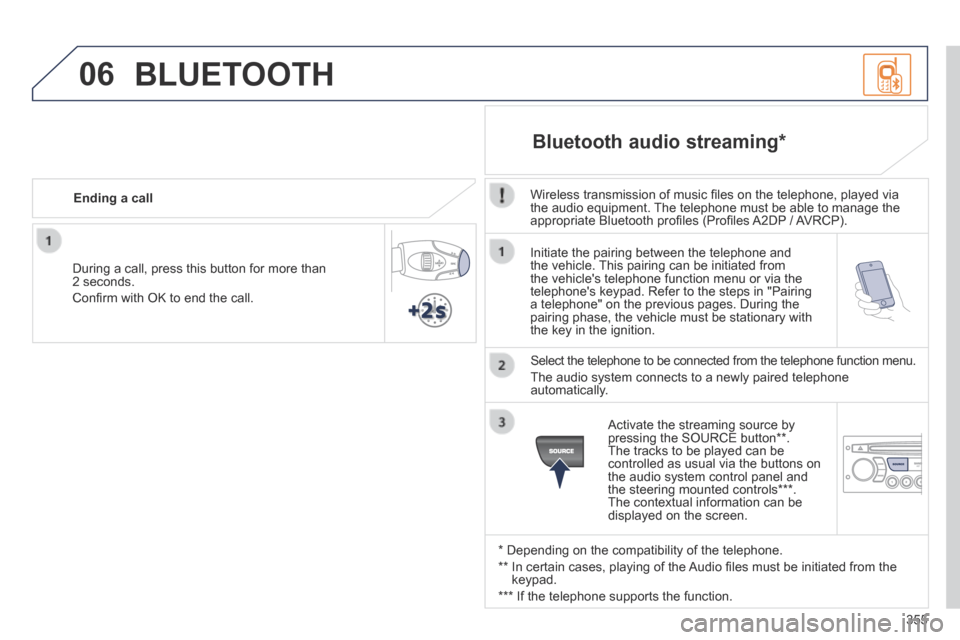

Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. Refer to the steps in "Pairing a telephone" on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu.
The audio system connects to a newly paired telephone automatically.

Bluetooth audio streaming *
Wireless transmission of music fi les on the telephone, played via the audio equipment. The telephone must be able to manage the appropriate Bluetooth profi les (Profi les A2DP / AVRCP).
* Depending on the compatibility of the telephone.
** In certain cases, playing of the Audio fi les must be initiated from the keypad.
*** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button ** . The tracks to be played can be controlled as usual via the buttons on the audio system control panel and the steering mounted controls *** . The contextual information can be displayed on the screen.
During a call, press this button for more than 2 seconds.
Confi rm with OK to end the call.
Ending a call
BLUETOOTH

07
358

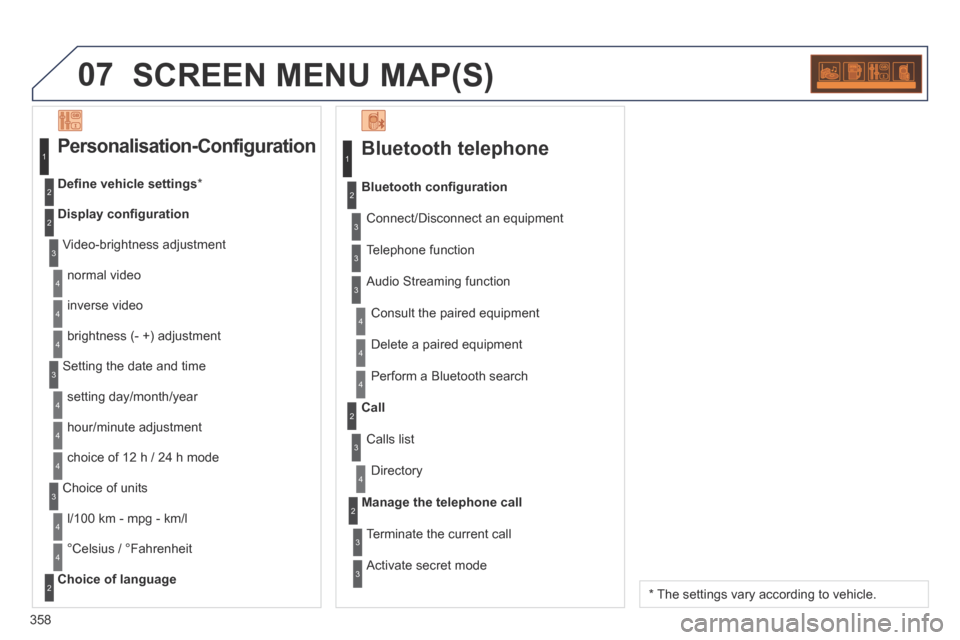

SCREEN MENU MAP(S)
Bluetooth telephone
Connect/Disconnect an equipment
Consult the paired equipment
Bluetooth confi guration
Telephone function
Audio Streaming function
Delete a paired equipment
Perform a Bluetooth search
Calls list
Call
Directory
Terminate the current call
Manage the telephone call
Activate secret mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3
Video-brightness adjustment
Display confi guration
Defi ne vehicle settings *
Personalisation-Configuration
normal video
inverse video
brightness (- +) adjustment
Setting the date and time
setting day/month/year
hour/minute adjustment
choice of 12 h / 24 h mode
Choice of units
l/100 km - mpg - km/l
°Celsius / °Fahrenheit
Choice of language
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
* The settings vary according to vehicle.

359

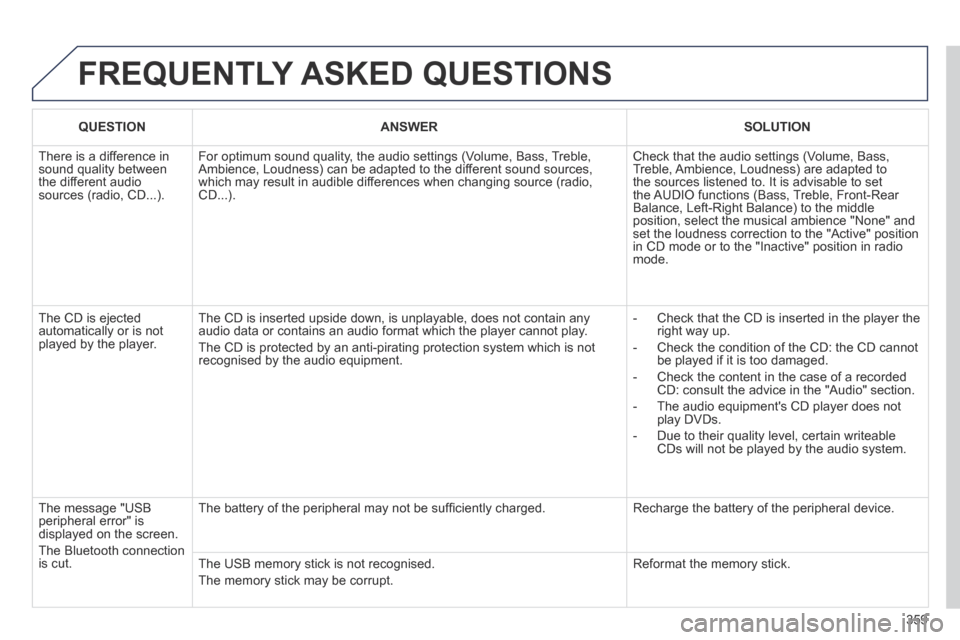

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

.

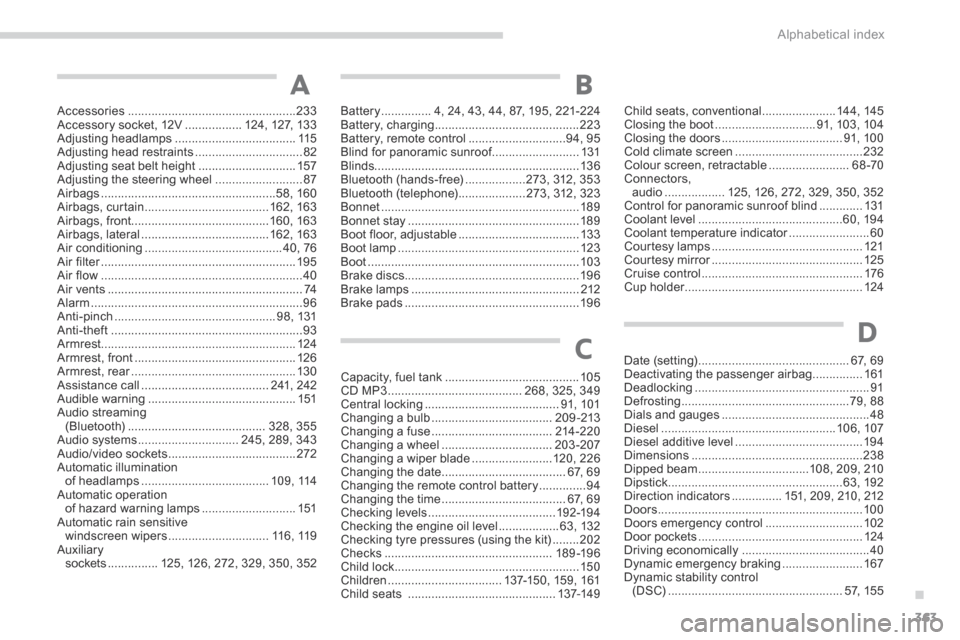

Alphabetical index363
Accessories ..................................................233Accessory socket, 12V .................124, 127, 13 3Adjusting headlamps ....................................115Adjusting head restraints ................................82Adjusting seat belt height .............................157Adjusting the steering wheel ..........................87Airbags ....................................................58, 160Airbags, curtain .....................................162, 163Airbags, front.........................................160, 163Airbags, lateral ......................................162, 163Air conditioning .........................................40, 76Air filter ..........................................................Air filter ..........................................................Air filter195Air flow ............................................................40Air vents ..........................................................74Alarm ...............................................................96Anti-pinch ................................................98, 131Anti-theft .........................................................93Armrest ..........................................................124Armrest, front ................................................126Armrest, rear .................................................Armrest, rear .................................................Armrest, rear13 0Assistance call ......................................2 41, 242Audible warning ............................................151Audio streaming (Bluetooth) .........................................328, 355Audio systems ..............................245, 289, 343Audio/video sockets ......................................272Automatic illumination of headlamps ......................................109, 114Automatic operation of hazard warning lamps ............................151Automatic rain sensitive windscreen wipers ..............................11 6, 11 9Auxiliary sockets ...............125, 126, 272, 329, 350, 352
Battery ...............4, 24, 43, 44, 87, 195, 221-224Battery, charging ...........................................223Battery, remote control .............................94, 95Blind for panoramic sunroof ..........................Blind for panoramic sunroof ..........................Blind for panoramic sunroof131Blinds.............................................................13 6Bluetooth (hands-free) ..................273, 312, 353Bluetooth (telephone) ....................273, 312, 323Bonnet ...........................................................189Bonnet stay ...................................................189Boot floor, adjustable ....................................13 3Boot lamp ......................................................123Boot ...............................................................103Brake discs ....................................................19 6Brake lamps ..................................................212Brake pads ....................................................19 6
A
D
Child seats, conventional ......................14 4, 145Closing the boot ..............................91, 103, 104Closing the doors ....................................91, 10 0Cold climate screen ......................................232Colour screen, retractable ........................68-70Connectors, audio ..................125, 126, 272, 329, 350, 352Control for panoramic sunroof blind .............131Coolant level ...........................................60, 19 4Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator60Courtesy lamps .............................................121Courtesy mirror .............................................Courtesy mirror .............................................Courtesy mirror125Cruise control ................................................176Cup holder .....................................................Cup holder .....................................................Cup holder124
Capacity, fuel tank ........................................105CD MP3 ........................................268, 325, 349Central locking ........................................91, 101Changing a bulb ....................................209-213Changing a fuse ....................................214 -2 20Changing a wheel .................................203-207Changing a wiper blade ........................120, 226Changing the date .....................................67, 69Changing the remote control battery ..............94Changing the time .....................................67, 69Checking levels ......................................192-19 4Checking the engine oil level ..................63, 132Checking tyre pressures (using the kit) ........202Checks ..................................................18 9 -19 6Child lock .......................................................150Children ..................................137-150, 159, 161Child seats ............................................137-149
Date (setting) .............................................67, 69Deactivating the passenger airbag ...............161Deadlocking ....................................................91Defrosting ..................................................79, 88Dials and gauges ............................................48Diesel ....................................................10 6, 107Diesel additive level ......................................19 4Dimensions ...................................................238Dipped beam .................................108, 209, 210Dipstick ....................................................63, 192Direction indicators ...............151, 209, 210, 212Doors .............................................................10 0Doors emergency control .............................102Door pockets .................................................124Driving economically ......................................40Dynamic emergency braking ........................167Dynamic stability control (DSC) ....................................................57, 155
C
B
