2014 Peugeot 3008 Hybrid 4 fog light

Practical information
212

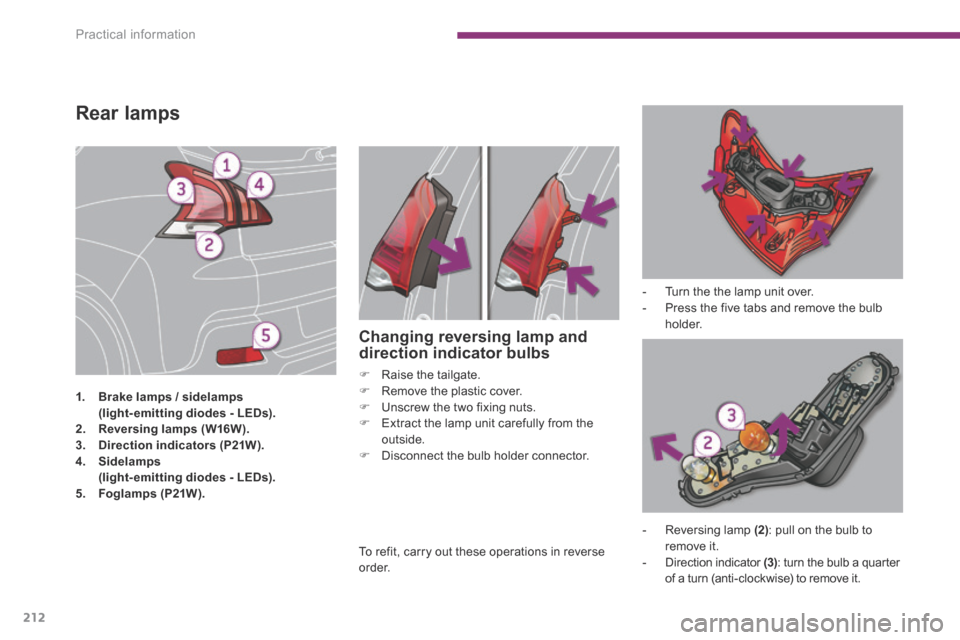

Rear lamps
1. Brake lamps / sidelamps (light - emitting diodes - LEDs). 2. Reversing lamps (W16W).3. Direction indicators (P21W).4.S idelamps (light-emitting diodes - LEDs).5. Foglamps (P21W).
Changing reversing lamp and direction indicator bulbs
 Raise the tailgate.  Remove the plastic cover.  Unscrew the two fixing nuts.  Extract the lamp unit carefully from the outside.  Disconnect the bulb holder connector.
- Turn the the lamp unit over. - Press the five tabs and remove the bulb h o l d e r.
- Reversing lamp (2) : pull on the bulb to
remove it. - Direction indicator (3) : turn the bulb a quarter of a turn (anti-clockwise) to remove it.
To refit, carry out these operations in reverse o r d e r.

11
Practical information213

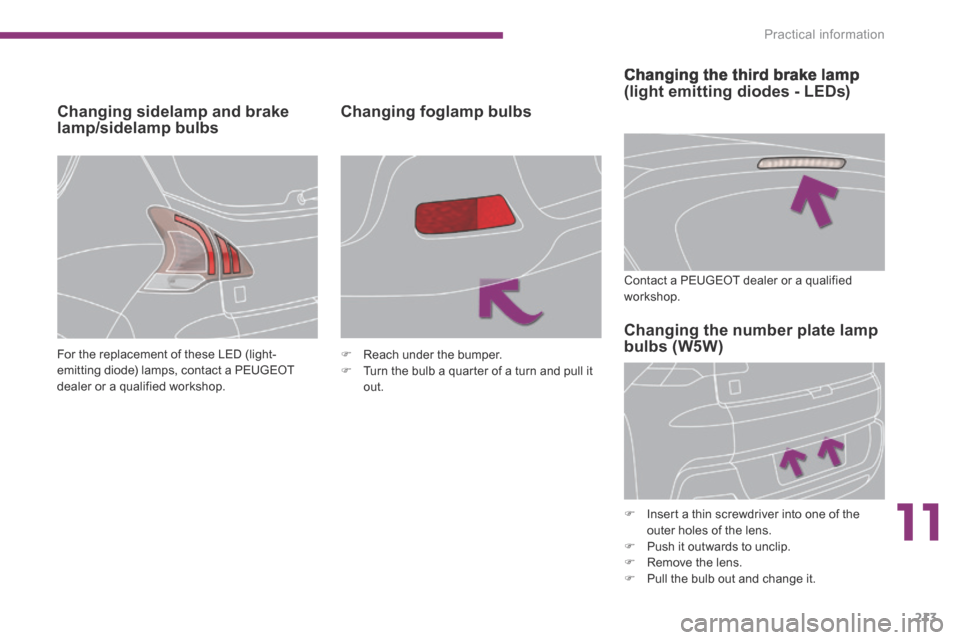

Changing the third brake lamp (light emitting diodes - LEDs)
Changing sidelamp and brake lamp/sidelamp bulbs Changing foglamp bulbs
For the replacement of these LED (light-emitting diode) lamps, contact a PEUGEOT dealer or a qualified workshop.
 Reach under the bumper.  Turn the bulb a quarter of a turn and pull it out.
Contact a PEUGEOT dealer or a qualified workshop.
Changing the number plate lamp bulbs (W5W)
 Insert a thin screwdriver into one of the outer holes of the lens.  Push it outwards to unclip.  Remove the lens.  Pull the bulb out and change it.

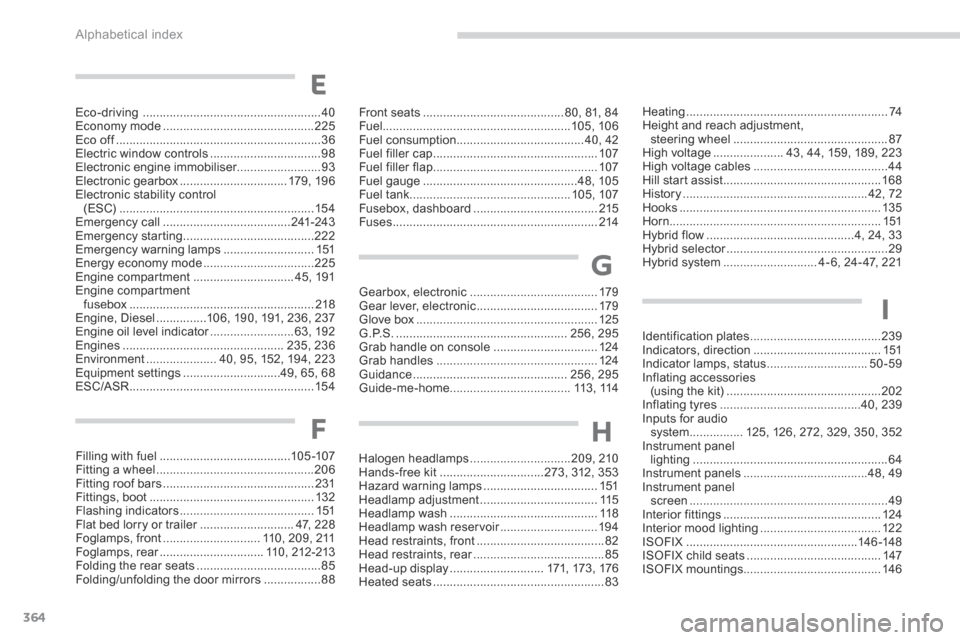

Alphabetical index
364
Filling with fuel .......................................105 -107Fitting a wheel ...............................................206Fitting roof bars .............................................231Fittings, boot .................................................132Flashing indicators ........................................151Flat bed lorry or trailer ............................Flat bed lorry or trailer ............................Flat bed lorry or trailer47, 228Foglamps, front .............................11 0, 209, 2 11Foglamps, rear ...............................Foglamps, rear ...............................Foglamps, rear110, 212-213Folding the rear seats .....................................85Folding/unfolding the door mirrors .................88
Gearbox, electronic ......................................179Gear lever, electronic ....................................179Glove box ......................................................125G . P. S . ...................................................256, 295Grab handle on console ...............................124Grab handles ................................................124Guidance ..............................................256, 295Guide-me-home ....................................113 , 114
Halogen headlamps ..............................209, 210Hands-free kit ...............................273, 312, 353Hazard warning lamps ..................................151Headlamp adjustment ...................................115Headlamp wash ............................................118Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir19 4Head restraints, front ......................................82Head restraints, rear .......................................Head restraints, rear .......................................Head restraints, rear85Head-up display ............................171, 173, 176Heated seats ...................................................83
Front seats ..........................................80, 81, 84Fuel........................................................105, 10 6Fuel consumption ......................................40, 42Fuel filler cap .................................................107Fuel filler flap .................................................107Fuel gauge ..............................................48, 105Fuel tank................................................105, 107Fusebox, dashboard .....................................215Fuses .............................................................214
F
G
H
E
Eco-driving .....................................................40Economy mode .............................................225Eco off .............................................................Eco off .............................................................Eco off36Electric window controls .................................98Electronic engine immobiliser.........................93Electronic gearbox ................................179, 196Electronic stability control (ESC) ..........................................................15 4Emergency call ......................................241-243Emergency starting .......................................222Emergency warning lamps ...........................151Energy economy mode .................................225Engine compartment ..............................45, 191Engine compartment fusebox .......................................................218Engine, Diesel ...............10 6, 19 0, 191, 236, 237Engine oil level indicator .........................Engine oil level indicator .........................Engine oil level indicator63, 192Engines ................................................235, 236Environment .....................40, 95, 152, 194, 223Equipment settings .............................49, 65, 68ESC/ASR .......................................................15 4
I
Heating ............................................................74Height and reach adjustment, steering wheel ..............................................87High voltage .....................43, 44, 159, 189, 223High voltage cables ........................................44Hill start assist ...............................................168History .......................................................42, 72Hooks ............................................................13 5Horn...............................................................151Hybrid flow ............................................4, 24, 33Hybrid selector ................................................Hybrid selector ................................................Hybrid selector29Hybrid system ............................4-6, 24-47, 221
Identification plates .......................................239Indicators, direction ......................................151Indicator lamps, status ..............................50-59Inflating accessories (using the kit) ..............................................202Inflating tyres ..........................................40, 239Inputs for audio system ................125, 126, 272, 329, 350, 352Instrument panel lighting ..........................................................64Instrument panels .....................................48, 49Instrument panel screen ...........................................................49Interior fittings ...............................................124Interior mood lighting ....................................12 2ISOFIX ...................................................146 -148ISOFIX child seats ........................................147ISOFIX mountings.........................................146

Visual search
368
Exterior
Remote control key 90 -94 - opening / closing - anti-theft protection - starting - battery
W i p e r 1 1 6 - 1 1 8 Changing a wiper blade 120, 226
Boot, tailgate 103 -104 - opening / closing - emergency release Temporary puncture repair kit 197-202 Changing a wheel 203 -207 - tools - removing
Parking sensors 183 -184 Towbar 229 Recovery on a flatbed 227-228 Reversing camera 185 Parking space sensors 186
Changing bulbs 212-213 - rear lamps - 3 rd brake lamp - number plate lamps - foglamps
Fuel tank 98 -99 Misfuel prevention 99
Door mirrors 88
Exterior welcome lighting 113 Door mirror spotlamps 122 Lighting 108 -112 Headlamp height adjustment 115 Very cold climate screen 232 Changing bulbs 109-111 - front lamps - foglamps - direction indicator repeaters
D o o r s 1 0 0 - 1 0 2 - opening / closing - central locking - emergency control Alarm 96 -97 Electric windows 98 -99
ESC: ABS, EBA, ASR, CDS 154-156 Tyre pressures 239 Under-inflation detection 152-153 Snow chains 208
Accessories 233-234 Roof bars 231 Panoramic sunroof 131
