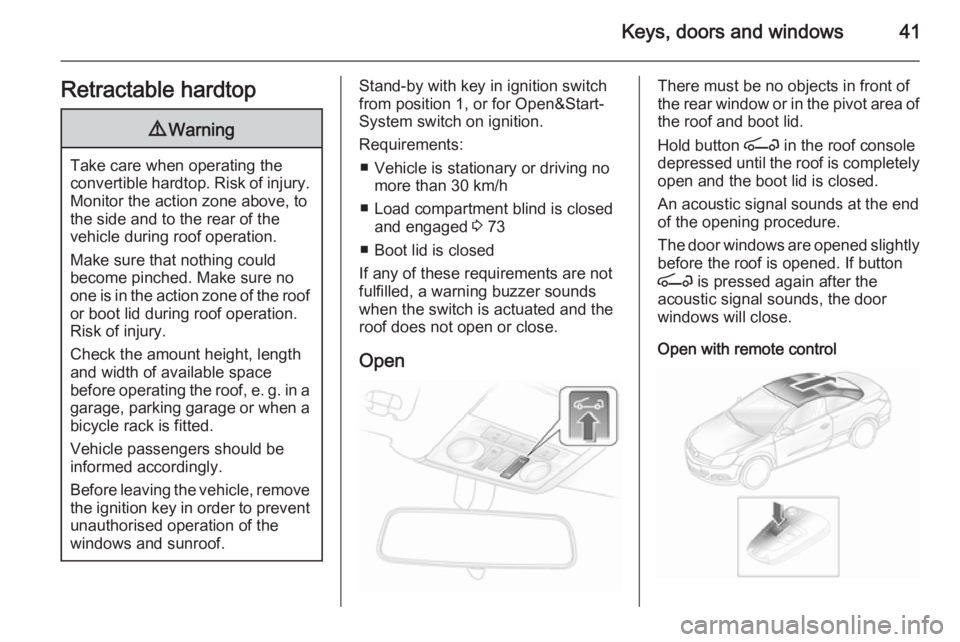

Keys, doors and windows41Retractable hardtop9Warning
Take care when operating the
convertible hardtop. Risk of injury. Monitor the action zone above, to
the side and to the rear of the
vehicle during roof operation.
Make sure that nothing could
become pinched. Make sure no
one is in the action zone of the roof
or boot lid during roof operation.
Risk of injury.
Check the amount height, length
and width of available space
before operating the roof, e. g. in a
garage, parking garage or when a bicycle rack is fitted.
Vehicle passengers should be
informed accordingly.
Before leaving the vehicle, remove
the ignition key in order to prevent unauthorised operation of the
windows and sunroof.
Stand-by with key in ignition switch from position 1, or for Open&Start-
System switch on ignition.
Requirements: ■ Vehicle is stationary or driving no more than 30 km/h
■ Load compartment blind is closed and engaged 3 73
■ Boot lid is closed
If any of these requirements are not
fulfilled, a warning buzzer sounds
when the switch is actuated and the
roof does not open or close.
OpenThere must be no objects in front of
the rear window or in the pivot area of the roof and boot lid.
Hold button > in the roof console
depressed until the roof is completely
open and the boot lid is closed.
An acoustic signal sounds at the end
of the opening procedure.
The door windows are opened slightly before the roof is opened. If button
> is pressed again after the
acoustic signal sounds, the door
windows will close.
Open with remote control

190Vehicle careTyre designationsE.g. 195/65 R 15 91 H195=Tyre width, mm65=Cross-section ratio (tyre
height to tyre width), %R=Belt type: RadialRF=Type: RunFlat15=Wheel diameter, inches91=Load index e.g. 91 is
equivalent to 618 kgH=Speed code letter
Speed code letter:
Q=up to 160 km/hS=up to 180 km/hT=up to 190 km/hH=up to 210 km/hV=up to 240 km/hW=up to 270 km/h
Tyre pressure
Check the pressure of cold tyres at
least every 14 days and before any
long journey. Do not forget the spare
wheel. This also applies to vehicles
with tyre pressure monitoring.
Remove the valve cap key from the
fuel filler flap and use it to unscrew the
valve cap.
On vehicles with tyre pressure
monitoring system, screw the adapter
to the valve.
Tyre pressure 3 225 and on the label
on the inside of the fuel filler flap.
The tyre pressure data refer to cold
tyres. It applies to summer and winter tyres.
Always inflate the spare wheel to the
pressure specified for full load.
The ECO tyre pressure serves to
achieve the smallest amount of fuel
consumption possible. It must not be used with run-flat tyres.
Incorrect tyre pressures will impair
safety, vehicle handling, comfort and
fuel economy and will increase tyre
wear.
Tyre pressures differ depending on
various options. For the correct tyre
pressure value, follow the procedure
below:
1. Identify drive axle and body style.
2. Identify the engine identifier code.
Engine data 3 216.
3. Identify the respective tyre.

Technical data223
Heavy accessoriesAccessoriesSun roofTowing equipmentSplit rear seat backrestHeadlamp washer systemWeight [kg]23 (not on Saloon 4-door)
17 (Saloon 4-door)21 (not on TwinTop)
26 (TwinTop)20 (Station wagon)
9 (Saloon 3-door / 5-door)2 (Saloon 4-door / 5-door)Vehicle dimensionsSaloon 5-doorSaloon 3-doorSaloon 4-doorStation wagonVanTwinTopLength [mm]424942904587451545154476Width without exterior mirrors [mm]175317531753175317531759Width with two exterior mirrors [mm]203220322033203220322021Height (without antenna) [mm]146014351458150015001411Length of load compartment floor [mm]81981990510851825805Load compartment width [mm]944944102710881103734Height of load compartment opening [mm]614555–766775–Wheelbase [mm]261426142703270327032614Turning circle diameter [m]11.2011.2011.5011.5011.5011.20
