158Vehicle care
assistance of a workshop regardingtechnical possibilities, such as fitting
a more powerful battery.
Ensure the ignition is switched off
before reconnecting the vehicle
battery. Then perform the following
actions:
1. Set date and time in the information display 3 77.
2. If necessary, activate the power windows and sun roof 3 30, 3 32.
In order to prevent the vehicle battery
from discharging, some consumers
such as the courtesy lights
automatically switch off after a delay.
Charge a disconnected vehicle
battery every 6 weeks.
Vehicle battery discharge protection
3 114.
Replacing the vehicle battery Note
Any deviation from the instructions
given in this paragraph may lead to
a temporary deactivation of the stop- start system.When the vehicle battery is being
replaced, please ensure that there
are no open ventilation holes in the
vicinity of the positive terminal. If a
ventilation hole is open in this area, it
must be closed off with a dummy cap,
and the ventilation in the vicinity of the negative terminal must be opened.
Only use batteries that allow the fuse
box to be mounted above the vehicle
battery.
In vehicles with stop-start system,
ensure to have the AGM (Absorptive
Glass Mat) vehicle battery replaced
with an AGM battery again.An AGM battery can be identified by
the label on the battery. We
recommend the use of an original
Opel battery.
Note
Using an AGM vehicle battery
different from the original Opel
vehicle battery may result in a lower performance of the stop-start
system.
We recommend that you have the
vehicle battery replaced by a
workshop.
Stop-start system 3 125.
Charging the vehicle battery9 Warning
On vehicles with stop-start
system, ensure that the charging potential does not exceed
14.6 volts when using a battery
charger. Otherwise the vehicle
battery might be damaged.
Jump starting 3 187.

Vehicle care177

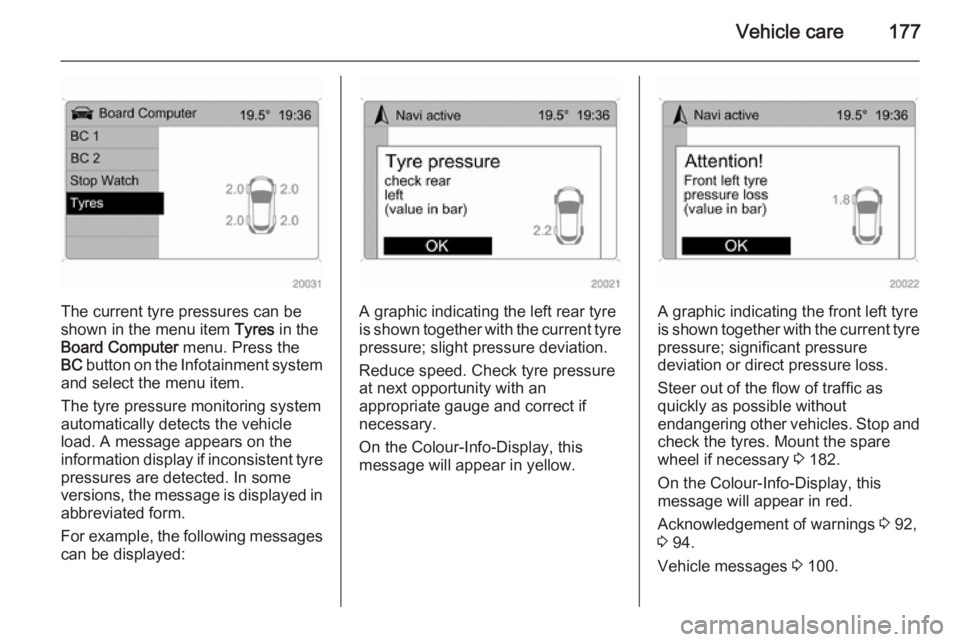

The current tyre pressures can be
shown in the menu item Tyres in the
Board Computer menu. Press the
BC button on the Infotainment system
and select the menu item.
The tyre pressure monitoring system
automatically detects the vehicle
load. A message appears on the
information display if inconsistent tyre
pressures are detected. In some
versions, the message is displayed in
abbreviated form.
For example, the following messages can be displayed:A graphic indicating the left rear tyre
is shown together with the current tyre
pressure; slight pressure deviation.
Reduce speed. Check tyre pressure at next opportunity with an
appropriate gauge and correct if
necessary.
On the Colour-Info-Display, this
message will appear in yellow.A graphic indicating the front left tyre is shown together with the current tyre
pressure; significant pressure
deviation or direct pressure loss.
Steer out of the flow of traffic as
quickly as possible without
endangering other vehicles. Stop and check the tyres. Mount the spare
wheel if necessary 3 182.
On the Colour-Info-Display, this
message will appear in red.
Acknowledgement of warnings 3 92,
3 94.
Vehicle messages 3 100.

178Vehicle care
If the tyre pressure is to be reduced orincreased, switch off the ignition. Tyre
pressures 3 176, 3 207.
External high-power radio equipment
could disrupt the tyre pressure
monitoring system.
The tyre pressure monitoring system
valve cores and sealing rings must be
replaced each time the tyres are
changed.
Temperature compensation
Tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase.
The tyre pressure value shown in the
display is the actual tyre pressure.
Therefore it is important to check tyre pressure with cold tyres.
Tread depth
Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).For safety reasons it is recommended that the tread depth of the tyres on
one axle should not vary by more than
2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread wear
indicators (TWI). Their position is
indicated by markings on the
sidewall.
If there is more wear at the front than
the rear, swap round front wheels and
rear wheels. Ensure that the direction
of rotation of the wheels is the same
as before.
Tyres age, even if they are not used.
We recommend tyre replacement
every 6 years.
Changing tyre and wheel
size
If tyres of a different size than those
fitted at the factory are used, it may be necessary to reprogramme the
speedometer as well as the nominal tyre pressure and make other vehicle modifications.
After converting to a different tyre
size, have the label with tyre
pressures replaced.9 Warning
Use of unsuitable tyres or wheels
may lead to accidents and will
invalidate the vehicle type
approval.
If wheel rims of a different type are to
be installed, the wheel nuts may also
need to be changed. We recommend you consult your service partner.

192Vehicle care
Sunroof
Never clean with solvents or abrasive
agents, fuels, aggressive media
(e.g. paint cleaner, acetone-
containing solutions etc.), acidic or
highly alkaline media or abrasive
pads. Do not apply wax or polishing
agents to the sunroof.
Wheels and tyres Do not use high-pressure jet
cleaners.
Clean rims with a pH-neutral wheel
cleaner.
Rims are painted and can be treated
with the same agents as the body.
Paintwork damage
Rectify minor paintwork damage with
a touch-up pen before rust forms.
Have more extensive damage or rust areas repaired by a workshop.
Underbody Some areas of the vehicle underbody
have a PVC undercoating while other critical areas have a durable
protective wax coating.After the underbody is washed, check
the underbody and have it waxed if
necessary.
Bitumen/rubber materials could
damage the PVC coating. Have
underbody work carried out by a
workshop.
Before and after winter, wash the
underbody and have the protective
wax coating checked.
Towing equipment
Do not clean the coupling ball bar with
a steam-jet or high-pressure jet
cleaner.
Rear carrier system
Clean the rear carrier system with a
steam-jet or high-pressure jet cleaner
at least once a year.
Operate the rear carrier system once
in a while if not in regular use, in
particular during winter.Interior care
Interior and upholstery Only clean the vehicle interior,
including the instrument panel fascia
and panelling, with a dry cloth or
interior cleaner.
Clean the leather upholstery with
clear water and a soft cloth. In case of heavy soiling, use leather care.
The instrument cluster and the
displays should only be cleaned using
a soft damp cloth. If necessary use a
weak soap solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light- coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water or interior cleaner.

194Service and maintenanceService and
maintenanceGeneral information ...................194
Recommended fluids, lubricants and parts .................................... 195General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for the vehicle is available at
the workshop.
Service display 3 81.
European service intervals Main service
Maintenance of your vehicle is
required every 30,000 km or after
1 year , whichever occurs first, unless
otherwise indicated in the service
display.
The European service intervals are
valid for the following countries:
Andorra, Austria, Belgium, Cyprus,
Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece,Greenland, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Serbia,
Slovakia, Slovenia, Spain, Sweden,
Switzerland, United Kingdom.
Service display 3 81.
International service intervals Main service
Maintenance of your vehicle is
required every 15,000 km or 1 year,
whichever occurs first, unless
otherwise indicated in the service
display.
The international service intervals are
valid for the countries which are not
listed in the European service
intervals.
Service display 3 81.
Confirmations
Confirmation of service is recorded in the Service and Warranty Booklet.
The date and mileage is completed
with the stamp and signature of the
servicing workshop.

Service and maintenance195
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty or goodwill claims are to be met, and is
also a benefit when selling the
vehicle.
Service interval with remaining
engine oil life duration The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display 3 81.Recommended fluids,
lubricants and parts
Recommended fluids and
lubricants
Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not in line with these
specifications will not be covered by
the warranty.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The oil quality ensures e.g. engine
cleanliness, wear protection and oil
ageing control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for gasoline and diesel engines. If it is
unavailable, engine oils of other listed qualities have to be used.
Recommendations for gasoline
engines are also valid for Ethanol
(E85) fuelled engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 199.
Topping up engine oil
Engine oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oil with only
ACEA A1/B1 or only A5/B5 quality is
prohibited, since it can cause long-
term engine damage under certain
operating conditions.

210IndexAAccessories and vehicle modifications .......................... 151
Accessory sockets ........................78
Active head restraints .............34, 35
Adjustable air vents ...................120
Airbag and belt tensioners ...........84
Airbag deactivation ......................49
Airbag label................................... 44 Airbag system .............................. 44
Air conditioning regular operation ................................ 121
Air conditioning system .............. 116
Air intake .................................... 121
Air vents...................................... 120
All wheel drive .....................86, 134
Antilock brake system ................ 136
Antilock brake system (ABS) .......86
Anti-theft alarm system ..........24, 91
Anti-theft locking system .............. 24
Appearance care ........................190
Apply footbrake ............................ 90
Armrest ......................................... 40
Armrest storage ........................... 58
Automatic anti-dazzle ..................29
Automatic dimming ......................29
Automatic headlight levelling system ...................................... 90
Automatic level control .......107, 140Automatic light control ...............106
Automatic transmission ........85, 129
AUX input ..................................... 58
B Battery .......................................... 84
Battery discharge protection ......114
Battery, jump starting.................. 187
Belt pretensioners......................... 41
Belts.............................................. 41
Bicycle rack .................................. 58
Board-Info-Display .......................92
Bonnet ....................................... 153
Bonnet open ................................. 91
Brake and clutch fluid .................195
Brake assist ............................... 138
Brake fluid .................................. 156
Brakes ............................... 136, 156
Brake system ............................... 85
Breakdown.................................. 188
Bulb replacement ....................... 160
C Capacities .................................. 206
Card holder ................................... 57
Car Pass ...................................... 19
Catalytic converter ................85, 129
CD tray ......................................... 57
Central locking system ................21
Centre console storage ...............58

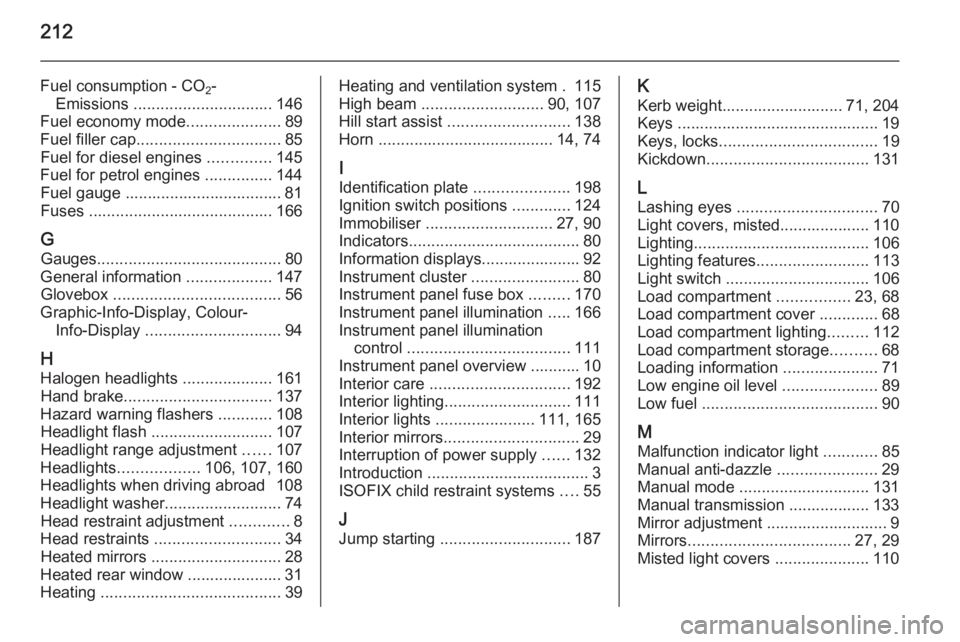

212
Fuel consumption - CO2-
Emissions ............................... 146
Fuel economy mode .....................89
Fuel filler cap ................................ 85
Fuel for diesel engines ..............145
Fuel for petrol engines ...............144
Fuel gauge ................................... 81
Fuses ......................................... 166
G Gauges ......................................... 80
General information ...................147
Glovebox ..................................... 56
Graphic-Info-Display, Colour- Info-Display .............................. 94
H Halogen headlights ....................161
Hand brake ................................. 137
Hazard warning flashers ............108
Headlight flash ........................... 107
Headlight range adjustment ......107
Headlights .................. 106, 107, 160
Headlights when driving abroad 108
Headlight washer ..........................74
Head restraint adjustment .............8
Head restraints ............................ 34
Heated mirrors ............................. 28
Heated rear window ..................... 31
Heating ........................................ 39Heating and ventilation system . 115
High beam ........................... 90, 107
Hill start assist ........................... 138
Horn ....................................... 14, 74
I
Identification plate .....................198
Ignition switch positions .............124
Immobiliser ............................ 27, 90
Indicators ...................................... 80
Information displays...................... 92
Instrument cluster ........................80
Instrument panel fuse box .........170
Instrument panel illumination .....166
Instrument panel illumination control .................................... 111
Instrument panel overview ........... 10
Interior care ............................... 192
Interior lighting ............................ 111
Interior lights ...................... 111, 165
Interior mirrors .............................. 29
Interruption of power supply ......132
Introduction .................................... 3
ISOFIX child restraint systems ....55
J Jump starting ............................. 187K
Kerb weight........................... 71, 204
Keys ............................................. 19
Keys, locks ................................... 19
Kickdown .................................... 131
L
Lashing eyes ............................... 70
Light covers, misted.................... 110
Lighting ....................................... 106
Lighting features .........................113
Light switch ................................ 106
Load compartment ................23, 68
Load compartment cover .............68
Load compartment lighting .........112
Load compartment storage ..........68
Loading information .....................71
Low engine oil level .....................89
Low fuel ....................................... 90
M Malfunction indicator light ............85
Manual anti-dazzle ......................29
Manual mode ............................. 131
Manual transmission .................. 133
Mirror adjustment ........................... 9
Mirrors .................................... 27, 29
Misted light covers .....................110
