2014 NISSAN XTERRA trip computer

*See your Owner’s Manual for information.
01
03
04
05
12
13
14
16
15
17
18
19
08
09
11
10
02
07
06
LOW TIRE PRESSURE WARNING LIGHT
HEAd
LI
GHT AN
d
TURN SIGNAL CONTROL
TRIP COMPUTER
INSTRUMENT BRIGHTNESS
CONTROL* / TRIP CHANGE BUTTON
WIN
d
S
HIEL
d W
IPER AN d
W
ASHER SWITCHSTEERING WHEEL SWITCHES FOR
AU
dI

O CONTROL* / BLUETOOTH
®
CRUISE CONTROL
OUTSI
d

E MIRROR CONTROL SWITCH
OFF-ROA
d
LAMPS SWITCH*
STEERING WHEEL TILT A
dJU

STMENT* HOO
d

RELEASE*
AU
dI
O AN
d
NAVIGATION SYSTEM
CLIMATE CONTROLS
FRONT PASSENGER AIR BAG STATUS LIGHT*
4-WHEEL
d
R
IVE (4W d ) SHIFT SWITCH*VEHICLE
d
YNAM
IC CONTROL
(V d
C) O
FF SWITCH*
E-LOC
k
SWITCH*
HILL
d ESCENT CONTROL SWITCH*
POWER OUTLETS
0102030405
0607080910
1112131415
16171819
UNdERNE
ATH
INSTRUMENT PANEL
1631777_14b_Xterra_NAM_QRG_120413.indd 312/4/13 11:30 AM

4
TIRE PRESSURE MONITORING SYSTEM (TPMS)
A CHECK TIRE PRES warning message will display
in the trip computer
01 and the low tire pressure
warning light 02 will illuminate when one

or more tires are low on pressure and air
is needed.



•


T

he tire pressures should be checked
when the tires are cold. The tires are considered
cold after the vehicle has been parked for 3 hours
or more or driven less than 1 mi (1.6 km) at
moderate speeds.
After the tire pressures are adjusted, press the reset
button
03 for more than 1 second. d rive the vehicle
at speeds above 16 MPH (25 km/h). The CHECK
TIRE PRES warning message and low tire pressure warning light will disappear.
When the low tire pressure warning light flashes for approximately 1 minute and then remains on,
the TPMS is not functioning properly. Have the system checked by a NISSAN dealer.
Tire pressure rises and falls depending on the heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature o\
f the air inside the
tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light illuminates, check the tire pressure in your tires.



• Chec
k the tire pressures (including the spare tire) often and always prior to long distance trips.
The Tire and Loading Information label contains valuable information. Please refer to “Technical
and consumer information” (section 9), in your Owner’s Manual for the location of the Tire
and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
esse ntial i n for mation
0201
LOOSE FUEL CAP
A LOOSE F UEL CAP warning mess age will appear
in the trip computer
01 when the fuel-filler cap is not

tightened correctly.
To tighten, turn the cap clockwise until a single click
is heard.
The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button
02 is pressed for more than 1 second.
If the cap is not properly tightened, the Malfunction

Indicator Light
may illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
03
01
02
CHECk
TIRE
PRES
1631777_14b_Xterra_NAM_QRG_120413.indd 412/4/13 11:30 AM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

13

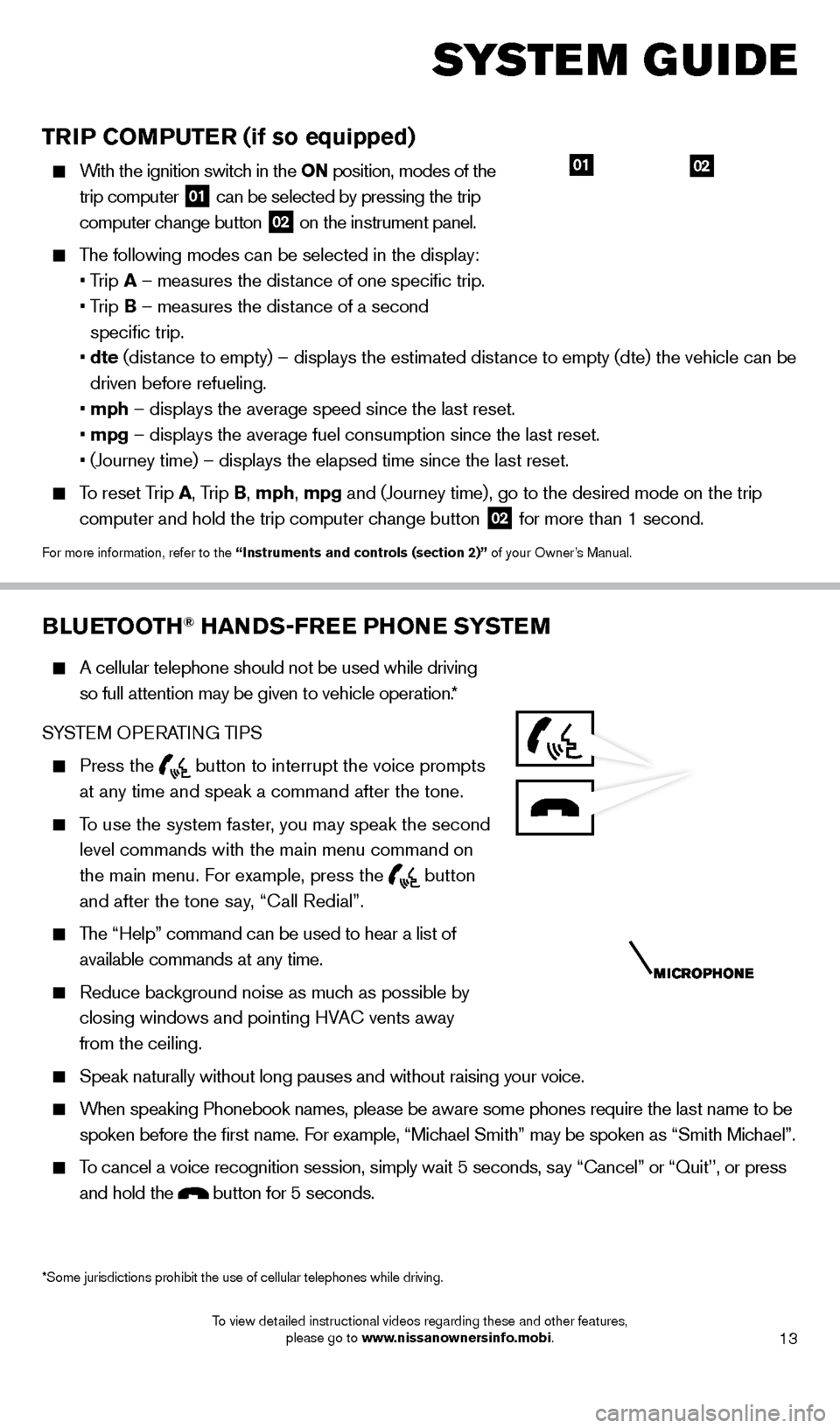

TRIP COMPUTER (if so equipped)
With the ignition switch in the ON position, modes of the trip computer
01 can be selected by pressing the trip
computer change button 02 on the instrument panel.
The following modes can be selected in the display:




• T
rip A – measures the distance of one specific trip.



•

T
rip B – measures the distance of a second
specific trip.



•

dte
(distance to empty) – displays the estimated distance to empty (dte) the vehicle can be
driven before refueling.



•
mph – displays the average speed since the last reset.



•
mpg – displays the average fuel consumption since the last reset.



• (Journey time) – displays the elapsed time since the last res
et.
To reset Trip A, Trip B, mph, mpg and (Journey time), go to the desired mode on the trip
computer and hold the trip computer change button
02 for more than 1 second.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
0201
BLUETOOTH® HANDS-FREE PHONE SYSTEM
A cellular telephone should not be used while driving

so full attention may be given to vehicle operation.*
SYSTEM OPERATING TIPS
Press the button to interrupt the voice prompts
at any time and speak a command after the tone.
To use the system faster, you may speak the second level commands with the main menu command on
the main menu. For example, press the
button
and after the tone say, “Call Redial”.
The “Help” command can be used to hear a list of available commands at any time.
Reduce bac kground noise as much as possible by
closing windows and pointing HVAC vents away
from the ceiling.
Speak naturally without long pauses and without raising your voice.
When speaking Phonebook names, please be aware some phones require the la\
st name to be spoken before the first name. For example, “Michael Smith” may be spoken as “Smith Michael”.
To cancel a voice recognition session, simply wait 5 seconds, say “Cancel” or “Quit’’, or press and hold the
button for 5 seconds.
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
system guide
