2014 NISSAN VERSA SEDAN odometer

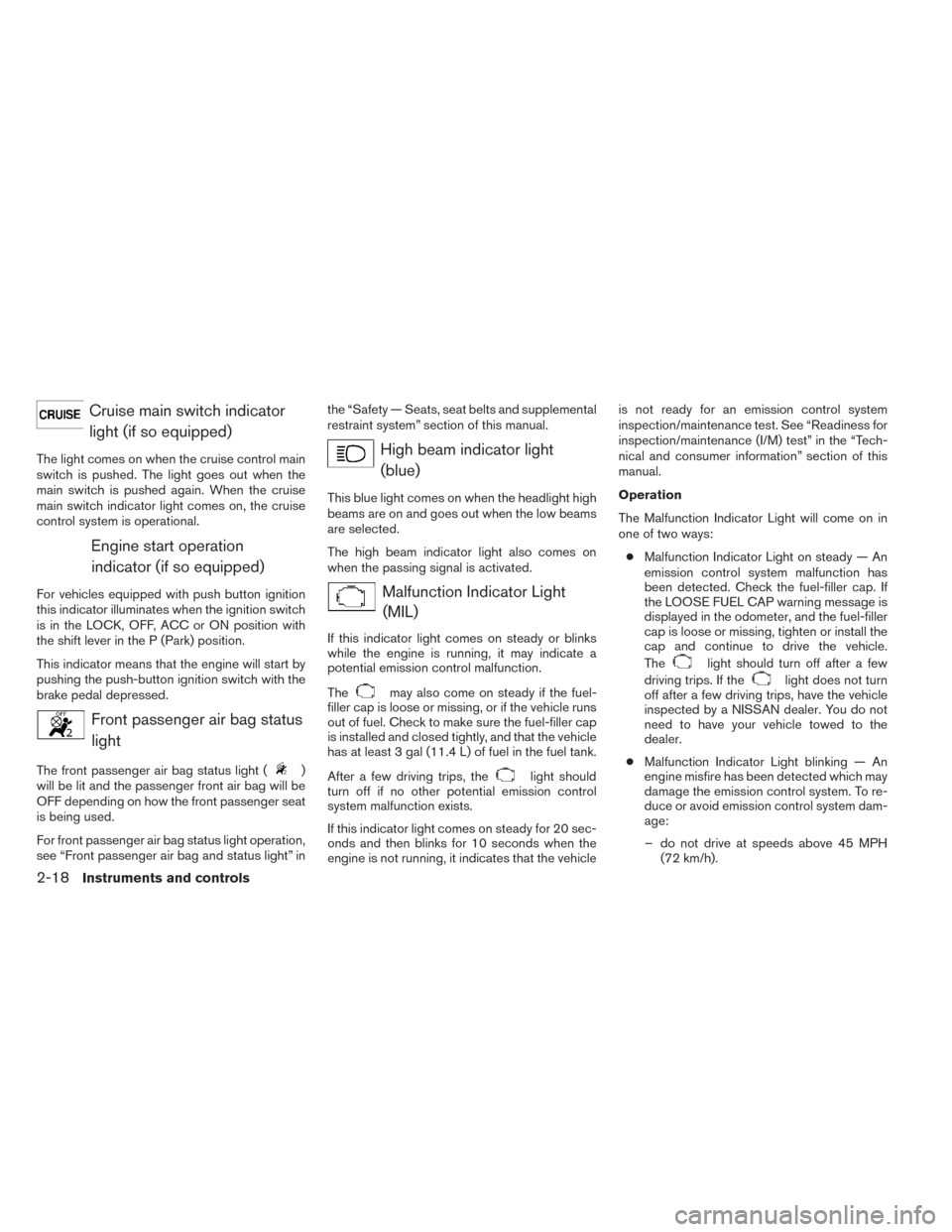

Cruise main switch indicatorlight (if so equipped)
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Engine start operationindicator (if so equipped)
For vehicles equipped with push button ignition
this indicator illuminates when the ignition switch
is in the LOCK, OFF, ACC or ON position with
the shift lever in the P (Park) position.
This indicator means that the engine will start by
pushing the push-button ignition switch with the
brake pedal depressed.
Front passenger air bag statuslight
The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light operation,
see “Front passenger air bag and status light” in the “Safety — Seats, seat belts and supplemental
restraint system” section of this manual.
High beam indicator light
(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Malfunction Indicator Light(MIL)
If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.
The
may also come on steady if the fuel-
filler cap is loose or missing, or if the vehicle runs
out of fuel. Check to make sure the fuel-filler cap
is installed and closed tightly, and that the vehicle
has at least 3 gal (11.4 L) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle is not ready for an emission control system
inspection/maintenance test. See “Readiness for
inspection/maintenance (I/M) test” in the “Tech-
nical and consumer information” section of this
manual.
Operation
The Malfunction Indicator Light will come on in
one of two ways:
● Malfunction Indicator Light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the LOOSE FUEL CAP warning message is
displayed in the odometer, and the fuel-filler
cap is loose or missing, tighten or install the
cap and continue to drive the vehicle.
The
light should turn off after a few
driving trips. If the
light does not turn
off after a few driving trips, have the vehicle
inspected by a NISSAN dealer. You do not
need to have your vehicle towed to the
dealer.
● Malfunction Indicator Light blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
– do not drive at speeds above 45 MPH (72 km/h).
2-18Instruments and controls

Loose Fuel Cap warning message
The LOOSE FUEL CAP warning message dis-
plays in the odometer when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. It may take a few driving trips for the
message to be displayed. To turn off the warning
message, perform the following:1. Remove and install the fuel-filler cap as pre- viously described as soon as possible.
2. Tighten the fuel-filler cap until it clicks. 3. Press the loose fuel cap warning reset but-
ton
Ain the meter for about 1 second to
turn off the LOOSE FUEL CAP warning
message after tightening the fuel-filler cap.
Type A
LPD2126
Type B
LPD2025
3-28Pre-driving checks and adjustments

TIRE PRESSURE MONITORING
SYSTEM (TPMS) (if so equipped)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit, and the CHECK
TIRE PRES (pressure) warning message is dis-
played in the odometer, one or more of your tires
is significantly under-inflated. If the vehicle is
being driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire pressure
warning light. This system will activate only when
the vehicle is driven at speeds above 16 MPH
(25 km/h). For more details, refer to
“Warning/indicator lights and audible reminders”
in the “Instruments and controls” section, and
“Tire Pressure Monitoring System (TPMS)” in the
“Starting and driving” section.
WARNING
●If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road
to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal in-
jury. Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a spare tire as soon as
possible.
● When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting. ●
Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.
● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions be-
low:
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Shift the automatic transmission (A/T)
or the continuously variable transmission
(CVT) models into P (Park) or the manual
transmission (M/T) model into R (Reverse) .
4. Turn off the engine.
5. Raise the hood to warn other traffic and to signal professional road assistance person-
nel that you need assistance.
FLAT TIRE
In case of emergency6-3

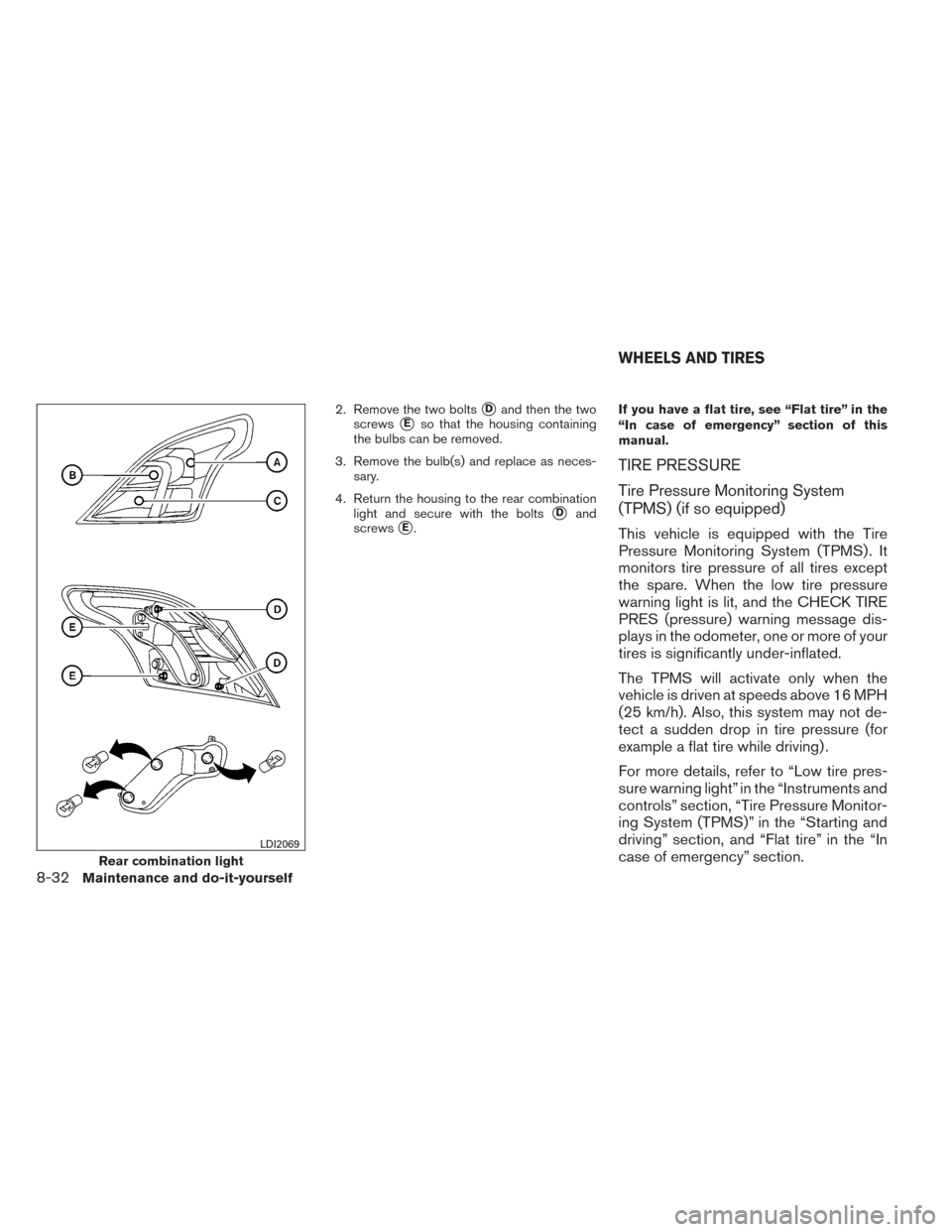

2. Remove the two boltsDand then the two
screws
Eso that the housing containing
the bulbs can be removed.
3. Remove the bulb(s) and replace as neces- sary.
4. Return the housing to the rear combination light and secure with the bolts
Dand
screws
E. If you have a flat tire, see “Flat tire” in the
“In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS) (if so equipped)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS) . It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit, and the CHECK TIRE
PRES (pressure) warning message dis-
plays in the odometer, one or more of your
tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving) .
For more details, refer to “Low tire pres-
sure warning light” in the “Instruments and
controls” section, “Tire Pressure Monitor-
ing System (TPMS)” in the “Starting and
driving” section, and “Flat tire” in the “In
case of emergency” section.
Rear combination light
LDI2069
WHEELS AND TIRES
8-32Maintenance and do-it-yourself

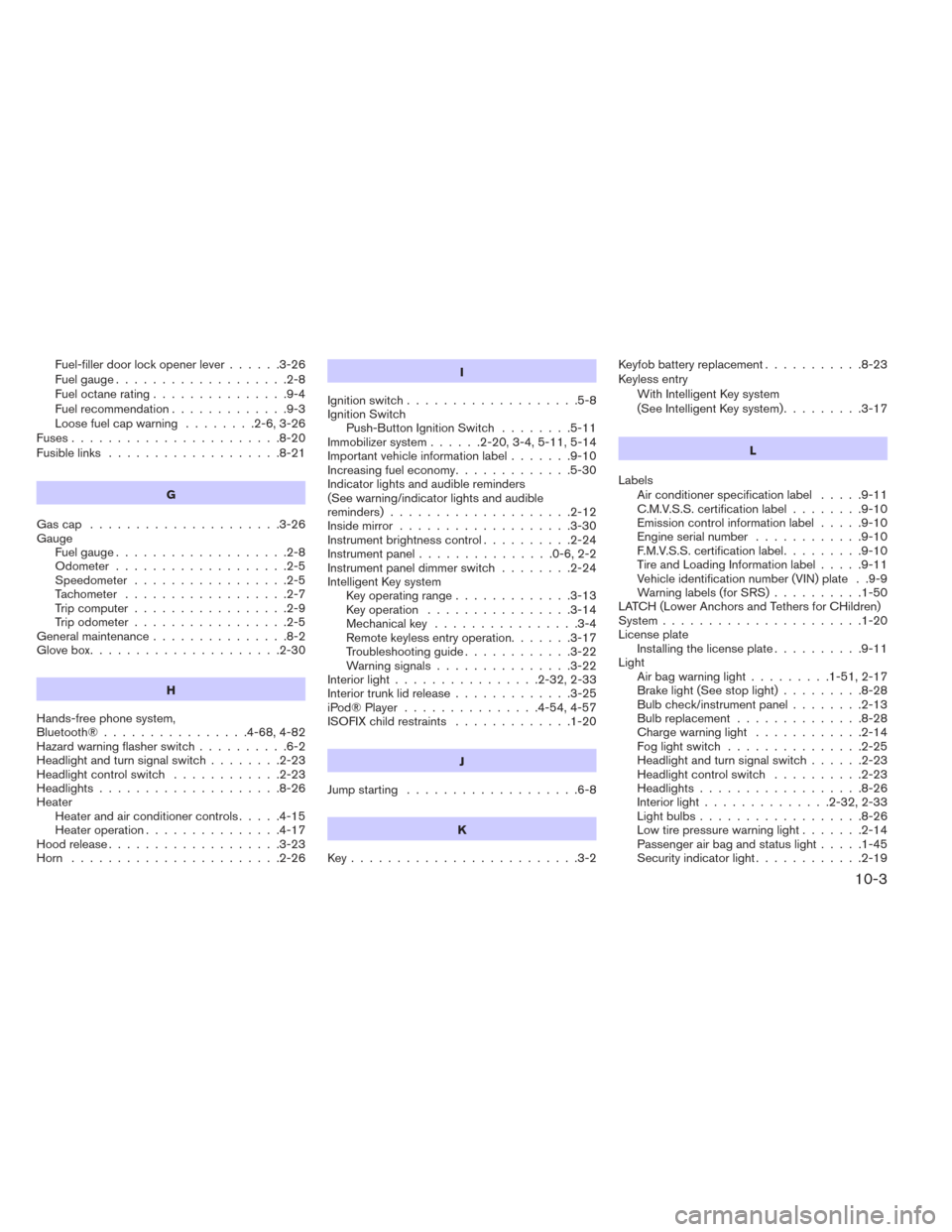

Fuel-filler door lock opener lever......3-26
Fuel gauge ...................2-8
Fueloctanerating...............9-4
Fuel recommendation .............9-3
Loosefuelcapwarning ........2-6,3-26
Fuses.......................8-20
Fusiblelinks ...................8-21
G
Gascap .....................3-26
Gauge Fuel gauge ...................2-8
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-7
Trip computer .................2-9
Trip odometer .................2-5
Generalmaintenance...............8-2
Glovebox.....................2-30
H
Hands-free phone system,
Bluetooth®................4-68,4-82
Hazard warning flasher switch ..........6-2
Headlightandturnsignalswitch........2-23
Headlightcontrolswitch ............2-23
Headlights....................8-26
Heater Heater and air conditioner controls .....4-15
Heater operation ...............4-17
Hood release ...................3-23
Horn .......................2-26 I
Ignition switch ...................5-8
Ignition Switch Push-Button Ignition Switch ........5-11
Immobilizer system ......2-20,3-4,5-11,5-14
Important vehicle information label .......9-10
Increasing fuel economy .............5-30
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-12
Inside mirror ...................3-30
Instrument brightness control ..........2-24
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-24
Intelligent Key system Key operating range .............3-13
Key operation ................3-14
Mechanicalkey ................3-4
Remote keyless entry operation .......3-17
Troubleshooting guide ............3-22
Warning signals ...............3-22
Interiorlight................2-32,2-33
Interiortrunklidrelease.............3-25
iPod® Player ...............4-54,4-57
ISOFIX child restraints .............1-20
J
Jump starting ...................6-8
K
Key.........................3-2 Keyfob battery replacement
...........8-23
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-17
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control information label .....9-10
Engine serial number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-50
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-20
License plate Installing
the license plate ..........9-11
Light Airbagwarninglight.........1-51, 2-17
Brake light (See stop light) .........8-28
Bulb check/instrument panel ........2-13
Bulbreplacement..............8-28
Chargewarninglight ............2-14
Fog light switch ...............2-25
Headlightandturnsignalswitch......2-23
Headlight control switch ..........2-23
Headlights..................8-26
Interiorlight..............2-32,2-33
Lightbulbs..................8-26
Low tire pressure warning light .......2-14
Passenger air bag and status light .....1-45
Security indicator light ............2-19
10-3

Trunklight ..................2-34
Warning/indicator lights and audible
reminders...................2-12
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Fuel-filler door lock opener lever ......3-26
Power door locks ...............3-6
Trunk lid lock opener lever ..........3-25
Loose fuel cap warning ..........2-6,3-26

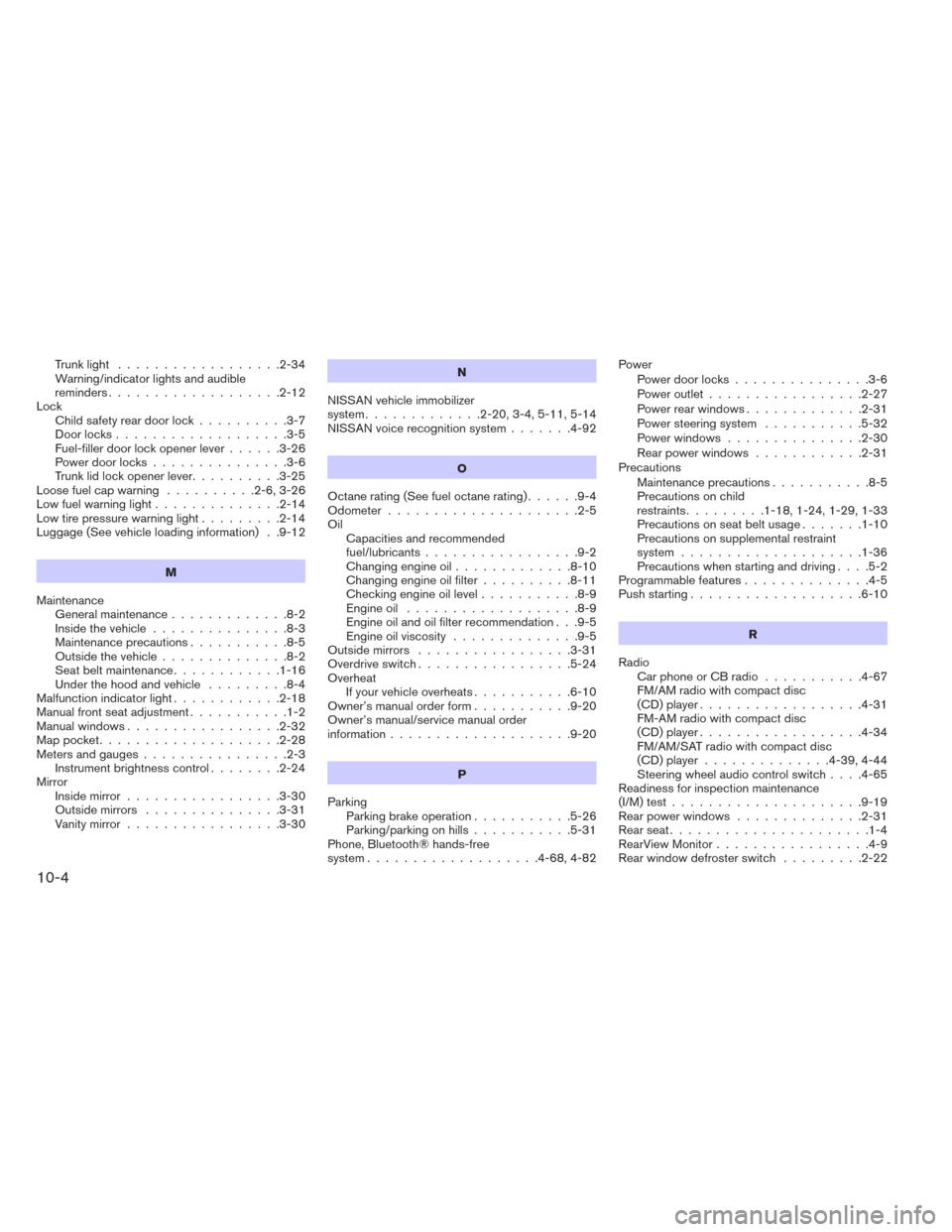

Lowfuelwarninglight..............2-14
Low tire pressure warning light .........2-14
Luggage (See vehicle loading information) . .9-12
M
Maintenance Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenanceprecautions...........8-5
Outsidethevehicle..............8-2
Seat belt maintenance ............1-16
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-18
Manual front seat adjustment ...........1-2
Manual windows .................2-32
Map pocket ....................2-28
Meters and gauges ................2-3
Instrument brightness control ........2-24
Mirror Inside mirror .................3-30
Outside mirrors ...............3-31
Vanity mirror .................3-30 N
NISSAN vehicle immobilizer
system .............2-20,3-4,5-11,5-14
NISSAN voice recognition system .......4-92
O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changingengineoil.............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engineoil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Outside mirrors .................3-31
Overdrive switch .................5-24
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-20
Owner’s manual/service manual order
information ....................9-20
P
Parking Parking brake operation ...........5-26
Parking/parking on hills ...........5-31
Phone, Bluetooth® hands-free
system ...................4-68,4-82 Power
Power door locks ...............3-6
Power outlet .................2-27
Power rear windows .............2-31
Power steering system ...........5-32
Power windows ...............2-30
Rear power windows ............2-31
Precautions Maintenanceprecautions...........8-5
Precautions on child
restraints .........1-18,1-24,1-29,1-33
Precautions on seat belt usage .......1-10
Precautions

on supplemental restraint
system ....................1-36
Precautions when starting and driving ....5-2
Programmablefeatures..............4-5
Push starting ...................6-10
R
Radio CarphoneorCBradio ...........4-67
FM/AM radio with compact disc
(CD) player ..................4-31
FM-AM radio with compact disc
(CD) player ..................4-34
FM/AM/SAT radio with compact disc
(CD) player ..............4-39,4-44
Steering wheel audio control switch ....4-65
Readiness for inspection maintenance
(I/M) test .....................9-19
Rear power windows ..............2-31
Rear seat ......................1-4
RearViewMonitor.................4-9
Rear window defroster switch .........2-22
10-4

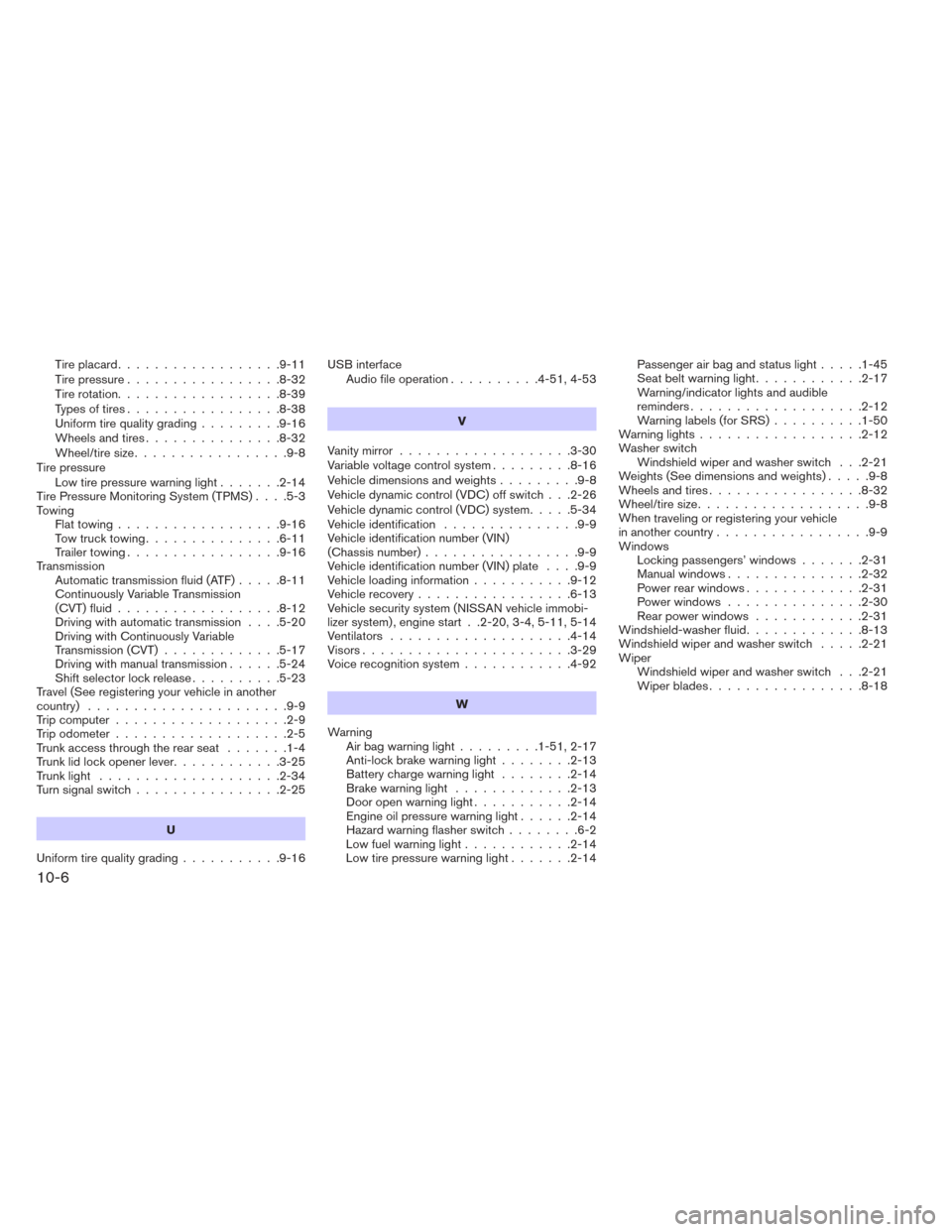

Tireplacard..................9-11
Tirepressure.................8-32
Tire rotation..................8-39
Types of tires.................8-38
Uniform tire quality grading .........9-16
Wheels and tires ...............8-32
Wheel/tire size .................9-8
Tire pressure Low tire pressure warning light .......2-14
Tire Pressure Monitoring System (TPMS) ....5-3
Towing Flattowing..................9-16
Towtrucktowing...............6-11
Trailertowing.................9-16
Transmission Automatic transmission fluid (ATF) .....8-11
Continuously Variable Transmission
(CVT) fluid ..................8-12
Driving with automatic transmission ....5-20
Driving with Continuously Variable
Transmission (CVT) .............5-17
Driving with manual transmission ......5-24
Shiftselectorlockrelease..........5-23
Travel (See registering your vehicle in another
country) ......................9-9
Trip computer ...................2-9
Trip odometer ...................2-5
Trunk access through the rear seat .......1-4
Trunk lid lock opener lever ............3-25
Trunklight ....................2-34
Turnsignalswitch................2-25
U
Uniform tire quality grading ...........9-16USB interface
Audio file operation ..........4-51,4-53
V
Vanity mirror ...................3-30
Variable voltage control system .........8-16
Vehicle dimensions and weights .........9-8
Vehicle dynamic control (VDC) off switch . . .2-26
Vehicle dynamic control (VDC) system .....5-34
Vehicle identification ...............9-9
Vehicle identification number (VIN)
(Chassis number) .................9-9
Vehicle identification number (VIN) plate ....9-9
Vehicle loading information ...........9-12
Vehicle recovery .................6-13
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start . .2-20, 3-4, 5-11, 5-14
Ventilators ....................4-14
Visors.......................3-29
Voice recognition system ............4-92
W
Warning Air bag warning light .........1-51,2-17
Anti-lock brake warning light ........2-13
Battery charge warning light ........2-14
Brake warning light .............2-13
Door open warning light ...........2-14
Engine oil pressure warning light ......2-14
Hazard warning flasher switch ........6-2
Low fuel warning light ............2-14
Low tire pressure warning light .......2-14Passenger air bag and status light
.....1-45
Seatbeltwarninglight............2-17
Warning/indicator lights and audible
reminders...................2-12
Warning labels (for SRS) ..........1-50
Warninglights..................2-12
Washer switch Windshield wiper and washer switch . . .2-21
Weights (See dimensions and weights) .....9-8
Wheels and tires .................8-32
Wheel/tire size ...................9-8
When

traveling or registering your vehicle
in another country .................9-9
Windows Locking passengers’ windows .......2-31
Manual windows ...............2-32
Power rear windows .............2-31
Power windows ...............2-30
Rear power windows ............2-31
Windshield-washer fluid .............8-13
Windshield wiper and washer switch .....2-21
Wiper Windshield wiper and washer switch . . .2-21
Wiperblades.................8-18
10-6
