2014 NISSAN VERSA NOTE headrest

1. Supplemental front-impact air bagmodules (P. 1-39)
2. Roof-mounted curtain side-impact
supplemental air bag (P. 1-39)
3. Front seat-mounted side-impact
supplemental air bag (P. 1-39)
4. Front seat belts (P. 1-9)
5. Head restraints/headrests (P. 1-5)
6. Rear seat belts (P. 1-9)
7. LATCH (Lower Anchors and Tethers for
CHildren) system (P. 1-22)
8. Seat belt with pretensioner (P. 1-52)
9. Seats (P. 1-2)
10. Occupant classification sensor
(pressure sensor) (P. 1-39)
See the page number indicated in paren-
theses for operating details.
LII2073
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

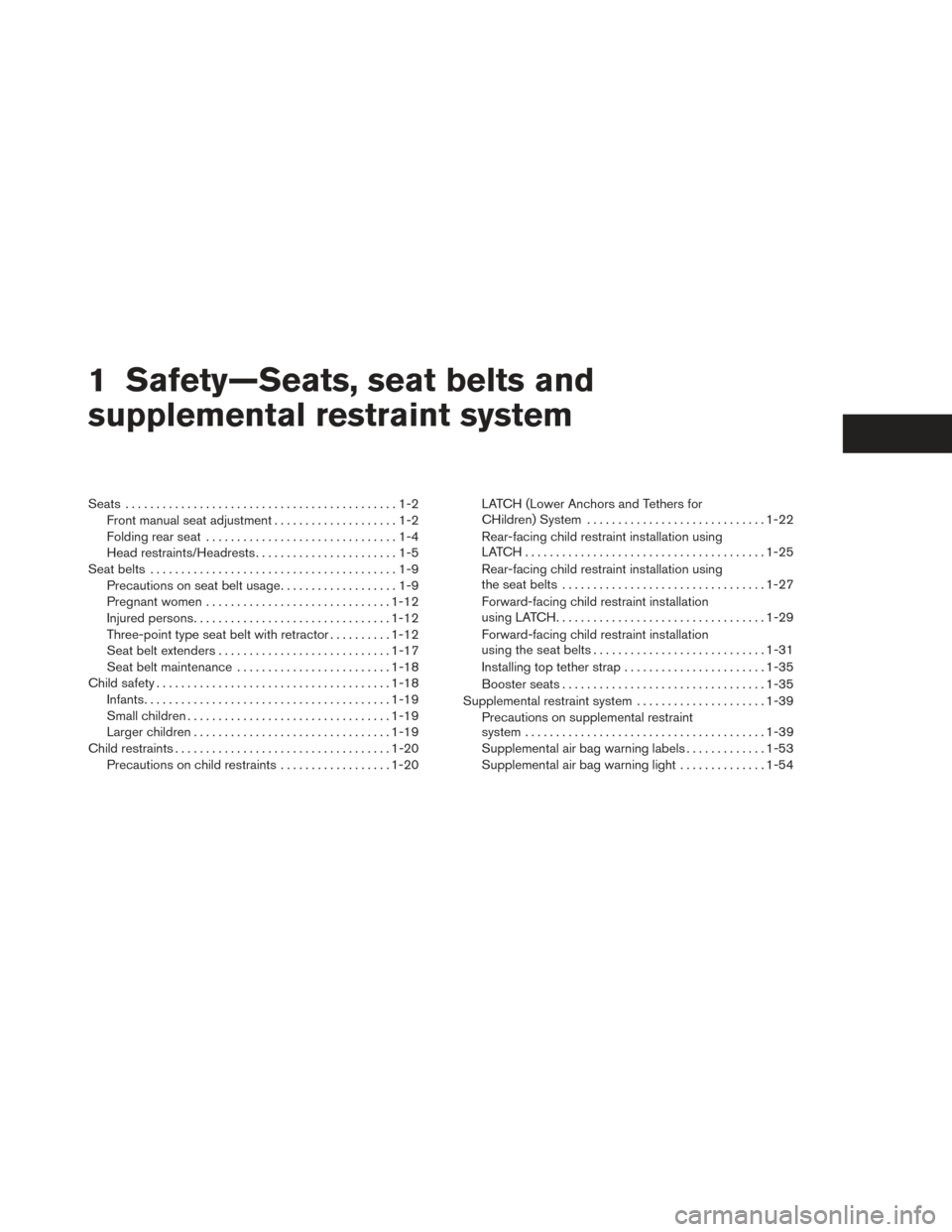

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front manual seat adjustment ....................1-2
Folding rear seat ...............................1-4
Head restraints/Headrests .......................1-5
Seat belts ........................................1-9
Precautions on seat belt usage ...................1-9
Pregnant women .............................. 1-12
Injured persons ................................ 1-12
Three-point type seat belt with retractor ..........1-12
Seat belt extenders ............................ 1-17
Seat belt maintenance ......................... 1-18
Child safety ...................................... 1-18
Infants ........................................ 1-19
Small children ................................. 1-19
Larger children ................................ 1-19
Child restraints ................................... 1-20
Precautions on child restraints ..................1-20LATCH (Lower Anchors and Tethers for
CHildren) System
............................. 1-22
Rear-facing child restraint installation using
LATCH....................................... 1-25
Rear-facing child restraint installation using
the seat belts . . ............................... 1-27
Forward-facing child restraint installation
using LATCH. . . ............................... 1-29
Forward-facing child restraint installation
using the seat belts ............................ 1-31
Installing top tether strap .......................1-35
Booster seats ................................. 1-35
Supplemental restraint system .....................1-39
Precautions on supplemental restraint
system ....................................... 1-39
Supplemental air bag warning labels .............1-53
Supplemental air bag warning light ..............1-54

Center armrest (if so equipped)
Pull the armrest down until it is horizontal.
HEAD RESTRAINTS/HEADRESTS
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalks or
remove the head restraint/headrest. Do
not use the seat if the head
restraint/headrest has been removed. If
the head restraint/headrest was removed,
reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to fol-
low these instructions can reduce the ef-
fectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.The illustration shows the seating positions
equipped with head restraints/headrests.

Indicates the seating position is equipped with
a head restraint.
 Indicates the seating position is equipped with
a headrest.
+ Indicates the seating position is not equipped
with a head restraint or headrest (if applicable) .
● Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
WRS0755LRS2000
Safety—Seats, seat belts and supplemental restraint system1-5

●Adjustable head restraints/headrests have
multiple notches along the stalks to lock
them in a desired adjustment position.
● The non-adjustable head restraints/
headrests have a single locking notch to
secure them to the seat frame.
● Proper Adjustment:
– For the adjustable type, align the head restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
– If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
● If the head restraint/headrest has been re-
moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
Adjustable head restraint/headrest
components
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
Non-adjustable head restraint/
headrest components
1. Removable head restraint/headrest
2. Single Notch
3. Lock knob
4. Stalks
LRS2300LRS2299
1-6Safety—Seats, seat belts and supplemental restraint system

Remove
Use the following procedure to remove the head
restraint/headrest.1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle. 5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
Install
1. Align the head restraint/headrest stalks withthe holes in the seat. Make sure the head
restraint/headrest is facing the correct di-
rection. The stalk with the notch (notches)
1must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant uses the seating posi-
tion.
LRS2302LRS2303
Safety—Seats, seat belts and supplemental restraint system1-7

Adjust
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.
For non-adjustable head restraint/
headrest
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
Raise
To raise the head restraint/headrest, pull it up.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
WRS0134LRS2351LRS2305
1-8Safety—Seats, seat belts and supplemental restraint system

Lower
To lower, push and hold the lock knob and push
the head restraint/headrest down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly ad-
justed and you are sitting upright and well back in
your seat with both feet on the floor, your chances
of being injured or killed in an accident and/or the
severity of injury may be greatly reduced.
NISSAN strongly encourages you and all of your
passengers to buckle up every time you drive,
even if your seating position includes a supple-
mental air bag.
Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.
LRS2306SSS0136
SEAT BELTS
Safety—Seats, seat belts and supplemental restraint system1-9

2. Secure the child restraint anchor attach-ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is prop-
erly attached to the lower anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Installing top tether strap” in this
section. Do not install child restraints that
require the use of a top tether strap in seat-
ing positions that do not have a top tether
anchor. 3. The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct child
restraint fit. If the head restraint/headrest is
removed, store it in a secure place. Be sure
to reinstall the head restraint/headrest
when the child restraint is removed.
See “Head restraints/headrests” in this sec-
tion for head restraint/headrest adjustment
information. If the seating position does not have an
adjustable head restraint/headrest and it is
interfering with the proper child restraint fit,
try another seating position or a different
child restraint.
Forward-facing web-mounted – step 2
LRS2398
Forward-facing rigid-mounted – step 2
LRS2399
1-30Safety—Seats, seat belts and supplemental restraint system
