2014 NISSAN VERSA NOTE P. 8-13

HR16DE engine
1. Drive belt location (P.8-15)
2. Engine oil filler cap (P. 8-8)
3. Air cleaner (P. 8-17)
4. Brake and clutch (*1) fluid reservoir(P. 8-11)
5. Fusible link (P. 8-20)
6. Battery (P. 8-13)
7. Engine coolant reservoir (P. 8-7)
8. Radiator cap (P. 8-7)
9. Engine oil dipstick (P. 8-8)
10. Windshield-washer fluid reservoir
(P. 8-12)
*1 For Manual Transmission (M/T) model
See the page number indicated in paren-
theses for operating details.
LDI2377
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7

8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions ...........................8-5
Engine compartment check locations ................8-6
Engine cooling system .............................8-7
Checking engine coolant level ...................8-8
Changing engine coolant ........................8-8
Engine oil .........................................8-8
Checking engine oil level ........................8-8
Changing engine oil ............................8-9
Changing engine oil filter .......................8-10
Continuously Variable Transmission (CVT) fluid
(if so equipped) .................................. 8-11
Brake and clutch (if so equipped) fluid ..............8-11
Windshield-washer fluid ........................... 8-12
Windshield-washer fluid reservoir ...............8-12
Battery .......................................... 8-13
Jump starting ................................. 8-14
Variable voltage control system .....................8-15
Drive belt ........................................ 8-15
Spark plugs ...................................... 8-16Replacing spark plugs
......................... 8-16
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-17
Cleaning ..................................... 8-17
Replacing .................................... 8-18
Brakes .......................................... 8-19
Fuses ........................................... 8-20
Engine compartment ........................... 8-20
Passenger compartment .......................8-20
Battery replacement .............................. 8-22
Keyfob (if so equipped) ........................ 8-22
NISSAN Intelligent Key® (if so equipped) ........8-23
Lights ........................................... 8-24
Headlights .................................... 8-24
Fog lights (if so equipped) ......................8-25
Exterior and interior lights .......................8-26
Wheels and tires ................................. 8-29
Tire
pressure . . . ............................... 8-29
Tire labeling ................................... 8-33
Types of tires .................................. 8-35
Tire chains .................................... 8-36
Changing wheels and tires .....................8-36

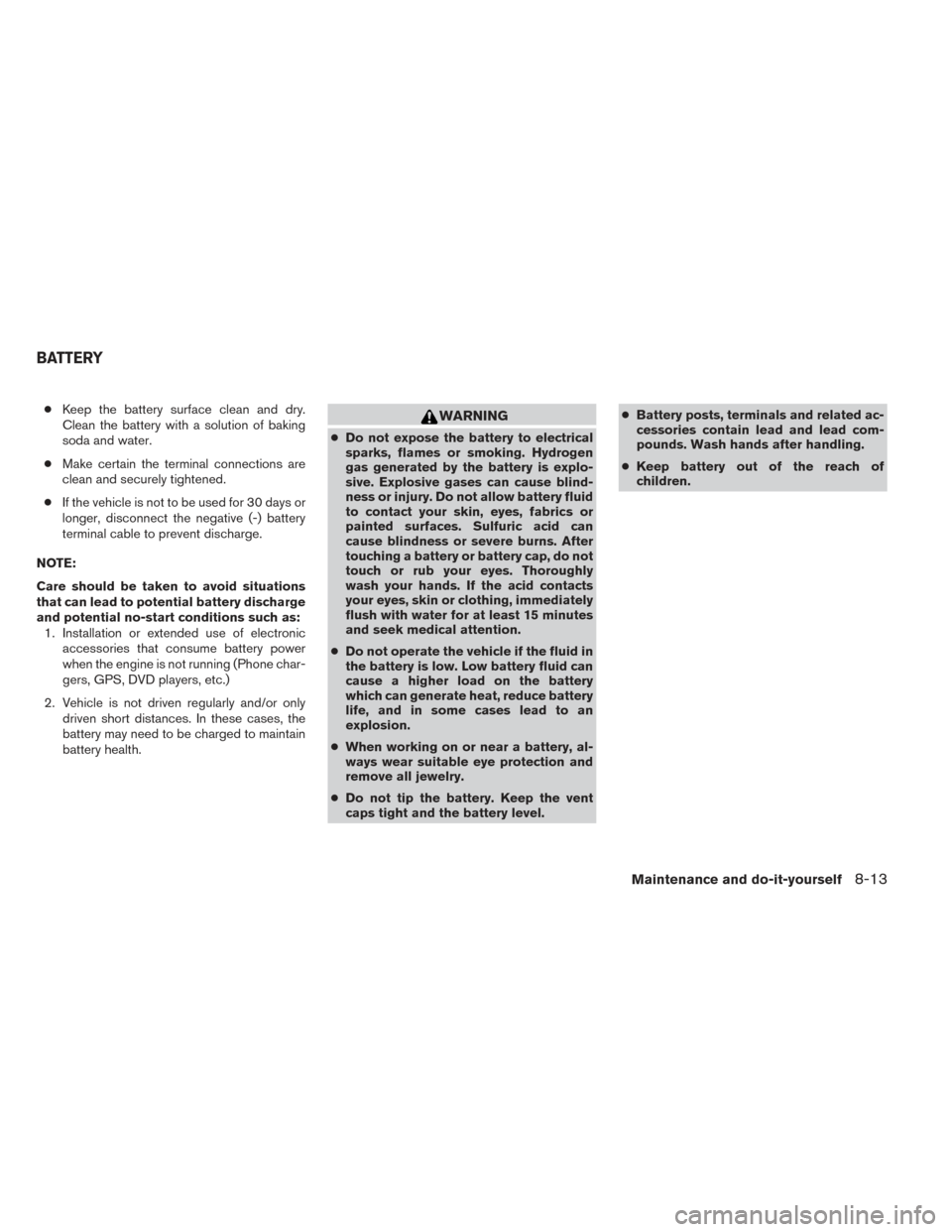

●Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
● Make certain the terminal connections are
clean and securely tightened.
● If the vehicle is not to be used for 30 days or
longer, disconnect the negative (-) battery
terminal cable to prevent discharge.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as: 1. Installation or extended use of electronic accessories that consume battery power
when the engine is not running (Phone char-
gers, GPS, DVD players, etc.)
2. Vehicle is not driven regularly and/or only driven short distances. In these cases, the
battery may need to be charged to maintain
battery health.WARNING
●Do not expose the battery to electrical
sparks, flames or smoking. Hydrogen
gas generated by the battery is explo-
sive. Explosive gases can cause blind-
ness or injury. Do not allow battery fluid
to contact your skin, eyes, fabrics or
painted surfaces. Sulfuric acid can
cause blindness or severe burns. After
touching a battery or battery cap, do not
touch or rub your eyes. Thoroughly
wash your hands. If the acid contacts
your eyes, skin or clothing, immediately
flush with water for at least 15 minutes
and seek medical attention.
● Do not operate the vehicle if the fluid in
the battery is low. Low battery fluid can
cause a higher load on the battery
which can generate heat, reduce battery
life, and in some cases lead to an
explosion.
● When working on or near a battery, al-
ways wear suitable eye protection and
remove all jewelry.
● Do not tip the battery. Keep the vent
caps tight and the battery level. ●
Battery posts, terminals and related ac-
cessories contain lead and lead com-
pounds. Wash hands after handling.
● Keep battery out of the reach of
children.
BATTERY
Maintenance and do-it-yourself8-13

10 Index
A
ABS (Anti-lock Braking System) ........5-27
Air bag (See supplemental restraint
system) .....................1-39
Air bag system Front (See supplemental front impact
air bag system) ...............1-46
Side and curtain (See supplemental
side air bag and curtain side-impact
air bag system) ...............1-51
Airbagwarninglabels.............1-53
Airbagwarninglight...........1-54,2-14
Air cleaner housing filter ............8-17
Air conditioner Air conditioner operation ..........4-24
Air conditioner service ...........4-29
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner controls ....4-21
Servicing air conditioner ..........4-29
Airflowcharts..................4-25
Anchor point locations .............1-24
Antenna.....................4-68
Anti-lock brake warning light ..........2-10
Anti-lock Braking System (ABS) ........5-27
Armrests .....................1-5
AroundView™Monitor.............4-15
Audible reminders ...............2-17
Audio system ..................4-29
Bluetooth®audio..........4-62,4-63 Compact disc (CD) player . .4-39, 4-44, 4-50
FM-AM radio with compact disc (CD)
player ....................4-37
FM/AM/SAT radio with compact disc (CD)
player.................4-42,4-47
Audio System iPod®Player.............4-57,4-59
Audio system Radio ....................4-29
Steering wheel audio control switch . . .4-67
USB interface ............4-53,4-55
Automatic Automatic power window switch .....2-34
Automatic transmission position indicator
light .....................2-14
Automatic door locks ..............3-7
AUXjack..............4-40,4-45,4-52
B
Battery ......................8-13
Charge warning light ............2-11
Before starting the engine ...........5-13
Belt (See drive belt) ..............8-15
Block heater Engine ....................5-31
Bluetooth®audio............4-62,4-63
Bluetooth® hands-free phone
system ..................4-69,4-84
Boosterseats..................1-35
Brake Anti-lock Braking System (ABS) ......5-27Brakefluid..................8-11
Brakelight(Seestoplight).........8-26
Brake system
................5-26
Brake warning light .............2-10
Brake wear indicators ........2-17,8-19
Parking brake operation ..........5-20
Self-adjusting brakes ............8-19
Brakes ......................8-19
Break-inschedule ...............5-23
Brightness/contrast button ...........4-9
Brightness control Instrument panel ..............2-22
Bulb check/instrument panel ..........2-10
Bulbreplacement................8-26
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargocover...................2-30
Cargo (See vehicle loading information) . . .9-13
Car phone or CB radio .............4-68
CD care and cleaning .............4-66
CD player (See audio system) . .4-39, 4-44, 4-50
Child restraints .......1-18,1-19,1-20,1-22
Precautions on child
restraints ........1-20,1-27,1-31,1-35
Top tether strap anchor point locations . .1-24
Child restraint with top tether strap ......1-24
Child

safety rear door lock ............3-7
Chimes,audiblereminders...........2-17
Cleaning exterior and interior ..........7-2
