1. Hood (P.3-9)
2. Headlight and turn signal lights— Switch operation (P.2-31)
— Bulb replacement (P.8-25)
3. Windshield wiper and washer — Switch operation (P.2-28)
— Blade replacement (P.8-17) — Window washer fluid (P.8-12)
4. Roof rack (rail)* (P.2-40)
5. Outside mirrors (P.3-14)
6. Power windows (P.2-41)
7. Recovery hook (P.6-14)
8. License plate installation (P.9-11)
9. Fog lights* — Switch operation (P.2-32)
— Bulb replacement (P.8-26)
10. Tires
— Wheel and tires (P.8-29, P.9-7)
— Flat tire (P.6-2)
— Tire Pressure Monitoring System (TPMS)
(P.2-12, P.5-3)
11. Doors
— Keys (P.3-2)
— Door locks (P.3-3)
— Remote keyless entry system (P.3-5)
— Security system (P.2-26)
12. Child safety rear door lock (P.3-5)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT
Condition:

Black plate (10,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
0-4Illustrated table of contents
S35-D-110201-A327354A-0E76-48C0-B44E-12F48CC4E9C8
JVC0576X
1. Lift gate (P.3-10)
2. Rear view camera* (P.4-2)
3. Rear window wiper and washer— Switch operation (P.2-29)
— Window washer fluid (P.8-12)
4. Rear window defroster (P.2-30)
5. High-mounted stop light — Bulb replacement (P.8-26)
6. Antenna (P.4-39) — Satellite radio antenna* (P.4-12)
7. Back-up light
— Bulb replacement (P.8-26)
8. Rear combination light — Bulb replacement (P.8-26) 9. Fuel-filler door
— Operation (P.3-11)
— Fuel recommendation (P.9-3)
*: if so equipped
EXTERIOR REAR
Condition:

Black plate (71,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-5
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-6
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-7
Instrument brightness control ...
.......................................... 2-8
Warning/indicator lights and audible reminders ...
............... 2-9
Checking bulbs ...
................................................................. 2-10
Warning lights ...
................................................................... 2-10
Indicator lights ...
................................................................... 2-14
Audible reminders ...
............................................................ 2-16
Vehicle information display ...
.................................................. 2-17
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-19
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-22
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-25
Security systems ...
.................................................................... 2-26
Vehicle Security System ...
................................................. 2-26
NISSAN Vehicle Immobilizer System ...
.......................... 2-27 Windshield wiper and washer switch
...
.............................. 2-28
Rear window wiper and washer switch ...
.......................... 2-29
Rear window defroster switch ...
........................................... 2-30
Headlight and turn signal switch ...
....................................... 2-31
Headlight switch ...
............................................................ 2-31
Turn signal switch ...
.......................................................... 2-32
Fog light switch (if so equipped) ...
.............................. 2-32
Horn ...
........................................................................\
.................. 2-33
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-33
Power outlet ...
........................................................................\
.... 2-33
Storage ...
........................................................................\
............ 2-34
Cup holders ...
..................................................................... 2-34
Sunglasses holder ...
......................................................... 2-35
Glove box ...
........................................................................\
. 2-36
Console box ...
.................................................................... 2-37
Luggage floor box (if so equipped) ...
.......................... 2-37
Luggage side box ...
.......................................................... 2-38
Cargo cover (if so equipped) ...
..................................... 2-38
Luggage hooks ...
............................................................... 2-39
Coat hooks ...
...................................................................... 2-40
Utility hook ...
....................................................................... 2-40
Roof rack (if so equipped) ...
.......................................... 2-40
Condition:
>

Black plate (80,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-10Instruments and controls
CHECKING BULBSS35-D-110201-509763A1-1CD5-4013-B64B-BA38C7221423With all doors closed, apply the parking brake
and turn the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,,,,,,
The following lights come on briefly and then go
off (if so equipped):
,,,,,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.
Some indicators and warnings are also dis-
played on the vehicle information display be-
tween the speedometer and tachometer. (See
“Vehicle information display” (P.2-17) .)
WARNING LIGHTSS35-D-110201-B0BCAF7C-D090-4C01-8D57-DB3AE4D3CA95
All-Wheel Drive (AWD) warning
light (AWD models)
S35-D-110201-355E3C0A-32CD-480B-B487-AC5E7170D1C5The light illuminates when the ignition switch is
turned to the ON position. It turns off after the
engine is started.
If the All-Wheel Drive (AWD) system malfunc-
tions, or the diameter of the front and the rear
wheels are different, the warning light will either
remain illuminated or blink. (See “All-Wheel
Drive (AWD)” (P.5-21).)
CAUTION
. If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a NISSAN dealer as
soon as possible.
. If the AWD warning light blinks
while driving:
— blinks rapidly (about twice a
second):
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to
prevent the AWD system from malfunctioning. If the warning
light turns off, you can drive
again.
— blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same, tire
pressure is correct and tires are
not worn.
. If the warning light is still on after
the above operations, have your
vehicle checked by a NISSAN dealer
as soon as possible.Anti-lock Braking System (ABS)
warning light
S35-D-110201-1E759848-5414-4A25-BA81-86C4D2F42713When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
Condition:

Black plate (267,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
HEADLIGHTSS35-D-110201-FA3BA1AA-EEA0-42B6-9AC0-27B2DC9FEC37Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingS35-D-110201-88130121-CB19-405B-AC32-F8B7A74D8318The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
.Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the plastic base when
handling the bulb. Never touch the
glass envelope.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust- ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed: Low beam:Wattage: 55
Bulb no.: H11
High beam: Wattage: 60
Bulb no.: HB3
SDI2137
Disconnect the battery negative cable before
replacing bulbs.
*AHigh-beam bulb
*BLow-beam bulb
Maintenance and do-it-yourself8-25
Condition:

Black plate (268,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-26Maintenance and do-it-yourself
EXTERIOR AND INTERIOR LIGHTSS35-D-110201-57CCB661-474F-4B16-A4E0-FA7B38594BB2
ItemWattage (W)Bulb No.
Front turn signal/parking/side marker light 27/8S25
Front fog light (if so equipped) 35H8
Rear combination light
back-up 18W16W
turn signal 21W21W
stop/tail/side marker 21/5W21/5W
License plate light 5W5W
Front map light 8—
Vanity mirror light (if so equipped) 2—
High-mounted stop light* LED—
Ceiling light (if so equipped) 8—
Cargo light 8—
Glove box light* 3.4—
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
SDI2306
: REMOVE
: INSTALL
Replacement proceduresS35-D-110201-CFA652EC-DF34-4605-85FA-A4F826DD3B31All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
Condition:

Black plate (269,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SDI2141

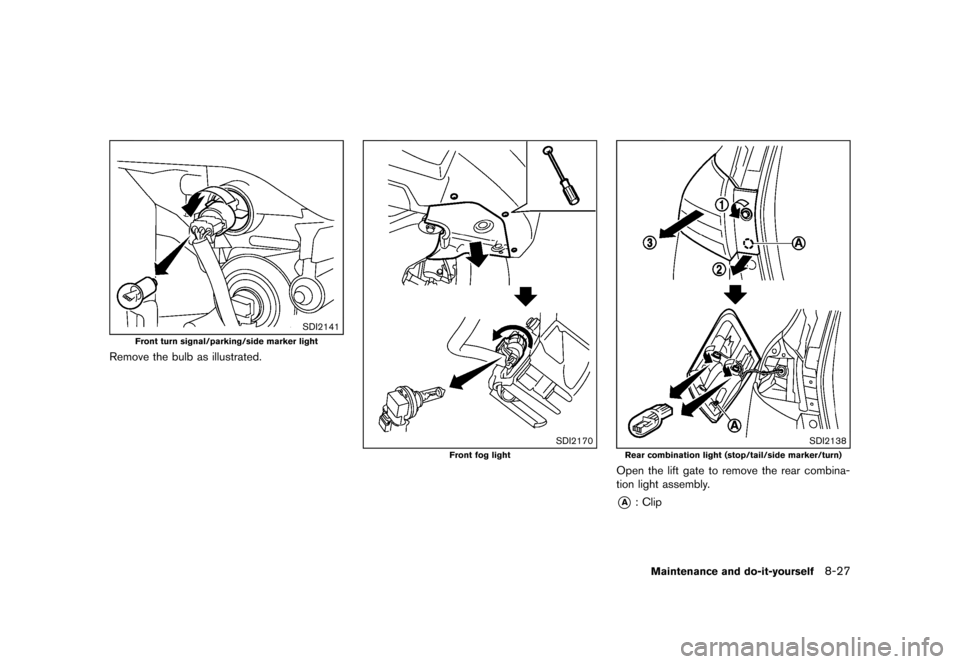

Front turn signal/parking/side marker light
Remove the bulb as illustrated.
SDI2170
Front fog light
SDI2138
Rear combination light (stop/tail/side marker/turn)
Open the lift gate to remove the rear combina-
tion light assembly.
*A: Clip
Maintenance and do-it-yourself8-27
Condition:

Black plate (270,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-28Maintenance and do-it-yourself
SDI2139

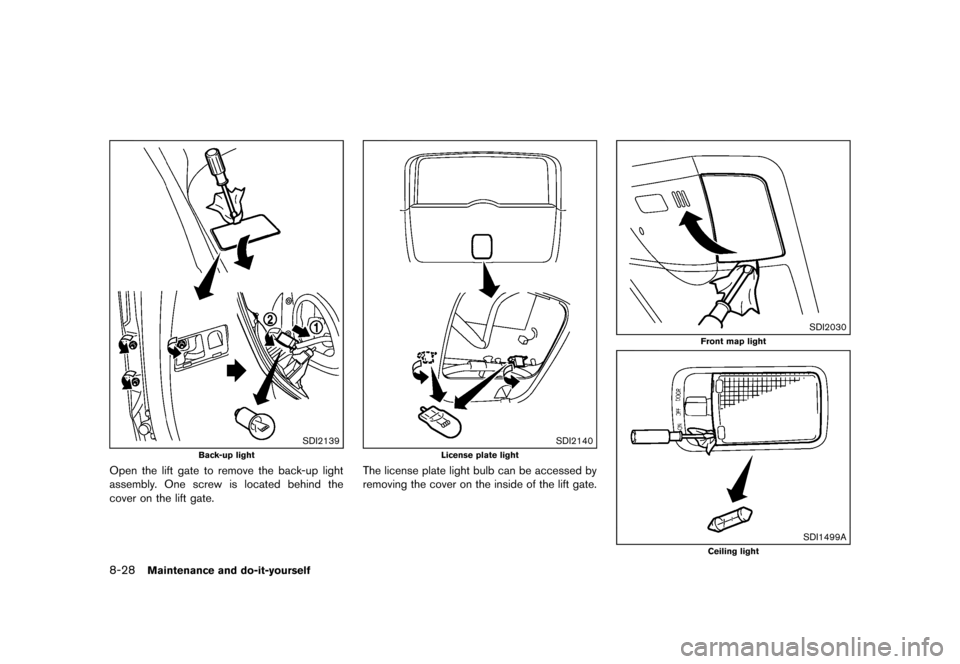

Back-up light
Open the lift gate to remove the back-up light
assembly. One screw is located behind the
cover on the lift gate.
SDI2140
License plate light
The license plate light bulb can be accessed by
removing the cover on the inside of the lift gate.
SDI2030
Front map light
SDI1499A
Ceiling light
