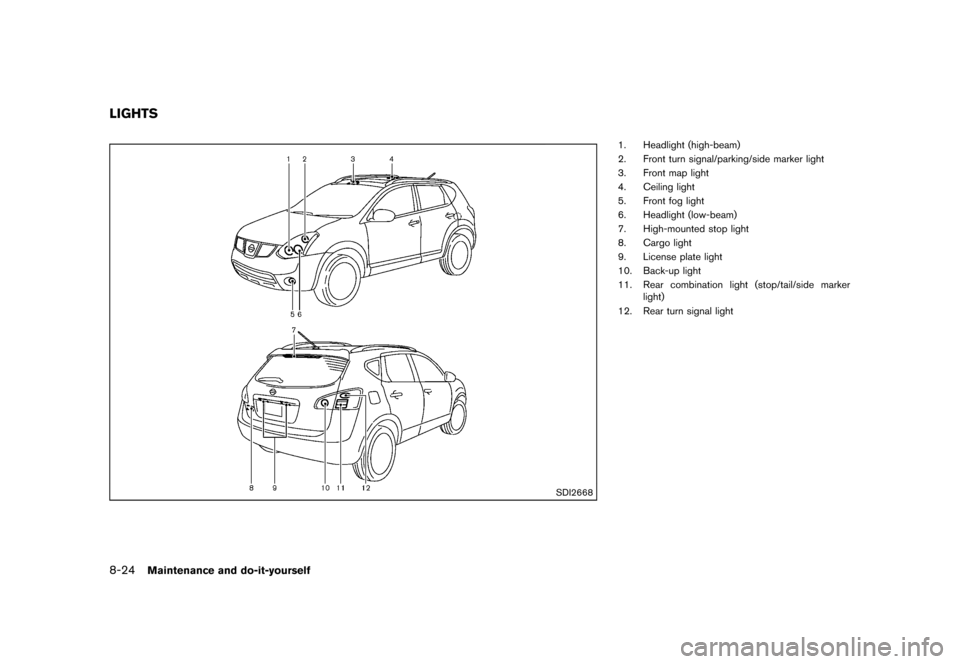

1. Headlight (high-beam)
2. Front turn signal/parking/side marker light
3. Front map light
4. Ceiling light
5. Front fog light
6. Headlight (low-beam)
7. High-mounted stop light
8. Cargo light
9. License plate light
10. Back-up light
11.Rear combination light (stop/tail/side marker
light)
12. Rear turn signal light
LIGHTS
Condition:

Black plate (268,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-26Maintenance and do-it-yourself
EXTERIOR AND INTERIOR LIGHTSS35-D-110201-57CCB661-474F-4B16-A4E0-FA7B38594BB2
ItemWattage (W)Bulb No.
Front turn signal/parking/side marker light 27/8S25
Front fog light (if so equipped) 35H8
Rear combination light
back-up 18W16W
turn signal 21W21W
stop/tail/side marker 21/5W21/5W
License plate light 5W5W
Front map light 8—
Vanity mirror light (if so equipped) 2—
High-mounted stop light* LED—
Ceiling light (if so equipped) 8—
Cargo light 8—
Glove box light* 3.4—
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
SDI2306
: REMOVE
: INSTALL
Replacement proceduresS35-D-110201-CFA652EC-DF34-4605-85FA-A4F826DD3B31All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
Condition:

Black plate (269,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SDI2141
Front turn signal/parking/side marker light
Remove the bulb as illustrated.
SDI2170
Front fog light
SDI2138
Rear combination light (stop/tail/side marker/turn)
Open the lift gate to remove the rear combina-
tion light assembly.
*A: Clip
Maintenance and do-it-yourself8-27
Condition:

Black plate (304,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-22Technical and consumer information
turning corners.
Trailer lightsGUID-A29FE40B-6D31-4369-84A4-A3AB91FE8E44
CAUTION
When splicing into the vehicle electrical
system, a commercially available
power-type module/converter must be
used to provide power for all trailer
lighting. This unit uses the vehicle
battery as a direct power source for all
trailer lights while using the vehicle tail
light, stoplight and turn signal circuits
as a signal source. The module/con-
verter must draw no more than 15
milliamps from the stop and tail lamp
circuits. Using a module/converter that
exceeds these power requirements may
damage the vehicle’s electrical system.
See a reputable trailer dealer to obtain
the proper equipment and to have it
installed.
Trailer lights should comply with federal and/or
local regulations. For assistance in hooking up
trailer lights, contact a NISSAN dealer or
reputable trailer dealer.
Trailer brakesGUID-8900FB3E-5F3F-4B97-99B7-FF25587AD020If your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
WARNING
Never connect a trailer brake system
directly to the vehicle brake system.
Pre-towing tipsGUID-9340413B-CD96-4DA1-9954-2F5798FB03D4. Be certain your vehicle maintains a level
position when a loaded or unloaded trailer is
hitched. Do not drive the vehicle if it has an
abnormal nose-up or nose-down condition;
check for improper tongue load, overload,
worn suspension or other possible causes
of either condition.
. Always secure items in the trailer to prevent
load shift while driving.
. Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
. Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side. .
Check your hitch, trailer tire pressure,
vehicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.
. Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
. Determine the overall height of the vehicle
and trailer so the required clearance is
known.Trailer towing tipsGUID-74EA1701-DBB8-4BC7-AA72-370122A2DB72In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability, and braking
performance will be somewhat different than
under normal driving conditions.
.Always secure items in the trailer to prevent
load shift while driving.
. Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
. Avoid abrupt starts, acceleration or stops.
. Avoid sharp turns or lane changes.
. Always drive your vehicle at a moderate
speed. Some states or provinces have
specific speed limits for vehicles that are
