2014 NISSAN ROGUE SELECT check engine

Black plate (207,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

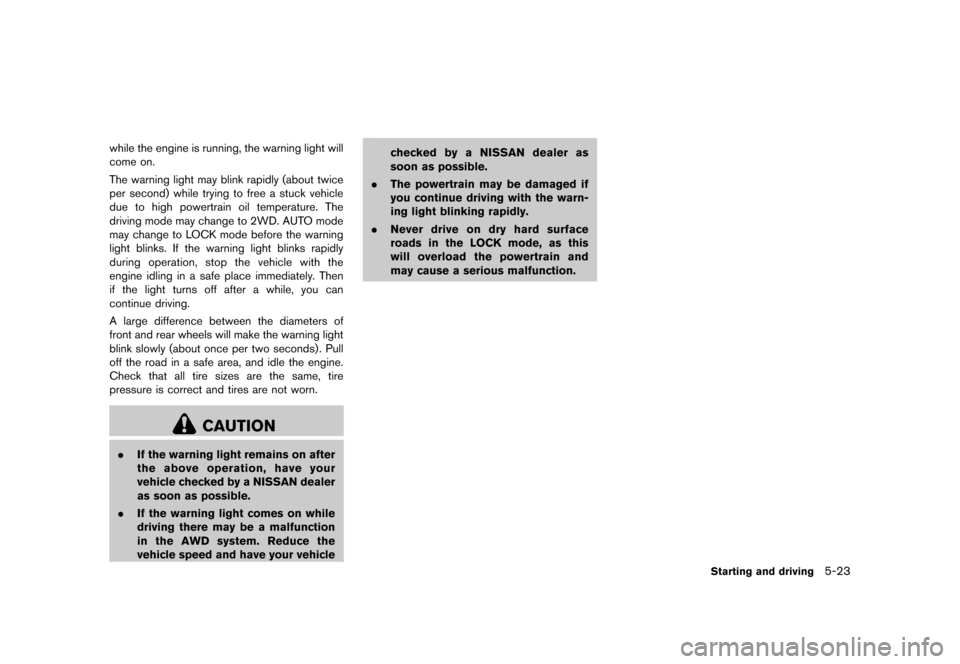

while the engine is running, the warning light will
come on.
The warning light may blink rapidly (about twice
per second) while trying to free a stuck vehicle
due to high powertrain oil temperature. The
driving mode may change to 2WD. AUTO mode
may change to LOCK mode before the warning
light blinks. If the warning light blinks rapidly
during operation, stop the vehicle with the
engine idling in a safe place immediately. Then
if the light turns off after a while, you can
continue driving.
A large difference between the diameters of
front and rear wheels will make the warning light
blink slowly (about once per two seconds) . Pull
off the road in a safe area, and idle the engine.
Check that all tire sizes are the same, tire
pressure is correct and tires are not worn.
CAUTION
.If the warning light remains on after
the above operation, have your
vehicle checked by a NISSAN dealer
as soon as possible.
. If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle checked by a NISSAN dealer as
soon as possible.
. The powertrain may be damaged if
you continue driving with the warn-
ing light blinking rapidly.
. Never drive on dry hard surface
roads in the LOCK mode, as this
will overload the powertrain and
may cause a serious malfunction.
Starting and driving5-23
Condition:

Black plate (209,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-5655C900-7810-4966-B711-3C0BA783C55E

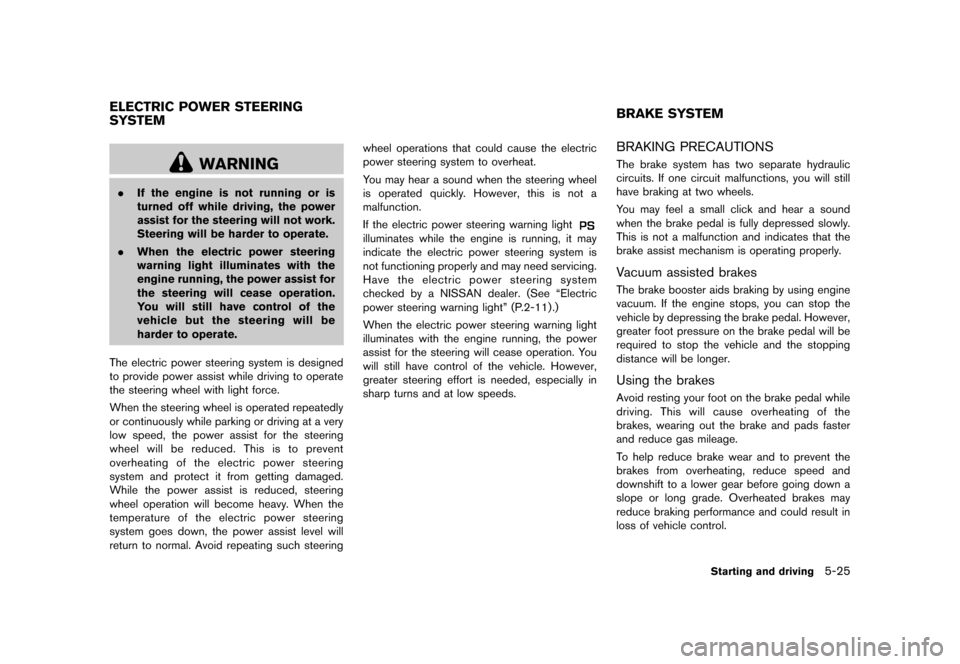

WARNING
.If the engine is not running or is
turned off while driving, the power
assist for the steering will not work.
Steering will be harder to operate.
. When the electric power steering
warning light illuminates with the
engine running, the power assist for
the steering will cease operation.
You will still have control of the
vehicle but the steering will be
harder to operate.
The electric power steering system is designed
to provide power assist while driving to operate
the steering wheel with light force.
When the steering wheel is operated repeatedly
or continuously while parking or driving at a very
low speed, the power assist for the steering
wheel will be reduced. This is to prevent
overheating of the electric power steering
system and protect it from getting damaged.
While the power assist is reduced, steering
wheel operation will become heavy. When the
temperature of the electric power steering
system goes down, the power assist level will
return to normal. Avoid repeating such steering wheel operations that could cause the electric
power steering system to overheat.
You may hear a sound when the steering wheel
is operated quickly. However, this is not a
malfunction.
If the electric power steering warning light
illuminates while the engine is running, it may
indicate the electric power steering system is
not functioning properly and may need servicing.
Have the electric power steering system
checked by a NISSAN dealer. (See “Electric
power steering warning light” (P.2-11) .)
When the electric power steering warning light
illuminates with the engine running, the power
assist for the steering will cease operation. You
will still have control of the vehicle. However,
greater steering effort is needed, especially in
sharp turns and at low speeds.
S35-D-110201-3275E820-EF43-446C-84CA-9CC25DE76F9BBRAKING PRECAUTIONSS35-D-110201-36A420DF-DDD9-4970-91D6-6FDB3410EA51The brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.
You may feel a small click and hear a sound
when the brake pedal is fully depressed slowly.
This is not a malfunction and indicates that the
brake assist mechanism is operating properly.
Vacuum assisted brakesS35-D-110201-127E404B-D271-4E47-9AAA-019A819737A5The brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.
Using the brakesS35-D-110201-EB326E31-0F05-490F-9A4D-C49C106D08C5Avoid resting your foot on the brake pedal while
driving. This will cause overheating of the
brakes, wearing out the brake and pads faster
and reduce gas mileage.
To help reduce brake wear and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.
Starting and driving5-25
ELECTRIC POWER STEERING
SYSTEM
BRAKE SYSTEM
Condition:

Black plate (211,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

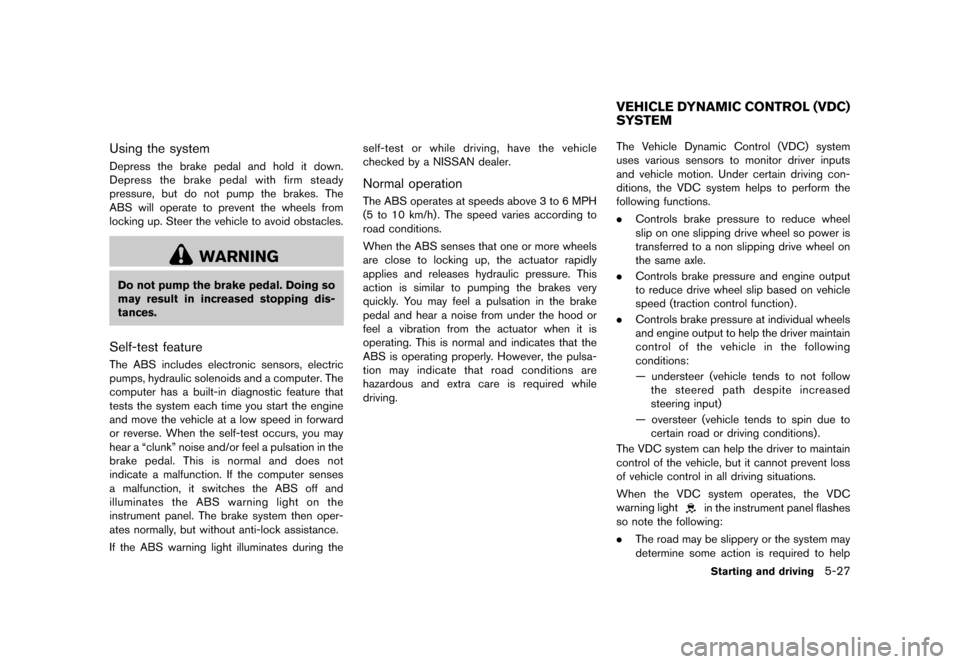

Using the systemS35-D-110201-EECE86D6-FF8F-42C2-B139-BF05AF32B3BEDepress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels from
locking up. Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.
Self-test featureS35-D-110201-B89EE4B7-4EC0-42A0-AAC9-0035053E8A9BThe ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer. The
computer has a built-in diagnostic feature that
tests the system each time you start the engine
and move the vehicle at a low speed in forward
or reverse. When the self-test occurs, you may
hear a “clunk” noise and/or feel a pulsation in the
brake pedal. This is normal and does not
indicate a malfunction. If the computer senses
a malfunction, it switches the ABS off and
illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during theself-test or while driving, have the vehicle
checked by a NISSAN dealer.
Normal operationS35-D-110201-3C7B8B73-5F7B-44E6-B702-4024AAD51CEBThe ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h). The speed varies according to
road conditions.
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are
hazardous and extra care is required while
driving.
S35-D-110201-D6FDB021-412C-46AD-9A43-77A8616112D0The Vehicle Dynamic Control (VDC) system
uses various sensors to monitor driver inputs
and vehicle motion. Under certain driving con-
ditions, the VDC system helps to perform the
following functions.
.
Controls brake pressure to reduce wheel
slip on one slipping drive wheel so power is
transferred to a non slipping drive wheel on
the same axle.
. Controls brake pressure and engine output
to reduce drive wheel slip based on vehicle
speed (traction control function) .
. Controls brake pressure at individual wheels
and engine output to help the driver maintain
control of the vehicle in the following
conditions:
— understeer (vehicle tends to not follow
the steered path despite increased
steering input)
— oversteer (vehicle tends to spin due to certain road or driving conditions) .
The VDC system can help the driver to maintain
control of the vehicle, but it cannot prevent loss
of vehicle control in all driving situations.
When the VDC system operates, the VDC
warning light
in the instrument panel flashes
so note the following:
. The road may be slippery or the system may
determine some action is required to help
Starting and driving5-27
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM
Condition:

Black plate (213,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
.The VDC system is not a substitute
for winter tires or tire chains on a
snow covered road.
S35-D-110201-BFC9DC49-B18B-4547-B2C1-822B40D3C815FREEING A FROZEN DOOR LOCKGUID-141B6DB3-B5C0-4E7F-8EE0-2A7622AB28C6To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the remote keyless entry keyfob.
ANTI-FREEZEGUID-2773CB71-40A2-443B-9552-B7F45AAB30D8In the winter when it is anticipated that the
outside temperature will drop below 328F (08C) ,
check the anti-freeze to assure proper winter
protection. For additional information, see “En-
gine cooling system” (P.8-7) .
BATTERYS35-D-110201-690C952E-7BC1-479E-B70E-6C8A62F3BCC3If the battery is not fully charged during
extremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery should
be checked regularly. For additional information,
see “Battery” (P.8-13) .
DRAINING OF COOLANT WATERGUID-8A3AE603-5D83-49FC-9E8F-A09867045DADIf the vehicle is to be left outside without anti-
freeze, drain the cooling system, including the
engine block. Refill before operating the vehicle.
For details, see “Engine cooling system” (P.8-7) .
TIRE EQUIPMENTS35-D-110201-61BC6CE8-E002-4E5F-AC61-F13F41A296A1SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or icy
roads, NISSAN recommends the use of MUD &
SNOW or ALL SEASON tires on all four wheels.
Consult a NISSAN dealer for the tire type, size,
speed rating and availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
prohibit their use. Check local, state and
provincial laws before installing studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
Tire chains may be used. For details, see “Tire
chains” (P.8-35) of this manual.
All-Wheel Drive (AWD) modelGUID-EE61DD03-84FE-4464-93B4-F693BED61CE7If you install snow tires, they must also be the
same size, brand, construction and tread pattern
on all four wheels.
Starting and driving5-29
COLD WEATHER DRIVING
Condition:

Black plate (219,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

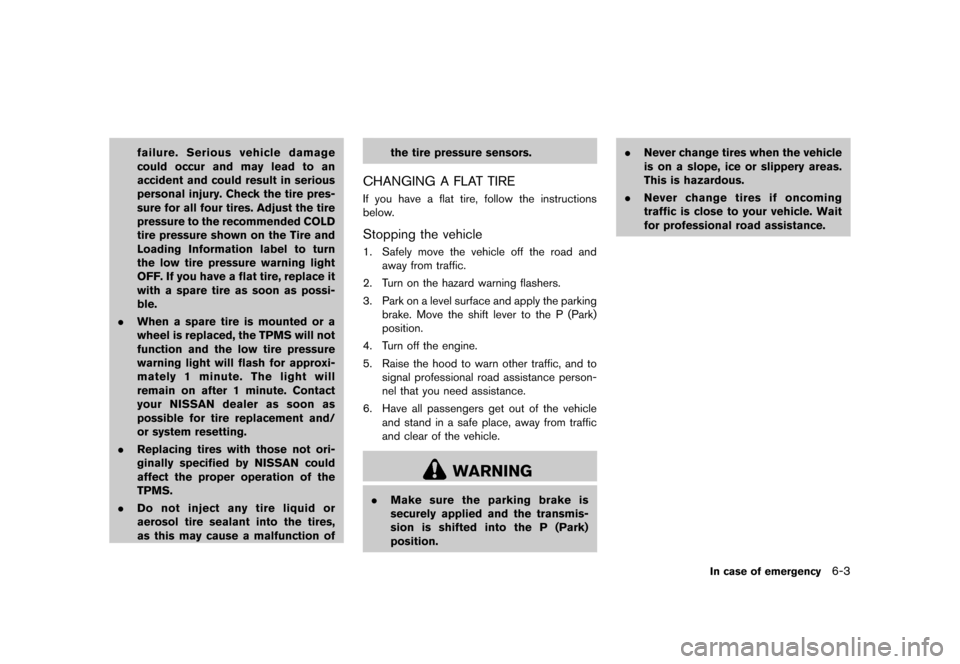

failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If you have a flat tire, replace it
with a spare tire as soon as possi-
ble.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of the tire pressure sensors.
CHANGING A FLAT TIREGUID-7F502885-999B-4F16-9B7A-9469FE323A90If you have a flat tire, follow the instructions
below.
Stopping the vehicleS35-D-110201-DA918CAE-0F67-4558-BF28-3DEF851F78D51. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the P (Park)
position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING
.Make sure the parking brake is
securely applied and the transmis-
sion is shifted into the P (Park)
position. .
Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never change tires if oncoming
traffic is close to your vehicle. Wait
for professional road assistance.
In case of emergency6-3
Condition:

Black plate (227,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

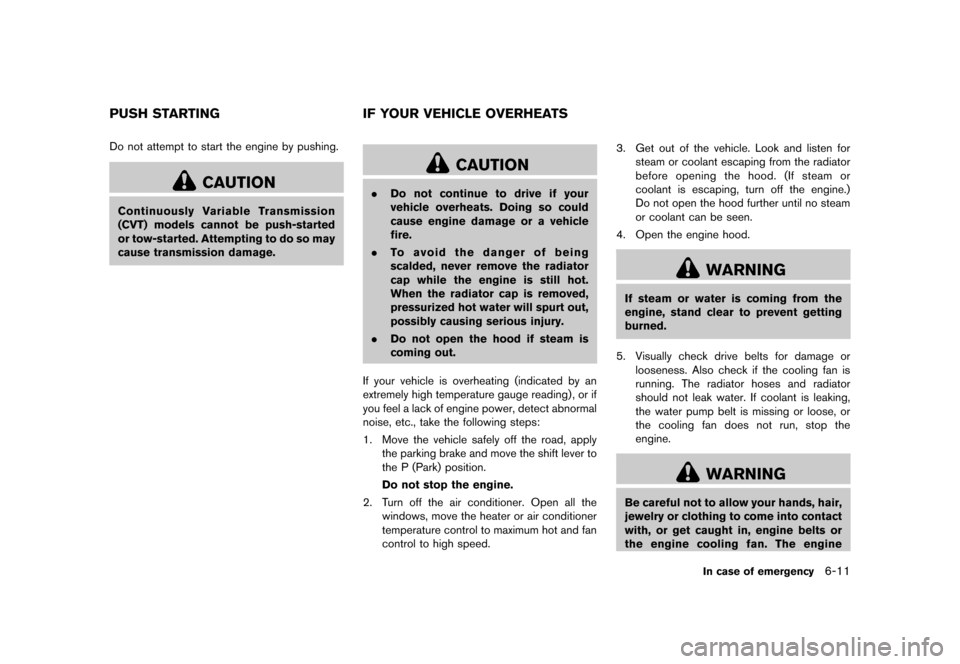

S35-D-110201-00D470C0-9627-4316-B628-96D5F00345E5Do not attempt to start the engine by pushing.
CAUTION
Continuously Variable Transmission
(CVT) models cannot be push-started
or tow-started. Attempting to do so may
cause transmission damage.
S35-D-110201-15996538-EB26-41A2-862D-02017A39A8B4
CAUTION
.Do not continue to drive if your
vehicle overheats. Doing so could
cause engine damage or a vehicle
fire.
. To avoid the danger of being
scalded, never remove the radiator
cap while the engine is still hot.
When the radiator cap is removed,
pressurized hot water will spurt out,
possibly causing serious injury.
. Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading) , or if
you feel a lack of engine power, detect abnormal
noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the shift lever to
the P (Park) position.
Do not stop the engine.
2. Turn off the air conditioner. Open all the windows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed. 3. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.
4. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
5. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the
engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine
In case of emergency6-11
PUSH STARTING IF YOUR VEHICLE OVERHEATS
Condition:

Black plate (228,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

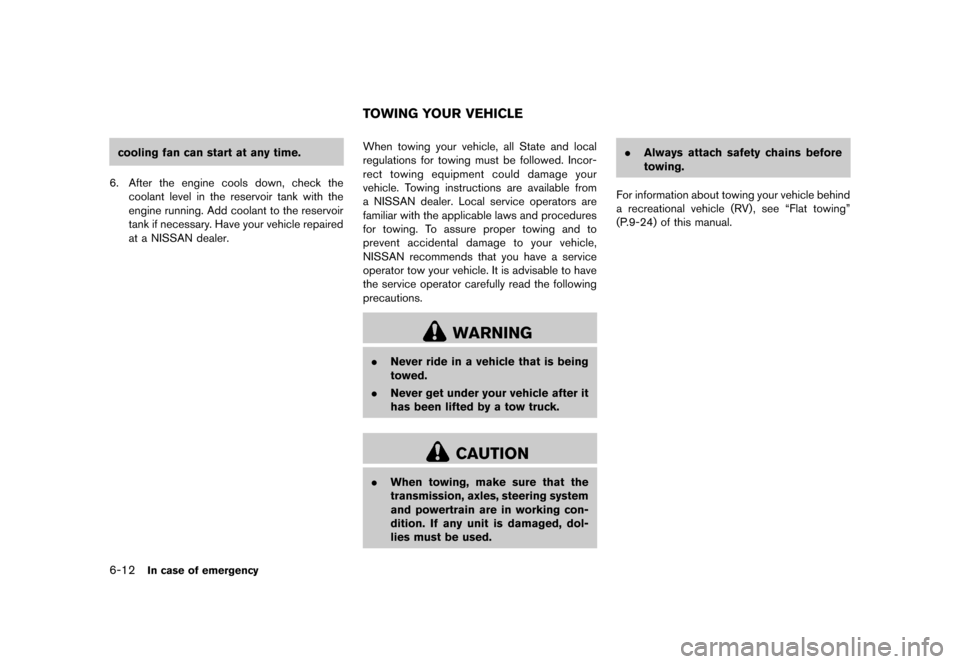

6-12In case of emergency
cooling fan can start at any time.
6. After the engine cools down, check the coolant level in the reservoir tank with the
engine running. Add coolant to the reservoir
tank if necessary. Have your vehicle repaired
at a NISSAN dealer.
S35-D-110201-E458A21E-F522-446E-AD11-E06DD9EFDDFCWhen towing your vehicle, all State and local
regulations for towing must be followed. Incor-
rect towing equipment could damage your
vehicle. Towing instructions are available from
a NISSAN dealer. Local service operators are
familiar with the applicable laws and procedures
for towing. To assure proper towing and to
prevent accidental damage to your vehicle,
NISSAN recommends that you have a service
operator tow your vehicle. It is advisable to have
the service operator carefully read the following
precautions.
WARNING
.Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it
has been lifted by a tow truck.
CAUTION
.When towing, make sure that the
transmission, axles, steering system
and powertrain are in working con-
dition. If any unit is damaged, dol-
lies must be used. .
Always attach safety chains before
towing.
For information about towing your vehicle behind
a recreational vehicle (RV), see “Flat towing”
(P.9-24) of this manual.
TOWING YOUR VEHICLE
Condition:

Black plate (243,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

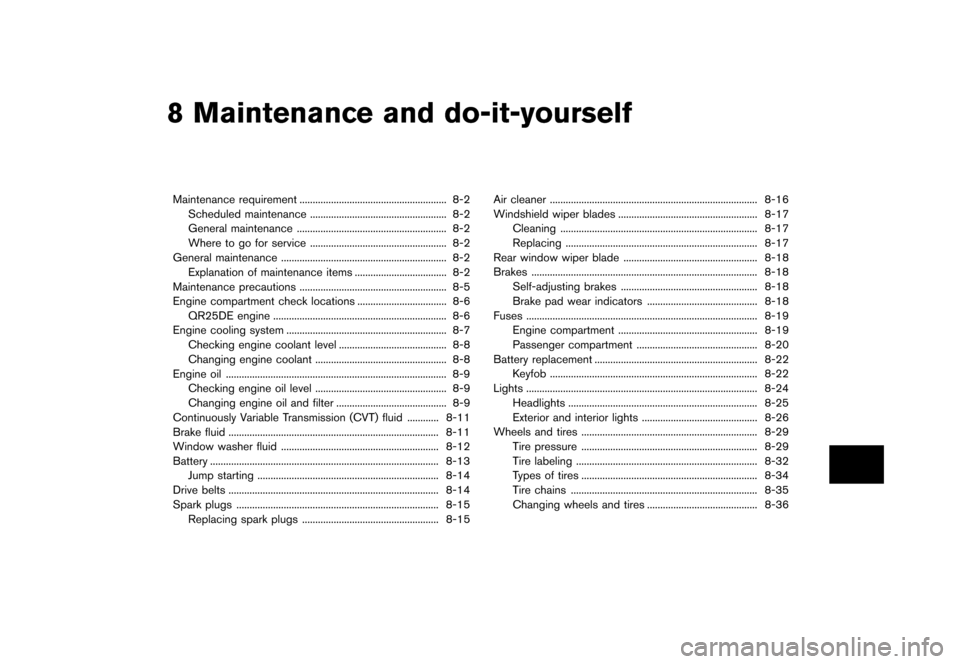

8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where to go for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation of maintenance items ...
................................... 8-2
Maintenance precautions ...
........................................................ 8-5
Engine compartment check locations ...
.................................. 8-6
QR25DE engine ...
.................................................................. 8-6
Engine cooling system ...
............................................................. 8-7
Checking engine coolant level ...
......................................... 8-8
Changing engine coolant ...
.................................................. 8-8
Engine oil ...
........................................................................\
............ 8-9
Checking engine oil level ...
.................................................. 8-9
Changing engine oil and filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT) fluid ...
............ 8-11
Brake fluid ...
........................................................................\
........ 8-11
Window washer fluid ...
............................................................ 8-12
Battery ...
........................................................................\
............... 8-13
Jump starting ...
..................................................................... 8-14
Drive belts ...
........................................................................\
........ 8-14
Spark plugs ...
........................................................................\
..... 8-15
Replacing spark plugs ...
.................................................... 8-15 Air cleaner
...
........................................................................\
....... 8-16
Windshield wiper blades ...
..................................................... 8-17
Cleaning ...
........................................................................\
... 8-17
Replacing ...
........................................................................\
. 8-17
Rear window wiper blade ...
................................................... 8-18
Brakes ...
........................................................................\
.............. 8-18
Self-adjusting brakes ...
.................................................... 8-18
Brake pad wear indicators ...
.......................................... 8-18
Fuses ...
........................................................................\
................ 8-19
Engine compartment ...
..................................................... 8-19
Passenger compartment ...
.............................................. 8-20
Battery replacement ...
.............................................................. 8-22
Keyfob ...
........................................................................\
....... 8-22
Lights ...
........................................................................\
................ 8-24
Headlights ...
........................................................................\
8-25
Exterior and interior lights ...
............................................ 8-26
Wheels and tires ...
................................................................... 8-29
Tire pressure ...
................................................................... 8-29
Tire labeling ...
..................................................................... 8-32
Types of tires ...
................................................................... 8-34
Tire chains ...
....................................................................... 8-35
Changing wheels and tires ...
.......................................... 8-36
Condition:
