2014 NISSAN ROGUE SELECT window

Black plate (71,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-5
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-6
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-7
Instrument brightness control ...
.......................................... 2-8
Warning/indicator lights and audible reminders ...
............... 2-9
Checking bulbs ...
................................................................. 2-10
Warning lights ...
................................................................... 2-10
Indicator lights ...
................................................................... 2-14
Audible reminders ...
............................................................ 2-16
Vehicle information display ...
.................................................. 2-17
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-19
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-22
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-25
Security systems ...
.................................................................... 2-26
Vehicle Security System ...
................................................. 2-26
NISSAN Vehicle Immobilizer System ...
.......................... 2-27 Windshield wiper and washer switch
...
.............................. 2-28
Rear window wiper and washer switch ...
.......................... 2-29
Rear window defroster switch ...
........................................... 2-30
Headlight and turn signal switch ...
....................................... 2-31
Headlight switch ...
............................................................ 2-31
Turn signal switch ...
.......................................................... 2-32
Fog light switch (if so equipped) ...
.............................. 2-32
Horn ...
........................................................................\
.................. 2-33
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-33
Power outlet ...
........................................................................\
.... 2-33
Storage ...
........................................................................\
............ 2-34
Cup holders ...
..................................................................... 2-34
Sunglasses holder ...
......................................................... 2-35
Glove box ...
........................................................................\
. 2-36
Console box ...
.................................................................... 2-37
Luggage floor box (if so equipped) ...
.......................... 2-37
Luggage side box ...
.......................................................... 2-38
Cargo cover (if so equipped) ...
..................................... 2-38
Luggage hooks ...
............................................................... 2-39
Coat hooks ...
...................................................................... 2-40
Utility hook ...
....................................................................... 2-40
Roof rack (if so equipped) ...
.......................................... 2-40
Condition:
>

Black plate (72,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

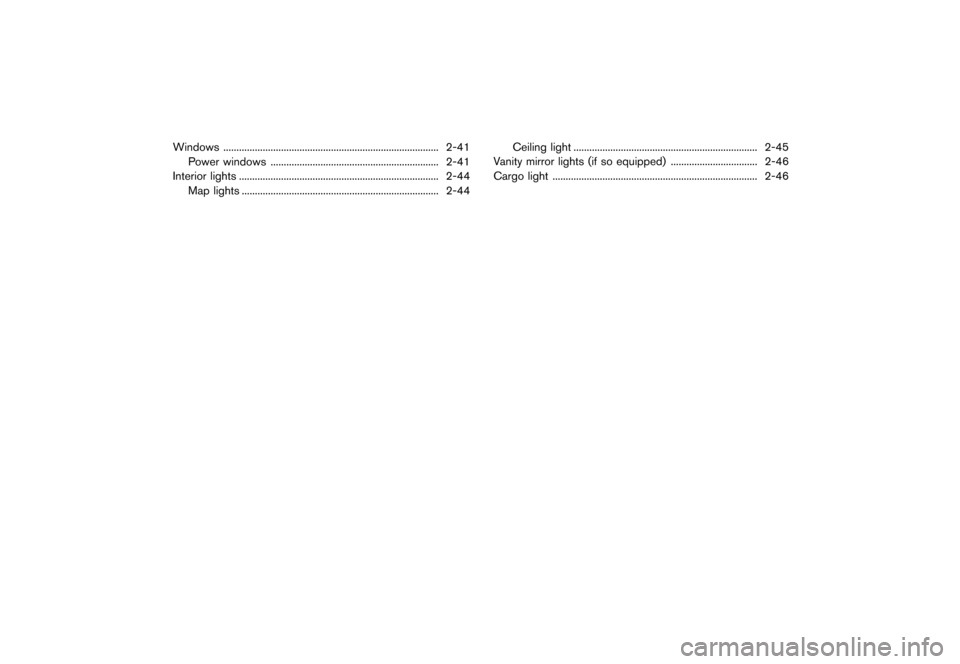

Windows...
........................................................................\
.......... 2-41
Power windows ...
................................................................ 2-41
Interior lights ...
........................................................................\
.... 2-44
Map lights ...
........................................................................\
... 2-44 Ceiling light
...
...................................................................... 2-45
Vanity mirror lights (if so equipped) ...
................................. 2-46
Cargo light ...
........................................................................\
...... 2-46
Condition:

Black plate (73,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-A7D4030A-2862-489B-A7AF-66159DF04F04
JVC0578X
1. Side ventilator
2. Headlight, fog light (if so equipped) and turnsignal switch
3. Steering-wheel-mounted controls (left side) (if so equipped)
— Audio control
— Bluetooth
®Hands-Free Phone system con- trol
4. Steering wheel — Horn
— Driver supplemental air bag
5. Meters and gauges
6. Steering-wheel-mounted controls (right side) — Cruise control switches (if so equipped) 7. Wiper and washer switch
8. Center ventilator
9. Hazard warning flasher switch
10. Audio system
— Clock
— Rear view monitor (if so equipped)
11. Front passenger supplemental air bag
12. Outside remote mirror control switch
13. All-Wheel Drive (AWD) LOCK switch (if so equipped)
14. Fuse box cover
15. Vehicle Dynamic Control (VDC) OFF switch
16. Hood release handle
17. Tilting steering wheel lever
18. Parking brake
19. Ignition switch
20. Sport mode switch
21. Power outlet
22. Heater/air conditioner control
23. Shift lever
24. Front passenger air bag status light
25. Rear window defroster switch
26. Glove box
Instruments and controls2-3
INSTRUMENT PANEL
Condition:

Black plate (96,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-26Instruments and controls
S35-D-110201-36B2AB1C-293A-4BB8-A8C4-91B4FF80CB04
SIC2133
Your vehicle has two types of security systems,
as follows:
.Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-8079DDC3-AA50-4E4A-B8C9-47DC84E10A79The vehicle security system provides visual and
audio alarm signals if someone opens the doors,
or lift gate when the system is armed. It is not,
however, a motion detection type system that
activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when unattended. Be aware
of your surroundings, and park in secure, well-lit
areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC2045
How to arm the vehicle security systemGUID-7CAA9A5F-E69A-457E-AC80-696BDC017C661. Close all windows.
The system can be armed even if the
windows are open.
2. Turn the ignition switch to the LOCK
position and remove the key if it is inserted.
3. Close all doors. Lock all doors. The doors can be locked with:
.the lock buttonon the keyfob.the power door lock switch.Master key
4. Confirm that the security indicator light
illuminates. The security indicator light stays
on for about 30 seconds. The vehicle
SECURITY SYSTEMS
Condition:

Black plate (98,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-28Instruments and controls
SIC2045
Security indicator lightGUID-B6969E9E-2AE7-4B89-9C71-367597E1FAA0The security indicator light is located on the
meter panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the LOCK position. This function indicates the
security systems equipped on the vehicle are
operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer Systemservice as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.
S35-D-110201-26603314-0067-49C3-8DC3-F795C77DB10D
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
CAUTION
.
Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
WINDSHIELD WIPER AND WASHER
SWITCH
Condition:

Black plate (99,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately 1
minute, turn the switch on again to operate
the wiper.
SIC2821
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
*1Intermittent — intermittent operation can be
adjusted by turning the knob toward*A(Slower) or*B(Faster) .
*2Low — continuous low speed operation
*3High — continuous high speed operation
Push the lever up*4to have one sweep
operation of the wiper.
Pull the lever toward you
*5to operate the
washer. Then the wiper will also operate several
times.
S35-D-110201-6287FDDC-DDC0-4614-BC2D-29AE6205258F
WARNING
In freezing temperatures the washer
solution may freeze on the rear window
glass and obscure your vision. Warm
the rear window with the defroster
before you wash the rear window.
CAUTION
. Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the
Instruments and controls2-29
REAR WINDOW WIPER AND
WASHER SWITCH
Condition:

Black plate (100,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-30Instruments and controls
window washer reservoir tank to
mix the washer fluid concentrate
and water.
If the rear window wiper operation is
interrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that is
on and around the wiper arms. In approxi-
mately 1 minute, turn the switch on again
to operate the wiper.
SIC3480
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
*1Intermittent (INT) — intermittent operation (not
adjustable)
*2Low (ON) — continuous low speed operation
Push the switch forward*3to operate the
washer. Then the wiper will also operate several
times.
GUID-0D0E8587-930B-43B3-9368-B3B0F30F30EF
SIC3481
To defog/defrost the rear window glass, start the
engine and push the switch on. The indicator
light
*1will illuminate. Push the switch again to
turn the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
REAR WINDOW DEFROSTER
SWITCH
Condition:

Black plate (104,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-34Instruments and controls
The power outlet is located in the instrument
panel and the center console.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open. .
When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
S35-D-110201-CF7976D3-F285-4050-AFD1-1371CF792F0BCUP HOLDERSS35-D-110201-FD1D8479-5AEA-4CA7-8486-247F76618FF5
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
STORAGE
Condition:
