2014 NISSAN QASHQAI oil viscosity

The following values are approximate capacities. The actual refill capacities may be slightly different from them. When refilling, follow the procedure instructed in the
“8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (approximate)
Recommended specifications
Litre Imp measure
Fuel 55 or 65 12.1gal or 14-1/4 gal See “Fuel information” later in this section
.Engine oil (Refill)
With oil filter replacementHRA2DDT 4.63 4–1/8 qtHRA2DDT engine:
Genuine NISSAN engine oil 5W40 *1
ACEA A3/B4 *1
MR20DD engine:
Genuine NISSAN engine oil 5W40 *1
ACEA A3/B4 *1
Genuine NISSAN engine oil 5W30 DPF *1
ACEA C4 *1, SAE 5W30 Low SAPS
R9M engine:
Genuine NISSAN engine oil 5W30 DPF *1
ACEA C4 *1, SAE 5W30 Low SAPS MR20DD 4.4 3–7/8 qt
K9K 4 6*5 4 qt*5
R9M 5.5 4–7/8 qt
Without oil filter replacementHRA2DDT 4.3 3–3/4 qt
MR20DD 4.2 3–3/4 qt
K9K 4.4 *5 3–7/8 qt *5
R9M 5.1 4–1/2 qt
Engine coolant
Genuine NISSAN engine coolant or equivalent in its quality *2 HRA2DDT 6.4 5–5/8 qt
MR20DD 7.1 6–1/4 qt
K9K 6.3 5–1/2 qt
R9MMT models 7.3 6–3/8 qt
XTRONIC models 7.9 7 qt
Reservoir Max level 0.57 4/7 qt
Differential gear oil 0.55 1/2 qtGenuine NISSAN Differential oil or API GL5. viscosity SAE
80W90
Transfer gear oilMR20 0.33 3/8 qt
Genuine NISSAN Differential oil Hypoid Super GL-5 80W90 or
PI GL5. viscosity SAE 80W90
R9M 0.36 3/8 qt
CAPACITIES AND RECOMMENDED FUEL/LUBRICANTS
9-2Technical information

Capacity (approximate)
Recommended specifications
Litre Imp measure
Manual transaxle gear oilR9M 4WD 1.7 1–1/2 qt
NISSAN MT-XZ Gear Oil Sports and Off-Road Vehicles or API GL-4 Viscosity
SAE 75W-85
R9M 2WD 1.7 1–1/2 qt
K9K
MR20
HRA2DDT2.0 1–3/4 qt NISSAN MT-XZ Gear Oil TL/JR Type or API GL-4 Viscosity SAE 75W-80
XTRONIC Transmission (CVT) fluidR9M with 2WD – –
Genuine NISSAN CVT fluid NS-3 *3 *4 HRA2DDT with 2WD – –
MR20 with 2WD – –
MR20 with 4WD – –
Brake & clutch fluidRefill to the correct level according
to the instructions in the “8.
Maintenance and do-it-yourself”
section.Genuine NISSAN brake fluid or equivalent. DOT 4 (US FMVSS No. 116)
Multi-purpose grease – – NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant – –HFO-1234yf (for Europe)
HFC-134a (R-134a) (except for Europe)
Air conditioning system lubricants – –ND-12 oil or equivalent (for Europe)
ND-8 oil (Except for Europe)
*1: For further details, see “Recommended SAE viscosity number” later in this section.
*2: Use Genuine NISSAN engine coolant, or equivalent in its quality, in order to avoid possible aluminium corrosion within the engine cooling system caused by the use of non-genuine
engine coolant.Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be covered by the warranty, even
if such incidents occurred during the warranty period.Contact a NISSAN dealer or qualified workshop for more information regarding the coolant type and capacity.
*3:Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT, which is not covered by the war-
ranty.
*4: Contact a NISSAN dealer or qualified workshop for details or servicing.
*5: K9K engine with DPF.
Technical information9-3

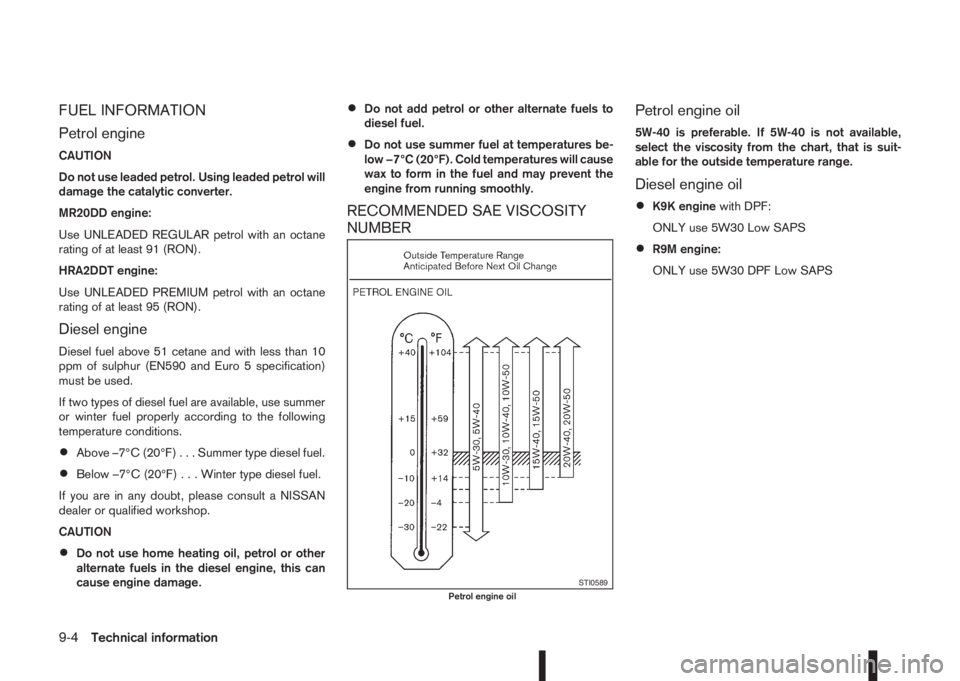

FUEL INFORMATION
Petrol engine
CAUTION
Do not use leaded petrol. Using leaded petrol will
damage the catalytic converter.
MR20DD engine:
Use UNLEADED REGULAR petrol with an octane
rating of at least 91 (RON).
HRA2DDT engine:
Use UNLEADED PREMIUM petrol with an octane
rating of at least 95 (RON).
Diesel engine
Diesel fuel above 51 cetane and with less than 10
ppm of sulphur (EN590 and Euro 5 specification)
must be used.
If two types of diesel fuel are available, use summer
or winter fuel properly according to the following
temperature conditions.
•Above –7°C (20°F)...Summer type diesel fuel.
•Below–7°C(20°F)...Wintertypedieselfuel.
If you are in any doubt, please consult a NISSAN
dealer or qualified workshop.
CAUTION
•Do not use home heating oil, petrol or other
alternate fuels in the diesel engine, this can
cause engine damage.
•Do not add petrol or other alternate fuels to
diesel fuel.
•Do not use summer fuel at temperatures be-
low −7°C (20°F). Cold temperatures will cause
wax to form in the fuel and may prevent the
engine from running smoothly.
RECOMMENDED SAE VISCOSITY
NUMBERPetrol engine oil
5W-40 is preferable. If 5W-40 is not available,
select the viscosity from the chart, that is suit-
able for the outside temperature range.
Diesel engine oil
•K9K enginewith DPF:
ONLY use 5W30 Low SAPS
•R9M engine:
ONLY use 5W30 DPF Low SAPS
STI0589Petrol engine oil
9-4Technical information
