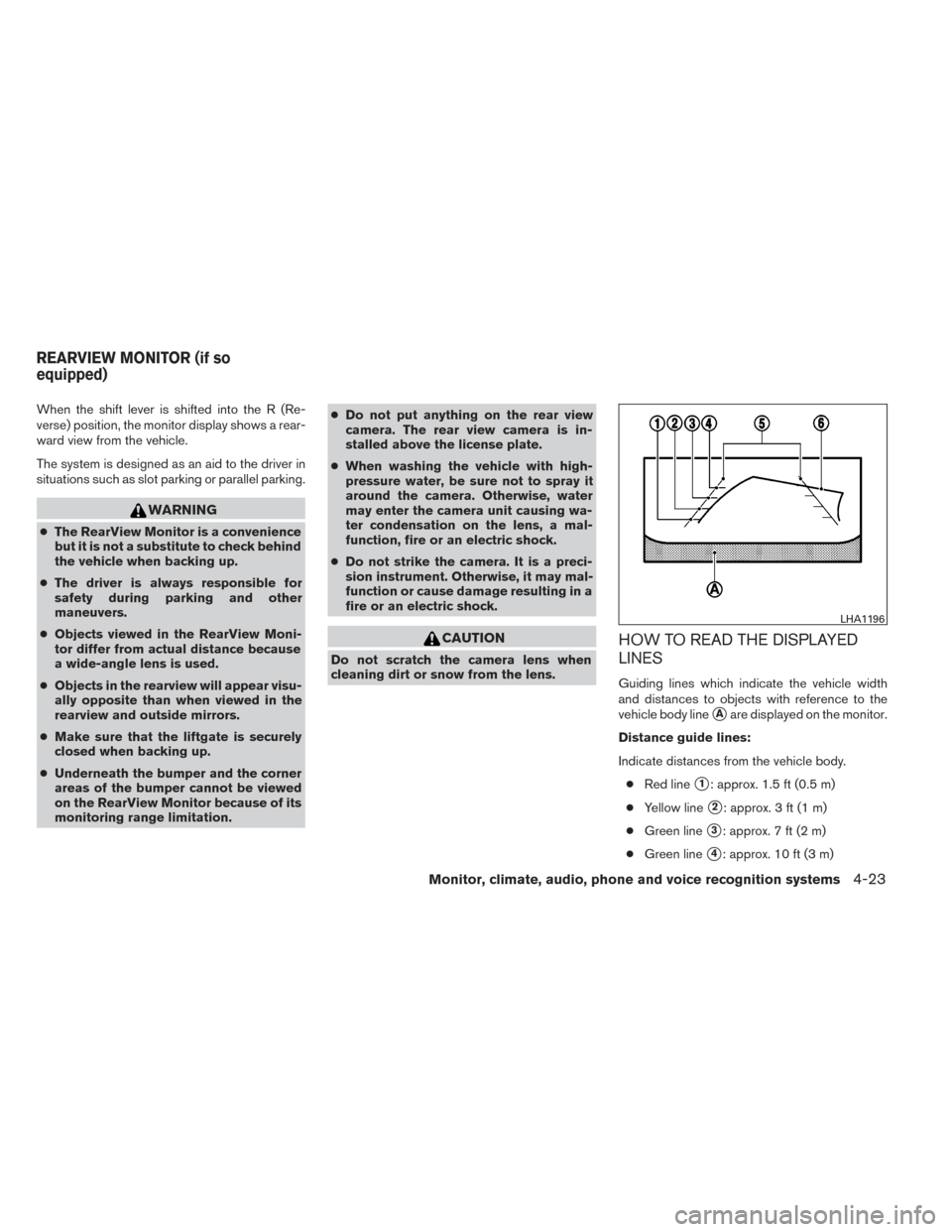

When the shift lever is shifted into the R (Re-
verse) position, the monitor display shows a rear-
ward view from the vehicle.
The system is designed as an aid to the driver in
situations such as slot parking or parallel parking.
WARNING
●The RearView Monitor is a convenience
but it is not a substitute to check behind
the vehicle when backing up.
● The driver is always responsible for
safety during parking and other
maneuvers.
● Objects viewed in the RearView Moni-
tor differ from actual distance because
a wide-angle lens is used.
● Objects in the rearview will appear visu-
ally opposite than when viewed in the
rearview and outside mirrors.
● Make sure that the liftgate is securely
closed when backing up.
● Underneath the bumper and the corner
areas of the bumper cannot be viewed
on the RearView Monitor because of its
monitoring range limitation. ●
Do not put anything on the rear view
camera. The rear view camera is in-
stalled above the license plate.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
● Do not strike the camera. It is a preci-
sion instrument. Otherwise, it may mal-
function or cause damage resulting in a
fire or an electric shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body. ● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
LHA1196
REARVIEW MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-23

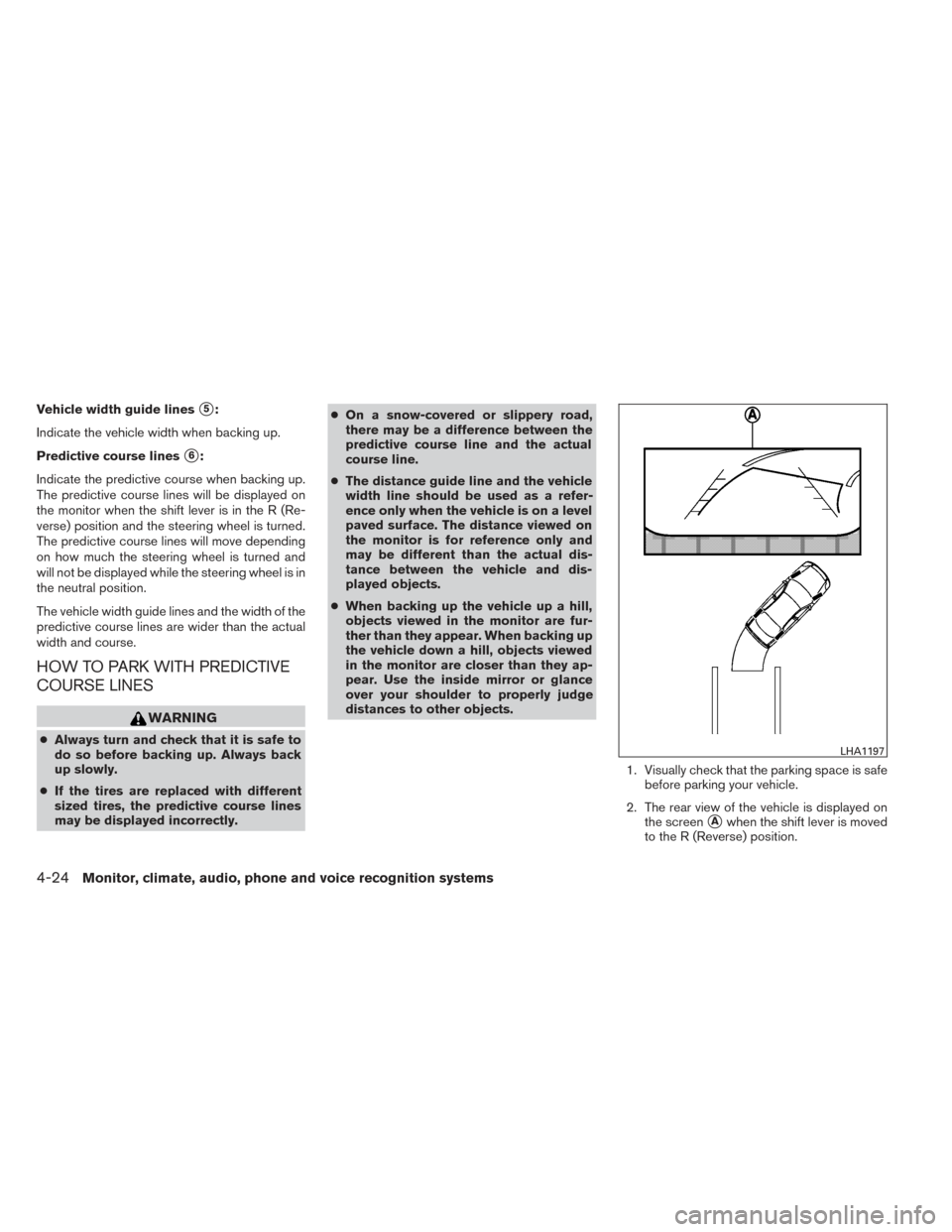

Vehicle width guide lines5:
Indicate the vehicle width when backing up.
Predictive course lines
6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the R (Re-
verse) position and the steering wheel is turned.
The predictive course lines will move depending
on how much the steering wheel is turned and
will not be displayed while the steering wheel is in
the neutral position.
The vehicle width guide lines and the width of the
predictive course lines are wider than the actual
width and course.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
WARNING
● Always turn and check that it is safe to
do so before backing up. Always back
up slowly.
● If the tires are replaced with different
sized tires, the predictive course lines
may be displayed incorrectly. ●
On a snow-covered or slippery road,
there may be a difference between the
predictive course line and the actual
course line.
● The distance guide line and the vehicle
width line should be used as a refer-
ence only when the vehicle is on a level
paved surface. The distance viewed on
the monitor is for reference only and
may be different than the actual dis-
tance between the vehicle and dis-
played objects.
● When backing up the vehicle up a hill,
objects viewed in the monitor are fur-
ther than they appear. When backing up
the vehicle down a hill, objects viewed
in the monitor are closer than they ap-
pear. Use the inside mirror or glance
over your shoulder to properly judge
distances to other objects.
1. Visually check that the parking space is safebefore parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift lever is moved
to the R (Reverse) position.
LHA1197
4-24Monitor, climate, audio, phone and voice recognition systems

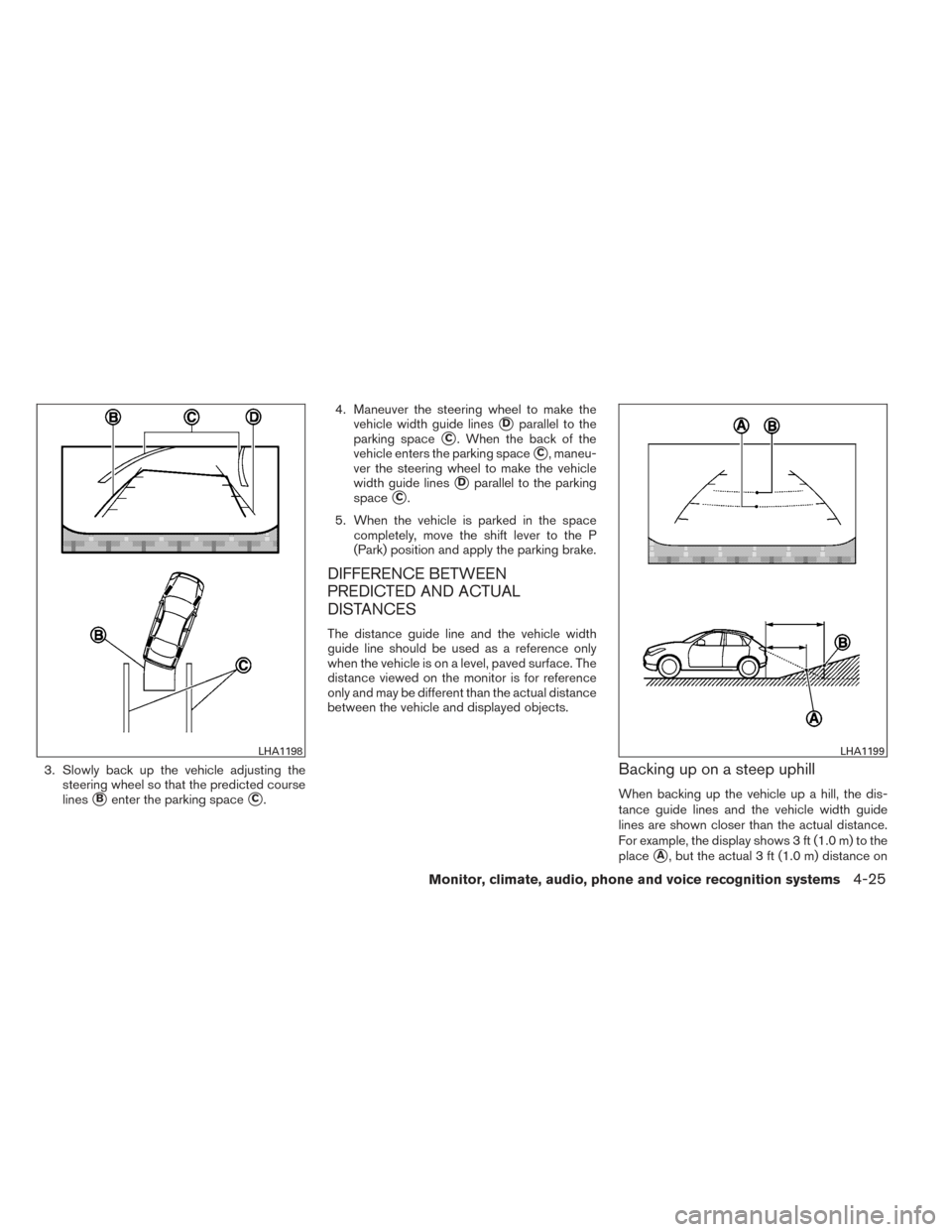

3. Slowly back up the vehicle adjusting thesteering wheel so that the predicted course
lines
Benter the parking spaceC. 4. Maneuver the steering wheel to make the
vehicle width guide lines
Dparallel to the
parking space
C. When the back of the
vehicle enters the parking space
C, maneu-
ver the steering wheel to make the vehicle
width guide lines
Dparallel to the parking
space
C.
5. When the vehicle is parked in the space completely, move the shift lever to the P
(Park) position and apply the parking brake.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on
LHA1198LHA1199
Monitor, climate, audio, phone and voice recognition systems4-25

the hill is the placeB. Note that any object on
the hill is further than it appears on the monitor.

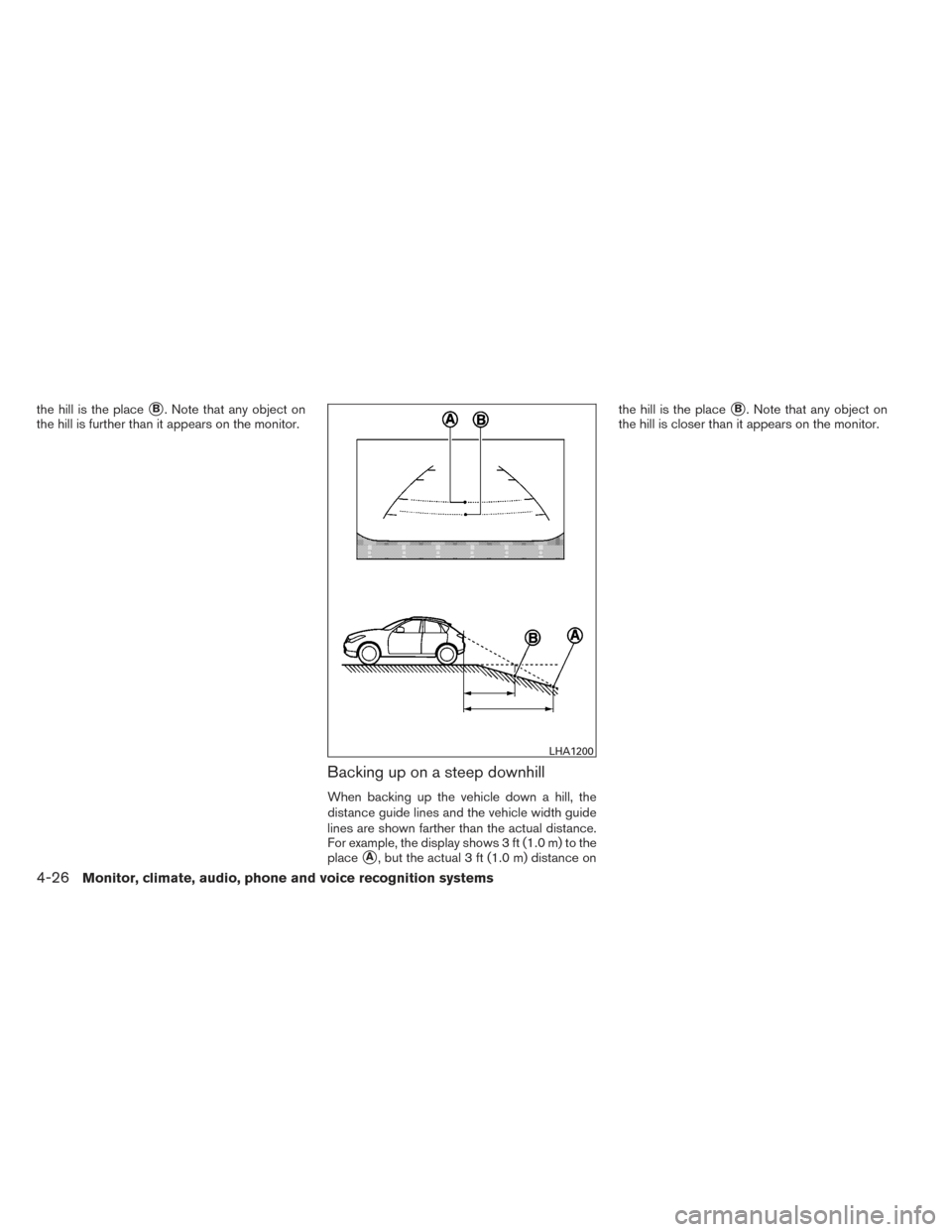

Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on the hill is the place
B. Note that any object on
the hill is closer than it appears on the monitor.
LHA1200
4-26Monitor, climate, audio, phone and voice recognition systems

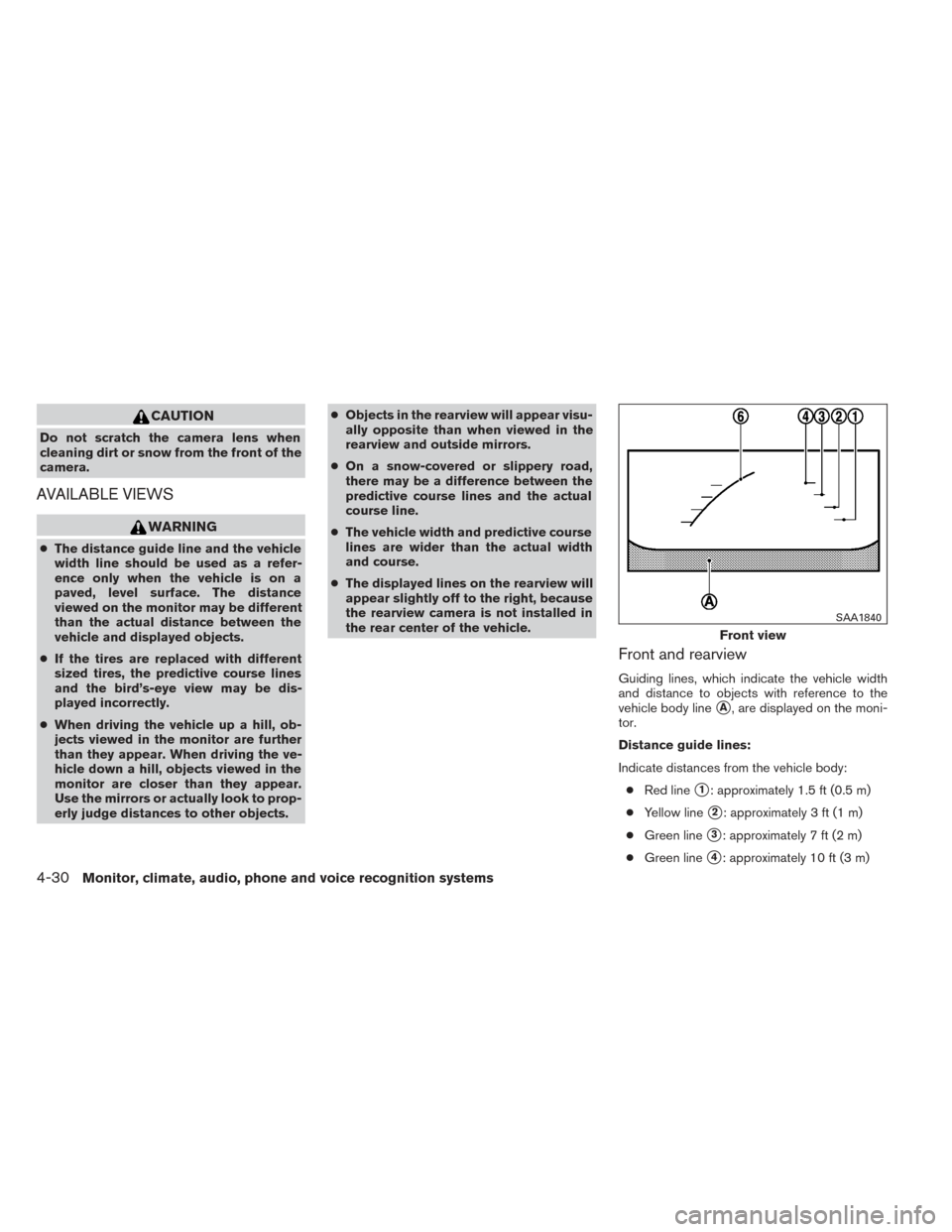

CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of the
camera.
AVAILABLE VIEWS
WARNING
●The distance guide line and the vehicle
width line should be used as a refer-
ence only when the vehicle is on a
paved, level surface. The distance
viewed on the monitor may be different
than the actual distance between the
vehicle and displayed objects.
● If the tires are replaced with different
sized tires, the predictive course lines
and the bird’s-eye view may be dis-
played incorrectly.
● When driving the vehicle up a hill, ob-
jects viewed in the monitor are further
than they appear. When driving the ve-
hicle down a hill, objects viewed in the
monitor are closer than they appear.
Use the mirrors or actually look to prop-
erly judge distances to other objects. ●
Objects in the rearview will appear visu-
ally opposite than when viewed in the
rearview and outside mirrors.
● On a snow-covered or slippery road,
there may be a difference between the
predictive course lines and the actual
course line.
● The vehicle width and predictive course
lines are wider than the actual width
and course.
● The displayed lines on the rearview will
appear slightly off to the right, because
the rearview camera is not installed in
the rear center of the vehicle.
Front and rearview
Guiding lines, which indicate the vehicle width
and distance to objects with reference to the
vehicle body line
A, are displayed on the moni-
tor.
Distance guide lines:
Indicate distances from the vehicle body:
● Red line
1: approximately 1.5 ft (0.5 m)
● Yellow line
2: approximately 3 ft (1 m)
● Green line
3: approximately 7 ft (2 m)
● Green line
4: approximately 10 ft (3 m)
Front view
SAA1840
4-30Monitor, climate, audio, phone and voice recognition systems

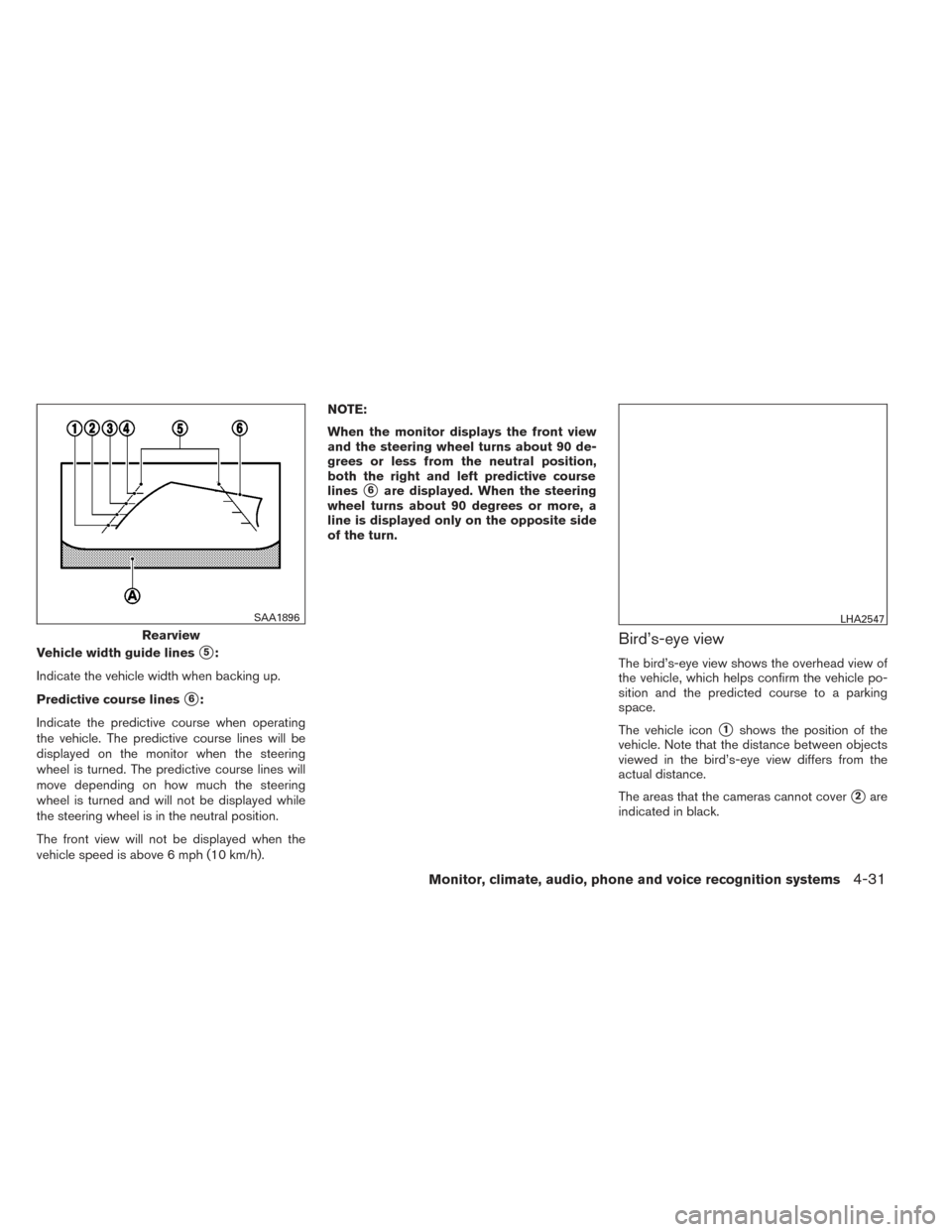

Vehicle width guide lines5:
Indicate the vehicle width when backing up.
Predictive course lines
6:
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the neutral position.
The front view will not be displayed when the
vehicle speed is above 6 mph (10 km/h). NOTE:
When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the neutral position,
both the right and left predictive course
lines
6are displayed. When the steering
wheel turns about 90 degrees or more, a
line is displayed only on the opposite side
of the turn.
Bird’s-eye view
The bird’s-eye view shows the overhead view of
the vehicle, which helps confirm the vehicle po-
sition and the predicted course to a parking
space.
The vehicle icon
1shows the position of the
vehicle. Note that the distance between objects
viewed in the bird’s-eye view differs from the
actual distance.
The areas that the cameras cannot cover
2are
indicated in black.
Rearview
SAA1896LHA2547
Monitor, climate, audio, phone and voice recognition systems4-31

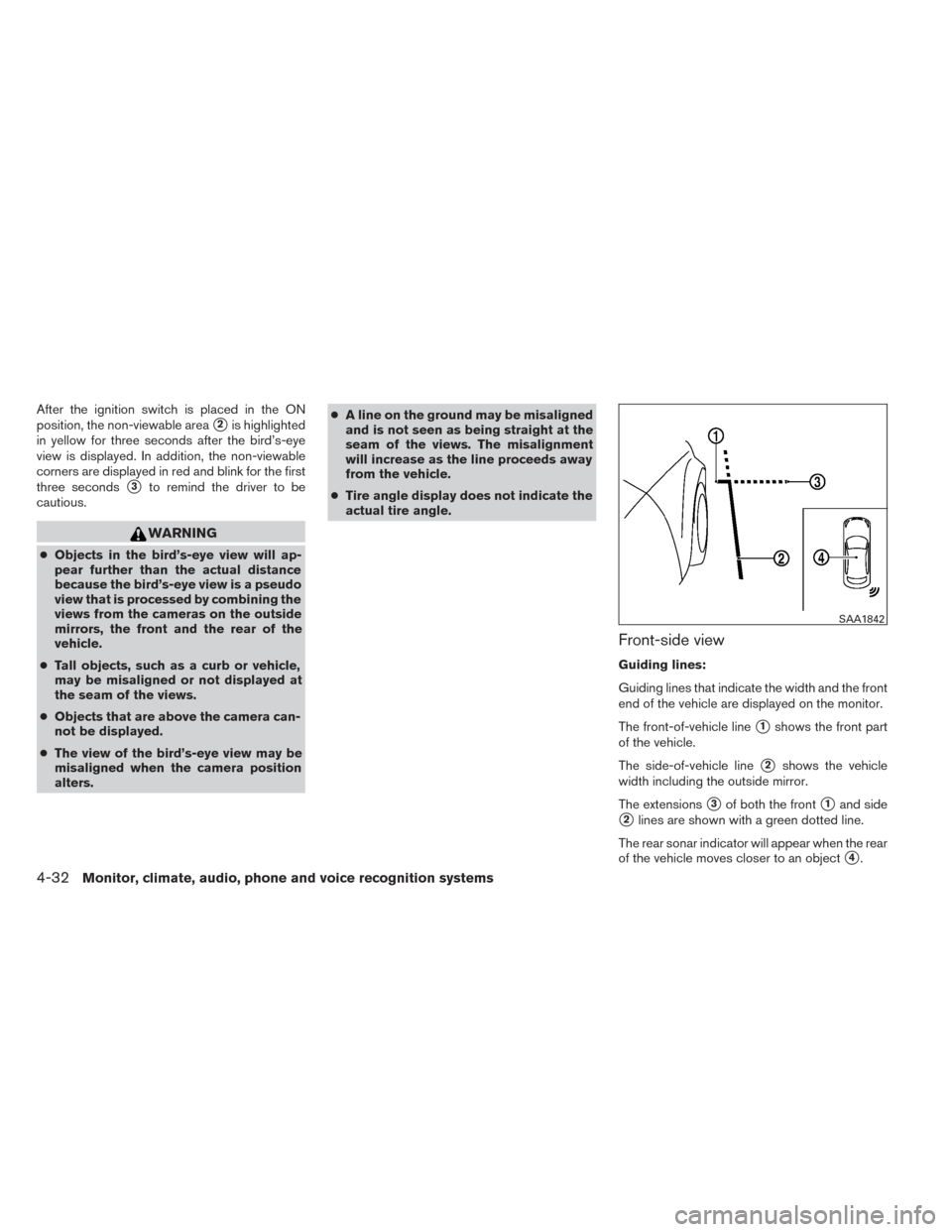

After the ignition switch is placed in the ON
position, the non-viewable area
2is highlighted
in yellow for three seconds after the bird’s-eye
view is displayed. In addition, the non-viewable
corners are displayed in red and blink for the first
three seconds
3to remind the driver to be
cautious.
WARNING
● Objects in the bird’s-eye view will ap-
pear further than the actual distance
because the bird’s-eye view is a pseudo
view that is processed by combining the
views from the cameras on the outside
mirrors, the front and the rear of the
vehicle.
● Tall objects, such as a curb or vehicle,
may be misaligned or not displayed at
the seam of the views.
● Objects that are above the camera can-
not be displayed.
● The view of the bird’s-eye view may be
misaligned when the camera position
alters. ●
A line on the ground may be misaligned
and is not seen as being straight at the
seam of the views. The misalignment
will increase as the line proceeds away
from the vehicle.
● Tire angle display does not indicate the
actual tire angle.
Front-side view
Guiding lines:
Guiding lines that indicate the width and the front
end of the vehicle are displayed on the monitor.
The front-of-vehicle line
1shows the front part
of the vehicle.
The side-of-vehicle line
2shows the vehicle
width including the outside mirror.
The extensions
3of both the front1and side
2lines are shown with a green dotted line.
The rear sonar indicator will appear when the rear
of the vehicle moves closer to an object
4.
SAA1842
4-32Monitor, climate, audio, phone and voice recognition systems

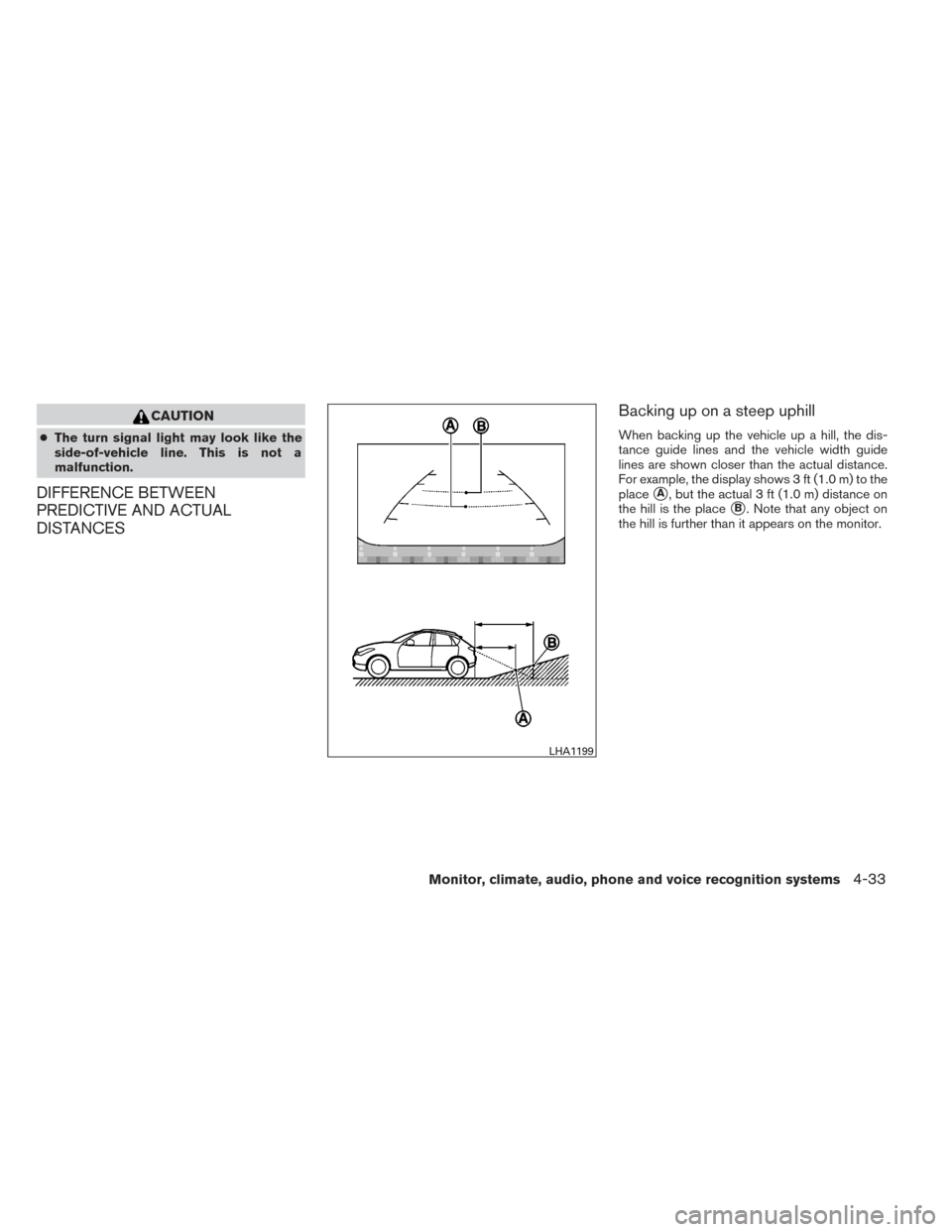

CAUTION
●The turn signal light may look like the
side-of-vehicle line. This is not a
malfunction.
DIFFERENCE BETWEEN
PREDICTIVE AND ACTUAL
DISTANCES Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on
the hill is the place
B. Note that any object on
the hill is further than it appears on the monitor.
LHA1199
