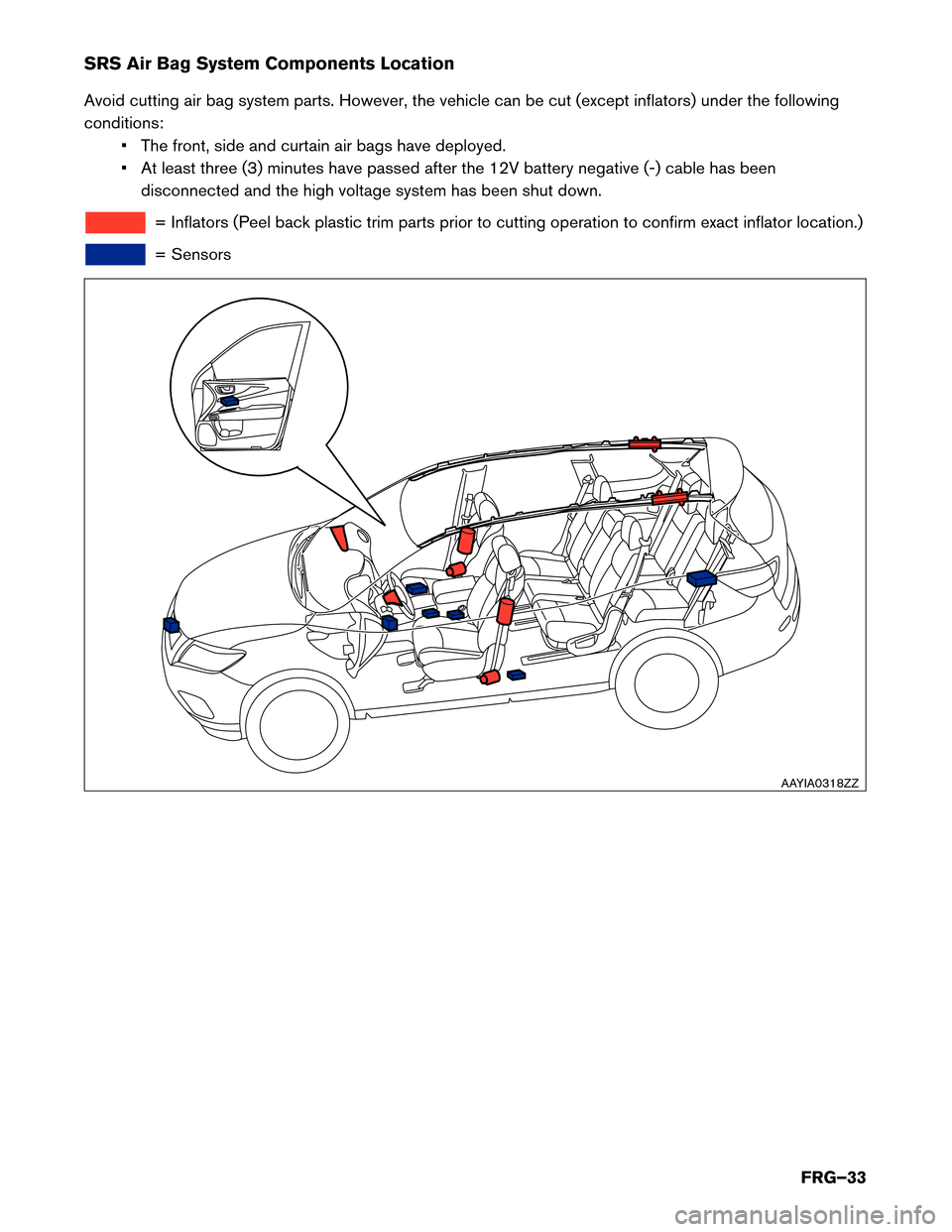

SRS Air Bag System Components Location
Avoid cutting air bag system parts. However, the vehicle can be cut (except inflators) under the following conditions:• The front, side and curtain air bags have deployed.
• At least three (3) minutes have passed after the 12V battery negative (-) cable has beendisconnected and the high voltage system has been shut down.
= Inflators (Peel back plastic trim parts prior to cutting operation to confirm exact inflator location.)
= Sensors
AAYIA0318ZZ
FRG–33

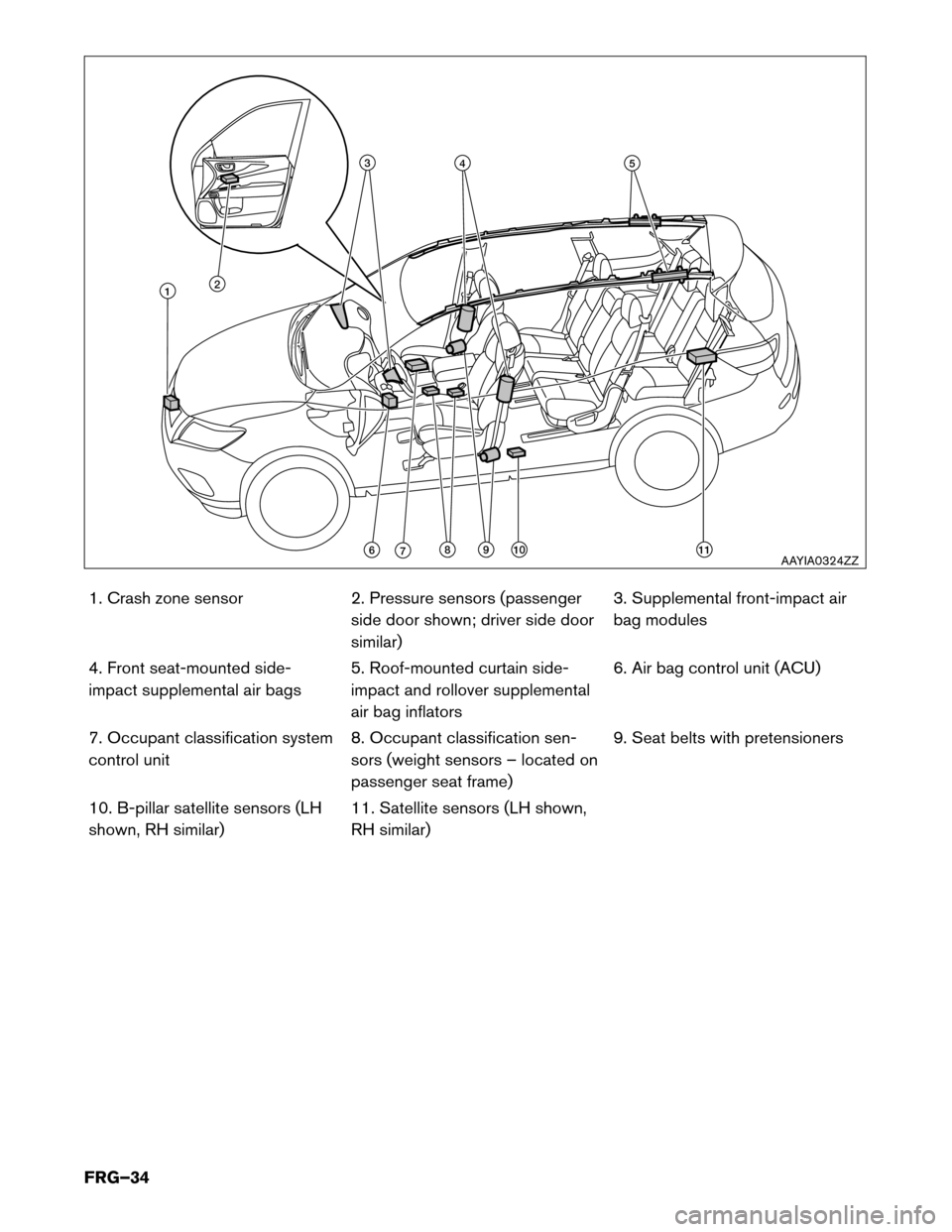

1. Crash zone sensor 2. Pressure sensors (passengerside door shown; driver side door similar)3. Supplemental front-impact air
bag modules
4. Front seat-mounted side-
impact supplemental air bags 5. Roof-mounted curtain side-
impact and rollover supplemental
air bag inflators6. Air bag control unit (ACU)
7. Occupant classification system
control unit 8. Occupant classification sen-
sors (weight sensors – located on
passenger seat frame)9. Seat belts with pretensioners
10. B-pillar satellite sensors (LH
shown, RH similar) 11. Satellite sensors (LH shown,
RH similar)
4
891011
53
21
67AAYIA0324ZZ
FRG–34
