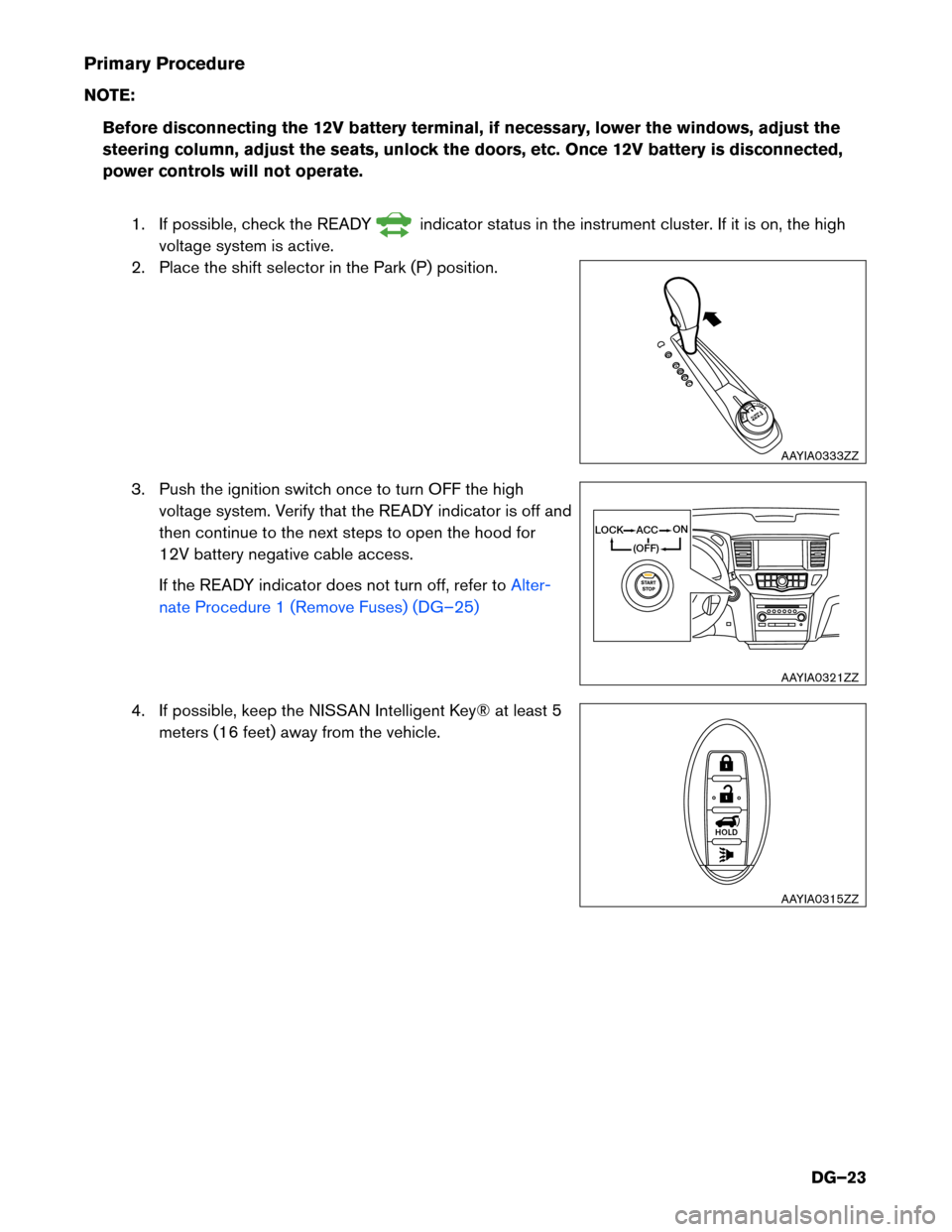

Primary Procedure
NOTE:Before disconnecting the 12V battery terminal, if necessary, lower the windows, adjust the
steering column, adjust the seats, unlock the doors, etc. Once 12V battery is disconnected,
power controls will not operate.
1. If possible, check the READY
indicator status in the instrument cluster. If it is on, the high
voltage system is active.
2. Place the shift selector in the Park (P) position.
3. Push the ignition switch once to turn OFF the high voltage system. Verify that the READY indicator is off and
then continue to the next steps to open the hood for
12V battery negative cable access.
If the READY indicator does not turn off, refer to
Alter-
nate Procedure 1 (Remove Fuses) (DG–25)
4. If possible, keep the NISSAN Intelligent Key® at least 5 meters (16 feet) away from the vehicle.
AAYIA0333ZZ
ACC
LOCK
(OFF)
ON
AAYIA0321ZZ
HOLD
AAYIA0315ZZ
DG–23

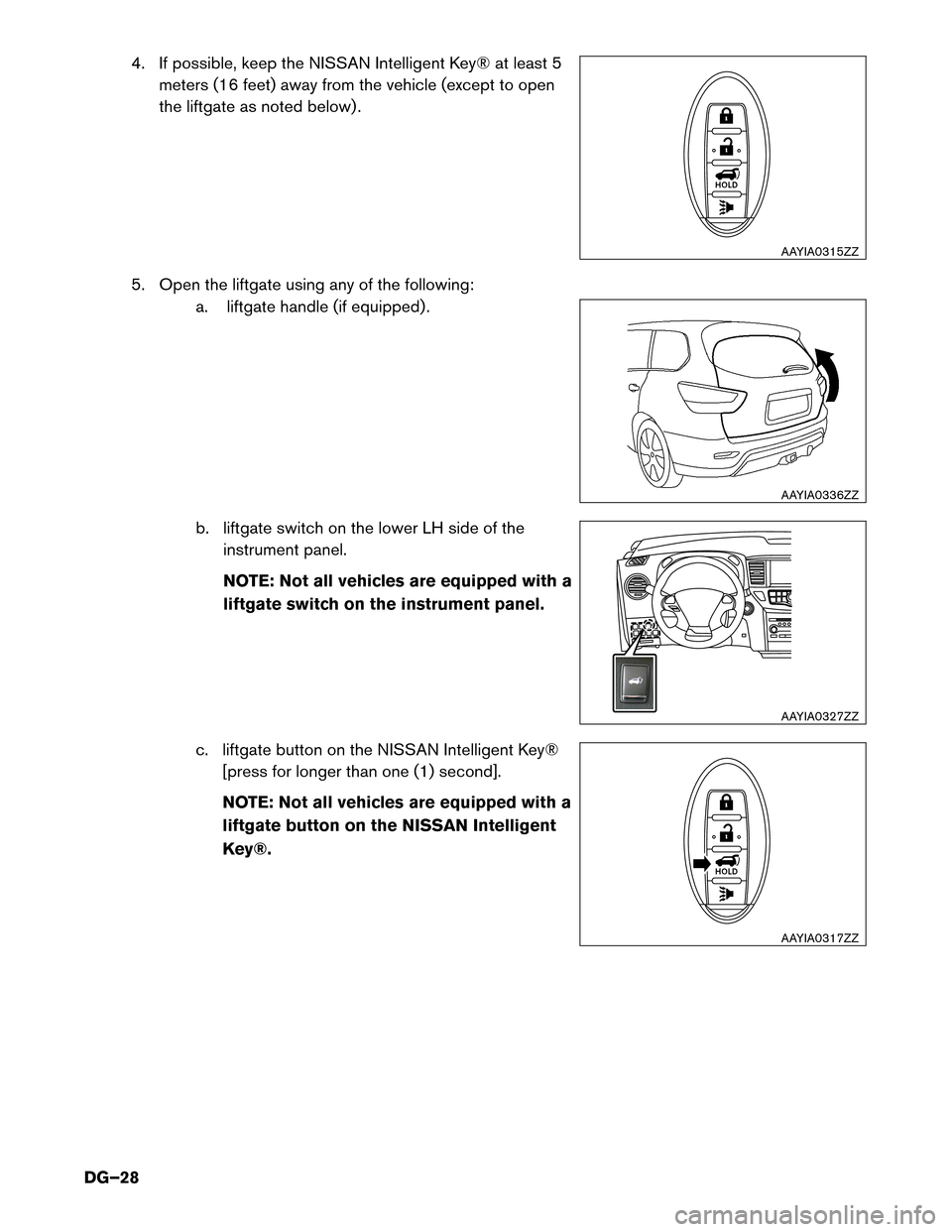

4. If possible, keep the NISSAN Intelligent Key® at least 5meters (16 feet) away from the vehicle (except to open
the liftgate as noted below) .
5. Open the liftgate using any of the following: a. liftgate handle (if equipped) .
b. liftgate switch on the lower LH side of theinstrument panel.
NOTE: Not all vehicles are equipped with a
liftgate switch on the instrument panel.
c. liftgate button on the NISSAN Intelligent Key® [press for longer than one (1) second].
NOTE: Not all vehicles are equipped with a
liftgate button on the NISSAN IntelligentKey®.
HOLD
AAYIA0315ZZ
AAYIA0336ZZ
AAYIA0327ZZ
HOLD
AAYIA0317ZZ
DG–28

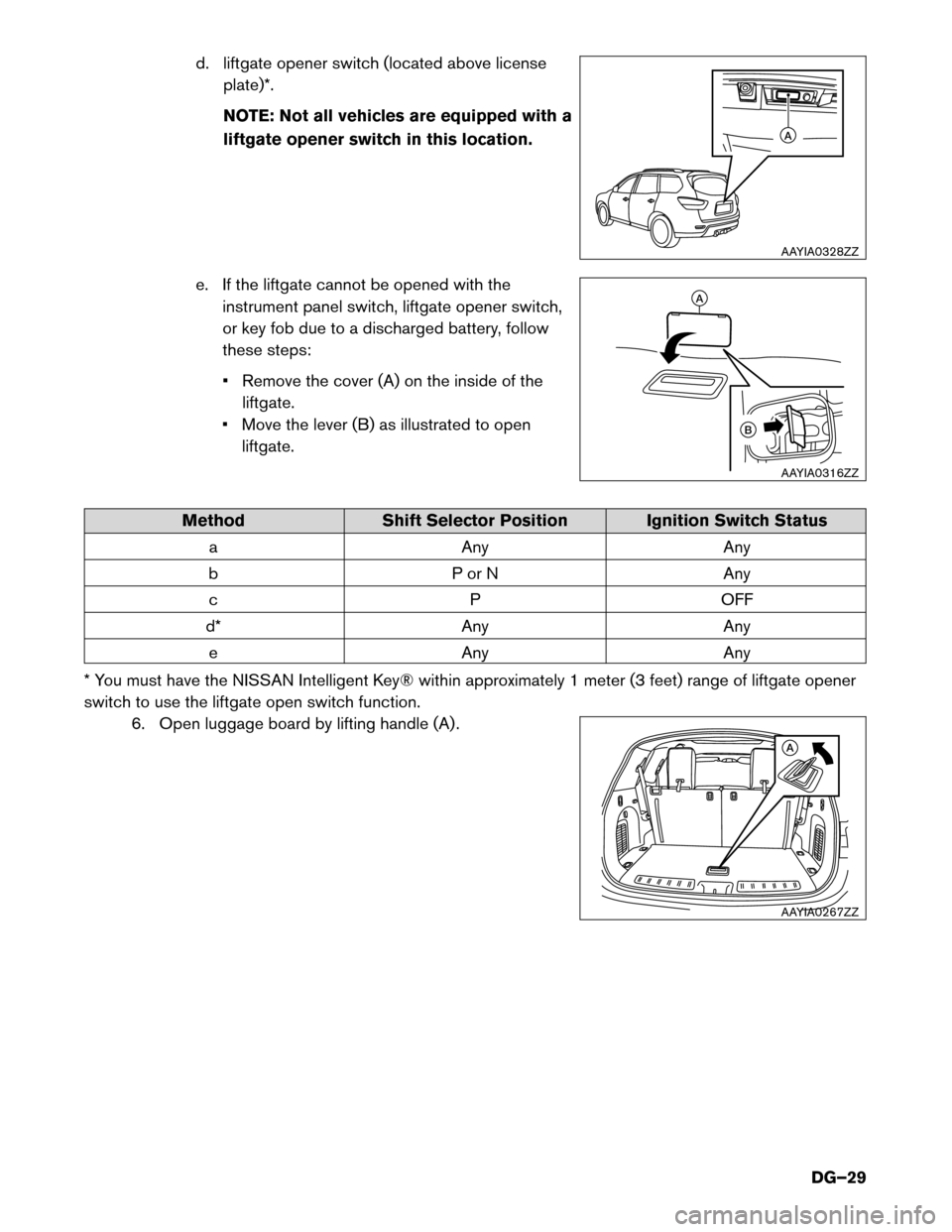

d. liftgate opener switch (located above licenseplate)*.
NOTE: Not all vehicles are equipped with a
liftgate opener switch in this location.
e. If the liftgate cannot be opened with the instrument panel switch, liftgate opener switch,
or key fob due to a discharged battery, follow
these steps:
• Remove the cover (A) on the inside of theliftgate.
• Move the lever (B) as illustrated to open liftgate.
Method Shift Selector Position Ignition Switch Status
a Any Any
b P or N Any c P OFF
d* Any Any e Any Any
* You must have the NISSAN Intelligent Key® within approximately 1 meter (3 feet) range of liftgate opener
switch to use the liftgate open switch function. 6. Open luggage board by lifting handle (A) .
A
AAYIA0328ZZ
A
B
AAYIA0316ZZ
A
AAYIA0267ZZ
DG–29

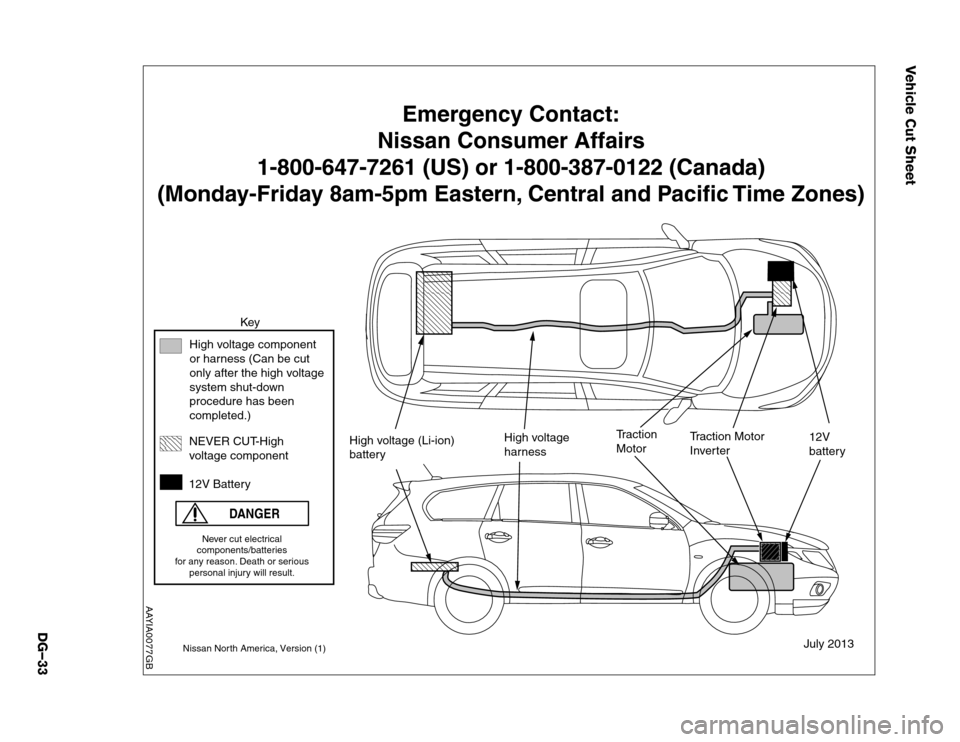

Vehicle Cut Sheet









Emergency Contact:
Nissan Consumer Affairs
1-800-647-7261 (US) or 1-800-387-0122 (Canada)
(Monday-Friday 8am-5pm Eastern, Central and Pacific Time Zones)
High voltage component
or harness (Can be cut
only after the high voltage
system shut-down procedure has been completed.)Never cut electrical
components/batteries
for any reason. Death or serious personal injury will result. Traction Motor
July 2013
Traction Motor
Inverter
High voltage
harness
High voltage (Li-ion)
battery 12V
battery
12V Battery
Key
DANGER
voltage component
Nissan North America, Version (1)
NEVER CUT-High
AAYIA0077GB
