2014 NISSAN MAXIMA engine coolant

BRAKE FLUID
Check the brake fluid level in the reservoir. If the
fluid level is below the MIN line or the brake
warning light comes on, add Genuine NISSAN
Super Heavy Duty Brake Fluid or equivalentDOT
3 fluid up to the MAX line. If fluid must be added
frequently, the system should be checked by a
NISSAN dealer.
WINDSHIELD-WASHER FLUID
RESERVOIR
Fill the windshield-washer fluid reservoir periodi-
cally. Add windshield-washer fluid when the low
windshield-washer fluid warning light comes on.
To fill the windshield-washer fluid reservoir, lift
the cap off the reservoir and pour the windshield-
washer fluid into the reservoir opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield-
washer antifreeze. Follow the manufacturer’s in-
structions for the mixture ratio. Refill the reservoir more frequently when driving
conditions require an increased amount of
windshield-washer fluid.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Anti-
freeze or equivalent.
CAUTION
●
Do not substitute engine anti-freeze
coolant for windshield-washer fluid.
This may result in damage to the paint.
● Do not fill the windshield-washer fluid
reservoir with washer fluid concen-
trates at full strength. Some methyl al-
cohol based washer fluid concentrates
may permanently stain the grille if
spilled while filling the windshield-
washer reservoir.
● Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid
into the windshield-washer fluid reser-
voir. Do not use the windshield-washer
fluid reservoir to mix the washer fluid
concentrate and water.
LDI0558WDI0664
WINDSHIELD-WASHER FLUID
8-14Maintenance and do-it-yourself

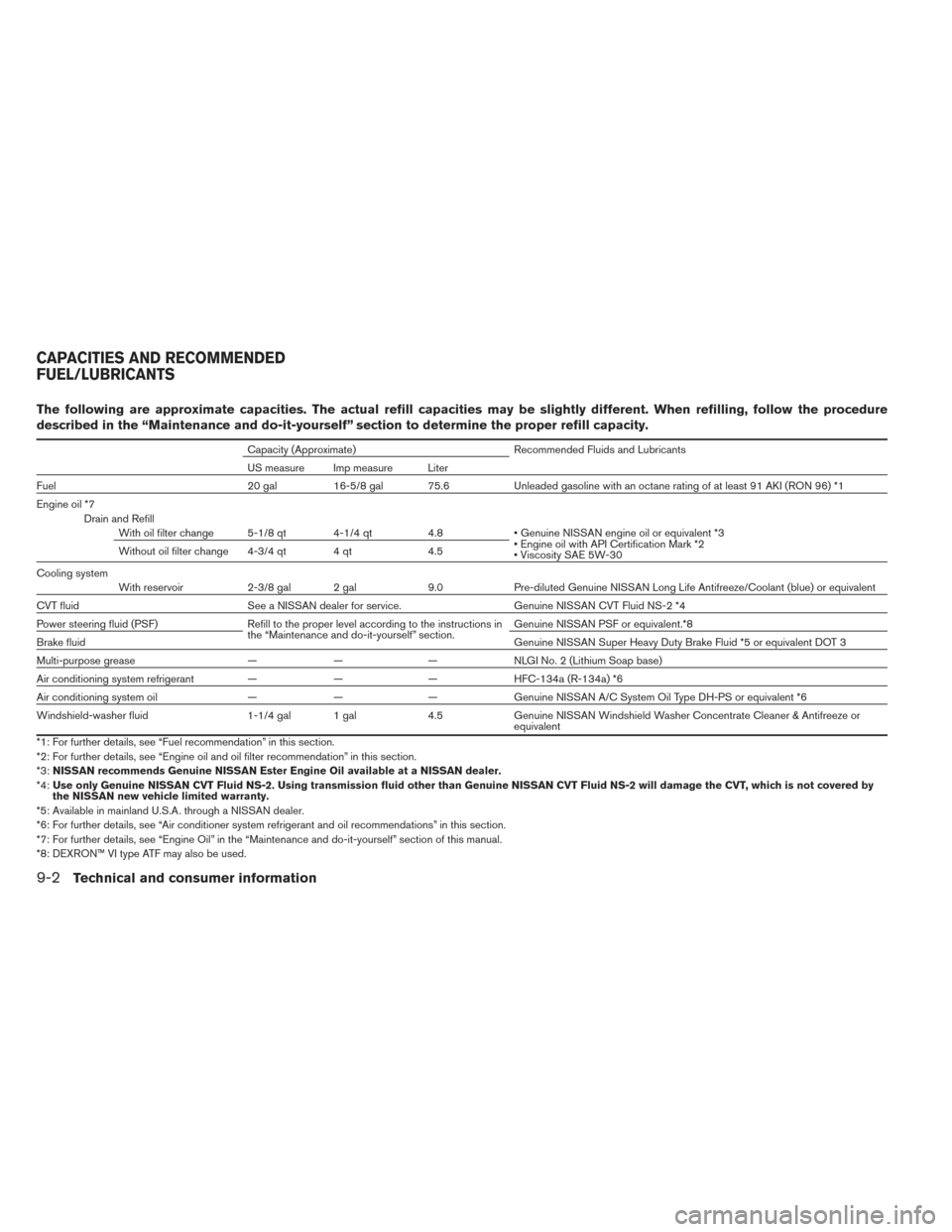

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended Fluids and Lubricants
US measure Imp measure Liter
Fuel 20 gal16-5/8 gal 75.6 Unleaded gasoline with an octane rating of at least 91 AKI (RON 96) *1
Engine oil *7 Drain and RefillWith oil filter change 5-1/8 qt 4-1/4 qt 4.8• Genuine NISSAN engine oil or equivalent *3
• Engine oil with API Certification Mark *2
• Viscosity SAE 5W-30
Without oil filter change 4-3/4 qt 4 qt
4.5
Cooling system With reservoir 2-3/8 gal 2 gal 9.0Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
CVT fluid See a NISSAN dealer for service. Genuine NISSAN CVT Fluid NS-2 *4
Power steering fluid (PSF) Refill to the proper level according to the instructions in
the “Maintenance and do-it-yourself” section. Genuine NISSAN PSF or equivalent.*8
Brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid *5 or equivalent DOT 3
Multi-purpose grease —— —NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant — ——HFC-134a (R-134a) *6
Air conditioning system oil —— —Genuine NISSAN A/C System Oil Type DH-PS or equivalent *6
Windshield-washer fluid 1-1/4 gal 1 gal4.5Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
*1: For further details, see “Fuel recommendation” in this section.
*2: For further details, see “Engine oil and oil filter recommendation” in this section.
*3: NISSAN recommends Genuine NISSAN Ester Engine Oil available at a NISSAN dealer.
*4: Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT, which is not covered by
the NISSAN new vehicle limited warranty.
*5: Available in mainland U.S.A. through a NISSAN dealer.
*6: For further details, see “Air conditioner system refrigerant and oil recommendations” in this section.
*7: For further details, see “Engine Oil” in the “Maintenance and do-it-yourself” section of this manual.
*8: DEXRON™ VI type ATF may also be used.
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information

●When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector to the P
(Park) position before blocking the
wheels and applying the parking brake,
transmission damage could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the downhill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks ab-
sorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park) .
6. Turn off the engine.
To drive away: 1. Start the vehicle. 2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are
clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks. ● While going downhill, the weight of the
trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and use the manual shift mode (M5) . Avoid
long or repeated use of the brakes when
descending a hill, as this reduces their effec-
tiveness and could cause overheating. Shift-
ing the manual shift mode to M5 (5th) pro-
vides “engine braking” and reduces the need
to brake as frequently.
● If the engine coolant temperature rises to a
high temperature, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this owner’s manual.
● Trailer towing requires more fuel than normal
circumstances.
● Avoid towing a trailer for your vehicle’s first
500 miles (805 km) . ●
For the first 500 miles (805 km) that you do
tow, do not drive over 50 MPH (80 km/h).
● Have your vehicle serviced more often than
at intervals specified in the recommended
Maintenance Schedule in the “NISSAN Ser-
vice and Maintenance Guide”.
● When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling.
Do the following if the trailer begins to sway: 1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the ve-
hicle.
– Do not correct trailer sway by steering or applying the brakes.
9-22Technical and consumer information

Child safety rear door lock............3-6
Chimes, audible reminders ...........2-16
Cleaning exterior and interior ...........7-2
C.M.V.S.S. certification label ..........9-10
Cold weather driving ...............5-28
Compact disc (CD) player ........4-60,4-67
Consolebox...................2-42
Continuously Variable Transmission (CVT) . . .5-12 Continuously Variable Transmission
(CVT) fluid ..................8-12
Driving with Continuously Variable
Transmission (CVT) .............5-12
Transmission shift selector lock release . .5-17
Control panel buttons ..............4-11
Brightness/contrast button ......4-10,4-19
Enterbutton...............4-4,4-11
Without navigation system ..........4-4
Controls Audiocontrols(steeringwheel).......4-89
Heater and air conditioner
controls ................4-30,4-34
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Checking engine coolant level ........8-9
Engine coolant temperature gauge .....2-6
Corrosionprotection ...............7-6
Cruisecontrol..................5-19
Cupholders................2-41,2-42
D
Daytime running light system (Canada only) . .2-33 Defroster switch
Rear window and outside mirror defroster
switch.....................2-29
Digital Versatile Disc (DVD) player .......4-71
Dimensionsandweights.............9-8
Dimmer switch for instrument panel ......2-34
Display controls
(seecontrolpanelbuttons) ........4-4,4-11
Door locks .....................3-4
Drive belt .....................8-17
Drive positioner, Automatic ...........3-30
Driving Cold weather driving .............5-28
Driving with Continuously Variable
Transmission (CVT) .............5-12
Precautions when starting and driving ....5-2
E
Economy - fuel ..................5-22
Emission control information label .......9-10
Emission control system warranty .......9-24
Engine Before starting the engine ..........5-11
Block heater .................5-29
Capacities and recommended
fuel/lubricants .................9-2
Changingenginecoolant...........8-9
Changingengineoil.............8-11
Changing engine oil filter ..........8-12
Checking engine coolant level ........8-9
Checking engine oil level ..........8-10
Engine compartment check locations ....8-6
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-7 Engine oil
...................8-10
Engine oil and oil filter recommendation . . .9-5
Engine oil pressure warning light ......2-12
Engine oil viscosity ..............9-6
Engine serial number ............9-10
Engine specifications .............9-7
Starting the engine .............5-11
Enterbutton.................4-4,4-11
Eventdatarecorders ..............9-26
Exhaustgas(Carbonmonoxide).........5-2
Extended storage switch ............8-25
Eyeglass case ..................2-40
F
Flashers (See hazard warning flasher switch) . .6-2
Flat
tire.......................6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-13
Capacities and recommended
fuel/lubricants .................9-2
Continuously Variable Transmission
(CVT) fluid ..................8-12
Engine coolant .................8-7
Engine oil ...................8-10
Power steering fluid .............8-13
Windshield-washer fluid ...........8-14
F.M.V.S.S. certification label ...........9-10
Foglightswitch .................2-34
Foldingrearseat..................1-6
Front air bag system
(See supplemental restraint system) ......1-50
Front seats .....................1-2
10-2

FuelCapacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-22
Fuel-filler door and cap ...........3-21
Fuel gauge ...................2-7
Fueloctanerating...............9-4
Loosefuelcapwarning........2-25,3-21
Fuses.......................8-22
Fusiblelinks ...................8-24
G
Garage door opener, HomeLink® Universal
Transceiver....................2-54
Gascap .....................3-21
Gauge Engine coolant temperature gauge .....2-6
Fuel gauge ...................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-6
Trip odometer .................2-5
Generalmaintenance...............8-2
Glovebox.....................2-42
Gloveboxlock..................2-42
Grocery hooks ..................2-43
H
Hands-free phone system,
Bluetooth® ...............4-92,4-106
Hazard warning flasher switch ..........6-2
Headlightandturnsignalswitch........2-30 Headlight control switch
............2-31
Headlights ....................8-27
Head restraints Active Head Restraint .........1-8,1-15
Heated seats ...............2-35,2-37
Heated steering wheel .............2-37
Heater Heater and air conditioner
controls................4-30,4-34
Heater operation ...........4-31,4-35
HomeLink® Universal Transceiver .......2-54
Hood release ...................3-18
Horn .......................2-35
I
Ignition Switch Push-Button Ignition Switch .........5-7
Image viewer ...................4-19
Immobilizer system .........2-27,3-3,5-10
Important vehicle information label .......9-10
In-cabin microfilter ................8-19
Increasing fuel economy .............5-22
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-10
Inside automatic anti-glare mirror ........3-26
Instrument brightness control ..........2-34
Instrument panel ...............0-6,2-3
Instrument panel dimmer switch ........2-34
Intelligent Key system Key operating range ..............3-8
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation .......3-13Troubleshooting guide
............3-16
Warning signals ...............3-16
Interiorlight....................2-51
Interior trunk lid release .............3-20
iPod® Player ...............4-79,4-82
ISOFIX child restraints .............1-27
J
Jump starting ...................6-8
K
Keyfob battery replacement ...........8-26
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........
3-2
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control information label .....9-10
Engine serial number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-57
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-27
10-3

Rear window and outside mirror defroster
switch.....................2-29
Turnsignalswitch..............2-34
Vehicle dynamic control (VDC) off
switch.....................2-38
Windshield wiper and washer switch . . .2-28T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-27,3-3,5-10
Three-way catalyst ................5-2
Tire Flat tire .....................6-3
Spare tire ................6-4,8-43
Tire and Loading Information label .....9-11
Tire chains ..................8-40
Tireplacard..................9-11
Tirepressure.................8-33
Tire rotation..................8-41
Types of tires .................8-39
Uniform tire quality grading .........9-23
Wheels and tires ...............8-33
Wheel/tire size .................9-8
Tire pressure Low tire pressure warning light .......2-12
Tire Pressure Monitoring System (TPMS) ....5-3
Towing Flattowing..................9-22
Towingload/specification..........9-18
Towtrucktowing...............6-11
Trailertowing.................9-15 Transceiver
HomeLink® Universal Transceiver .....2-54
Transmission Continuously Variable Transmission
(CVT) fluid ..................8-12
Driving with Continuously Variable
Transmission (CVT) .............5-12
Shiftselectorlockrelease..........5-17
Travel (See registering your vehicle in another
country) ......................9-9
Trip odometer ...................2-5
Trunk access through the rear seat .....1-6,1-7
Trunk lid lock opener lever ............3-19
Trunklight ....................2-54
Turn signal switch ................2-34
U
Uniform tire quality grading ...........9-23
USB interface Audio file operation ..........4-75,4-76
Video file operation .............4-78
V
Vanity mirror ...................3-26
Variable voltage control system .........8-17
Vehicle dimensions and weights .........9-8
Vehicle dynamic control (VDC) off switch . . .2-38
Vehicle dynamic control (VDC) system .....5-26
Vehicle identification ...............9-9
Vehicle identification number (VIN)
(Chassis number) .................9-9
Vehicle identification number (VIN) plate ....9-9Vehicleloadinginformation...........9-12
Vehicle recovery
.................6-13
Vehicle security system .............2-26
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start ......2-27,3-3,5-10
Ventilators ....................4-28
Visors.......................3-25
Voice recognition system ...........4-116
W
Warning Airbagwarninglight.........1-57, 2-14
Anti-lock brake warning light .....2-10,2-11
Battery charge warning light ........2-11
Brake warning light .............2-11
Engine oil pressure warning light ......
2-12
Hazard warning flasher switch ........6-2
Low fuel warning light ........2-13, 2-24
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light......................2-24
Passenger air bag and status light .....1-52
Seatbeltwarninglight............2-14
Vehicle security system ...........2-26
Warning/indicator lights and audible
reminders...................2-10
Warning labels (for SRS) ..........1-57
Warninglights..................2-10
Washer switch Windshield wiper and washer switch . . .2-28
Weights (See dimensions and weights) .....9-8
Wheels and tires .................8-33
Wheel/tire size ...................9-8
10-6
