2014 NISSAN LEAF headrest

1. Rear head restraints/headrests (P 1-4)
2. Child restraint anchor points (for top tether
strap child restraint) (P 1-31)
3. Roof-mounted curtain side-impact supple-
mental air bags (P 1-35)
4. Seat belts (P 1-8)5. Front head restraints/headrests (P 1-4)
6. Seat belt pretensioners (P 1-47)
7. Front seats (P 1-3)
8. Supplemental front-impact air bags (P 1-35)
9. LATCH (Lower Anchors and Tethers for
CHildren) system (P 1-19)10. Rear seats (P 1-4)
11. Front seat-mounted side-impact supple-
mental air bags (P 1-35)
12. Occupant classification sensors (weight
sensors)
— Advanced Air Bag System (P 1-41)
13. Front passenger air bag status light
(P 2-20)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
0-2Illustrated table of contents

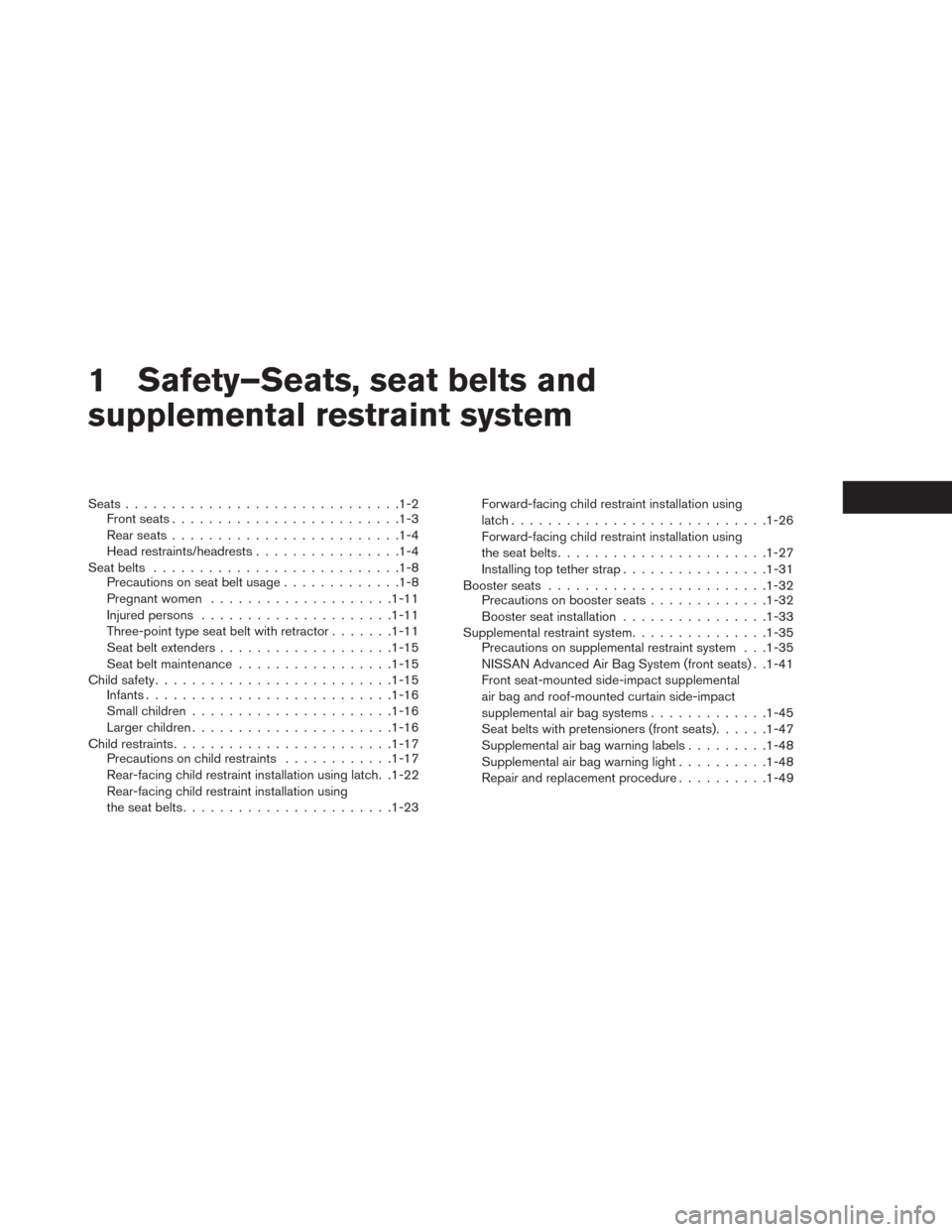

1 Safety–Seats, seat belts and
supplemental restraint system
Seats..............................1-2
Front seats.........................1-3
Rear seats.........................1-4
Head restraints/headrests................1-4
Seat belts...........................1-8
Precautions on seat belt usage.............1-8
Pregnant women....................1-11
Injured persons.....................1-11
Three-point type seat belt with retractor.......1-11
Seat belt extenders...................1-15
Seat belt maintenance.................1-15
Child safety..........................1-15
Infants...........................1-16
Small children......................1-16
Larger children......................1-16
Child restraints........................1-17
Precautions on child restraints............1-17
Rear-facing child restraint installation using latch. .1-22
Rear-facing child restraint installation using
the seat belts.......................1-23Forward-facing child restraint installation using
latch............................1-26
Forward-facing child restraint installation using
the seat belts.......................1-27
Installing top tether strap................1-31
Booster seats........................1-32
Precautions on booster seats.............1-32
Booster seat installation................1-33
Supplemental restraint system...............1-35
Precautions on supplemental restraint system . . .1-35
NISSAN Advanced Air Bag System (front seats) . .1-41
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems.............1-45
Seat belts with pretensioners (front seats)......1-47
Supplemental air bag warning labels.........1-48
Supplemental air bag warning light..........1-48
Repair and replacement procedure..........1-49

REAR SEATS
Folding
Before folding the rear seats:
• Secure the seat belts on the seat belt hooks
located on the side wall. See “Seat belt hooks”.
To fold down the seatback, pull the release knob.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
WARNING
• Do not fold down the rear seats when
occupants are in the rear seat area or
any objects are on the rear seats.
• Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the folded-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury in an accident or sudden
stop.• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher
than the seatbacks. In a sudden stop or
collision, unsecured cargo could cause
personal injury.
• When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in an
accident or sudden stop.
HEAD RESTRAINTS/HEADRESTS
WARNING
Head restraint/headrest supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this
section. Check the adjustment after
someone else uses the seat. Do not at-
tach anything to the head restraint/
headrest stalks or remove the head
restraints/headrests. Do not use the seat
if the head restraint/headrest has been
1-4Safety–Seats, seat belts and supplemental restraint system

removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraint/headrest. This may increase the
risk of serious injury or death in a colli-
sion.

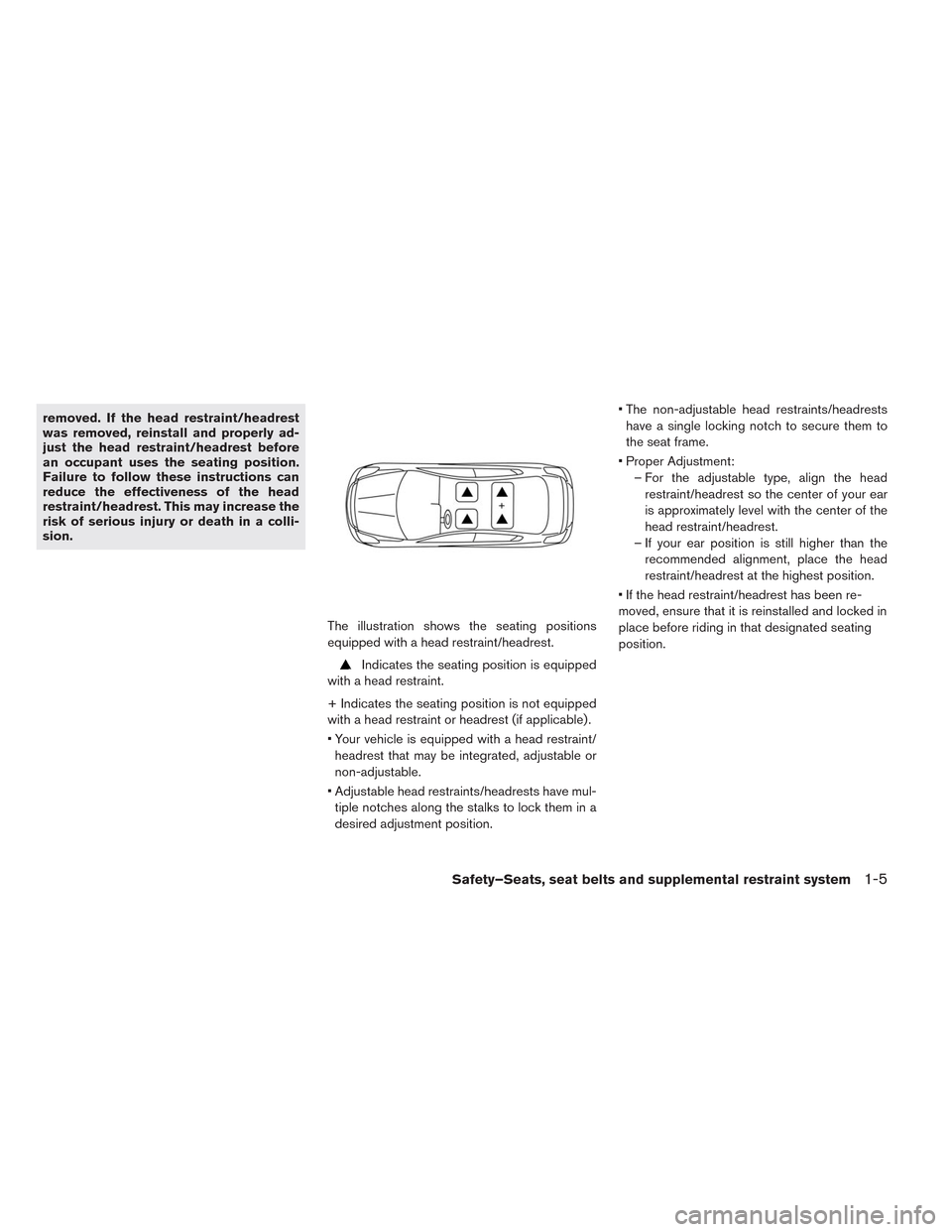

The illustration shows the seating positions
equipped with a head restraint/headrest.
Indicates the seating position is equipped
with a head restraint.
+ Indicates the seating position is not equipped
with a head restraint or headrest (if applicable) .
• Your vehicle is equipped with a head restraint/
headrest that may be integrated, adjustable or
non-adjustable.
• Adjustable head restraints/headrests have mul-
tiple notches along the stalks to lock them in a
desired adjustment position.• The non-adjustable head restraints/headrests
have a single locking notch to secure them to
the seat frame.
• Proper Adjustment:
– For the adjustable type, align the head
restraint/headrest so the center of your ear
is approximately level with the center of the
head restraint/headrest.
– If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
• If the head restraint/headrest has been re-
moved, ensure that it is reinstalled and locked in
place before riding in that designated seating
position.
Safety–Seats, seat belts and supplemental restraint system1-5

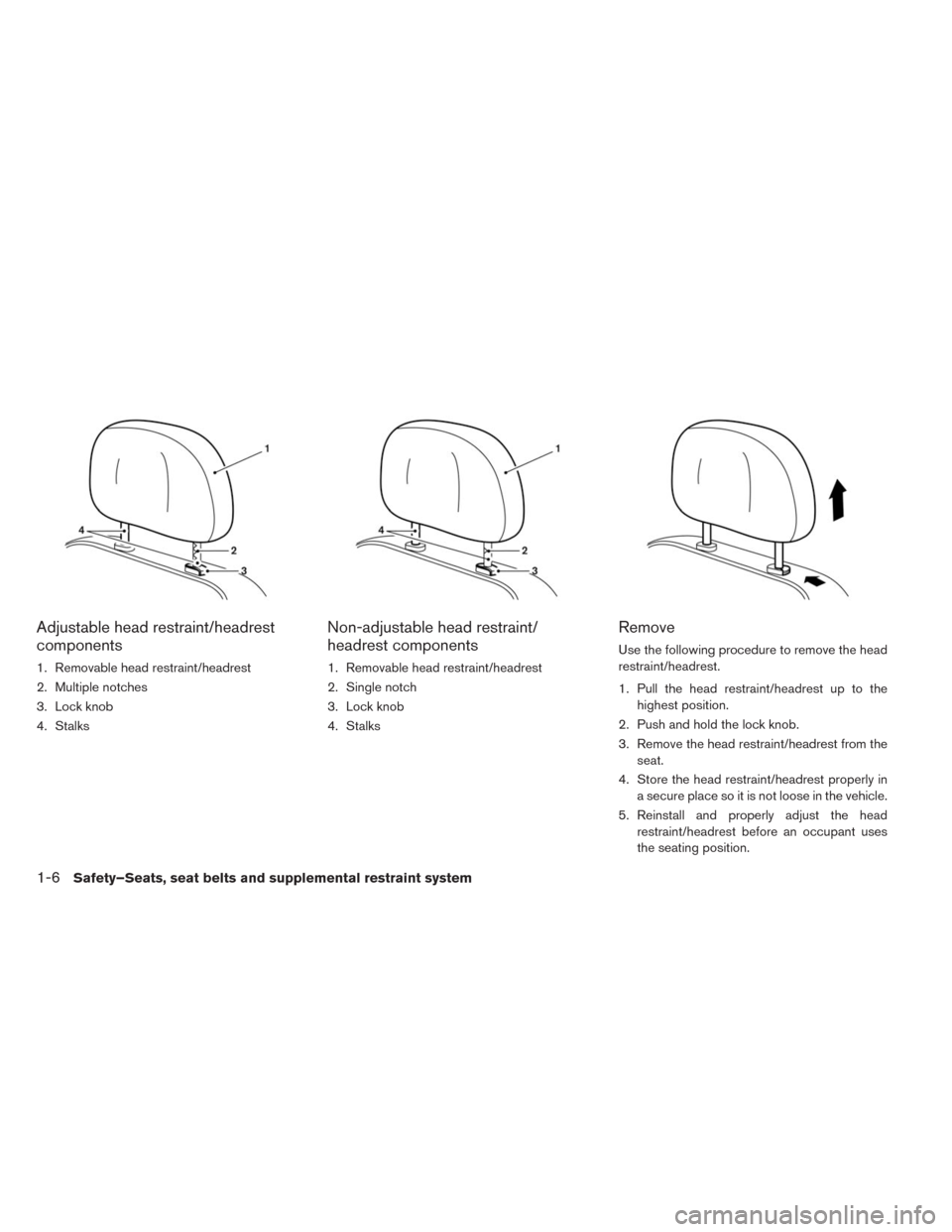

Adjustable head restraint/headrest
components
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
Non-adjustable head restraint/
headrest components
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
Remove
Use the following procedure to remove the head
restraint/headrest.
1. Pull the head restraint/headrest up to the
highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the
seat.
4. Store the head restraint/headrest properly in
a secure place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
1-6Safety–Seats, seat belts and supplemental restraint system

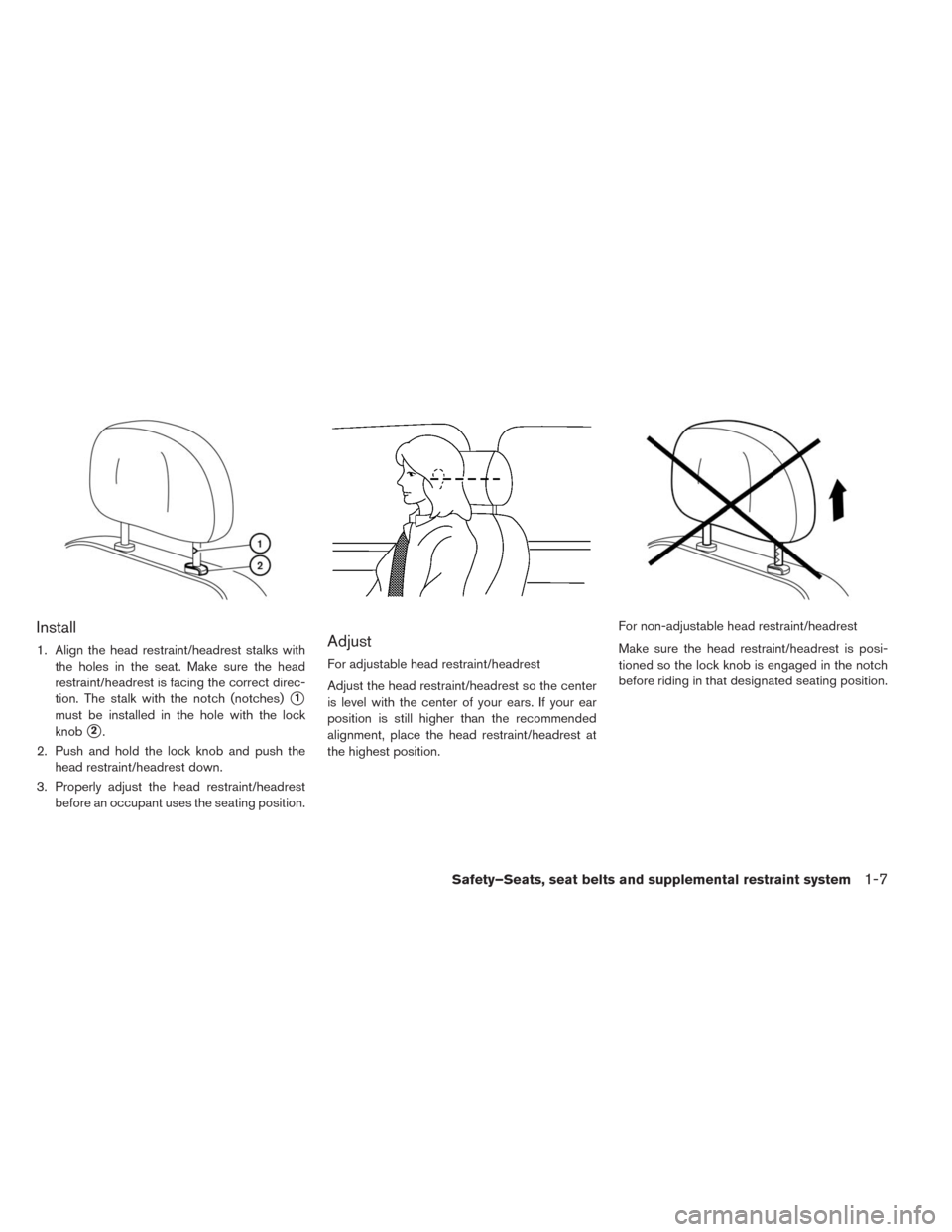

Install
1. Align the head restraint/headrest stalks with
the holes in the seat. Make sure the head
restraint/headrest is facing the correct direc-
tion. The stalk with the notch (notches)
1
must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and push the
head restraint/headrest down.
3. Properly adjust the head restraint/headrest
before an occupant uses the seating position.
Adjust
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
Safety–Seats, seat belts and supplemental restraint system1-7

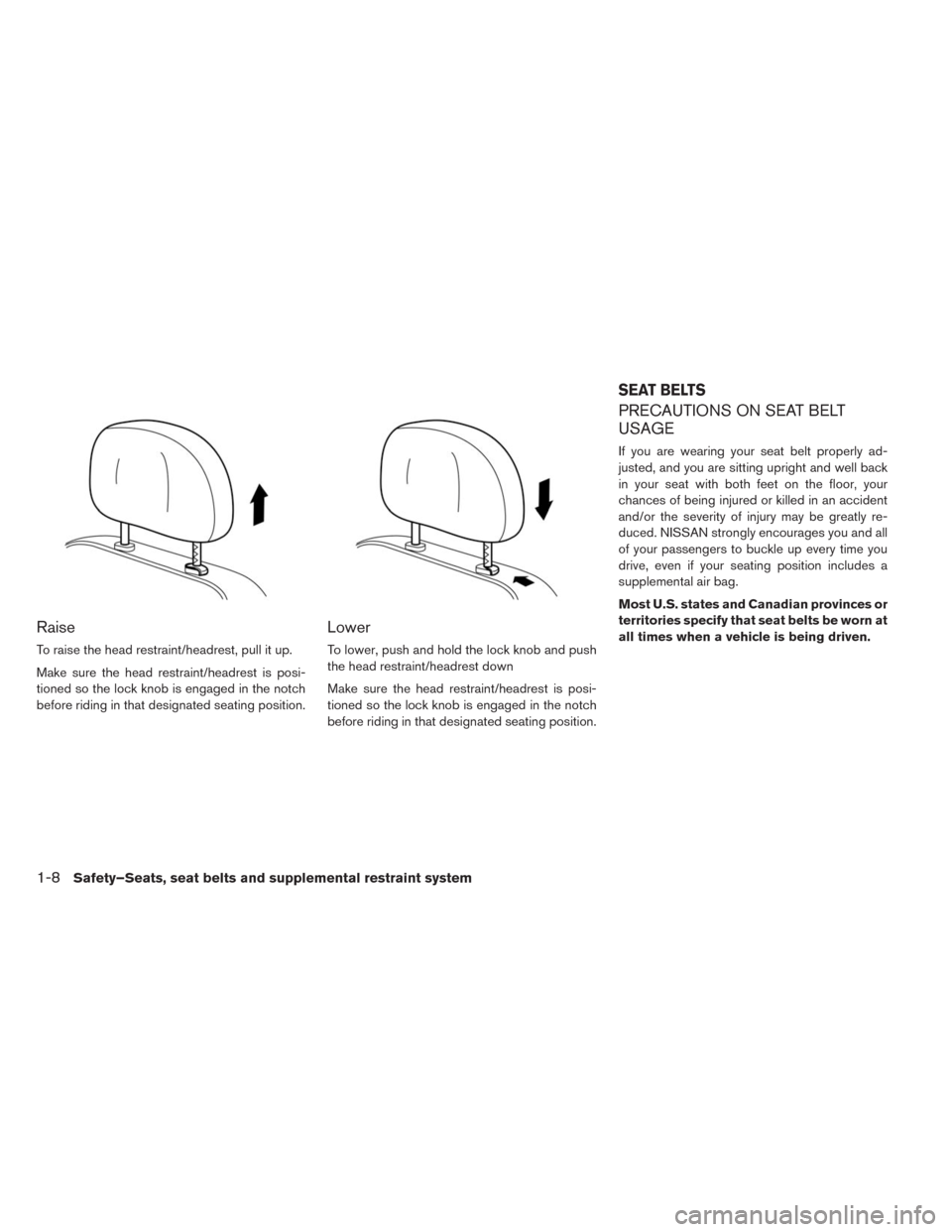

Raise
To raise the head restraint/headrest, pull it up.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
Lower
To lower, push and hold the lock knob and push
the head restraint/headrest down
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly ad-
justed, and you are sitting upright and well back
in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly re-
duced. NISSAN strongly encourages you and all
of your passengers to buckle up every time you
drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.
SEAT BELTS
1-8Safety–Seats, seat belts and supplemental restraint system

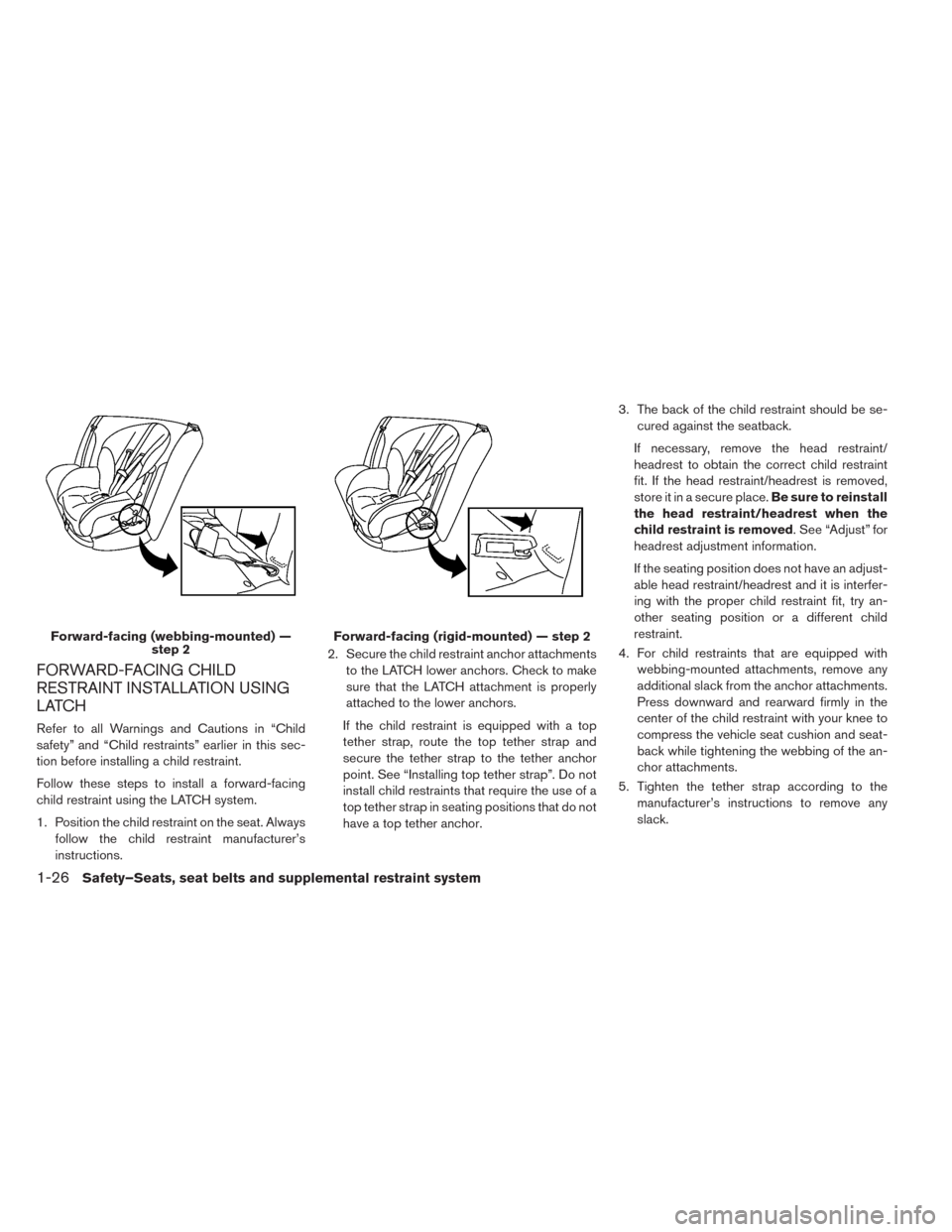

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH
Refer to all Warnings and Cautions in “Child
safety” and “Child restraints” earlier in this sec-
tion before installing a child restraint.
Follow these steps to install a forward-facing
child restraint using the LATCH system.
1. Position the child restraint on the seat. Always
follow the child restraint manufacturer’s
instructions.2. Secure the child restraint anchor attachments
to the LATCH lower anchors. Check to make
sure that the LATCH attachment is properly
attached to the lower anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Installing top tether strap”. Do not
install child restraints that require the use of a
top tether strap in seating positions that do not
have a top tether anchor.3. The back of the child restraint should be se-
cured against the seatback.
If necessary, remove the head restraint/
headrest to obtain the correct child restraint
fit. If the head restraint/headrest is removed,
store it in a secure place.Be sure to reinstall
the head restraint/headrest when the
child restraint is removed. See “Adjust” for
headrest adjustment information.
If the seating position does not have an adjust-
able head restraint/headrest and it is interfer-
ing with the proper child restraint fit, try an-
other seating position or a different child
restraint.
4. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attachments.
Press downward and rearward firmly in the
center of the child restraint with your knee to
compress the vehicle seat cushion and seat-
back while tightening the webbing of the an-
chor attachments.
5. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
Forward-facing (webbing-mounted) —
step 2Forward-facing (rigid-mounted) — step 2
1-26Safety–Seats, seat belts and supplemental restraint system
