2014 NISSAN LEAF audio

Black plate (150,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
4-22Audio system
INFO:
Depending on the audio device that is con-
nected to the vehicle, the name of tracks or
albums may not be displayed.
Next/Previous Track and Fast For-
ward/Rewind
GUID-22130072-5DEF-434A-A733-4DCFEE7C739EPush the TUNE SEEK CH button is pushed for
more than 1.5 seconds while a Bluetooth®audio
file is being played to fast forward or rewind
through the current track. When the TUNE
SEEK CH button is released, the Bluetooth
®
audio device will return to normal play speed.
When theTUNE SEEK CH button is pushed for
less than 1.5 seconds while a Bluetooth
®audio
file is being played, the next track or the
beginning of the current track on the Bluetooth
®
audio device will be played.
Select play modeGUID-32E55180-1302-4E45-9BF5-65291D1A1AD7The play mode setting display will appear when
[Mode] is touched.
Select the preferred play mode from the
following items.
. Shuffle
Choose "Shuffle OFF", "Shuffle All Tracks"
or "Shuffle Group". .
Repeat
Choose "Repeat 1 Track", "Repeat All
Tracks" or "Repeat Group".
Bluetooth®settingsGUID-D7326315-0A0F-426B-977F-9C33579616CBThe Bluetooth®settings can be set in detail to
according to the user’s preference.
LNF0018X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Bluetooth Connections].
3. Touch the item you would like to set.
Available settings
. [Bluetooth]:
If this setting is turned off, the connection
between the Bluetooth
®devices and the in-
vehicle Bluetooth®module will be canceled.
. [Connect Bluetooth]:
Connects to the Bluetooth
®device. Up to 5
devices can be registered. .
[Connected Devices]:
Registered devices are shown on the list.
Select a Bluetooth
®device from the list. The
following options are available.
. [Edit Bluetooth Info]:
Change the name broadcasted by this
system over Bluetooth
®. Change the PIN
code that is entered when connecting a
hands-free device to this system.
AUXILIARY INPUT JACKGUID-9776C08E-803B-4D3E-857D-1723F8FE9887
LNF0019X
The auxiliary input jack is located on the center
console.
The auxiliary input jack accepts any standard
analog audio input such as from a portable
cassette player, CD player or MP3 player.
Before connecting a device to the jack, turn off
the power of the portable device.
Condition: NAM/

Black plate (151,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
When theCD·AUXbutton is pushed with the
system off and a compatible device connected,
the system will turn on. If another audio source is
playing and a compatible device is connected,
push the CD·AUXbutton repeatedly until the
center display changes to the AUX mode.
INFO:
Insert a 1/4 inch (3.5 mm) stereo mini plug in the
auxiliary input jack. If a cable with a mono plug is
used, the audio output may not function
normally.
How to view AUX screenGUID-3A8A4717-B982-4AEC-B5FA-083909A32A94
LNF0020X
Select the volume settings from the following
options.
. Low
. Medium .
High
STEERING WHEEL SWITCHES FOR
AUDIO CONTROL
GUID-8A6FE299-FCD9-40E1-B943-BD5E80FDBC47The audio system can be operated using the
control switches on the steering wheel.
LNF0153X
1. SOURCE button
2. Volume control button
SOURCE buttonGUID-A72FFA6B-91BA-416E-A385-A09861CAB60BPush the SOURCE switch to change the mode
to available audio source.
AM and FM radio:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
stations. .
Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
SiriusXM Satellite Radio:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
channels.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
Pandora
®(if so equipped):
. Tilting down for less than 1.5 seconds will
skip down through the preset channels.
. Tilting up for more than 1.5 seconds will give
a song a thumbs up.
. Tilting down for more than 1.5 seconds will
give a song a thumbs down.
iPod
®:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Pushing the menu control switch will show
the iPod Menu.
CD:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Tilting up/down for more than 1.5 seconds
will fast-forward or rewind through the track.
Audio system4-23
Condition: NAM/

Black plate (152,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
4-24Audio system
.Tilting up/down for more than 1.5 seconds
will skip up or down through the folders (if
playing compressed audio files) .
USB:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Tilting up/down for more than 1.5 seconds
will skip up or down through the folders.
Bluetooth
®Audio:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
Volume control buttonGUID-2498D977-21C2-45E8-9206-E5806F9A475BPush up or down the Volume control button to
increase or decrease the volume.
Condition: NAM/

Black plate (153,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

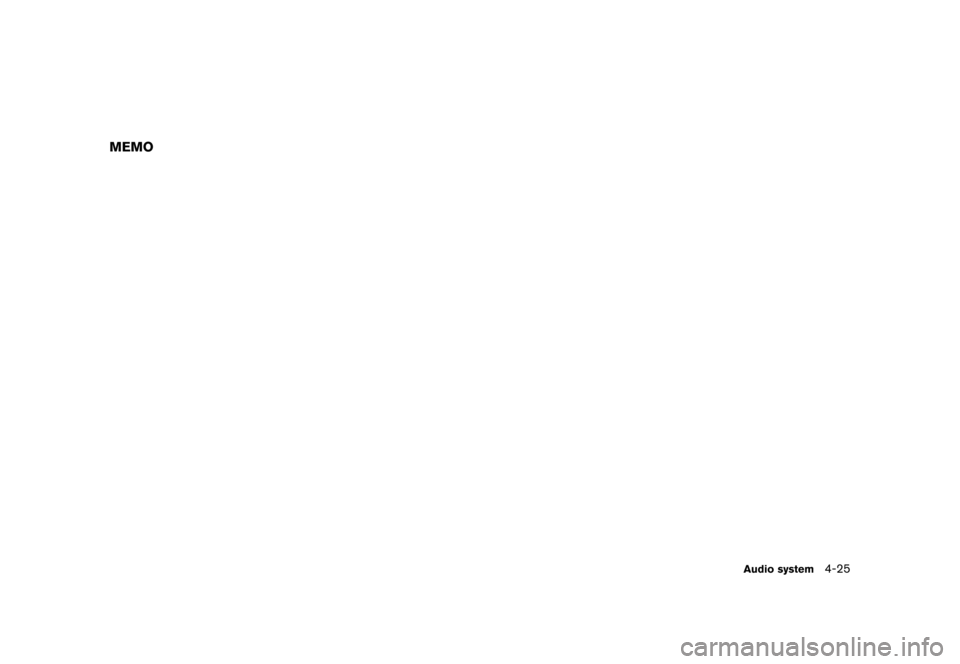

MEMO
Audio system4-25
Condition: NAM/

Black plate (154,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

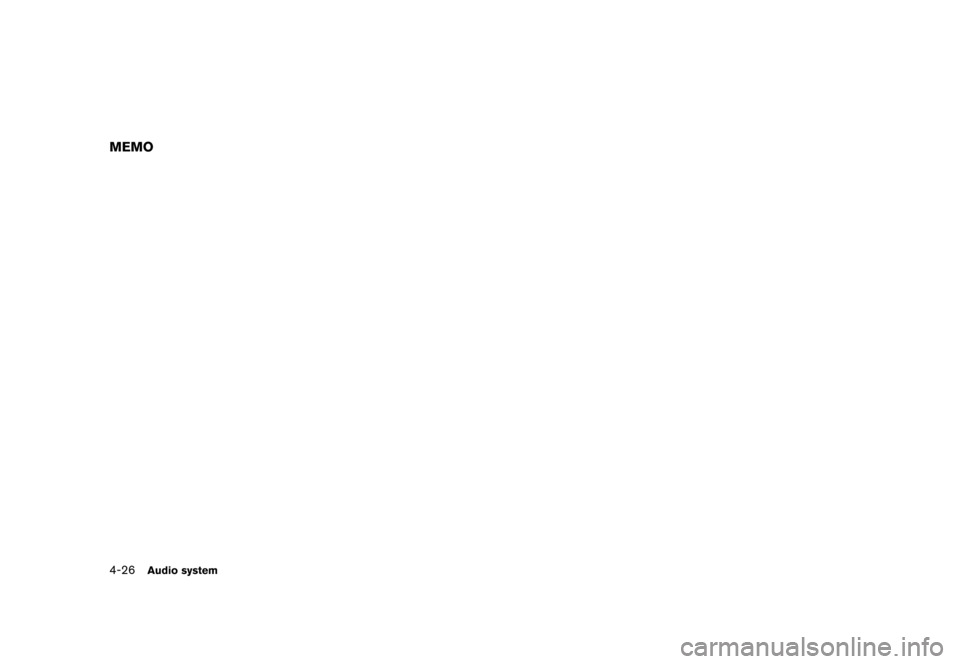

4-26Audio system
MEMO
Condition: NAM/

Black plate (193,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
.Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth
®wireless connection, the
battery power of the cellular phone may
discharge quicker than usual.
. If the Bluetooth
®Hands-Free Phone System
seems to be malfunctioning, please visit
www.nissanusa.com/bluetooth for trouble-
shooting help.
. Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
. Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
. The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
. The battery display on the monitor will not
coincide with the battery display of some
cellular phones. .
Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
. If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.
REGULATORY INFORMATIONGUID-840AD5C0-AA6E-4478-83E4-9D3DC4D5072C
FCC Regulatory informationGUID-77D05CEE-1B1F-4251-A1D7-C3109BD2DE0B.CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
— this device may not cause interference
and
— this device must accept any interference, including interference that may cause
undesired operation of the device
IC Regulatory informationGUID-4EC6610C-03CA-410D-997C-9192EA7CA320. Operation is subject to the following two
conditions:
— this device may not cause interference,
and — this device must accept any interference,
including interference that may cause
undesired operation of the device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth
®trademark:
Bluetooth®is a trademark owned
by Bluetooth®SIG, Inc., and
licensed to Clarion.
CONTROL BUTTON AND MICRO-
PHONE
GUID-85AC7B74-1DD6-44DF-B6D3-E2E5644CE195
LNI0001X
Bluetooth®Hands-Free Phone System7-3
Condition: NAM/

Black plate (204,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
8-2Voice recognition
GUID-FAF38580-C669-4F26-B8D0-7EC58692FC6D
USING VOICE RECOGNITION SYS-
TEM
GUID-1C8F749E-4AF3-47FE-9FE0-7B0B8B8AF458
InitializationGUID-60C8EC21-9C96-4FBC-A946-5937BAB414ECWhen the power switch is pushed to the ON
position, Voice Recognition is initialized, which
takes a few seconds. When completed, the
system is ready to accept voice commands. If
the
button on the steering wheel is pushed
before the initialization completes, the display
will show the message: "Loading Voice Recog-
nition system. Please wait...".
BEFORE STARTINGGUID-17B90F0D-2C92-4147-8CBB-60019E6215D6To get the best recognition performance from
Voice Recognition, observe the following items.
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.), which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
GIVING VOICE COMMANDSGUID-B79272C7-32FE-481D-B7B3-A50FF427C81A1. Push thebutton located on the steering
wheel.
LNK0042X
2. A list of commands appears on the screen,
and the system provides the voice menu
prompt.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until the
preferred operation is completed.
Operating tipsGUID-5EBE1C81-7EAE-4A5C-8323-F92B58DC3259.Speak a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Follow the prompts given by the system. .
If the command is not accepted, the system
announces, “Please say again”. Repeat the
command in a clear voice.
. Push the
button once to return to the
previous screen.
. To cancel the command, push and hold the
button or thebutton on the steering
wheel. The message, “Voice recognition is
canceled” will be announced.
. Push the
button on the steering wheel
to stop the voice prompt and give the
command at once. Remember to wait for
the tone before speaking.
. To adjust the volume of the system feed-
back, push the -
+button on the
steering wheel or use the audio system
volume control knob while the system is
making an announcement.
How to speak numbersGUID-71FDCB5E-F8C6-44F6-B150-DA7EA47CDF74NISSAN Voice Recognition requires the user to
a certain speak numbers in a certain way when
giving voice commands. Refer to the following
examples.
General rule:
Only single digits 0 (zero) to 9 can be used. (For
example, if speaking 500, "five zero zero" can be
used, but "five hundred" cannot.)
NISSAN VOICE RECOGNITION
Condition: NAM/

Black plate (229,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10 Troubleshooting guide/General systeminformation
Troubleshooting guide ...
........................................................... 10-2
Customer assistance ...
....................................................... 10-2
System unit ...
........................................................................\
. 10-2
Unique EV functions ...
........................................................ 10-4
Navigation ...
........................................................................\
... 10-9
CARWINGS
TM...
............................................................... 10-16
Audio system ...
.................................................................. 10-17
Bluetooth
®Hands-Free Phone System ...
................... 10-23
Voice recognition ...
........................................................... 10-26
Monitor system ...
.............................................................. 10-27 General system information
...
.............................................. 10-29
Current vehicle location ...
............................................. 10-29
Route calculation ...
......................................................... 10-32
Route guidance ...
............................................................ 10-34
Notes on Nav Traffic information ...
............................. 10-38
Map data ...
........................................................................\
10-38
How to handle display ...
................................................ 10-42
How to handle the SD card ...
..................................... 10-43
How to handle CD and USB memory ...
................... 10-43
Condition: NAM/
