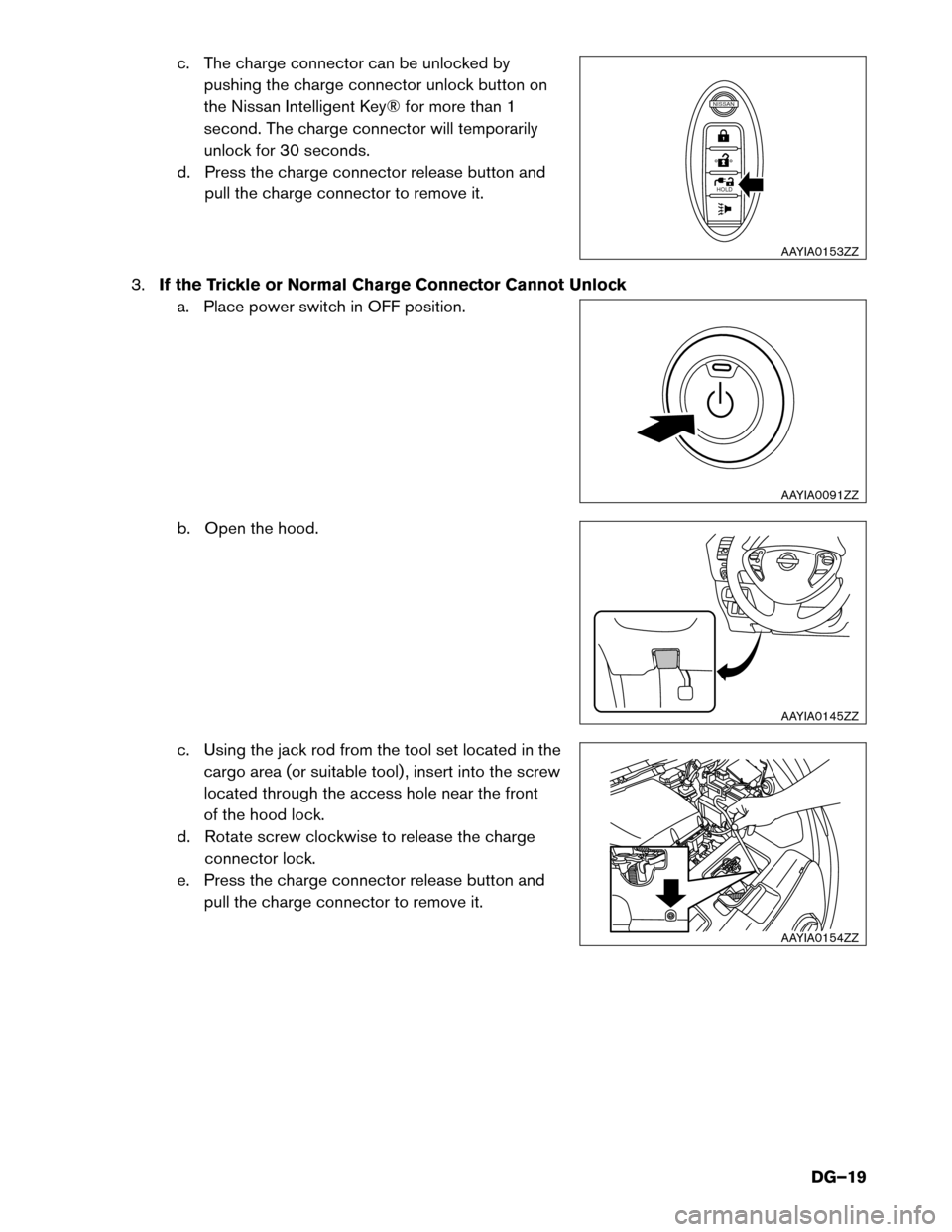

c. The charge connector can be unlocked by
pushing the charge connector unlock button on
the Nissan Intelligent Key® for more than 1
second. The charge connector will temporarily
unlock for 30 seconds.
d. Press the charge connector release button and pull the charge connector to remove it.
3. If the Trickle or Normal Charge Connector Cannot Unlock
a. Place power switch in OFF position.
b. Open the hood.
c. Using the jack rod from the tool set located in the cargo area (or suitable tool) , insert into the screw
located through the access hole near the front
of the hood lock.
d. Rotate screw clockwise to release the charge connector lock.
e. Press the charge connector release button and pull the charge connector to remove it. HOLD
NISSAN
AAYIA0153ZZ
AAYIA0091ZZ
AAYIA0145ZZ
AAYIA0154ZZ
DG–19

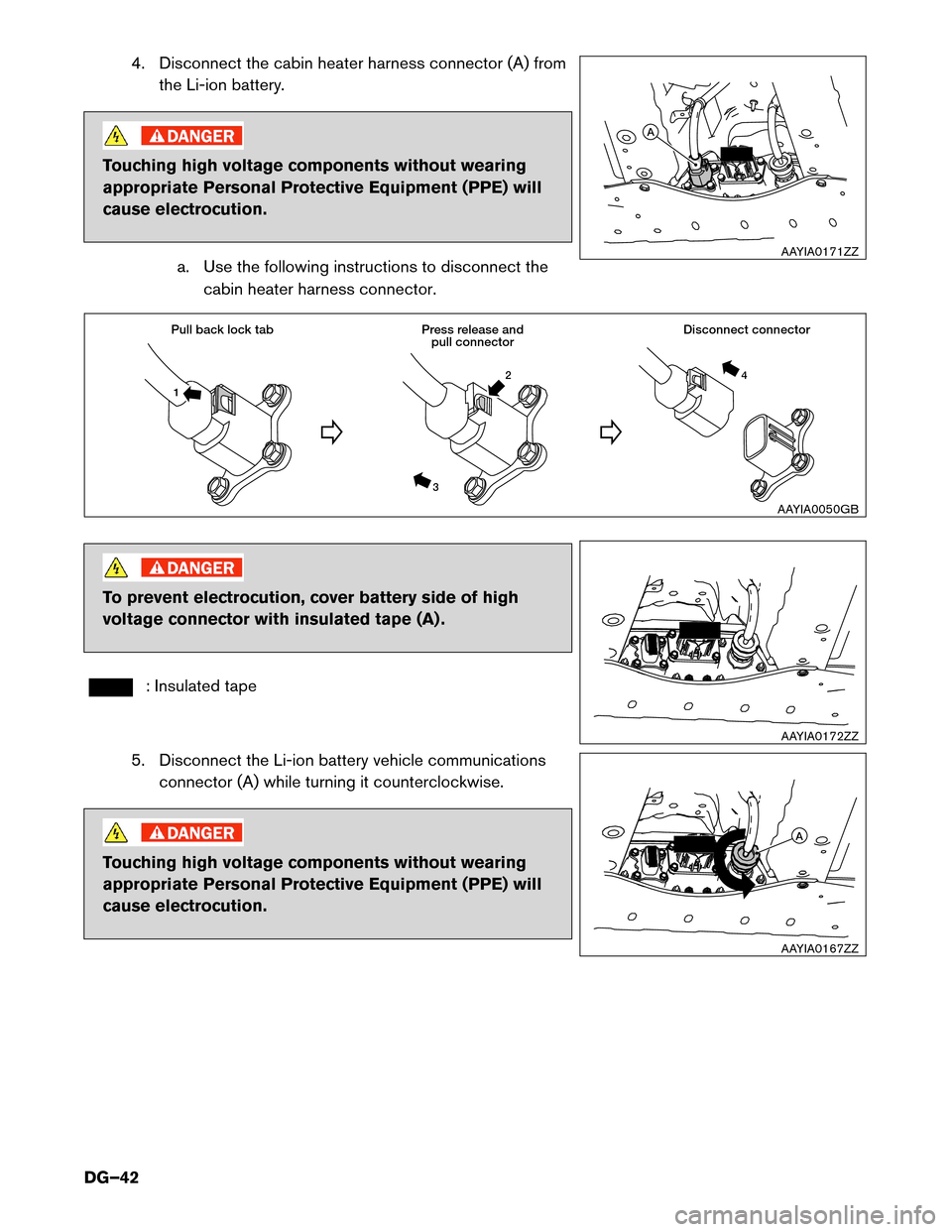

4. Disconnect the cabin heater harness connector (A) from
the Li-ion battery. Touching high voltage components without wearing
appropriate
Personal Protective Equipment (PPE) will
cause electrocution.
a. Use the following instructions to disconnect thecabin heater harness connector. To prevent electrocution, cover battery side of high
voltage
connector with insulated tape (A) . : Insulated tape
5.
Disconnect the Li-ion battery vehicle communications
connector (A) while turning it counterclockwise. Touching high voltage components without wearing
appropriate
Personal Protective Equipment (PPE) will
cause electrocution.
A
AAYIA0171ZZ 1
3 4
2
Pull back lock tab
Press release and
pull connector
Disconnect connector
AAYIA0050GB AAYIA0172ZZ
A
AAYIA0167ZZ
DG–42
