2014 NISSAN GT-R jacking

6. Have all passengers get out of the vehicleand stand in a safe place, away from traffic
and clear of the vehicle.
For the tire removing procedure, see the
following section. (
“Jacking vehicle and
removing wheels” page 8-43)
The following circumstances indicate that the
battery is discharged.
. The starter motor does not turn or it turns
weakly and the engine does not start.
. The vehicle lights are much dimmer than
usual.
. The sound of the horn is weak. The horn
makes no sound.
NOTICE
When the battery is discharged, do not
close either of the front doors. The
automatic window adjusting function
will not work, and the side roof panel
may be damaged.
To start your engine with a booster battery, the
instructions and precautions below must be
followed.
For the battery maintenance information, see the
following section. (
“Battery” page 8-17)
WARNING
. If done incorrectly, jump starting
can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.
. Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.
. Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulphuric acid solution
which can cause severe burns. If the
fluid should come into contact with
anything, immediately flush the con-
tacted area with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
. Whenever working on or near a
battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
In case of emergency6-5

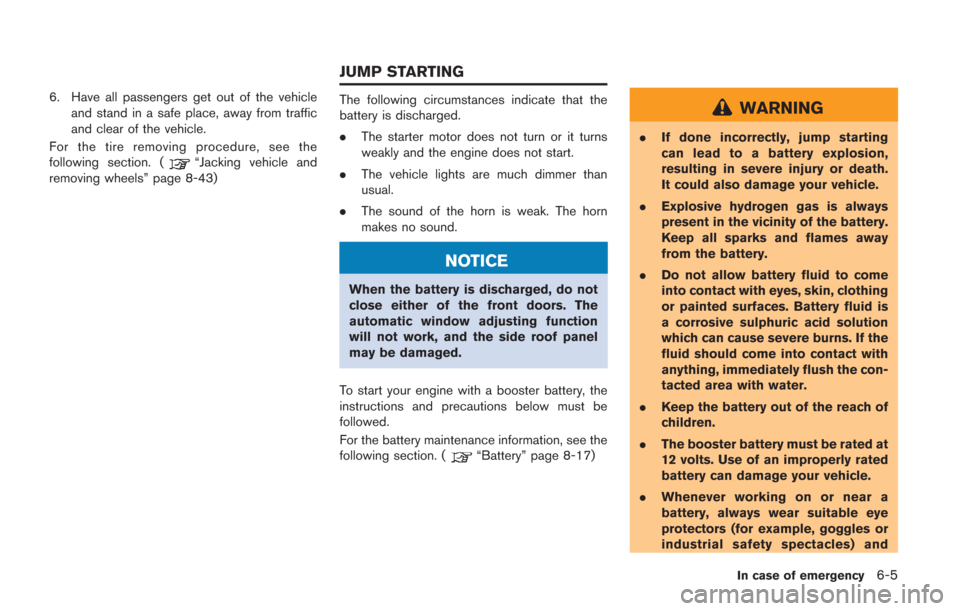

JUMP STARTING

Tire labeling ...................................................................... 8-36
Types of tires .................................................................... 8-38
Tire chains ........................................................................\
. 8-40 Changing wheels and tires ......................................... 8-40
Jacking vehicle and removing wheels ...................... 8-43

to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the War-
ranty Information Booklet.
Care of wheels
(“Cleaning exterior” page 7-2)

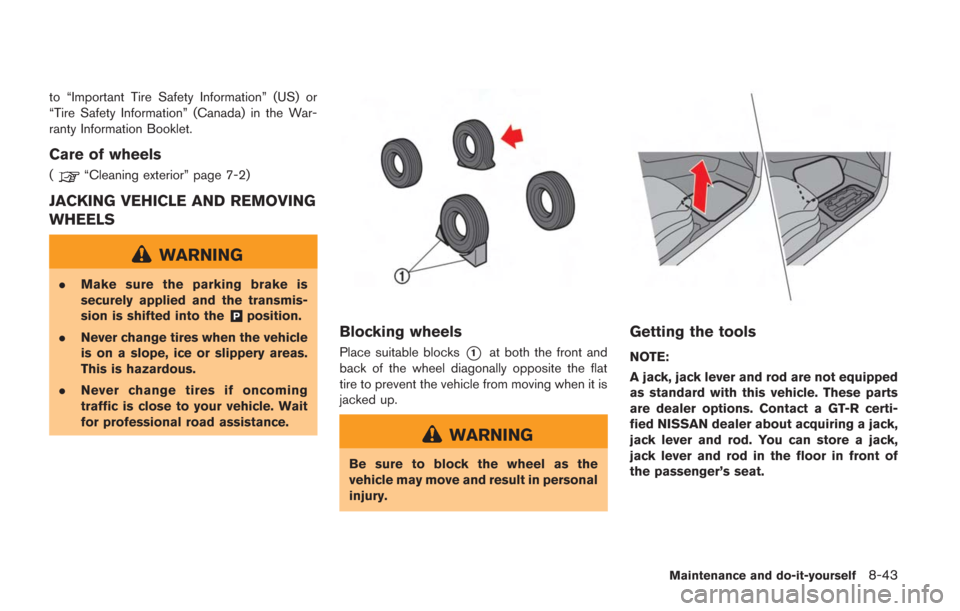

JACKING VEHICLE AND REMOVING
WHEELS
WARNING
.Make sure the parking brake is
securely applied and the transmis-
sion is shifted into the
&Pposition.
. Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never change tires if oncoming
traffic is close to your vehicle. Wait
for professional road assistance.
Blocking wheels
Place suitable blocks*1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it is
jacked up.
WARNING
Be sure to block the wheel as the
vehicle may move and result in personal
injury.
Getting the tools
NOTE:
A jack, jack lever and rod are not equipped
as standard with this vehicle. These parts
are dealer options. Contact a GT-R certi-
fied NISSAN dealer about acquiring a jack,
jack lever and rod. You can store a jack,
jack lever and rod in the floor in front of
the passenger’s seat.
Maintenance and do-it-yourself8-43

8-44Maintenance and do-it-yourself
CAUTION
After using the tools, put them back in
their original places. An accident may
occur if you leave them in the car
unsecured.
Jacking up the vehicle and removing
the tire
WARNING
.Never get under the vehicle while it
is supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use the correct jack-up points.
Never use any other part of the
vehicle for jack support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the
jack.
. Do not start or run the engine while
vehicle is on the jack, as it may
cause the vehicle to move. This is
especially true for vehicles with limited slip differentials.
. Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the caution label attached
to the jack body and the following instruc-
tions.
Jack-up point
1. Place the jack directly under the jack-up point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
The jack should be used on level firm
ground.

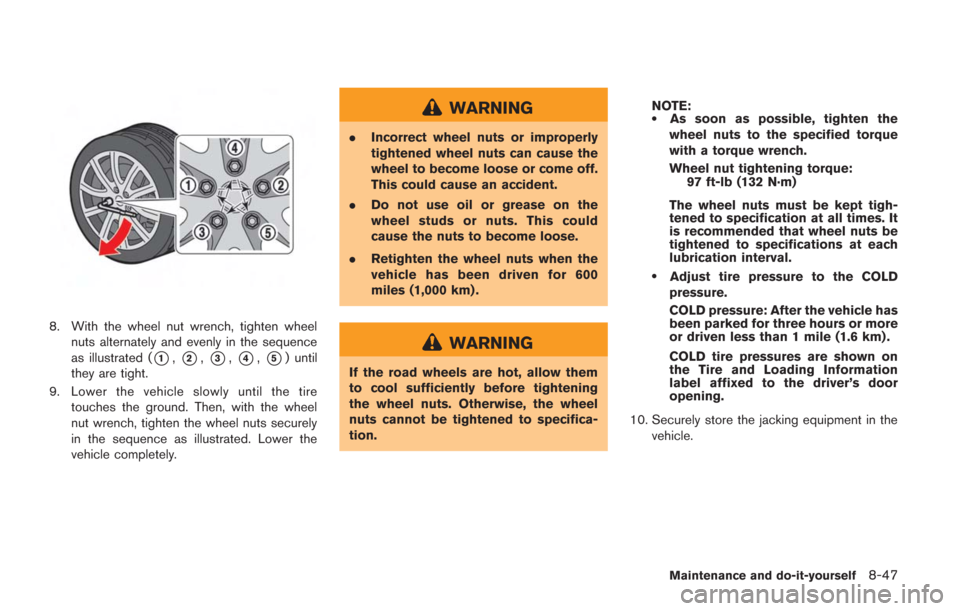

8. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the sequence
as illustrated (
*1,*2,*3,*4,*5) until
they are tight.
9. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence as illustrated. Lower the
vehicle completely.
WARNING
.Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.
. Do not use oil or grease on the
wheel studs or nuts. This could
cause the nuts to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600
miles (1,000 km) .
WARNING
If the road wheels are hot, allow them
to cool sufficiently before tightening
the wheel nuts. Otherwise, the wheel
nuts cannot be tightened to specifica-
tion. NOTE:
.As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque: 97 ft-lb (132 N·m)
The wheel nuts must be kept tigh-
tened to specification at all times. It
is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLD
pressure.
COLD pressure: After the vehicle has
been parked for three hours or more
or driven less than 1 mile (1.6 km) .
COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver’s door
opening.
10. Securely store the jacking equipment in the vehicle.
Maintenance and do-it-yourself8-47

10-4
J
Jacking vehicle and removing wheels.................... 8-43
Jump starting....................................................... 6-5, 8-19
K
KeyIntelligent Key........................................................... 3-2
Intelligent Key battery discharge...................... 5-11
Intelligent Key battery discharge indicator..... 2-44
Intelligent Key battery replacement ................. 8-27
Intelligent Key functions......................................... 3-9
Intelligent Key insertion indicator ..................... 2-44
Intelligent Key removal indicator....................... 2-44
Intelligent Key system ............................................ 3-8
Keys............................................................................ 3-2
Locking with mechanical key................................ 3-6
No key warning..................................................... 2-41
Remote keyless entry functions........................ 3-12
L
Larger children............................................................. 1-15
LightAWD warning light .............................................. 5-40
Exterior and interior lights .................................. 8-30
Headlight and turn signal switch ..................... 2-50
Headlight switch................................................... 2-50
Headlights.............................................................. 8-30
Indicator lights....................................................... 2-62
Interior light control switch ................................ 2-62 Interior lights.......................................................... 2-62
Lights....................................................................... 8-29
Map lights .............................................................. 2-62
Supplemental air bag warning light................. 1-47
Vanity mirror lights ............................................... 2-63
Warning lights....................................................... 2-25
Warning/indicator lights and
audible reminders................................................. 2-25
Xenon headlights.................................................. 2-50
Limited Slip Differential.............................................. 5-44
Loading tips.................................................................. 9-16
Lock Anti-lock Braking System................................... 5-48
Anti-lock Braking System warning................... 2-37
Automatic door lock system................................. 3-5
Freeing a frozen door lock................................. 5-51
Locking with inside lock knob ............................. 3-5
Locking with mechanical key................................ 3-6
Locking with power door lock switch................ 3-5
Steering lock release malfunction indicator.... 2-43
Low brake fluid warning ............................................ 2-36
Low fuel warning......................................................... 2-40
Low tire pressure warning ........................................ 2-39
Low washer fluid warning......................................... 2-41
Lower anchors and tethers for children system.... 1-17
M
Maintenance Explanation of maintenance items ...................... 8-4
General maintenance .................................... 8-3, 8-4 Maintenance information ................................. GTR-3
Maintenance precautions...................................... 8-6
Maintenance requirement...................................... 8-3
Readiness for
Inspection/Maintenance test ............................. 9-20
Scheduled maintenance........................................ 8-3
Seat belt maintenance........................................ 1-13
Map lights ..................................................................... 2-62
Measurement of weights........................................... 9-16
Meters and gauges....................................................... 2-5
Mirror Inside mirror........................................................... 3-27
Mirrors..................................................................... 3-27
Outside mirrors..................................................... 3-28
Vanity mirror........................................................... 3-29
Vanity mirror lights ............................................... 2-63
Most common factors contributing to
vehicle corrosion ........................................................... 7-8
Multi function display Owner’s Manual ................... 4-2
N
NISSAN Advanced Air Bag System ...................... 1-40
NISSAN Vehicle Immobilizer System..................... 2-46
No key warning............................................................ 2-41
Noises are heard while driving .......................... GTR-25
O
Odometer/twin trip odometer .................................... 2-6
Off-road recovery.......................................................... 5-7
