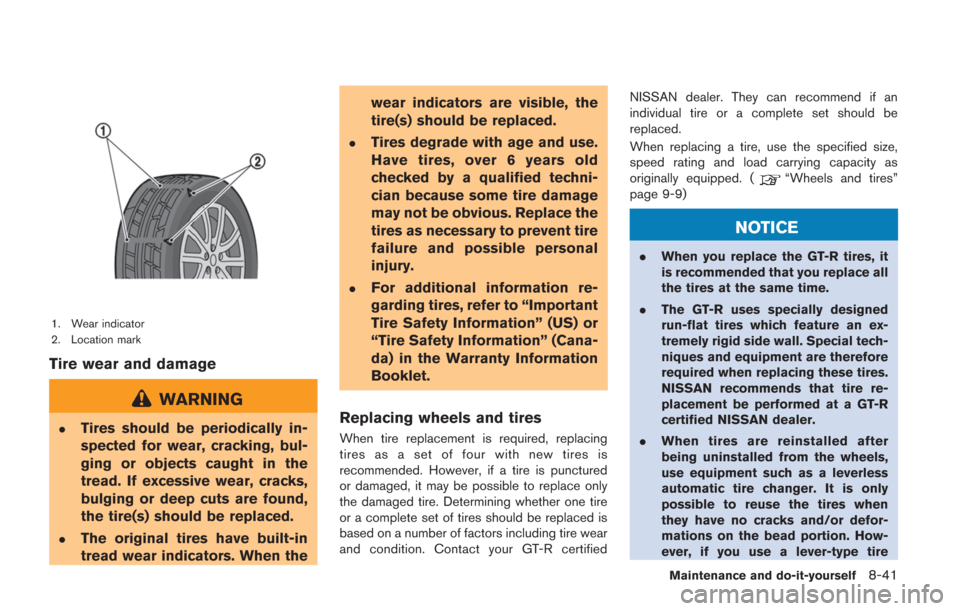

2014 NISSAN GT-R tire type

1. Wear indicator
2. Location mark
Tire wear and damage
WARNING
.Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.
.The original tires have built-in
tread wear indicators. When thewear indicators are visible, the
tire(s) should be replaced.
.Tires degrade with age and use.
Have tires, over 6 years old
checked by a qualified techni-
cian because some tire damage
may not be obvious. Replace the
tires as necessary to prevent tire
failure and possible personal
injury.
.For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
Replacing wheels and tires
When tire replacement is required, replacing
tires as a set of four with new tires is
recommended. However, if a tire is punctured
or damaged, it may be possible to replace only
the damaged tire. Determining whether one tire
or a complete set of tires should be replaced is
based on a number of factors including tire wear
and condition. Contact your GT-R certified NISSAN dealer. They can recommend if an
individual tire or a complete set should be
replaced.
When replacing a tire, use the specified size,
speed rating and load carrying capacity as
originally equipped. (
“Wheels and tires”
page 9-9)
NOTICE
. When you replace the GT-R tires, it
is recommended that you replace all
the tires at the same time.
. The GT-R uses specially designed
run-flat tires which feature an ex-
tremely rigid side wall. Special tech-
niques and equipment are therefore
required when replacing these tires.
NISSAN recommends that tire re-
placement be performed at a GT-R
certified NISSAN dealer.
. When tires are reinstalled after
being uninstalled from the wheels,
use equipment such as a leverless
automatic tire changer. It is only
possible to reuse the tires when
they have no cracks and/or defor-
mations on the bead portion. How-
ever, if you use a lever-type tire
Maintenance and do-it-yourself8-41

8-42Maintenance and do-it-yourself
changer, cracks and deformation
may occur on the bead portion of
the tires meaning that the tires
cannot be reused.
. Make sure the tire valve stem cap is
installed and that the valve stem is
tight. When installing the cap, make
sure to tighten the cap by hand. If a
tool is used to tighten the cap, the
cap may be damaged.
WARNING
.The use of tires other than those
specified or the mixed use of tires of
different brands, construction (bias,
bias-belted, radial or run-flat) , or
tread patterns can adversely affect
the ride, braking, VDC system, hand-
ling, ground clearance, body-to-tire
clearance, tire chain clearance,
speedometer calibration, headlight
aim and bumper height. Some of
these effects may lead to accidents
and could result in serious personal
injury.
. If the wheels are changed for any
reason, always replace with wheels which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics, affect the VDC system and/or
cause interference with the brake
discs. Such interference can lead to
decreased braking efficiency and/or
early brake pad wear. (
“Wheels
and tires” page 9-9)
. When a wheel is replaced, tire
pressure will not be indicated, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute and
remain on after the 1 minute. Con-
tact a GT-R certified NISSAN dealer
as soon as possible for tire replace-
ment and/or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not install a damaged or de-
formed wheel or tire even if it has
been repaired. Such wheels or tires
could have structural damage and
could fail without warning. .
Never use retread tires.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in the
Warranty Information Booklet.
. Always use tires of the specified
type, size, brand, construction (bias,
bias-belted, radial or run-flat) , and
tread pattern on all four wheels.
Failure to do so may result in a
circumference difference between
tires on the front and rear axles
which will cause excessive tire wear
and may damage the transmission,
transfer case and differential gears.
Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
the rear wheels on the vehicle could lead to
mechanical damage.
For additional information regarding tires, refer

WHEELS AND TIRES
Tire
TypeSize Pressure PSI (kPa) [Cold]
Summer Front: 255/40ZRF20 (97Y)
29 (200)
Rear: 285/35ZRF20 (100Y)
All-season Front: 255/40RF20 97W
29 (200)
Rear: 285/35RF20 100W
Make sure to use the specific tires for GT-R. See the 2014 Warranty Information Booklet for the
applicable exclusions. Refer to the following table for the details of applicable tires.
Summer tire
All-season tire Winter tire
DUNLOP SP
SPORT MAXX GT
600 DSST CTT DUNLOP SP
SPORT
600 DSST BRIDGESTONE
POTENZARE070R
(without “R2” mark) BRIDGESTONE
POTENZARE070R
(with “R2” mark) DUNLOP SP
SPORT 7010 DUNLOP SP
SPORT WINTER 3D DSST CTT
666*
◎: Applicable as a standard or option
6: Not applicable
*: GT-R specified tire recommended by a GT-R certified NISSAN dealer
PRECAUTIONS FOR TIRE REPLACEMENT
. Use “DUNLOP SP SPORT MAXX GT 600
DSST CTT” tires for 2014 model year
NISSAN GT-R.
. “DUNLOP SP SPORT 600 DSST” tires and
any BRIDGESTONE tires cannot be used.
Contact your GT-R certified NISSAN dealer to
obtain information regarding the best replace-
ment tire for your model GT-R.
Technical and consumer information9-9

9-10Technical and consumer information
*1BRIDGESTONE Tire identification stamp *1
*1: A tire identification mark is stamped by the
side of the letters “BRIDGESTONE POTENZA
RE070R” on the tire’s sidewall as indicated in
the illustration.
Road wheel
Type Size Offset in (mm)
Aluminum Front: 20
69-1/2J 1.77 (45)
Rear: 20 610-1/2J 0.98 (25)
Make sure to use the specific road wheels for GT-R. See the 2014 Warranty Information Booklet for
the applicable exclusions. Refer to the following table for the details of applicable wheels.
GT-R specified
road wheels
(10 spoke wheels) *1 GT-R specified
road wheels
(6 spoke wheels) GT-R specified
road wheels
(7 spoke wheels) *2
GT-R Pure edition
* 6
GT-R Black edition *
6
GT-R Premium edition
* 6
◎: Applicable as standard or an option
*: Suitable
6: Not applicable
*1 For 2014 model year
*2 For 2011 model year and prior
