2014 NISSAN ALTIMA tow

●Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum combined
weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire and
Loading Information label.
● Cargo capacity - permissible weight
of cargo, the subtracted weight of
occupants from the load limit.VEHICLE LOAD CAPACITY
Do not exceed the load limit of your ve-
hicle shown as “The combined weight of
occupants and cargo” on the Tire and
Loading Information label. Do not exceed
the number of occupants shown as
“Seating Capacity” on the Tire and Load-
ing Information label.
To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total luggage
weight. Examples are shown in the follow-
ing illustration.
9-14
Technical and consumer information

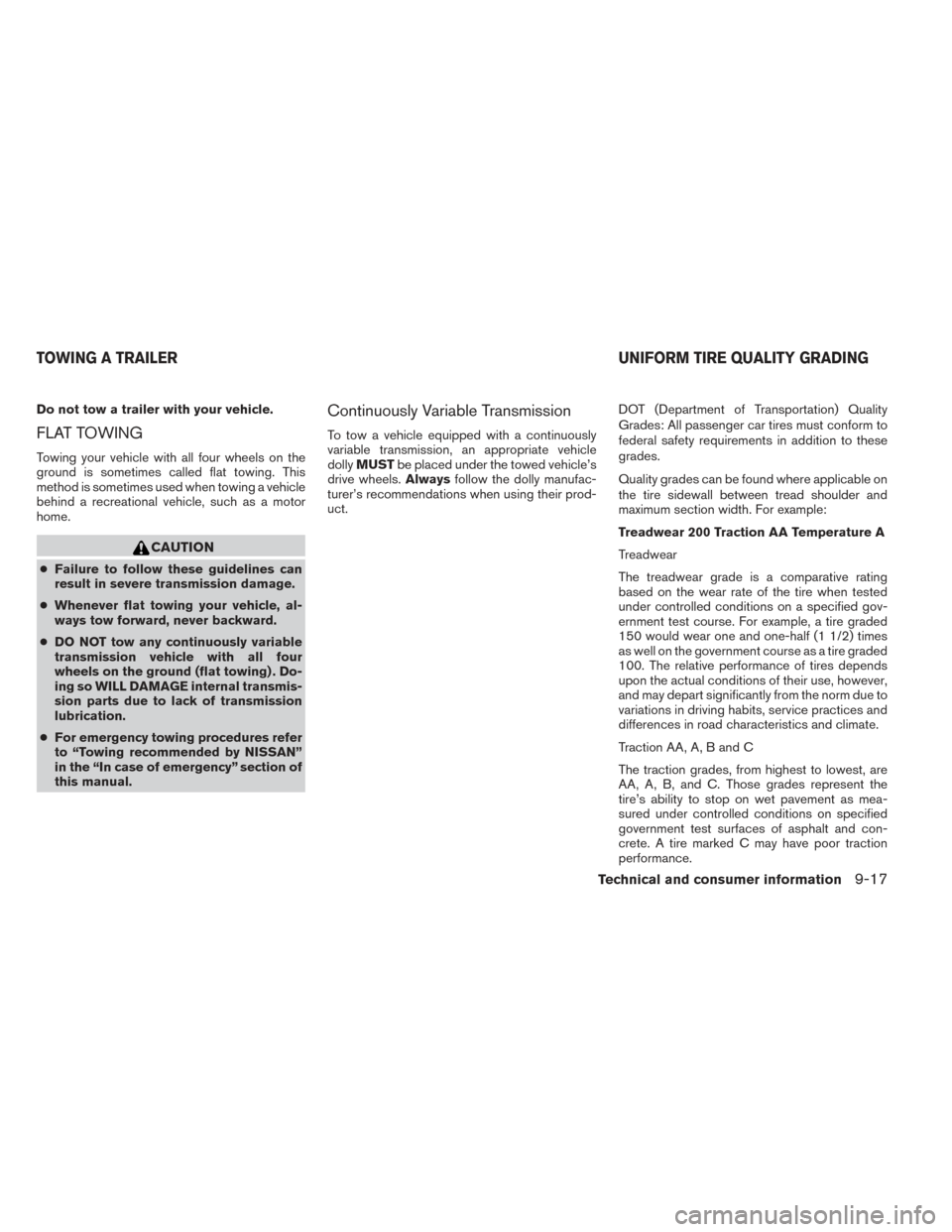

Do not tow a trailer with your vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
●Failure to follow these guidelines can
result in severe transmission damage.
● Whenever flat towing your vehicle, al-
ways tow forward, never backward.
● DO NOT tow any continuously variable
transmission vehicle with all four
wheels on the ground (flat towing) . Do-
ing so WILL DAMAGE internal transmis-
sion parts due to lack of transmission
lubrication.
● For emergency towing procedures refer
to “Towing recommended by NISSAN”
in the “In case of emergency” section of
this manual.
Continuously Variable Transmission
To tow a vehicle equipped with a continuously
variable transmission, an appropriate vehicle
dolly MUST be placed under the towed vehicle’s
drive wheels. Alwaysfollow the dolly manufac-
turer’s recommendations when using their prod-
uct. DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
TOWING A TRAILER
UNIFORM TIRE QUALITY GRADING
Technical and consumer information9-17

SwitchAutolightswitch...............2-33
Automatic power window switch ......2-45
Foglightswitch ...............2-35
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-31
Headlightcontrolswitch ..........2-32
Power door lock switch ............3-6
Rear window and outside mirror defroster
switch.....................2-30
Turnsignalswitch..............2-35
Vehicle dynamic control (VDC) off
switch.....................2-38
Windshield wiper and washer switch . . .2-29
T
Tachometer ....................2-4
Temperature gauge Engine coolant temperature gauge .....2-5
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-28,3-4,5-11
Three-way catalyst ................5-2
Tire Flat tire .....................6-3
Spare tire ................6-4,8-48
Tire and Loading Information label .....9-12
Tire chains ..................8-44
Tireplacard..................9-12
Tirepressure.................8-36
Tire rotation..................8-45
Types of tires .................8-43
Uniform tire quality grading .........9-17
Wheels and tires ...............8-36
Wheel/tire size .................9-9 Tire pressure
Low tire pressure warning light .......2-12
Tire Pressure Monitoring System (TPMS) ....5-3
Towing Flattowing..................9-17
Towtrucktowing...............6-11
Trailer towing .................9-17
Transceiver HomeLink® Universal Transceiver .....2-50
Transmission Continuously Variable Transmission
(CVT) fluid ..................8-13
Driving with Continuously Variable
Transmission (CVT) .............5-13
Shiftselectorlockrelease..........5-17
Travel (See registering your vehicle in another
country) ......................9-10
Trip odometer ...................2-4
Trunk access through the rear seat .......1-5
Trunk lid lock opener lever ............3-28
Trunklight ....................2-49
Turn signal switch ................2-35
U
Uniform tire quality grading ...........9-17
USB interface Audio file operation ..........4-66,4-68
V
Vanity mirror ...................3-34
Variable voltage control system .........8-19
Vehicle dimensions and weights .........9-9Vehicle dynamic control (VDC) off switch . . .2-38
Vehicle dynamic control (VDC) system
.....5-33
Vehicle identification ...............9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate ....9-10
Vehicleloadinginformation...........9-13
Vehicle recovery .................6-12
Vehicle security system .............2-27
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start ......2-28,3-4,5-11
Ventilators ....................4-22
Visors.......................3-34
Voice recognition system ...........4-114
W
Warning A
irbagwarninglight.........1-57, 2-14
Anti-lock brake warning light .....2-10,2-11
Battery charge warning light ........2-11
Brake warning light .............2-11
Hazard warning flasher switch ........6-2
Low fuel warning light ........2-13, 2-25
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light......................2-26
Passenger air bag and status light .....1-51
Seatbeltwarninglight............2-14
Vehicle security system ...........2-27
Warning/indicator lights and audible
reminders...................2-10
Warning labels (for SRS) ..........1-56
Warninglights..................2-10
10-6
