2014 NISSAN ALTIMA bulb

FOG LIGHTS (if so equipped)
Replacing the fog light bulb
LDI2144
8-30Maintenance and do-it-yourself

1. Disconnect the negative battery cable.
2. Remove the fasteners
A; carefully pull back
the front fender protector .
3. Rotate the bulb
Bcounterclockwise and
pull out to remove.
Reverse steps to install.
Maintenance and do-it-yourself8-31

PARK/TURN SIGNAL LIGHTS
Replacing the park/turn signal bulb
LDI2137
8-32Maintenance and do-it-yourself

1. Disconnect the negative battery cable.
2. Remove the fasteners
A; carefully pull back
the front fender protector.
3. Rotate the bulb
Bcounterclockwise and
pull out to remove.
EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.*1
Headlight assembly *2
Low (Halogen) 55H11
Low (Xenon) 35D2S
High 65H9
Sidemarker 5W5W
Door mirror turn signal light (if so equipped) *
2——
Park/ Turn signal light 28/87444A
Front fog light (if so equipped) 55H11
Day time running lights (Canada only) 19PS19W
Step light 3.8194 C HTEI
Rear combination light *
2
Tail/Stop — / 21/5—/ 3156AK
Turn 273156AK
Rear sidemarker ——
Backup (reversing) 16921
License plate light *
25 W5W
High-mounted stop light *2
Inside ——
Spoiler ——
Front map light *
2——
Rear personal light 8U88
Trunk light 3.4158
Vanity mirror light —HTU–14v
Glove box light *
2——
Console light *2——
*1Always check with the Parts Department at a NISSAN dealer for the latest parts information.
*
2See a NISSAN dealer for assistance.
Maintenance and do-it-yourself8-33

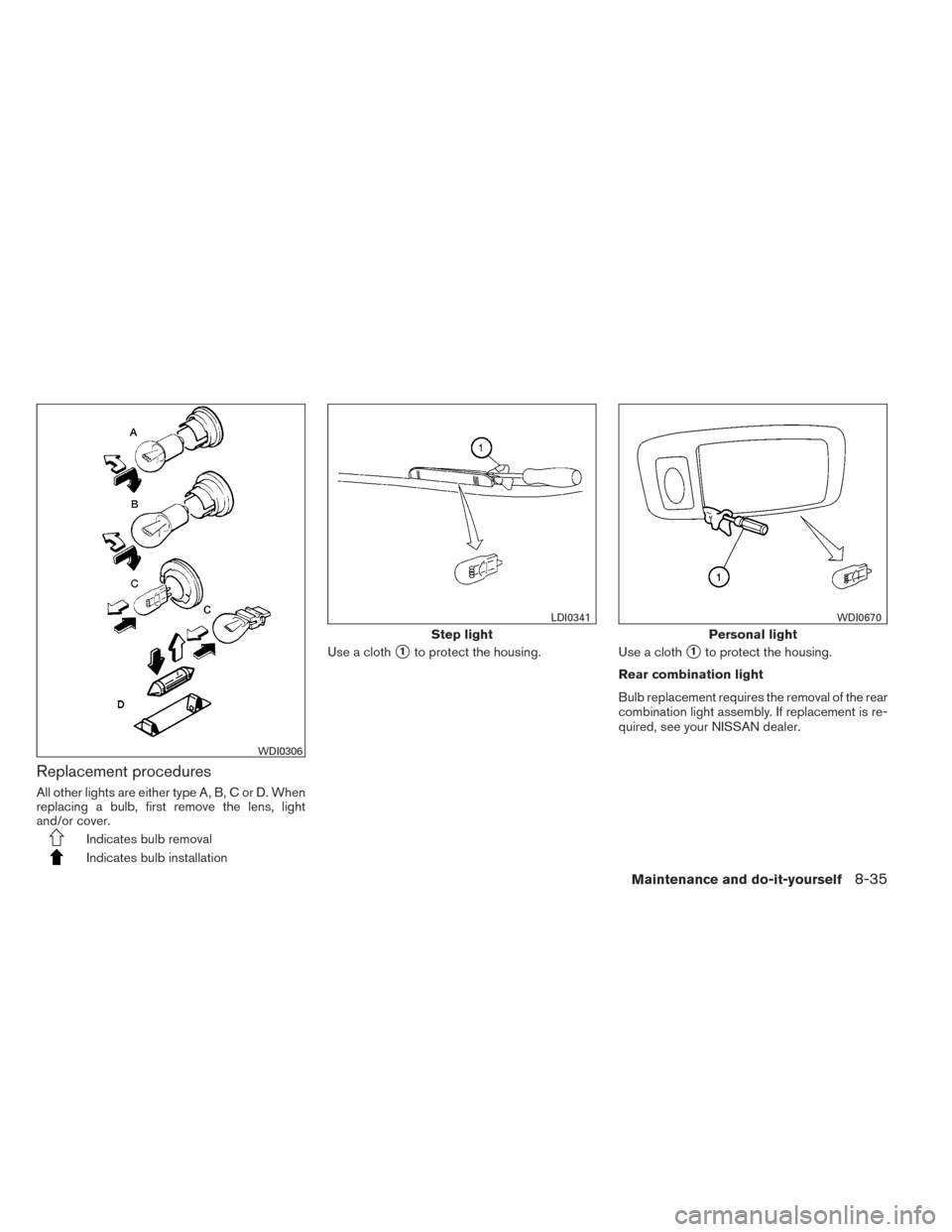

Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, light
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth
1to protect the housing.
Use a cloth1to protect the housing.
Rear combination light
Bulb replacement requires the removal of the rear
combination light assembly. If replacement is re-
quired, see your NISSAN dealer.
WDI0306
Step light
LDI0341
Personal light
WDI0670
Maintenance and do-it-yourself8-35
