2014 MINI Clubman washer fluid

Activating intermittent wipe or rain
sensor
Press the button, arrow 3.
The symbol is shown in the tachometer.
Setting the sensitivity of the rain sensor1.Switch on the ignition, refer to page 44.2.Press the button on the turn indicator lever
repeatedly until "SET/INFO" is displayed.3.Press and hold the button until the display
changes.4.Press the button repeatedly until the sym‐
bol and "SET" are displayed.5.Press and hold the button until the display
changes.6.Press the button to select the desired sensi‐
tivity.7.Wait or hold the button until the display
changes.
The settings were stored.
Deactivating intermittent wipe or rain
sensor
Press the button again, arrow 3.
Cleaning the windshield and headlamps
Pull the lever, arrow 4.
The system sprays washer fluid on the wind‐
shield and activates the wipers briefly.
When the vehicle lighting system is switched
on, the headlamps are cleaned at regular and
appropriate intervals.
Do not use the washer system at freezing
temperatures
Do not use the washers if there is any danger
that the fluid will freeze on the windshield; oth‐
erwise, your vision could be obscured. For this
reason, use antifreeze.
Avoid using the washer when the reservoir is
empty; otherwise, you could damage the
pump. ◀
Seite 49DrivingControls49
Online Edition for Part no. 01 40 2 911 429 - VI/13

Do not use the washing facilities when
the hood is open
Only use the washing facilities when the hood
is fully locked; otherwise, the headlamp washer
system may become damaged. ◀
Windshield washer nozzles The windshield washer nozzles are heated au‐
tomatically while the engine is running or the
ignition is switched on.
Rear window wiper0Resting position1Switching on intermittent wipe
Turn the cap to level 1.
When reverse gear is engaged, the system
switches to continuous operation.2Cleaning the rear window with intermittent
wipe
Turn the cap further to level 2 and hold.3Cleaning the rear window in the resting po‐
sition
Turn the cap to level 3 and hold.
The rear window wiper does not move if the
cap is in position 1 before the ignition is
switched on.
To switch on the rear window wiper:
1.Move the cap to its basic position.2.Select the required position again.Do not use the washing mechanisms
when the washer fluid reservoir is empty
Do not use washing mechanisms when the
washer fluid reservoir is empty, otherwise you
will damage the washer pump. ◀
Washer fluid
General information Antifreeze for washer fluid
Antifreeze is flammable and can cause in‐
juries if used improperly.
Therefore, keep it away from sources of igni‐
tion.
Only keep it in the closed original container and
inaccessible to children.
Follow the notes and instructions on the con‐
tainer.
United States: The washer fluid mixture ratio is
regulated by the U.S. EPA and many individual
states; do not exceed the allowable washer
fluid dilution ratios limits that apply. Follow the
usage instructions on the washer fluid con‐
tainer. Use BMW's Windshield Washer Concen‐
trate or the equivalent. ◀
Washer fluid reservoir Adding washer fluid
Only add washer fluid when the engine is
cool, and then close the cover completely to
avoid contact between the washer fluid and
hot engine parts.
Otherwise, there is the danger of fire and a risk
to personal safety if the fluid is spilled. ◀Seite 50ControlsDriving50
Online Edition for Part no. 01 40 2 911 429 - VI/13

All washer nozzles are supplied from one reser‐
voir.
The recommended minimum filling quantity is
0.2 US gal/1 liter.
Fill with a mixture of window washing concen‐
trate and water; if needed, add antifreeze ac‐
cording to the manufacturer instructions.
Mix the washer fluid before adding to maintain
the correct mixing ratio.
Do not fill in undiluted window washing con‐
centrate and do not fill in pure water; this could
damage the washer system.
Do not mix window washing concentrate from
different manufacturers; this could cause the
washer nozzles to clog.
Manual transmission
Pay attention to the shift plane
When shifting into 5th or 6th gear, push
the gearshift lever to the right; otherwise inad‐
vertent shifting into the 3rd or 4th gear could
lead to engine damage. ◀
Reverse gear
Select only when the vehicle is stationary. When
the gearshift lever is pressed to the left, a slight
resistance needs to be overcome.
Automatic transmission
with Steptronic
In addition to the fully automatic mode, gears
can also be shifted manually using Steptronic,
refer to page 52.
Parking the vehicle Secure the vehicle
Before leaving the vehicle with the en‐
gine running, move the selector lever to posi‐
tion P and set the handbrake; otherwise, the
vehicle will begin moving. ◀
Disengaging the remote control
To remove the remote control from the ignition
lock, first move the selector lever to position P
and switch off the engine: interlock. Remove
the remote control from the ignition lock, refer
to page 44.
Selector lever positions
P R N D M/S + –
Displays in the tachometer
The selector lever position is displayed and the
engaged gear, such as M4, is displayed in
manual mode.
Seite 51DrivingControls51
Online Edition for Part no. 01 40 2 911 429 - VI/13

Engine compartmentVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it alsodescribes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
Important features in the engine compartment
1Vehicle identification number2Battery, under the cover   1723Dip stick for engine oil  1574Engine oil filler neck  1575Coolant expansion tank   1596Reservoir for washer fluid for the headlamp
and window washer system   507Engine compartment fuse box   173Hood
Notes Working in the engine compartment
Never attempt to perform any service or
repair operations on your vehicle without the
necessary professional technical training.If you are unfamiliar with the statutory guide‐
lines, have any work on the vehicle performed
only by a service center.
If this work is not carried out properly, there is
the danger of subsequent damage and related
safety hazards. ◀Seite 155Engine compartmentMobility155
Online Edition for Part no. 01 40 2 911 429 - VI/13

12CauseHow to respondThe engine refuses to start.Depress the brake or clutch to
start the engine, refer to page 45.The ignition is switched on and driver's door
is open.Switch off the ignition, refer to
page 44, or close the driver's
door.The lights are still switched on.Switch off the lights, refer to
page 62.The roadside parking lamps are still on.Switch off the roadside parking
lamps, refer to page 63.A door is open.The Clubdoor is open.The split door is open.The hood is open.The tailgate is open.The fuel cap is missing or loose.Make sure that the fuel cap is cor‐
rectly positioned and close it until
it clicks audibly. Do not jam the
strap between the fuel cap and
the vehicle.The windshield washer fluid level is too low.Add washer fluid, refer to
page 50, as soon as possible.Lights up in red:Service is due.Arrange a service appointment.
Check the service requirements,
refer to page 160.Seite 184MobilityIndicator/warning lamps184
Online Edition for Part no. 01 40 2 911 429 - VI/13

Everything from A to ZIndexA
ABS, Antilock Brake Sys‐ tem 76
Acoustic signal, refer to Check Control 60
Activated charcoal filter with automatic climate con‐
trol 86
Adaptive Light Control 64
Additives, engine oil 158
Airbags 67
Airbags, indicator/warning light 69
Air circulation, refer to Recir‐ culated air mode 83, 85
Air conditioner 82
Air conditioning 82
Air conditioning mode– Air conditioner 82– Automatic climate con‐
trol 84
Air distribution
– Automatic 85– Individual 83– Manual 83, 85
Air drying, refer to Cooling
function 86
Air flow rate 82, 85
Air pressure, refer to Tire infla‐ tion pressure 142
Air supply
– Air conditioner 82– Automatic climate con‐
trol 84
Alarm system 30
Alarm system
– Avoiding unintentional
alarms 30– Interior motion sensor 30– Tilt alarm sensor 30Alternating-code hand-held
transmitter 88
Ambient lighting 66
Antifreeze, washer fluid 50
Antilock Brake System, ABS 76
Anti-slip control, refer to Dy‐ namic Stability Control
DSC 76
Anti-theft protection 21
Approved engine oils 158
Ashtray 91
Assistance, roadside 175
Assistance when driving off, refer to Hill drive-off assis‐
tant 78
Assistance with starting en‐ gine, refer to Jump-start‐
ing 175
Automatic– Air distribution 85– Air flow rate 85
Automatic car wash 179
Automatic climate control
– Automatic air distribution 85
Automatic, cruise control 79
Automatic headlamp con‐ trol 62
Automatic transmission with
Steptronic
– Kickdown 52– Overriding selector lever
lock 53
AUTO program with auto‐
matic climate control 85
AUX-IN port 120
Average fuel consumption 56
Average fuel consumption
– Setting the units 57
Average speed 56
Average speed, refer to Com‐
puter 55
B Backrest curvature, refer to Lumbar support 35
Backrests, refer to Seats 34
Backup lamps, bulb replace‐ ment 167
Battery– Disposal 30– Remote control 20
Battery, refer to Vehicle bat‐
tery 172
Battery replacement
– Remote control 30
Belts, refer to Safety belts 36
Belt tensioners, refer to Safety belts 36
Bi-xenon headlamps 165
Blower, refer to Air flow rate 82, 85
Brake assistant 76
Brake discs, breaking in 100
Brake fluid, refer to Service re‐ quirements 59
Brake force distribution, elec‐ tronic 76
Brake pads, breaking in 100
Brakes
– Handbrake 46
Brakes, MINI maintenance
system 160
Brakes, service require‐ ments 59
Brake system, MINI mainte‐ nance system 160
Braking, notes 102
Breakdown assistance, Road‐ side Assistance 175
Seite 200ReferenceEverything from A to Z200
Online Edition for Part no. 01 40 2 911 429 - VI/13

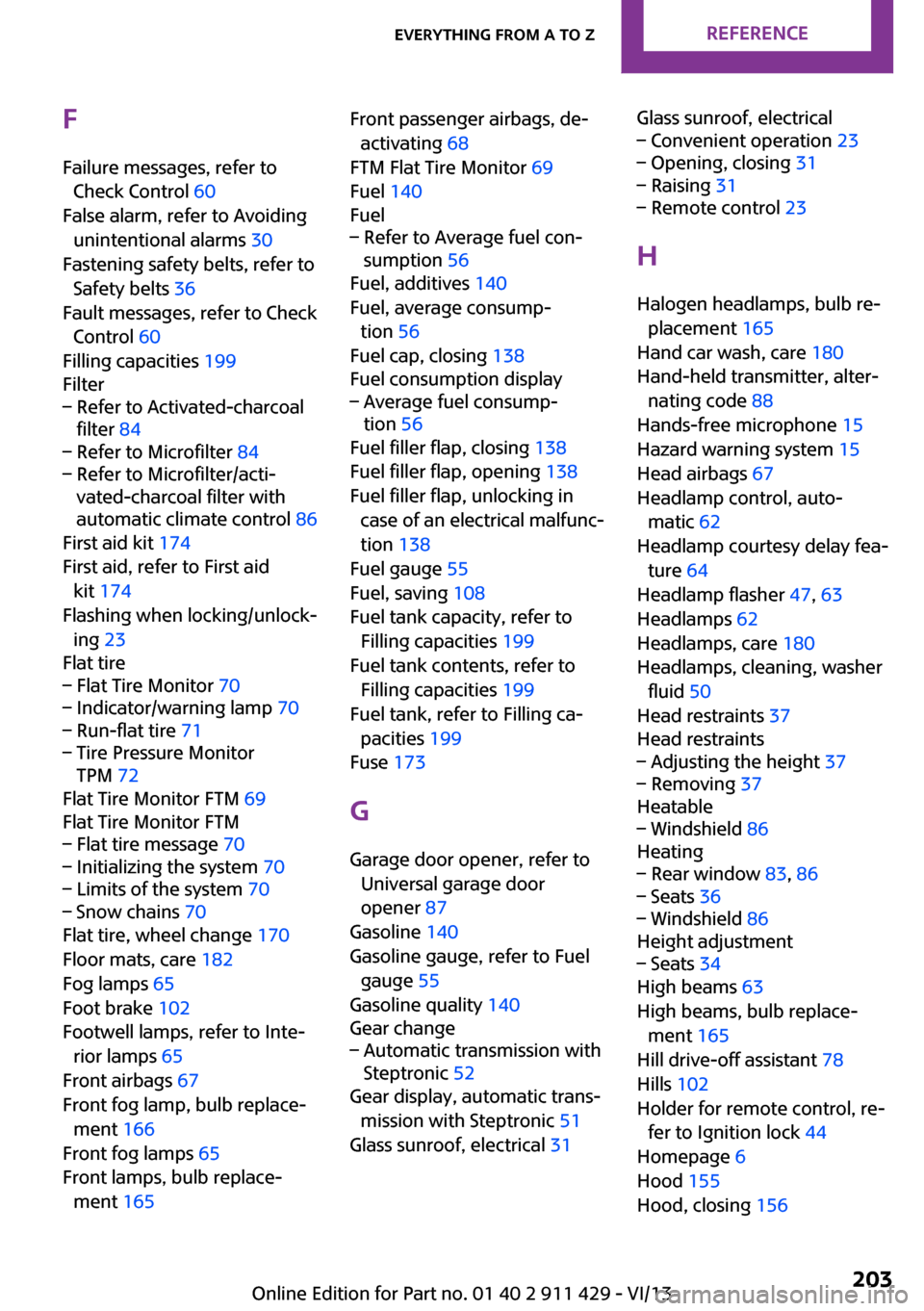

FFailure messages, refer to Check Control 60
False alarm, refer to Avoiding unintentional alarms 30
Fastening safety belts, refer to Safety belts 36
Fault messages, refer to Check Control 60
Filling capacities 199
Filter– Refer to Activated-charcoal
filter 84– Refer to Microfilter 84– Refer to Microfilter/acti‐
vated-charcoal filter with
automatic climate control 86
First aid kit 174
First aid, refer to First aid kit 174
Flashing when locking/unlock‐ ing 23
Flat tire
– Flat Tire Monitor 70– Indicator/warning lamp 70– Run-flat tire 71– Tire Pressure Monitor
TPM 72
Flat Tire Monitor FTM 69
Flat Tire Monitor FTM
– Flat tire message 70– Initializing the system 70– Limits of the system 70– Snow chains 70
Flat tire, wheel change 170
Floor mats, care 182
Fog lamps 65
Foot brake 102
Footwell lamps, refer to Inte‐ rior lamps 65
Front airbags 67
Front fog lamp, bulb replace‐ ment 166
Front fog lamps 65
Front lamps, bulb replace‐ ment 165
Front passenger airbags, de‐
activating 68
FTM Flat Tire Monitor 69
Fuel 140
Fuel– Refer to Average fuel con‐
sumption 56
Fuel, additives 140
Fuel, average consump‐ tion 56
Fuel cap, closing 138
Fuel consumption display
– Average fuel consump‐
tion 56
Fuel filler flap, closing 138
Fuel filler flap, opening 138
Fuel filler flap, unlocking in case of an electrical malfunc‐
tion 138
Fuel gauge 55
Fuel, saving 108
Fuel tank capacity, refer to Filling capacities 199
Fuel tank contents, refer to Filling capacities 199
Fuel tank, refer to Filling ca‐ pacities 199
Fuse 173
G Garage door opener, refer to Universal garage door
opener 87
Gasoline 140
Gasoline gauge, refer to Fuel gauge 55
Gasoline quality 140
Gear change
– Automatic transmission with
Steptronic 52
Gear display, automatic trans‐
mission with Steptronic 51
Glass sunroof, electrical 31
Glass sunroof, electrical– Convenient operation 23– Opening, closing 31– Raising 31– Remote control 23
H
Halogen headlamps, bulb re‐ placement 165
Hand car wash, care 180
Hand-held transmitter, alter‐ nating code 88
Hands-free microphone 15
Hazard warning system 15
Head airbags 67
Headlamp control, auto‐ matic 62
Headlamp courtesy delay fea‐ ture 64
Headlamp flasher 47, 63
Headlamps 62
Headlamps, care 180
Headlamps, cleaning, washer fluid 50
Head restraints 37
Head restraints
– Adjusting the height 37– Removing 37
Heatable
– Windshield 86
Heating
– Rear window 83, 86– Seats 36– Windshield 86
Height adjustment
– Seats 34
High beams 63
High beams, bulb replace‐ ment 165
Hill drive-off assistant 78
Hills 102
Holder for remote control, re‐ fer to Ignition lock 44
Homepage 6
Hood 155
Hood, closing 156
Seite 203Everything from A to ZReference203
Online Edition for Part no. 01 40 2 911 429 - VI/13

Prescribed engine oils, refer toApproved engine oils 158
Pressure monitoring of tires, refer to Tire Pressure Monitor
TPM 72
Pressure, tires 142
Pressure warning, tires 69
Profile depth, refer to Mini‐ mum tread depth 148
Profile, tires 148
Protective function, refer to
Pinch protection– Windows 32
R
Radio MINI Boost CD 112
Radio-operated key, refer to Remote control with
integrated key 20
Radio ready state 44
Radio ready state, switched off 45
Radio ready state, switched
on 44
Radio setting, refer to Radio ready state 44
Rain sensor 48
Range 56
Rear door, refer to Club‐ door 26
Rear doors, refer to Split door 27
Rear fog lamp 65
Rear fog lamp, bulb replace‐ ment 167
Rear lamps, refer to Tail lamps 167
Rear swing doors, refer to Split door 27
Rearview mirror, refer to Mir‐ rors 38
Rear window defroster 83, 86
Rear window, washing 50
Rear window wiper 50
Recirculated air mode 83, 85
Recommended tire
brands 150
Releasing, refer to Unlock‐ ing 28
Remaining range for service, refer to Service require‐
ments 59
Remaining range, refer to Range 56
Remote control– Battery replacement 30– Comfort Access 28– Malfunctions 24, 29– Split door 24
Remote control, removing
from the ignition lock 44
Remote control, service data 160
Remote control, universal 87
Replacement remote con‐ trol 20
Replacing wheels/tires 149
Reporting safety defects 9
Reserve warning, refer to Fuel gauge 55
Reservoir for washer fluid, re‐ fer to Washer fluid reser‐
voir 50
Restraining systems
– Refer to Safety belts 36
Restraint systems for chil‐
dren 40
Retreaded tires 150
Reverse gear, manual trans‐ mission 51
Roadside Assistance 175
Roadside parking lamp, bulb replacement 166
Roadside parking lamps 63
RON gasoline quality 140
RON, refer to Fuel quality 140
RPM, refer to Engine data 196
Rubber seals, care 181
Run-flat tires 151
Run-flat tires
– Flat tire 70Run-flat tires, tire inflation
pressure 142
Running lights, refer to Park‐ ing lamps/low beams 62
S Safe braking 102
Safety 6
Safety belts 36
Safety belts– Damage 37
Safety belts, care 182
Safety belts, indicator/warning lamp 37
Safety belts, reminder 37
Safety systems
– Safety belts 36
Safety systems, airbags 67
Saving fuel 108
Seat adjustment
– Manual 34
Seat belts
– Refer to Safety belts 36
Seat heating 36
Seats
– Adjusting 34– Heating 36– Sitting safely 34
Selector lever, automatic
transmission with Step‐
tronic 52
Selector lever lock, overrid‐ ing 53
Selector lever lock, refer to Changing selector lever posi‐
tions, Shiftlock 52
Selector lever positions, auto‐ matic transmission with
Steptronic 52
Service and warranty 7
Service data in the remote control 160
Service interval display, refer to Condition Based Service
CBS 160
Seite 206ReferenceEverything from A to Z206
Online Edition for Part no. 01 40 2 911 429 - VI/13
