2014 MERCEDES-BENZ SLS AMG ROADSTER high beam

G
Garage door opener Clearing the memory .....................214
Important safety notes ..................211
Opening/closing the garage door ..214
Programming (button in the rear-
view mirror) ................................... 212
Gasoline ............................................. 280
Gear indicator .................................... 123
Gear or selector lever (cleaning
guidelines) ......................................... 229
Genuine parts ...................................... 18
Glove box ........................................... 200H
Hazard warning lamps ........................98
Head bags ............................................ 42
Headlamp cleaning system Notes ............................................. 284
Headlamps
Adding fluid to cleaning system .....221
Cleaning system (capacity )............ 284
Cleaning system (function) ..............99
Cleaning system (notes) ................284
Fogging up ....................................... 99
see Automatic headlamp mode
Head level heating (AIRSCARF) ..........88
Heating see Climate control
High-beam headlamps
Switching on/off .............................. 98
High-beam headlamps (display
message) ............................................ 175
Hill start assist .................................. 121
Hood Closing .......................................... .219
Display message ............................ 184
Important safety notes ..................218
Opening ......................................... 218
Hydroplaning ..................................... 137I
Ignition lock ....................................... 119
see Key positions
Immobilizer .......................................... 58Indicator lamps
see Warning and indicator lamps
Instrument cluster
Overview .......................................... 27
Settings ......................................... 157
Warning and indicator lamps ...........28
Instrument cluster lighting ..............158
Interior lighting Automatic control ............................ 99
Delayed switch-off (on-board
computer) ...................................... 159
Emergency lighting ........................100
Manual control ............................... 100
Overview .......................................... 99
Reading lamp ................................... 99 J
Jack Storage location ............................ 232
Using ............................................. 270
Jump starting (engine) ......................240 K
KEYLESS-GO start function Display message ............................ 185
Start/Stop button .......................... 119
Starting the engine ........................120
Key positions
SmartKey ....................................... 119
Kickdown ........................................... 124
Driving tips .................................... 124
Knee bag .............................................. 41 L
Lamps see Warning and indicator lamps
Lap time (RACETIMER) ......................161
License plate lamp Changing bulbs .............................. 101
License plate lamp (display
message) ............................................ 175
Lighting Light switch ..................................... 96
Lights
Activating/deactivating the
interior lighting delayed switch-off .159 Index
9

Automatic headlamp mod
e.............. 96
Display message ............................ 173
Driving abroad ................................. 96
Hazard warning lamps .....................98
High beam flasher ............................ 98
High-beam headlamps .....................98
Low-beam headlamps ......................97
Parking lamps .................................. 97
Standing lamps ................................ 97
Switching the daytime running
lamps on/off (on-board computer) 158
Switching the daytime running
lamps on/off (switch) ......................96
Switching the exterior lighting
delayed switch-off on/off (on-
board computer) ............................ 159
Switching the surround lighting
on/off (on-board computer) ..........159
Turn signals ..................................... 98
see Replacing bulbs
LIM indicator lamp
Cruise control ................................ 139
Locking
see Central locking
Locking (doors)
Automatic ........................................ 70
Emergency locking ........................... 71
From inside (central locking
button) ............................................. 70
Locking centrally
see Central locking
Low-beam headlamps
Display message ............................ 174
Setting for driving abroad
(symmetrical) ................................... 96
Switching on/off .............................. 97 M
M+S tires ............................................ 250
Malfunction message see Display messages
Manual drive program ......................127
Matte finish (cleaning instructions) 226
mbrace Call priority .................................... 208
Display message ............................ 173Downloading destinations
(COMAND)
..................................... 208
Emergency call .............................. 205
General notes ................................ 204
Locating a stolen vehicle ...............209
MB info call button ........................207
Remote vehicle locking ..................209
Roadside Assistance button ..........207
Search & Send ............................... 209
Self-test ......................................... 205
System .......................................... 205
Mechanical key
Function/notes ................................ 64
Locking vehicle ................................ 71
Unlocking the driver's door ..............71
Memory card (audio) .........................155
Memory function ................................. 92
Message memory (on-board
computer) .......................................... 164
Messages see Display messages
Mirrors
see Exterior mirrors
see Rear-view mirror
see Vanity mirror
Mobile phone
Menu (on-board computer) ............155
Modifying the programming
(SmartKey) ........................................... 63
MP3 Operation ....................................... 155
see separate operating instructions
Multifunction display
Function/notes ............................. 152
Permanent displa y......................... 158
Multifunction steering wheel
Operating the on-board computer .151
Overview .......................................... 29 N
Navigation Menu (on-board computer) ............153
On-board computer .......................153
see separate operating instructions
Notes on breaking-in a new vehicle 11810
Index

Warning and indicator lamps
Function Page
:
ESP
® 193
;
Seat belts 191
=
Brakes (USA only)
J
Brakes (Canada only) ?
High-beam headlamps 98
A
Low-beam headlamps 97
B
Turn signal 98
C
SRS 194
D
Check Engine
E
ABS
192 Function Page
F
Engine oil temperature 150
G
Tire pressure 197
H
Electric parking brake (USA
only)
!
Electric parking brake
(Canada only) I
Reserve fuel 196
J
SPORT handling mode 56
K
ESP
®
OFF 5528
Instrument clusterAt a glance

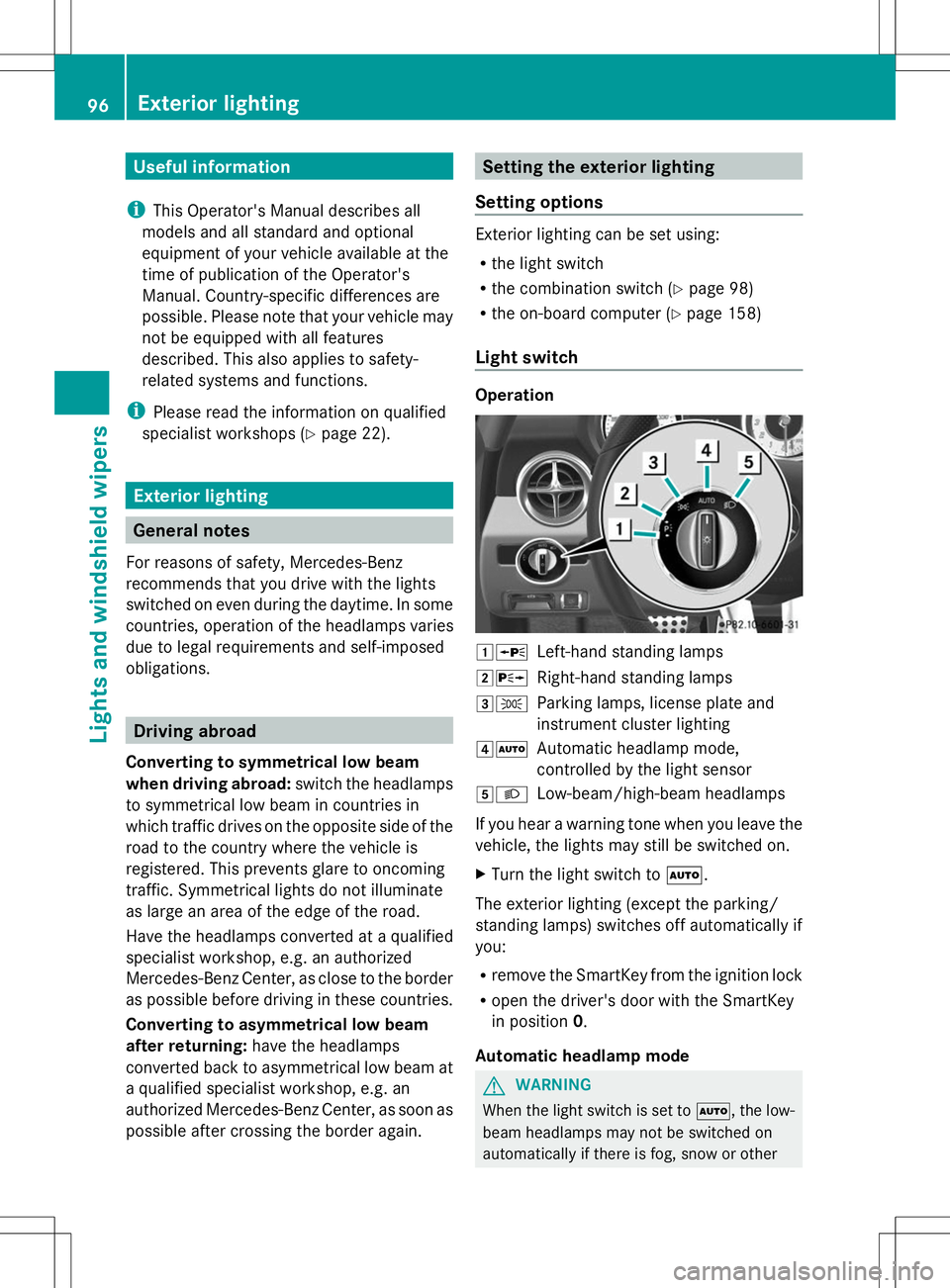

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Please read the information on qualified
specialist workshops (Y page 22).Exterior lighting
General notes
For reasons of safety, Mercedes-Benz
recommends that you drive with the lights
switched on even during the daytime. In some
countries, operation of the headlamps varies
due to legal requirements and self-imposed
obligations. Driving abroad
Converting to symmetrical low beam
when driving abroad: switch the headlamps
to symmetrical low beam in countries in
which traffic drives on the opposite side of the
road to the country where the vehicle is
registered. This prevents glare to oncoming
traffic. Symmetrical lights do not illuminate
as large an area of the edge of the road.
Have the headlamps converted at a qualified
specialist workshop, e.g. an authorized
Mercedes-Benz Center, as close to the border
as possible before driving in these countries.
Converting to asymmetrical low beam
after returning: have the headlamps
converted back to asymmetrical low beam at
a qualified specialist workshop, e.g. an
authorized Mercedes-Benz Center, as soon as
possible after crossing the border again. Setting the exterior lighting
Setting options Exterior lighting can be set using:
R
the light switch
R the combination switch (Y page 98)
R the on-board computer (Y page 158)
Light switch Operation
1W
Left-hand standing lamps
2X Right-hand standing lamps
3T Parking lamps, license plate and
instrument cluster lighting
4Ã Automatic headlamp mode,
controlled by the light sensor
5L Low-beam/high-beam headlamps
If you hear a warning tone when you leave the
vehicle, the lights may still be switched on.
X Turn the light switch to Ã.
The exterior lighting (except the parking/
standing lamps) switches off automatically if
you:
R remove the SmartKey from the ignition lock
R open the driver's door with the SmartKey
in position 0.
Automatic headlamp mode G
WARNING
When the light switch is set to Ã, the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other 96
Exterior lightingLights and windshield wipers

X
To switch on the standing lamps: the
SmartKey is not in the ignition lock or it is
in position 0.
X Turn the light switch to W(left-hand side
of the vehicle) or X(right-hand side of
the vehicle). Combination switch
Turn signal :
High-beam headlamps
; Turn signal, right
= High-beam flasher
? Turn signal, left
X To indicate briefly: press the combination
switch briefly to the pressure point in the
direction of arrow ;or?.
The corresponding turn signal flashes three
times.
X To indicate: press the combination switch
beyond the pressure point in the direction
of arrow ;or?.
High-beam headlamps X
To switch on the high-beam headlamps:
turn the SmartKey in the ignition lock to
position 2or start the engine.
X Turn the light switch to LorÃ. X
Press the combination switch beyond the
pressure point in the direction of
arrow :.
In the Ãposition, the high-beam
headlamps are only switched on when it is
dark and the engine is running.
The K indicator lamp in the instrument
cluster lights up when the high-beam
headlamps are switched on.
X To switch off the high-beam
headlamps: move the combination switch
back to its normal position.
The K indicator lamp in the instrument
cluster goes out.
High-beam flasher X
To switch on: turn the SmartKey in the
ignition lock to position 1or 2, or start the
engine.
X Pull the combination switch briefly in the
direction of arrow =. Hazard warning lamps
The hazard warning lamps automatically
switch on if:
R
an air bag is deployed or
R the vehicle decelerates rapidly from a
speed of more than 45 mph (70 km/h) and
comes to a standstill.
X To switch on the hazard warning lamps:
press button :.
All turn signals flash. If you now switch on
a turn signal using the combination switch, 98
Exterior lightingLights and
windshield wipers

Display messages Possible causes/consequences and
M
MSolutions b
Check Check
Left
LeftLow
LowBeam
Beam
or
Check Right Low Check Right Low
Beam Beam The left or right-hand low-beam headlamp does not light up. In
addition, the high-beam headlamp is also inoperative.
X
Visit a qualified specialist workshop. b
AUTO AUTO
Lamp
LampFunction
Function
Inoperative
Inoperative The light sensor is defective.
USA only:
X
Switch off the daytime running lamps in the on-board computer
(Y page 158).
X Switch the lights on and off using the light switch. b
Check Rear Left Check Rear Left
Turn Signal Turn Signal
or
Check Rear Right Check Rear Right
Turn Signal Turn Signal The LEDs in the rear left or right-hand indicator lamp do not light
up.
X
Visit a qualified specialist workshop. b
Check Left Mirror Check Left Mirror
Turn Signal Turn Signal
or
Check Check
Right
RightMirror
Mirror
Turn Signal
Turn Signal None of the LEDs in the left or right-hand exterior mirrors light up.
X
Visit a qualified specialist workshop. b
Check Front Left Check Front Left
Turn Signal Turn Signal
or
Check Front Right Check Front Right
Turn Signal Turn Signal The LEDs in the front left or right-hand indicator lamp do not light
up.
X
Visit a qualified specialist workshop. b
Check Check
Center
Center Brake
Brake
Lamp
Lamp None of the LEDs in the high-mounted brake lamp light up.
X
Visit a qualified specialist workshop. 174
Display
messagesOn-board computer and displays

Display messages Possible causes/consequences and
M
MSolutions b
Check Left Brake Check Left Brake
Lamp Lamp
or
Check Right Brake Check Right Brake
Lamp Lamp The left or right-hand brake light LEDs do not light up.
X
Visit a qualified specialist workshop. b
Check Left Tail Check Left Tail
Lamp Lamp
or
Check Right Tail Check Right Tail
Lamp Lamp The left or right-hand tail lamp LEDs do not light up.
X
Visit a qualified specialist workshop. b
Check Left High Check Left High
Beam Beam
or
Check Right High Check Right High
Beam Beam The left or right-hand low-beam headlamp does not light up.
X
Visit a qualified specialist workshop. b
Check Check
Left
LeftLicense
License
Plate Lamp
Plate Lamp
or
Check Right Check Right
License Plate Lamp License Plate Lamp The left or right-hand license plate lamp does not light up.
X
Replace the bulb (Y page 101). b
Backup Light Backup Light None of the LEDs in the backup lamp light up.
X
Visit a qualified specialist workshop. b
Check Check
Left
LeftDaytime
Daytime
Running Light
Running Light
or
Check Right Check Right
Daytime Running Daytime Running
Light Light The LEDs in the left or right-hand daytime running lamp do not
light up. As a result, the corresponding side/standing lamp has
failed.
X
Visit a qualified specialist workshop. Display
messages
175On-board computer and displays Z
