2014 MERCEDES-BENZ SLK-CLASS ROADSTER oil viscosity

Emergency spare wheel
Important safety note s.................. 337
Points to remember .......................337
Removing ....................................... 337
Stowing .......................................... 338
Technical data ............................... 340
Emergency Tensioning Devices
Function .......................................... .55
Safety guideline s............................. 39
Emissions control
Service and warranty information ....21
Engine
Check Engine warning lamp ........... 248
Display message ............................ 225
ECO start/stop function ................143
Engine number ............................... 343
Irregular running ............................ 147
Jump-starting ................................. 298
Starting problems ..........................147
Starting the engine with the
SmartKey ....................................... 142
Starting with KEYLESS-GO .............142
Switching off .................................. 160
Tow-starting (vehicle) ..................... 303
Engine electronics
Problem (malfunction) ...................147
Engine oil
Adding ........................................... 276
Additives ........................................ 346
Checking the oil level ..................... 275
Checking the oil level using the
dipstick .......................................... 275
Display message ............................ 226
Filling capacity ............................... 346
Notes about oil grades ................... 346
Notes on oil level/consumption ....275
Temperature (on-board computer) .206
Viscosity ........................................ 346
ESP ®
(Electronic Stability
Program) AMG menu (on-board computer) ...207
Deactivating/activating (AMG
vehicles) .......................................... 63
Deactivating/activating (notes;
except AMG vehicles) ......................62
Display message ............................ 211
ETS .................................................. 61
Function/notes ................................ 61 General notes
.................................. 61
Important safety information ...........62
Warning lamp ................................. 244
ETS (Electronic Traction System) ....... 61
Exhaust check ................................... 163
Exhaust pipe (cleaning instructions) 283
Exterior lighting Setting options .............................. 108
see Lights
Exterior mirrors
Adjusting ....................................... 103
Dipping (automatic) .......................104
Folding in/out (automatically). ......104
Folding in/out (electrically). ..........104
Folding in when locking (on-board
computer) ...................................... 206
Out of position (troubleshooting) ...104
Storing settings (memory function) 105
Storing the parking position ..........104
Eyeglasses compartment .................255 F
Filler cap see Fuel filler flap
Filling capacities (Technical data) ...344
Fire extinguisher ............................... 289
First-aid kit ......................................... 288
Flat tire MOExtended tires ..........................290
Preparing the vehicle .....................289
TIREFIT kit ...................................... 291
see Emergency spare wheel
Floormats ........................................... 272
Fog lamps Switching on/off ........................... 109
Front fog lamps
Display message ............................ 223
Switching on/off ........................... 109
Fuel
Additives ........................................ 345
Consumption statistics ..................195
Displaying the current
consumption .................................. 196
Displaying the range ......................196
Driving tips .................................... 162
Fuel gauge ....................................... 29
Grade (gasoline) ............................ 345 Index
9

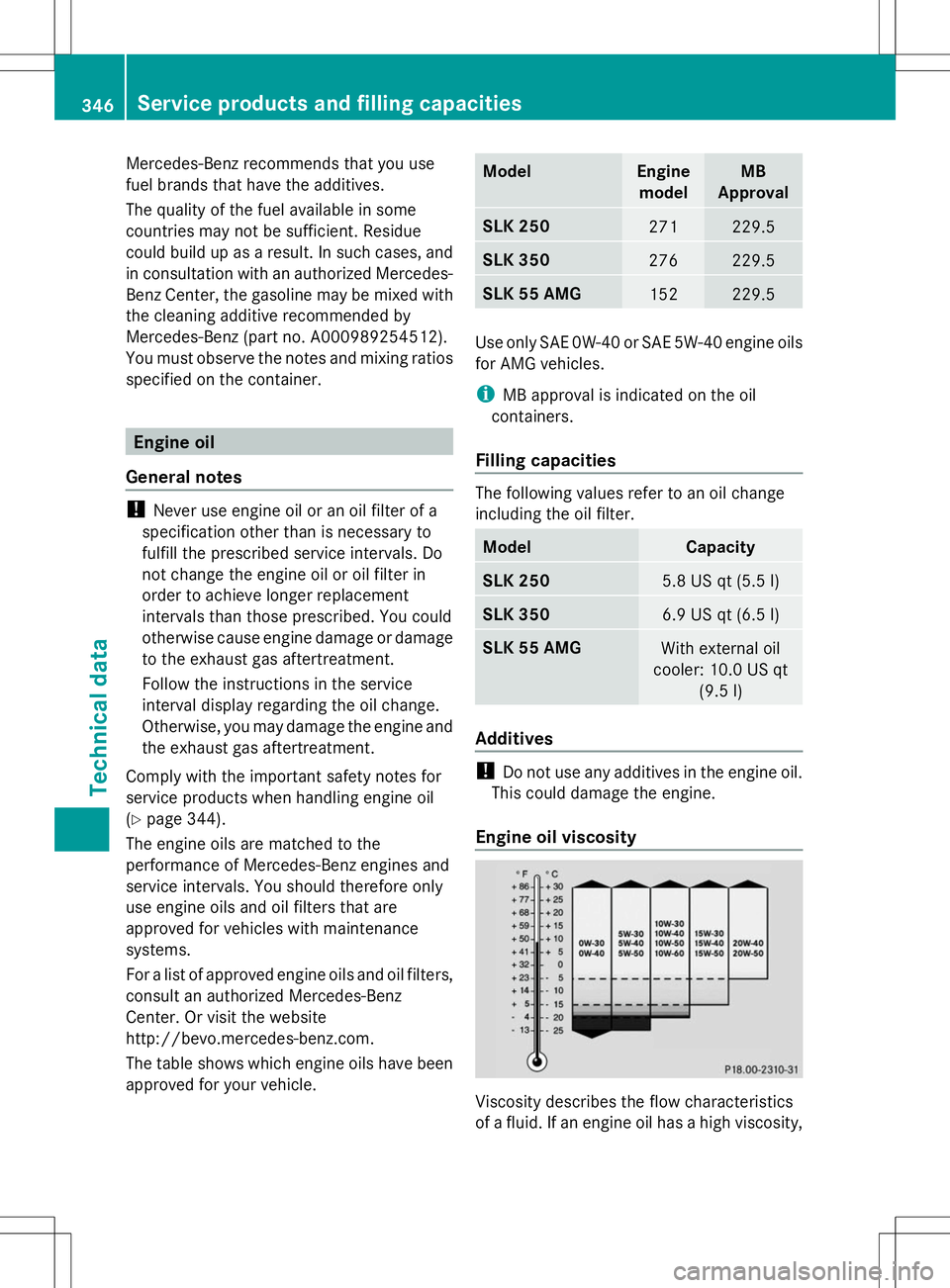

Mercedes-Benz recommends that you use
fuel brands that have the additives.
The quality of the fuel available in some
countries may not be sufficient. Residue
could build up as a result. In such cases, and
in consultation with an authorized Mercedes-
Benz Center, the gasoline may be mixed with
the cleaning additive recommended by
Mercedes-Benz (part no. A000989254512).
You must observe the notes and mixing ratios
specified on the container. Engine oil
General notes !
Never use engine oil or an oil filter of a
specification other than is necessary to
fulfill the prescribed service intervals. Do
not change the engine oil or oil filter in
order to achieve longer replacement
intervals than those prescribed. You could
otherwise cause engine damage or damage
to the exhaust gas aftertreatment.
Follow the instructions in the service
interval display regarding the oil change.
Otherwise, you may damage the engine and
the exhaust gas aftertreatment.
Comply with the important safety notes for
service products when handling engine oil
(Y page 344).
The engine oils are matched to the
performance of Mercedes-Benz engines and
service intervals. You should therefore only
use engine oils and oil filters that are
approved for vehicles with maintenance
systems.
For a list of approved engine oils and oil filters,
consult an authorized Mercedes-Benz
Center. Or visit the website
http://bevo.mercedes-benz.com.
The table shows which engine oils have been
approved for your vehicle. Model Engine
model MB
Approval SLK 250
271 229.5
SLK 350
276 229.5
SLK 55 AMG
152 229.5
Use only SAE 0W-40 or SAE 5W-40 engine oils
for AMG vehicles.
i
MB approval is indicated on the oil
containers.
Filling capacities The following values refer to an oil change
including the oil filter.
Model Capacity
SLK 250
5.8 US qt (5.5 l)
SLK 350
6.9 US qt (6.5 l)
SLK 55 AMG
With external oil
cooler: 10.0 US qt (9.5 l) Additives
!
Do not use any additives in the engine oil.
This could damage the engine.
Engine oil viscosity Viscosity describes the flow characteristics
of a fluid. If an engine oil has a high viscosity,346
Service products and filling capacitiesTechnical data

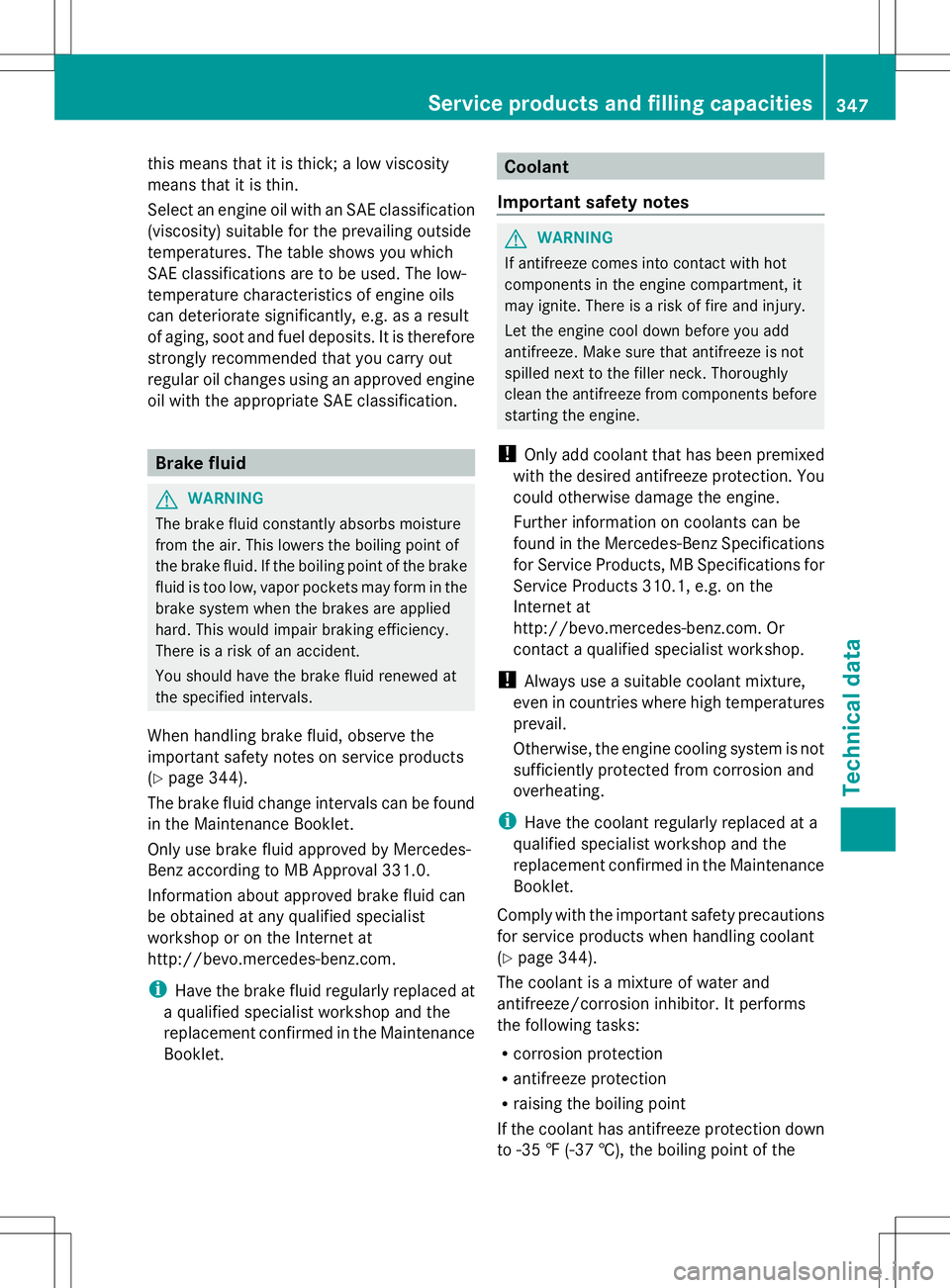

this means that it is thick; a low viscosity
means that it is thin.
Select an engine oil with an SAE classification
(viscosity) suitable for the prevailing outside
temperatures. The table shows you which
SAE classifications are to be used. The low-
temperature characteristics of engine oils
can deteriorate significantly, e.g. as a result
of aging, soot and fuel deposits. It is therefore
strongly recommended that you carry out
regular oil changes using an approved engine
oil with the appropriate SAE classification. Brake fluid
G
WARNING
The brake fluid constantly absorbs moisture
from the air. This lowers the boiling point of
the brake fluid. If the boiling point of the brake
fluid is too low, vapor pockets may form in the
brake system when the brakes are applied
hard. This would impair braking efficiency.
There is a risk of an accident.
You should have the brake fluid renewed at
the specified intervals.
When handling brake fluid, observe the
important safety notes on service products
(Y page 344).
The brake fluid change intervals can be found
in the Maintenance Booklet.
Only use brake fluid approved by Mercedes-
Benz according to MB Approval 331.0.
Information about approved brake fluid can
be obtained at any qualified specialist
workshop or on the Internet at
http://bevo.mercedes-benz.co m.
i Have the brake fluid regularly replaced at
a qualified specialist workshop and the
replacement confirmed in the Maintenance
Booklet. Coolant
Important safety notes G
WARNING
If antifreeze comes into contact with hot
components in the engine compartment, it
may ignite. There is a risk of fire and injury.
Let the engine cool down before you add
antifreeze. Make sure that antifreeze is not
spilled next to the filler neck. Thoroughly
clean the antifreeze from components before
starting the engine.
! Only add coolant that has been premixed
with the desired antifreeze protection. You
could otherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the
Internet at
http://bevo.mercedes-benz.com. Or
contact a qualified specialist workshop.
! Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosion and
overheating.
i Have the coolant regularly replaced at a
qualified specialist workshop and the
replacement confirmed in the Maintenance
Booklet.
Comply with the important safety precautions
for service products when handling coolant
(Y page 344).
The coolant is a mixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
R corrosion protection
R antifreeze protection
R raising the boiling point
If the coolant has antifreeze protection down
to -35 ‡ (-37 †),the boiling point of the Service products and filling capacities
347Technical data Z
