2014 MERCEDES-BENZ C-Class COUPE windshield wipers

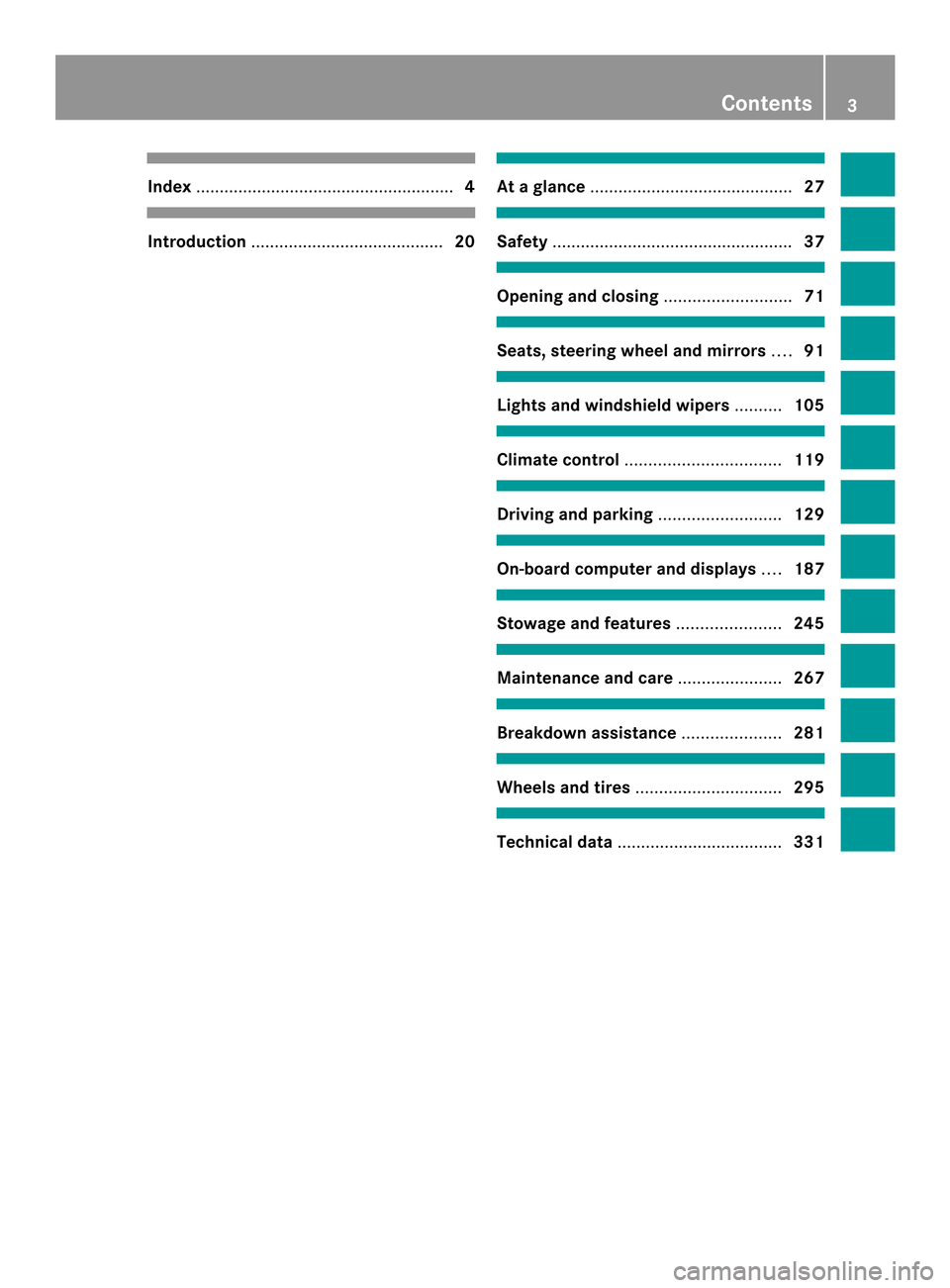

Index
....................................................... 4Introduction
......................................... 20 At
ag lance ........................................... 27 Safety
................................................... 37 Opening and closing
...........................71 Seats, steering wheel and mirrors
....91 Lights and windshield wipers
..........105 Climate control
................................. 119 Driving and parking
..........................129 On-board computer and displays
....187 Stowage and features
......................245 Maintenance and care
......................267 Breakdown assistance
.....................281 Wheels and tires
............................... 295 Technical data
................................... 331 Contents
3

Locking (SmartKey) .......................... 72
Lowering
........................................ 324
Maintenance .................................... 22
Parking for a long period ................ 150
Pulling away ................................... 134
Raising ........................................... 321
Reporting problems .........................25
Securing from rolling away ............321
Towing away .................................. 290
Transporting .................................. 292
Unlocking (in an emergency) ...........79
Unlocking (SmartKey) ......................72
Vehicle data ................................... 340
Vehicle data ....................................... 340
Vehicle dimensions ...........................340
Vehicle emergency locking ................79
Vehicle identification number see VIN
Vehicle identification plate ..............332
Vehicle tool kit .................................. 282
Video (DVD) ........................................ 195
VIN ...................................................... 332W
Warning and indicator lamps ABS ................................................ 234
Brakes ........................................... 234
Check Engine ................................. 240
Coolant .......................................... 241
Distance warning ........................... 243
DISTRONI CPLUS ........................... 243
ESP ®
.............................................. 236
ESP ®
OFF ....................................... 237
Fuel tank ........................................ 240
Overview .......................................... 30
PASSENGER AIRBAG OFF ................45
Reserve fuel ................................... 240
Seat bel t........................................ 232
SPORT handling mode ...................237
SRS ................................................ 239
Tire pressure monitor ....................244
Warranty ............................................ 332
Washer fluid Display message ............................ 230
Wheel bol ttightening torque ...........324
Wheel chock ...................................... 321Wheels
Changing awheel .......................... 320
Checking ........................................ 297
Cleaning ......................................... 275
Cleaning (warning) .........................320
Emergency spare wheel .................328
Important safety notes ..................296
Interchanging/changing ................320
Mounting anew wheel ................... 323
Mounting awheel .......................... 320
Removing awheel .......................... 323
Storing ........................................... 320
Tightening torque ........................... 324
Whee lsize/tir esize ....................... 324
Window curtain air bag
Display message ............................ 211
Operation ........................................ .44
Windows
see Side windows
Windshield
Defrosting ...................................... 125
Windshiel dwasher fluid
see Windshield washer system
Windshield washer system ..............273
Notes ............................................. 338
Windshiel dwipers
Problem (malfunction) ...................118
Replacing the wiper blades ............117
Switching on/off ........................... 116
Winte rdriving
Important safety note s.................. 298
Slippery road surfaces ...................155
Snow chains .................................. 299
Winter tires
M+S tires ....................................... 298
Wiper blades
Cleaning ......................................... 276
Important safety notes ..................117
Replacing ....................................... 117
Wooden trim (cleaning instructions) 278
Workshops see Qualified specialist workshop Z
ZONE function Switching on/off ........................... 125 Index
19

Useful information
............................106
Exterior lighting ................................ 106
Interior lighting ................................. 111
Replacing bulbs ................................. 112
Windshield wipers ............................116 105Lights and windshield wipers

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 24).Exterior lighting
General notes
For reasons of safety, Mercedes-Benz
recommends that you drive with the lights
switched on even during the daytime. In some
countries, operation of the headlamps varies
due to legal requirements and self-imposed
obligations. Notes on driving abroad
Conversion to symmetrical low beam Switch the headlamps to symmetrical low
beam in countries in which traffic drives on
the opposite side of the road from the country
where the vehicle is registered. This prevents
glare to oncoming traffic. When using
symmetrical lights, the edge of the road is not
lit as widely and as far ahead as normal.
Have the headlamps converted at a qualified
specialist workshop as close to the border as
possible before driving in these countries.
Conversion to asymmetrical low beam
after returning Have the headlamps converted back to
asymmetrical low-beam headlamps at a
qualified specialist workshop as soon as
possible after crossing the border again. Setting the exterior lighting
Setting options Exterior lighting can be set using:
R
the light switch
R the combination switch (Y page 108)
R the on-board computer (Y page 200)
Light switch Operation
0005000F
Left-hand standing lamps
00060011 Right-hand standing lamps
00070014 Parking lamps, license plate and
instrumen tcluste rlighting
000B0003 Automatic headlamp mode,
controlled by the light sensor
000C000B Low-beam/high-beam headlamps
0020000E Rear fog lamp
0012000C Fog lamp (only vehicles with front fog
lamps)
If you hear a warning tone when you leave the
vehicle, the lights may still be switched on.
X Turn the light switch to 0003.
The exterior lighting (except the parking/
standing lamps) switches off automatically if
you:
R remove the SmartKey fro mthe ignition lock
R open the driver's door with the SmartKey
in position 0. 106
Exterior lightingLights and windshield wipers

Automatic headlamp mode
G
WARNING
When the ligh tswitch is set to 0003, the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There is a risk of an
accident.
In such situations, tur nthe light switch to
000B.
The automatic headlamp feature is only an
aid. The driver is responsible for the vehicle's
lighting at all times.
0003 is the favored light switch setting. The
light setting is automatically selected
according to the brightness of the ambient
light (exception: poor visibility due to weather
conditions such as fog, snow or spray):
R SmartKey in position 1in the ignition lock:
the parking lamps are switched on or off
automatically depending on the brightness
of the ambient light.
R With the engine running: if you have
activated the daytime running lamps
function via the on-board computer, the
daytime running lamps or the low-beam
headlamps and parking lamps are switched
on or off automatically depending on the
brightness of the ambient light.
X To switch on automatic headlamp
mode: turn the light switch to 0003.
Only for Canada:
The daytime running lamps improve the
visibility of your vehicle during the day. The
daytime running lamps function is required by
law in Canada. It cannot therefore be
deactivated.
When the engine is running and the vehicle is
stationary: if you move the selector lever from
a drive position to P, the daytime running
lamps/low-beam headlamps go out after
three minutes.
When the engine is running, the vehicle is
stationary and in bright ambient light: if you turn the light switch to
0014, the daytime
running lamps and parking lamps switch on.
If the engine is running and you turn the light
switch to 000B, the manual settings take
precedence over the daytime running lamps.
USA only:
The daytime running lamps improve the
visibility of your vehicle during the day. To do
this, the daytime running lamps function must
be switched on using the on-board computer
(Y page 200).
If the engine is running and you turn the light
switch to 0014or000B, the manual settings
take precedence over the daytime running
lamps.
Low-beam headlamps G
WARNING
When the light switch is set to 0003, the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There is a risk of an
accident.
In such situations, turn the light switch to
000B.
Even if the light sensor does not detect that
it is dark, the parking lamps and low-beam
headlamps switch on when the ignition is
switched on and the light switch is set to the
000B position. This is a particularly useful
function in the event of rain and fog.
X To switch on the low-beam headlamps:
turn the SmartKey in the ignition lock to
position 2or start the engine.
X Turn the light switch to 000B.
The green 000Bindicator lamp in the
instrumentc luster lights up.
Front fog lamps
In conditions where visibility is poor due to
fog, snow or rain, the fog lamps improve
visibility as well as making it easier for other
road users to see you. They can be operated
together with the parking lamps or together Exterior lighting
107Lights and windshield wipers Z

with the parking lamps and low-beam
headlamps.
X
To switch on the front fog lamps: turn
the SmartKey in the ignitio nlock to position
2 or start the engine.
X Turn the light switch to 000Bor0003.
X Press the 000Cbutton.
The green 000Cindicator lamp in the
instrument cluster lights up.
X To switch off the front fog lamps: press
the 000C button.
The green 000Cindicator lamp in the
instrument cluster goes out.
Only vehicles with front fog lamps have the
fog lamps function.
Rear fog lamp
The rear fog lamp improves visibility of your
vehicle for the traffic behind in the event of
thick fog. Please take note of the country-
specific regulations for the use of rear fog
lamps.
X To switch on the rear fog lamps: turn the
SmartKey in the ignition lock to position 2
or start the engine.
X Turn the light switch to 000Bor0003.
X Press the 000Ebutton.
The yellow 000Eindicator lamp in the
instrument cluster lights up.
X To switch off the rear fog lamp: press the
000E button.
The yellow 000Eindicator lamp in the
instrument cluster goes out.
Parking lamps
! If the battery has been excessively
discharged, the parking lamps or standing
lamps are automatically switched off to
enable the next engine start.A lways park
your vehicle safely and sufficiently lit
according to legal standards. Avoid the
continuous use of the 0014parking lamps
for several hours. If possible, switch on the
0011 right or the 000Fleft standing lamp. X
To switch on: turn the light switch to
0014.
The green indicator lamp in the instrument
cluster lights up.
Standing lamps
Switching on the standin glamps ensures the
corresponding side of the vehicle is
illuminated.
X To switch on the standing lamps: the
SmartKey is not in the ignition lock or it is
in position 0.
X Turn the light switch to 000F(left-hand side
of the vehicle) or 0011(right-hand side of
the vehicle). Combination switch
Turn signal 0002
High-beam headlamps
0003 Turn signal, right
0022 High-beam flasher
0021 Turn signal, left
X To indicate briefly: press the combination
switch briefly to the pressure poin tinthe
direction of arrow 0003or0021.
The corresponding turn signal flashes three
times.
X To indicate: press the combination switch
beyond the pressure point in the direction
of arrow 0003or0021. 108
Exterior lightingLights and windshield wipers

High-beam headlamps
X
To switch on the high-beam headlamps:
turn the SmartKey in the ignition lock to
position 2or start the engine.
X Turn the light switch to 000Bor0003.
X Press the combination switch beyond the
pressure point in the direction of
arrow 0002.
In the 0003position, the high-beam
headlamps are only switched on when it is
dark and the engine is running.
The 000A indicator lamp in the instrument
cluster lights up when the high-beam
headlamps are switched on.
X To switch off the high-beam
headlamps: move the combination switch
back to its normal position.
The 000A indicator lamp in the instrument
cluster goes out.
High-beam flasher X
To switch on: turn the SmartKey in the
ignitio nlock to position 1or 2or start the
engine.
X Pull the combination switch in the direction
of arrow 0022. Hazard warning lamps The hazard warning lamps automatically
switch on if:
R
an air bag is deployed.
R the vehicle is slowed down rapidly from a
speed of over 45 mph (70 km/h) and
comes to a halt.
X To switch on the hazard warning lamps:
press button 0002.
All turn signals flash. If you now switch on
a turn signal using the combination switch,
only the turn signal lamp on the
corresponding side of the vehicle will flash.
X To switch off the hazard warning
lamps: press button 0002.
If the vehicle returns to a speed of over
6m ph (10 km/h) after a full application of the
brakes, the hazard warning lamps are
deactivated automatically.
i The hazard warning lamps still operate if
the ignition is switched off. Headlamp cleaning system
The headlamps are cleaned automatically if
the "Wipe with washer fluid" function is
operated five times while the lights are on and
the engine is running (Y page 116). When you
switch off the ignition, the automatic
headlamp cleaning system is reset and
counting is resumed from 0. Cornering light function Exterior lighting
109Lights and windshield wipers Z

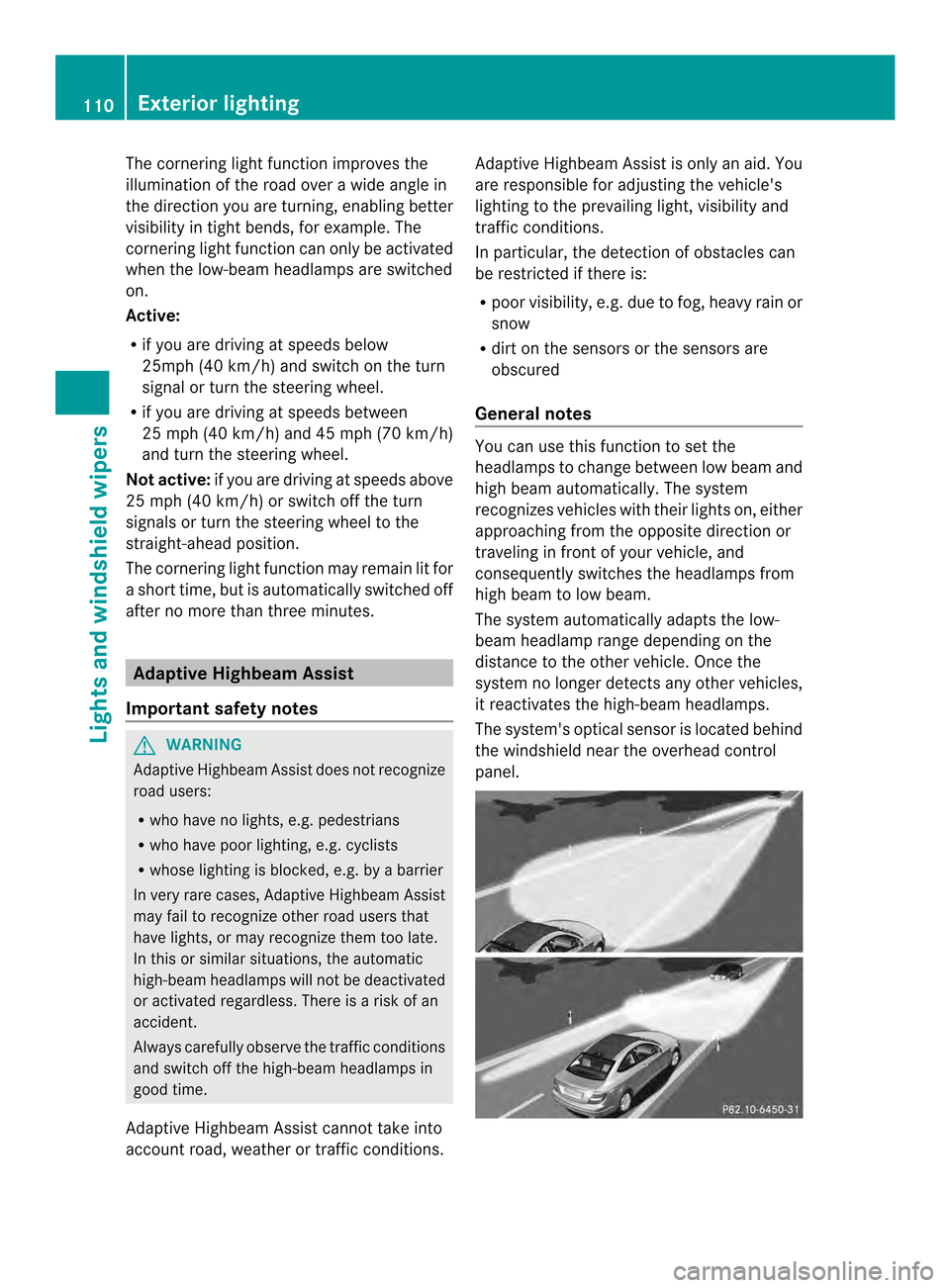

The cornering light function improves the
illumination of the road over a wide angle in
the direction you are turning, enabling better
visibility in tight bends, for example. The
cornering light function can only be activated
when the low-beam headlamps are switched
on.
Active:
R
if you are driving at speeds below
25mph (40 km/h) and switch on the turn
signal or turn the steering wheel.
R if you are driving at speeds between
25 mph (40 km/h) and 45 mph (70 km/h)
and turn the steering wheel.
Not active: if you are driving at speeds above
25 mph (40 km/h) or switch off the turn
signals or turn the steering wheel to the
straight-ahead position.
The cornering light function may remain lit for
a short time, but is automatically switched off
after no more than three minutes. Adaptive Highbeam Assist
Important safety notes G
WARNING
Adaptive Highbeam Assist does not recognize
road users:
R who have no lights, e.g. pedestrians
R who have poor lighting, e.g. cyclists
R whose lighting is blocked, e.g. by a barrier
In very rare cases, Adaptive Highbeam Assist
may fail to recognize other road users that
have lights, or may recognize them too late.
In this or similars ituations, the automatic
high-beam headlamps will not be deactivated
or activated regardless. There is a risk of an
accident.
Always carefully observe the traffic conditions
and switch off the high-beam headlamps in
good time.
Adaptive Highbeam Assist cannot take into
account road, weather or traffic conditions. Adaptive Highbeam Assist is only an aid. You
are responsible for adjusting the vehicle's
lighting to the prevailing light, visibility and
traffic conditions.
In particular, the detection of obstacles can
be restricted if there is:
R poor visibility, e.g. due to fog, heavy rain or
snow
R dirt on the sensors or the sensors are
obscured
General notes You can use this function to set the
headlamps to change betwee
nlow beam and
high beam automatically. The system
recognizes vehicles with their lights on, either
approaching from the opposite direction or
traveling in front of your vehicle, and
consequently switches the headlamps from
high beam to low beam.
The system automatically adapts the low-
beam headlamp range depending on the
distance to the other vehicle. Once the
system no longer detects any other vehicles,
it reactivates the high-beam headlamps.
The system's optical sensor is located behind
the windshield near the overhead control
panel. 110
Exterior lightingLights and windshiel
dwipers
