Use Parking Guidance for parking spaces:
R that are parallel to the direction of travel
R that are on straight roads, not bends
R that are on the same level as the road, i.e.
not on the pavement, for example. Parking
Guidance may not detect flat curbs
Parking tips:
R On narrow roads, drive as close to the
parking space as possible.
R Parking spaces that are littered, overgrown
or partially occupied by trailer drawbars
might be identified incorrectly or not at all.
R Snowfall or heavy rain may lead to a parking
space being measured inaccurately.
R Pay attention to the PARKTRONIC
(Y page 170) warning messages during the
parking procedure.
R When transporting a load which protrudes
from your vehicle, you must not use Parking
Guidance.
R Never use Parking Guidance with snow
chains or an emergency spare wheel
mounted.
R Make sure that the tire pressures are
always correct.T his hasadirec teffect on
the steering instructions.
R The way you rvehicle is positioned in the
parking space after parkin gis dependent
on various factors. These include the
position and shape of the vehicles parked
in front and behind it and the conditions of
the location. In some cases, Parking
Guidance may guide you too far or not far
enough into a parking space. In some
cases, it may also lead you across or onto
the curb. If necessary, cancel the parking
procedure with Parking Guidance.
! If unavoidable, you should drive over
obstacles such as curbs slowly and not at
a sharp angle. Otherwise, you may damage
the wheels or tires. Detecting parking spaces 0002
Detected parking space on the left
0003 Parking symbol
0022 Detected parking space on the right
Parking Guidance is automatically activated
when you drive forwards. The system is
operational at speeds of up to approximately
22 mph (35 km/h). While in operation, the
system independently locates and measures
parking spaces on both sides of the vehicle.
When driving at speeds below 19 mph
(30 km/h), you will see parking symbol 0003as
a status indicator in the instrument cluster.
When a parking space has been detected, an
arrow towards the right 0022or the left 0002also
appears. Parking Guidance only displays
parking spaces on the front-passenger side
as standard. Parking spaces on the driver's
side are displayed as soon as the turn signal
on the driver's side is activated. To park on
the driver's side, you must leave the driver's
side turn signal switched on until you have
engaged reverse gear.
Parking Guidance will only detect parking
spaces:
R that are parallel to the direction of travel
R that are at least 5 ft (1.5 m) wide
R that are at least 4.3 ft (1.3 m) longer than
your vehicle
Ap arking space is displayed while you are
driving past it, and until you are
approximately 50 ft (15 m) away from it. Driving systems
173Driving and parking Z

Assistance menu
Introduction In the
DriveAssist menu, you have the
following options:
R Displaying the assistance graphic
(Y page 197)
R Activating/deactivating
ESP ®
(Y page 197)
R Activating/deactivating PRE-SAFE ®
Brake
(Y page 198)
R Activating/deactivating ATTENTION
ASSIST (Y page 198)
R Activating/deactivating Blind Spot Assist
or Active Blind Spot Assist (Y page 198)
R Activating/deactivating Lane Keeping
Assis torA ctive Lane Keeping Assist
(Y page 198)
Displaying the assistance graphic X
Press the 0002or0005 button on the
steering wheel to select the DriveAssistmenu.
X Press 0003or0004 to select Assistance Graphic .
X Press the 000Bbutton.
The multifunction display shows the
DISTRONIC PLUS distance display in the
assistance graphi c(Ypage 163).
The assistance graphic can display the status
of and information from other driving systems
or driving safety systems. The assistance graphic shows:
R
the 0002 symbol when ATTENTION ASSIST
(Y page 176) is deactivated.
R the lane markings as bright lines when Lane
Keeping Assist (Y page 178)or Active Lane
Keeping Assist (Y page 183) is activated.
R the 0001 symbol when PRE-SAFE ®
Brake
(Y page 67) is deactivated.
Deactivating/activating ESP ® i
Observe the "Important safety notes"
section in the description of ESP
(Y page 64). G
WARNING
If you deactivate ESP ®
, ESP ®
no longer
stabilizes the vehicle. There is an increased
risk of skidding and an accident.
Only deactivate ESP ®
in the situations
described in the following.
It may be best to deactivate ESP ®
in the
following situations:
R when using snow chains
R in deep snow
R on sand or gravel
Activating/deactivating ESP ®
on AMG
vehicles (Y page 66).
For further information about ESP ®
, see
(Y page 64).
X Start the engine.
X Press the 0002or0005 button on the
steering wheel to select the DriveAssist menu.
X Press the 0003or0004 button to select
ESP .
X Press the 000Bbutton.
X To deactivate: press000Bagain.
The 0015 warning lamp in the instrument
cluster lights up.
X To activate: press000Bagain.
The 0015 warning lamp in the instrument
cluster goes out. Menus and submenus
197On-board computer and displays Z

and do not provide sufficient traction. There
is a risk of an accident.
M+S tires with a tread depth of less than 000A
in (4 mm) must be replaced immediately.
At temperatures below 45 ‡ (+7 †), use
winter tires or all-season tires. Both types of
tire are identified by th eM+S marking.
Only winter tires bearing the 0002snowflake
symbol in addition to the M+S marking
provide the best possible grip in wintry road
conditions. Only these tires will allow driving
safety systems such as ABS and ESP ®
to
function optimally in winter. These tires have
bee ndeveloped specifically for driving in
snow.
Use M+S tires of the same make and tread on
all wheels to maintain safe handling
characteristics.
Always observe the maximum permissible
speed specified for the M+S tires you have
mounted.
When you have mounted M+S tires:
X Check the tire pressures (Y page 303).
X Vehicles for Canada: restart the tire
pressure loss warning system
(Y page 303).
X Restart the tire pressure monitor
(Y page 304).
For more information on driving with the
emergency spare wheel, see (Y page 328).Snow chains
G
WARNING
If snow chains are installed to the front
wheels, they may drag against the vehicle
body or chassis components. This could
cause damage to the vehicle or the tires.
There is a risk of an accident. To avoid hazardous situations:
R
never install snow chains to the front
wheels
R always install snow chains in pairs to the
rear wheels.
! On some tire sizes there is not enough
space for snow chains. To avoid damage to
the vehicle or tires, observe the "Wheel and
tire combinations" section under "Tires and
wheels".
! Vehicles with steel wheels: if you wish
to mount snow chains on steel wheels,
make sure that you remove the respective
wheels' hubcaps first .The hubcaps may
otherwise be damaged.
For safety reasons, Mercedes-Benz
recommends that you only use snow chains
that have been specially approved for your
vehicle by Mercedes-Benz, or are of a
corresponding standard of quality.
If you intend to mount snow chains, please
bear the following points in mind:
R snow chains may not be mounted on all
wheel/tire combinations. Permissible
wheel-tire combinations (Y page 324).
R only use snow chains when driving on roads
completely covered by snow. Remove the
snow chains as soon as possible when you
come to a road that is not snow-covered.
R local regulations may restrict the use of
snow chains. Observe the appropriate
regulations if you wish to mount snow
chains.
R do not exceed the maximum permissible
speed of 30 mph (50 km/h).
i You may wish to deactivate
ESP ®
(Y page 64) when pulling away with
snow chains installed. You can thereby
allow the wheels to spin in a controlled
manner, achieving an increased driving
force (cutting action).
For more information on driving with the
emergency spare wheel, see (Y page 328). Winter operation
299Wheels and tires Z

event of a sudden loss of pressure, bring the
vehicle to a halt by braking carefully. Avoid
abrupt steering maneuvers.
The function of the tire pressure loss warning
system is limited or delayed if:
R snow chains are mounted on your vehicle's
tires.
R road conditions are wintry.
R you are driving on sand or gravel.
R you adopt a very sporty driving style
(cornering at high speeds or driving with
high rates of acceleration).
R you are driving with a heavy load (in the
vehicle or on the roof).
Restarting the tire pressure loss
warning system Restart the tire pressure loss warning system
if you have:
R
changed the tire pressure
R changed the wheels or tires
R mounted new wheels or tires
X Before restarting, make sure that the tire
pressures are set properly on all four tires
for the respective operating conditions.
The recommended tire pressure can be
found on the Tire and Loading Information
placard on the B-pillar on the driver's side
At ire pressure table is also affixed to the
fuel filler flap. The tir epressure loss
warning system can only give reliable
warnings if you have set the correct tire
pressure. If an incorrect tire pressure is set,
these incorrect values will be monitored.
X Observe the notes in the section on tire
pressures (Y page 300).
X Make sure that the SmartKey is in position
2(Y page 131) in the ignition lock.
X Press the 0002or0005 button on the
steering wheel to select the Servicemenu. X
Press the 0003or0004 button on the
steering wheel to select the Tire Pressure menu.
X Press the 000Bbutton.
The Run Flat Indicator Active Press 'OK' to Restart message
appears in the multifunction display.
If you wish to confirm the restart:
X Press the 000Bbutton.
The Tire Pressure Now OK? message
appears in the multifunction display.
X Press the 0003or0004 button to select
Yes .
X Press the 000Bbutton.
The Run Flat Indicator Restarted message appears in the multifunction
display.
After a teach-in period, the tire pressure
loss warning system will monitor the set
tire pressures of all four tires.
If you wish to cancel the restart:
X Press the 0006button.
or
X If the Tire Pressure Now OK? message
appears, use the 0003or0004 button to
select Cancel .
X Press the 000Bbutton.
The tire pressure values stored at the last
restart will continue to be monitored. Tire pressure monitor
General notes If a tire pressure monitor is installed, the
vehicle's wheels have sensors that monitor
the tire pressures in all four tires. The tire
pressure monitor warns you if the pressure
drops in one or more of the tires. The tire
pressure monitor only functions if the
corresponding sensors are installed on all
wheels.
Information on tire pressures is displayed in
the multifunction display.A
fter a few minutes304

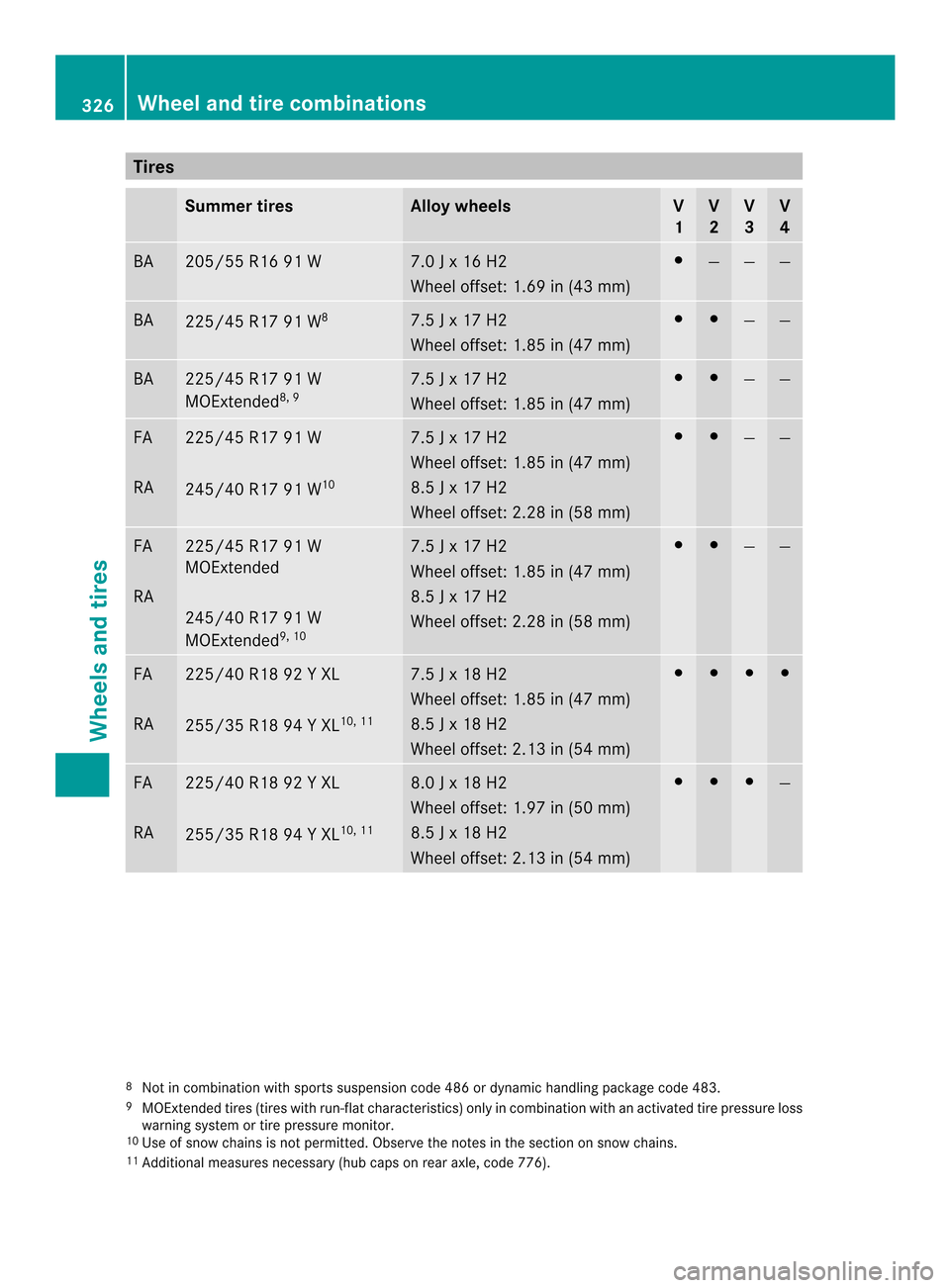

Tire pressureWheels and tires

Tires
Summer tires Allo
ywheels V
1 V
2 V
3 V
4 BA 205/55 R16 91 W 7.0 J x 16 H2
Wheel offset: 1.69 in (43 mm) 001C
— — —
BA
225/45 R17 91 W
8 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm) 001C 001C
— —
BA 225/45 R17 91 W
MOExtended
8, 9 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm) 001C 001C
— —
FA
RA 225/45 R17 91 W
245/40 R17 91 W
10 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm)
8.5 J x 17 H2
Wheel offset: 2.28 in (58 mm) 001C 001C
— —
FA
RA 225/45 R17 91 W
MOExtended
245/40 R17 91 W
MOExtended
9, 10 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm)
8.5 J x 17 H2
Wheel offset: 2.28 in (58 mm) 001C 001C
— —
FA
RA 225/40 R18 92 Y XL
255/35 R18 94 Y XL
10, 11 7.5 J x 18 H2
Wheel offset: 1.85 in (47 mm)
8.5 J x 18 H2
Wheel offset: 2.13 in (54 mm) 001C 001C 001C 001C
FA
RA 225/40 R18 92 Y XL
255/35 R18 94 Y XL
10, 11 8.0 J x 18 H2
Wheel offset: 1.97 in (50 mm)
8.5 J x 18 H2
Wheel offset: 2.13 in (54 mm) 001C 001C 001C
—
8
Not in combination with sports suspension code 486 or dynamic handling package code 483.
9 MOExtended tires (tires with run-fla tcharacteristics) only in combination with an activated tire pressure loss
warning system or tire pressure monitor.
10 Use of snow chains is not permitted. Observe the notes in the section on snow chains.
11 Additional measures necessary (hub caps on rear axle, code 776). 326
Wheel and tire combinationsWheels and tires

Summer tires Alloyw
heels V
1 V
2 V
3 V
4 FA
RA 235/40 ZR18 95
YXL
255/35 ZR18 94 YXL10 8.0 J x 18 H2
Wheel offset: 1.77 in (45 mm)
9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) — — — 001C
FA
RA 235/35 ZR19 XL
255/30 ZR19 XL
10 8.0 J x 19 H2
Wheel offset: 1.77 in (45 mm)
9.0 J x 19 H2
Wheel offset: 2.13 in (54 mm) — — — 001C
All-weathe
rtires Alloy wheels V
1 V
2 V
3 V
4 FA
RA 225/45 R17 91 H M+S
245/40 R17 91 H M+S
10 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm)
8.5 J x 17 H2
Wheel offset: 2.28 in (58 mm) 001C
— — —
FA
RA 225/40 R18 92 H XL M+S
255/35 R18 94 H XL
M+S
10, 11 7.5 J x 18 H2
Wheel offset: 1.85 in (47 mm)
8.5 J x 18 H2
Wheel offset: 2.13 in (54 mm) 001C 001C 001C 001C
FA
RA 225/40 R18 92 H XL M+S
255/35 R18 94 H XL
M+S
10, 11 8.0 J x 18 H2
Wheel offset: 1.97 in (50 mm)
8.5 J x 18 H2
Wheel offset: 2.13 in (54 mm) 001C 001C 001C
—
Winter tires Alloy wheels V
1 V
2 V
3 V
4 BA 205/55 R16 91 H M+S
0002 7.0 J x 16 H2
Wheel offset: 1.69 in (43 mm) 001C
— — —
BA 225/45 R17 91 H M+S
0002 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm) 001C 001C
— —
BA 225/40 R18 92 H M+S
0002 7.5 J x 18 H2
Wheel offset: 1.85 in (47 mm) 001C 001C 001C
—
10
Use of snow chains is not permitted. Observe the notes in the section on snow chains.
11 Additional measures necessary (hub caps on rear axle, code 776). Wheel and tire combinations
327Wheels and tires Z

Winter tires Alloy wheels V
1 V
2 V
3 V
4 BA 225/40 R18 92 H M+S0002 8.0 J x 18 H2
Wheel offset: 1.97 in (50 mm) 001C 001C 001C
—
BA 225/40 R18 92 V XL
M+S0002 8.0 J x 18 H2
Wheel offset: 1.77 in (45 mm) — — — 001C
BA 235/40 R18 95 V XL
M+S0002
10 8.0 J x 18 H2
Wheel offset: 1.77 in (45 mm) — — — 001C
FA
RA 235/40 R18 95 V XL
M+S0002
255/35 R18 94 V XL
M+S0002
10 8.0 J x 18 H2
Wheel offset: 1.77 in (45 mm)
9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) — — — 001C
Emergency spare wheel
Important safety notes
G
WARNING
The wheel or tire size as well as the tire type
of the spare wheel or emergency spare wheel
and the wheel to be replaced may differ.
Mounting an emergency spare wheel may
severely impair the driving characteristics.
There is a risk of an accident.
To avoid hazardous situations:
R adapt you rdriving style accordingly and
drive carefully.
R never mount more than one spare wheel or
emergency spare wheel that differs in size.
R only use a spare wheel or emergency spare
wheel of a different size briefly.
R do not switch ESP ®
off.
R have a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
Observe that the wheel and tire dimensions
as well as the tire type must be correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not exceed the maximum speed of 50 mph
(80 km/h).
Snow chains must not be mounted on
emergency spare wheels. General notes
You should regularly check the pressure of
the emergency spare wheel, particularly prior
to long trips, and correct the pressure as
necessary (Y page 300). The applicable value
is found on the wheel or under "Technical
data" (Y page 324).
i When you are driving with the collapsible
spare wheel mounted, the tire pressure
loss warning system or the tire pressure
monitor cannot function reliably. Only
restart the tire pressure loss warning
system/the tire pressure monitor when the
damaged wheel has been replaced with a
new wheel.
Vehicles with tire pressure monitor:
after mounting an emergency spare wheel,
the system may still display the tire
pressure of the removed whee lfor a few
minutes. The value displayed for the
10 Use of snow chains is not permitted. Observe the notes in the section on snow chains. 328
Emergency spare wheelWheels and tires

Technical data
"Minispare
"emergency spare wheel 12Tires Wheels V
1 V
2 V
3 V
4 T 125/9
0 R16 98 M
Tire pressure : 420 kPa (4.2 bar/
61 psi) 3.5 B x 16 H2
Wheel offset: 0.79 in (20 mm) 001C
— 001C
—
T 125/80 R17 99 M
Tire pressure: 420 kPa (4.2 bar/
61 psi) 3.5 B x 17 H2
Wheel offset: 0.79 in (20 mm) — 001C
— —
T 125/70 R18 99 M
Tire pressure: 420 kPa (4.2 bar/
61 psi) 3.5 B x 18 H2
Wheel offset: 0.79 in (20 mm) — — — 001C
i
The specified tire pressure is printed in yellow on the emergency spare wheel.
12 Use of snow chains not permitted. Observe the notes in the section on snow chains. 330
Emergenc
yspare wheelWheels and tires
