2014 MAZDA MODEL MX-5 MIATA PRHT dashboard

Black plate (8,1)
Interior Equipment (View A)
Door-lock knob .................................................................................................. page 3-31
DSC OFF switch ............................................................................................... page 5-28
Lighting control ................................................................................................. page 5-56
Turn and lane-change signal .............................................................................. page 5-58
Dashboard illumination knob ............................................................................ page 5-41
Instrument cluster .............................................................................................. page 5-37
Wiper and washer lever ..................................................................................... page 5-59
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-73
Hood release handle .......................................................................................... page 3-41
Trunk release button .......................................................................................... page 3-33
Outside mirror switch ........................................................................................ page 3-73
1-2
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Interior Overview
MX-5_8DG6-EA-13F_Edition3 Page8
Monday, December 16 2013 2:10 PM
Form No.8DG6-EA-13F

Black plate (37,1)
Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include up to 4 air bags.Please
verify the air bags equipped on your vehicle by locating the “SRS AIRBAG ”location
indicators. These indicators are visible in the area where the air bags are installed.
The air bags are installed in the following locations:
lThe steering wheel hub (driver air bag)lThe passenger dashboard (passenger air bag)lThe outboard sides of the seatbacks (side air bags)í
The air bag supplemental restraint systems are designed to provide supplemental protection
in certain situations, so seat belts are always important in the following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
lKeep the occupant from being thrown into an inflating air bag.lReduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
lReduce the possibility of injuries in frontal, near frontal, side collisions that are not
severe enough to activate the air bags.
lReduce the possibility of being thrown from your vehicle.lReduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
lHold the driver in a position which allows better control of the vehicle.
If your vehicle is also equipped with a driver and passenger occupant classification
system, refer to the Driver and Passenger Occupant Classification System (page 2-37)
for details.
If your vehicle is equipped with a driver and passenger occupant classification system, the
passenger air bag deactivation indicator light illuminates for a specified time after the
ignition is switched ON.
Essential Safety Equipment
SRS Air Bags
2-25íSome models.
MX-5_8DG6-EA-13F_Edition3 Page37
Monday, December 16 2013 2:10 PM
Form No.8DG6-EA-13F

Black plate (43,1)
qPassenger Air Bag
The passenger air bag is mounted in the passenger dashboard.
The inflation mechanism for the passenger air bag is the same as the driver's air bag, as
mentioned above.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria ”
(page 2-34).
In addition, the passenger air bag is designed to only deploy in accordance with the total
seated weight on the passenger seat. For details, refer to the driver and passenger occupant
classification system (page 2-37).
Essential Safety Equipment
SRS Air Bags
2-31
MX-5_8DG6-EA-13F_Edition3 Page43
Monday, December 16 2013 2:10 PM
Form No.8DG6-EA-13F

Black plate (54,1)
WARNING
Do not operate a vehicle with damaged air bag/seat belt pretensioner system
components:Expended or damaged air bag/seat belt pretensioner system components must be
replaced after any collision which caused them to deploy or damage them. Only a
trained Authorized Mazda Dealer can fully evaluate these systems to see that they
will work in any subsequent accident. Driving with an expended or damaged air bag
or pretensioner unit will not afford you the necessary protection in the event of any
subsequent accident which could result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as the seats, dashboard, the steering wheel or parts
on the front and rear window pillars and along the roof edge, containing air bag
parts or sensors is dangerous. These parts contain essential air bag components. The
air bag could accidentally activate and cause serious injuries. Always have an
Authorized Mazda Dealer remove these parts.
Dispose of the air bag properly: Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are followed, injury can result. Ask an
Authorized Mazda Dealer how to safely dispose of an air bag or how to scrap an air
bag equipped vehicle.
NOTE
If it becomes necessary to have the components or wiring system for the supplementary restraint
system modified to accommodate a person with certain medical conditions in accordance with a
certified physician, contact an Authorized Mazda Dealer, refer to “Customer Assistance (U.S.A.) ”
(page 9-2).
2-42
Essential Safety Equipment
SRS Air Bags
MX-5_8DG6-EA-13F_Edition3 Page54
Monday, December 16 2013 2:10 PM
Form No.8DG6-EA-13F

Black plate (58,1)

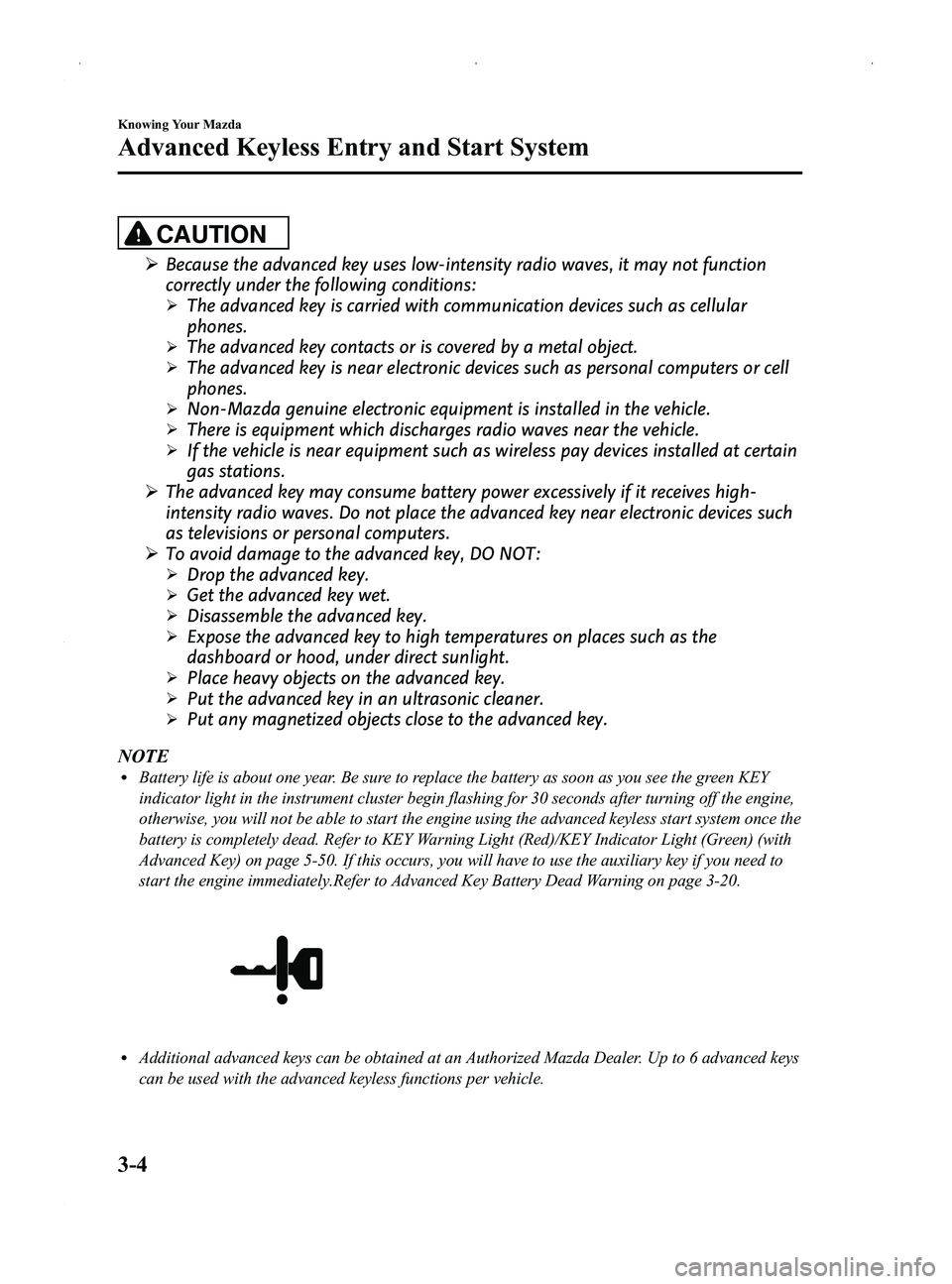

CAUTION
ØBecause the advanced key uses low-intensity radio waves, it may not function
correctly under the following conditions:
ØThe advanced key is carried with communication devices such as cellular
phones.
ØThe advanced key contacts or is covered by a metal object.
ØThe advanced key is near electronic devices such as personal computers or cell
phones.
ØNon-Mazda genuine electronic equipment is installed in the vehicle.
ØThere is equipment which discharges radio waves near the vehicle.
ØIf the vehicle is near equipment such as wireless pay devices installed at certain
gas stations.
Ø The advanced key may consume battery power excessively if it receives high-
intensity radio waves. Do not place the advanced key near electronic devices such
as televisions or personal computers.
Ø To avoid damage to the advanced key, DO NOT:
ØDrop the advanced key.
ØGet the advanced key wet.
ØDisassemble the advanced key.
ØExpose the advanced key to high temperatures on places such as the
dashboard or hood, under direct sunlight.
ØPlace heavy objects on the advanced key.
ØPut the advanced key in an ultrasonic cleaner.
ØPut any magnetized objects close to the advanced key.
NOTE
lBattery life is about one year. Be sure to replace the battery as soon as you see the green KEY
indicator light in the instrument cluster begin flashing for 30 seconds after turning off the engine,
otherwise, you will not be able to start the engine using the advanced keyless start system once the
battery is completely dead. Refer to KEY Warning Light (Red)/KEY Indicator Light (Green) (with
Advanced Key) on page 5-50. If this occurs, you will have to use the auxiliary key if you need to
start the engine immediately.Refer to Advanced Key Battery Dead Warning on page 3-20.
lAdditional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6 advanced keys
can be used with the advanced keyless functions per vehicle.
3-4
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8DG6-EA-13F_Edition3 Page58
Monday, December 16 2013 2:10 PM
Form No.8DG6-EA-13F

Black plate (62,1)
Opening the trunk lid
The operational range for opening the
trunk lid is an area of up to 80 cm (31 in)
from the center of the trunk lid.
Exterior transmitter
Operational range
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area.
Operational range
Interior transmitter
NOTElThe trunk is out of the operational range,
however, starting the engine may be
possible.
lThe engine may not start if the advanced
key is placed in the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
lOn the rear parcel shelflStarting the engine may be possible even if
the advanced key is outside of the vehicle
and extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and driven away
while the advanced key is not in the vehicle,
the vehicle will not restart after it is turned
off and the ignition is switched off.
lIf the advanced key is detected within
operational range, the operation indicator
light on the transmitter flashes
momentarily.
q
Locking, Unlocking the Doors
with Request Switch
Both doors can be locked/unlocked by
pressing the request switch on a door
while the advanced key is being carried.
Request switch
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8DG6-EA-13F_Edition3 Page62
Monday, December 16 2013 2:10 PM
Form No.8DG6-EA-13F

Black plate (78,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry System (with
Retractable Type Key)
í
This system remotely locks and unlocks
the doors, and opens the power windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-26).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
3-24
Knowing Your Mazda
íSome models.
Doors and Locks
MX-5_8DG6-EA-13F_Edition3 Page78
Monday, December 16 2013 2:10 PM
Form No.8DG6-EA-13F

Black plate (117,1)
Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØA key ring rests on the auxiliary
key grip.
ØMetal parts of other keys or metal
objects touch the auxiliary key
grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
Knowing Your Mazda
Security System
3-63
MX-5_8DG6-EA-13F_Edition3 Page117
Monday, December 16 2013 2:10 PM
Form No.8DG6-EA-13F
