SHIFT POSITION
IN DI CAT OR LIGHT S
PEE DOME TER
Instrument Cluster
TPMS NOTE: Low ambient temperature and/or high altitude causes tire pressures to drop
and may turn the TPMS warning light on. If the warning light comes on, check the tire pressure
and fll the tires as soon as possible, preferably before moving the vehicle and warming up the
tires. Initialize system (p. 16). Tire pressure should be checked when the tires are cold.
T ACHOMETERAMB IENT
T EMPER AT U R E
TYPE A & B CLUSTER GLOSSARY WARNING AN D IN DICA TOR LIGHTS
NOTE:
See Owner’s Manual for more details and explanations.
Type A cluster is
shown. Ty pe B
clus ter is similar,
but with warning
lights in different
locations.
The instrument cluster has a dimmer function that can be
cancelled to make the illumination brighter during the day
when the headlights are on. If the illumination
is too dim during the day, push the knob,
or if the illumination does not dim when
turning on the headlights at night,
push the knob. When dimmed,
rotate the knob to adjust the
brightness of the illumination.
Lane
Depar ture Warning
System On ( AMBER)/
Lan e Detected ( GREEN ) ( p . 17 )
AFS
OFF

Ada
ptive Front Lighting System
(AFS) OFF ( p. 14)

Tr a
ction Control System (TCS)/
D yna mic Stability Control ( DSC) On: TCS/DSC malfunction
Flashing: TCS/DSC operating
BSM OFF

B
SM OFF ( Blin d Spot
Monitoring) (pp. 25-26)
OFF
D
yna mic Stability Control
(D SC) O ff Indicator Light
SPORT Mode On ( p. 19)

Lights On (Exterior) ( p . 11)
High Beam Control On ( p. 13)

Headlight High B eams On

Air Bag/Front Seat Belt
Pretensioner System
Malfunction
Chec
k Engine Light

Sea
t B elt Un buckled/
Malfunction

Tu r
n Signals/Hazard
Warning Indicator Lights

Tire
Pressure Monitoring System
(TPMS) Warning Light ( p. 18) On/Warning Beep: Low tire pressure in one
or m ore tires. Flashing: TPMS Malfunction

Cru
ise Main Indicator Light
On ( AMB ER)/C ruise Set
Indicator Light On ( GREEN )

Mazda Radar Cruise Control
War ning Light On ( AMBER)
Set Indicator ( GREEN )
(pp. 15-16)

ABS (Antilock B rake
System) Malfunction

Shi
ft Position Indicator Light

Secu
rity Indicator Light

11
Lights
LIGHTING CONTROL/TURN SIGNAL LEVER
: Turns tail, parking, dashboard,
an d headlights on.
: Turns tail,
pa rking, and
dashboard
lights on.
Pull
to Flash
High Beams Pu
sh for
High Beams
NOTE: The DRL (Daytime Running Lights) automatically turn on when the ignition is
switched ON. To disable/enable this feature see your Authorized Mazda Dealer.
AUTO: The light sensor
automatically determines
when to turn the headlights
on or off.: Turns fog lights
on on ly when
headlights
are on.
Smart Turn: To signal a lane
change, push the turn signal lever
up or down halfway and release.
After releasing the lever, the turn
signal indicator will fash three times.
(Refer to page 6 or Owner’s Manual
for “Personalization Features”)

13

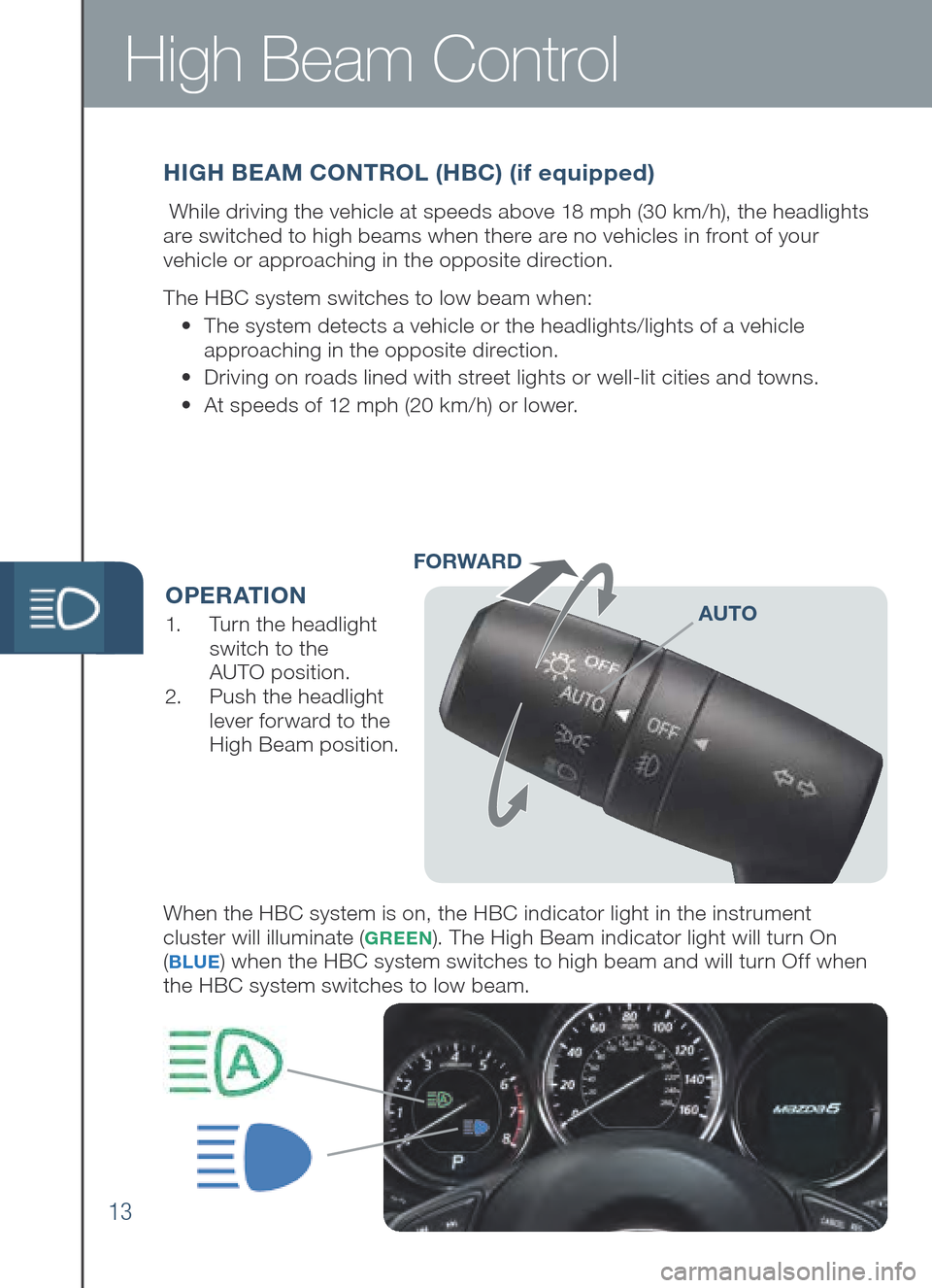

High Beam Control
1. Turn the headlight
switch to the
AUTO position.
2. Push the headlight
lever forward to the
High Be am po sition.
When th e HB C system is on , th e HB C indicator li ght in th e in strument
clus ter will illuminate (
GREEN). The High Beam indicator light will turn On
(B LUE) when the HBC system switches to high beam and will turn Off when
the HB C sy stem switches to lo w be am.
HIGH BEAM CONTROL (H BC) (if equipped)
While driving the vehicle at speeds above 18 mph (30 km/h), the headlights
are switched to high beams when there are no vehicles in front of your
vehicle or approaching in the opposite direction.
The HB C sy stem switches to lo w be am wh en:
• The s ystem detects a vehicle or the headlights/lights of a vehicle
approaching in the opposite direction.
• Driving on roads lined with street lights or well-lit cities and towns.
• At speeds of 12 mph (20 km/h) or lower.
OPERATIONAUTO
FORWAR
D

14
Headlightswww.MazdaUSA.com
Push AFS OFF to turn
system off or on. When off,
AFS OFF illuminates in the
instrument panel.
With AFS
Without AFS
ADAPTIVE FRONT-LIGHTING SYSTEM (AFS) (if equipped)
The adaptive front-lighting system (AFS) automatically turns the
headlight beam to the right or left in conjunction with the direction of
the steering wheel.
The AFS improves the direction of headlight illumination while cornering, and
only works when the vehicle is moving.
NOTE:
• With AFS, it is normal to see the headlights move and hear the sound of the
he adlight leveling motors at the front of the vehicle when the ignition is ON.
•
The system will need to be reset if the vehicle battery has been disconnected
or the system fuse has been replaced. Please refer to your Owner’s Manual for
easy to follow resetting instructions.
